User Manual for Platinum Tools LANSeeker Cable Tester Click to enlarge the picture
Contents of the user manual for the Platinum Tools LANSeeker Cable Tester
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
 |
User manual for the Platinum Tools LANSeeker Cable Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|

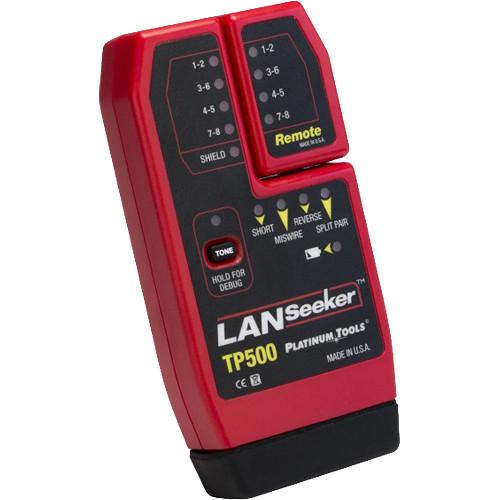

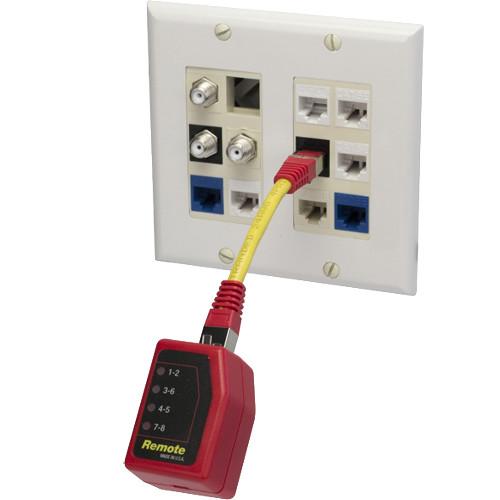

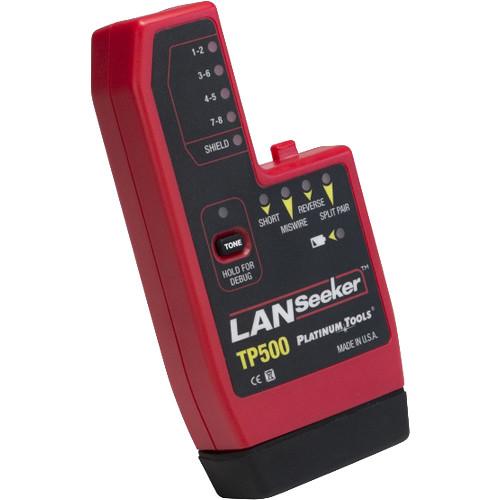

Product description Useful for residential and commercial cable installers, the Platinum Tools LANSeeker is a cable tester and tone generator designed to test the usability of Ethernet cables. It identifies shorts, miswires, opens, reverses and split pairs, with a debug mode that diagnoses faults one pair at a time, displaying them on LED indicators on the main and remote unit. The LED monitors battery status as well.
The LANSeeker generates audio tones, making it suitable for use with tone tracers. Running off of a single 9V battery, the unit sports a relatively long battery life, giving you 20 hours of testing, 170 hours of audio tone, and 2.5 years of life in standby. Indeed, the battery lasts so long there is no off-switch; the tester automatically powers on within two seconds upon sensing a cable connection, and switches off within five seconds of sensing a cable disconnection. - Key Features at a Glance
-
- Works with Cat 7, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4 or Cat 3 connections—shielded or unshielded
- Displays cable test results on main and remote units in less than two seconds
- Immediately detects shorts by just plugging in one end of a cable to the tester
- Identifies shorts, opens, miswires, reversed and split pairs
- No on/off switch, automatically starts test when a connection is sensed between main and remote unit
- Debug mode diagnoses and displays faults one pair at a time
- Includes tone generator

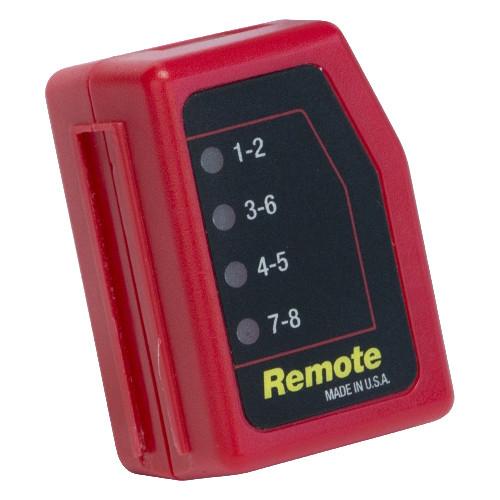

- Self-stored remote
- Made in the USA
UPC: 849160008286 In the Box Platinum Tools LANSeeker Cable Tester Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools LANSeeker Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TP500C Specs | Battery Life (approx.) | Standby: 2.5 years
Cable Testing: 20 hours
Tone Mode: 170 hours | | Cable Types | Cat 7, Cat 6a, Cat 6, Cat 5e, Cat 5, Cat 4, and Cat 3 (shielded or unshielded) | | Cable Length | Minimum Cable Length for Testing for Split Pairs: 3.3' / 1.0 m
Maximum Cable Length for Testing: 1000.7' / 305.0 m | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 158°F / -20 to 70°C | | Humidity (Non-Condensing) | 10 to 90% | | Dimensions (L x W x H) | 5.7 x 2.8 x 1.2" / 14.5 x 7.2 x 3.0 cm | | Weight | 5.7 oz / 162 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 9.1 x 5.1 x 1.5" |
