Product description The Net Prowler PRO Test Kit from Platinum Tools combines network testing, cable verification, cable troubleshooting, and PoE voltage testing in a handheld tester. It features a full-color display and is capable of saving and printing test results from a personal computer. When testing networks, the Net Prowler can ping both IPV4 and IPV6 addresses, test TCP/UDP throughput, detect and report link speed and link duplex capability, and test the presence of VLANs. There is CDP/LLDP/NDP and VLAN identification for providing network configuration information, and a link light which blinks to identify locations on a hub, switch, or router port. You can also ping a specific URL to verify WAN connectivity and display network devices and associated IP addresses.
The Net Prowler provides full cable testing on any category network, coax, or telephone cable. It displays wire map, numbered ID remotes, and any faults including shorts, opens, miswires, split pairs, and reverses. The TNP850K1 also allows you to measure cable length using TDR technology, and generate tone levels for signal tracing and cable identification on all pairs, a selected pair, or a selected pin. The device enables quick identification of a network's drop link capability and current link status. It tests the presence of PoE on the network drop and what class of PoE per IEEE 805.3 af/at with load test for voltage drop. The network tests can also be saved for record keeping and printing. - Can save and print test results from a personal computer
- Full cable testing on any category network, coax, or telephone cable
- Network tests can be saved for record keeping and printing
- Supports IPV4 and IPV6 protocols
- Verifies DHCP connectivity and DNS
- Link light identifies location on a hub, switch, or router port
- Supports up to eight testing and ID remotes for network and telephone cables
- Supports up to 20 network and coax ID-only mapping remotes

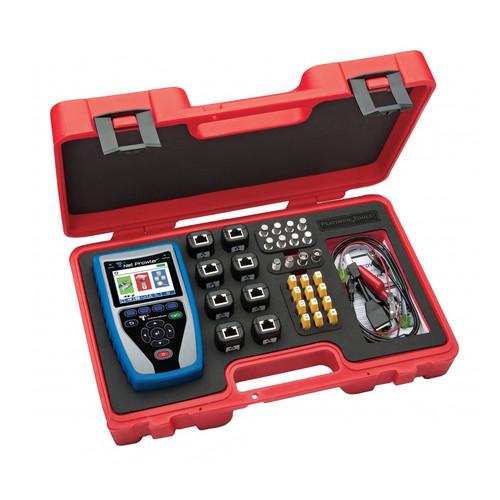

UPC: 849160007272 In the Box Platinum Tools Net Prowler PRO Test Kit Net Prowler Main Unit 8 x Numbered Network/Tel Test & ID Smart Remotes 8 x Numbered ID & Test Coax Remote Set 12 x Numbered ID-Only Data Remote Set Micro USB Cable 2 x No-Fault Cable RJ45 Port Saver RJ45 Alligator (12") 2 x F81 Adapter (F Female to F Female) BNC Female to F Female Adapter BNC Female to F Male Adapter Durable Plastic Case 6 x AA Alkaline Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools Net Prowler PRO Test Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TNP850K1 Specs | Technology Supported | Time Domain Reflectometry (TDR) | | Cable Length | Cable Testing and ID: Up to 10,000' / 3,048 m
Split Pair Detection: 3' / 0.9 m to 10,000' / 3,048 m
Length Measurement: 0 to 1,500' / 457.2 m, 5%+1' / 0.3 m | | Power Over Ethernet | Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
Tests for classes and loads cable up to 25.5 W
At Class 4: Identifies mode A or B (pairs with PoE) | | Active Ethernet | Indicates speeds of 10/100/1000BASE-T half or full-duplex
Can link to network at 10/100BASE-T | | Maximum Voltage | RJ Jack: 66 VDC or 55 VAC
F Connector: 50 VDC or VAC | | Storage | Stores up to 250 cable or network tests with user-defined names | | Tone Frequency | 730 Hz and 1440 Hz | | Supports | 8 x Continuity and ID number remotes (RJ45)
20 x RJ45 connector ID-only remotes
20 x F connector ID-only remotes | | Operating Battery Life | 6 x AA alkaline batteries (9 VDC; 2200 mAh; 20-hour) | | Standby Battery Life | 6 x AA alkaline batteries (9 VDC; 2200 mAh; 1.5-year) | | Languages | English, French, Spanish | | Altitude | Operating: 10,000' / 3,048 m | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Humidity | 10 to 90%, non-condensing | | Approvals and Compliance | CE | | Housing | PC/ABS plastic with VO rating with boot
Can withstand 4' / 1.2 m drops onto concrete | | Dimensions | With Batteries: 1.9 x 3.6 x 6.8" / 4.7 x 9.1 x 17.3 cm | | Weight | 18 oz / 510 g | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 14.9 x 10.1 x 3.1" |
