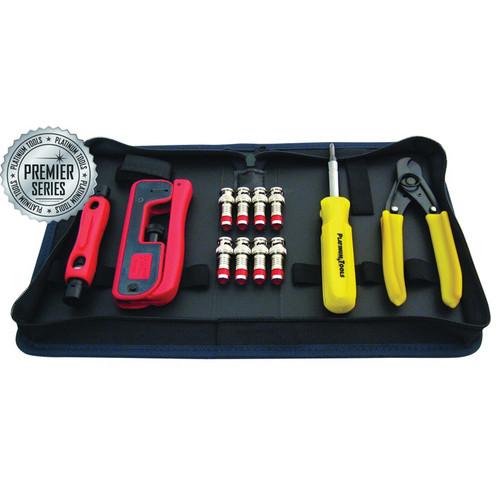

Product description The Platinum Tools Premier CCTV Connectivity Kit delivers a practical solution and offers the right mix of products that will withstand tough jobs. This kit contains a Coax & Round Wire Cable Cutter, Double-Ended Coax Stripper (RG7/11/213 & RG59/6/6Q), SealSmart II Compression Crimp Tool, 6-in-1 Screwdriver, and SealSmart BNC Connectors for RG59 Cable (8 Pieces), all in a nylon zippered case. The tools are rugged and easy-to-use, carefully selected to make you more productive and ensure that terminations are done right, the first time.
The 10500C Coax & Round Wire Cable Cutter is durable and economically designed to cut solid and stranded wires to 8 AWG, multi-conductors, and coaxial cables up to a diameter of 1.5" (38.1mm). It features a curved and precision-ground blade that will not deform the conductors or dielectric and is stamped from high carbon tool steel and heat, which is treated for long life.
The 15020C Double-Ended Coax Stripper quickly and easily strips a broad range of coax cables in a single step without any adjustments. The blades are designed to produce a 1.25" (31.75mm) braid, 2-level strip, the standard for compression connectors.
The 16220C SealSmart II Compression Crimp Tool easily terminates F, RCA, and BNC compression-style connectors without changing adapters. The universal head easily adjusts to the proper crimp stroke, making it compatible with standard compression connectors.
The 19001C 6-in-1 Screwdriver is a versatile tool, which is a must for any tool belt. It has double-ended reversible bits with ball detent retention and S2 alloy steel bits for long life. The high-impact plastic handle is molded and ergonomic.
The 18041 SealSmart BNC Connectors for RG59 Cable (8 Pieces) allow for simple, fast, and reliable termination and provide an ideal solution for CATV, DSS, security, home theater, and residential structured wiring installations. 10500C Coax & Round Wire Cable Cutter: - Cuts solid and stranded wires up to 8 AWG
- Cuts multi-conductor cables up to a diameter of 1.5" (38.1mm)
- Cuts coaxial cables without deforming the dielectric
- Spring loaded with locking latch
15020C Double-Ended Coax Stripper: - Works with RG7/11/213/8 and RG59/6/6 Quad cables
- Quickly removes cable jacket and dielectric
- Preset; requires no adjustments
- Compact, lightweight, and simple operation
16220C SealSmart II Compression Crimp Tool: - Crimps all standard F, RCA, BNC, and right-angle compression-style connectors
- Works with RG-59, RG-6, RG-6 Quad, and Mini RGB coax cables
- Lock washer holds head in place once adjusted to proper crimp stroke
19001C 6-in-1 Screwdriver: - Includes #1 and #2 Phillips
- Includes #5 and #7 Slotted
- Includes 1.25" (31.75mm) and 5.312" (134.92mm) nut drivers
18041 SealSmart BNC Connectors for RG59 Cable (8 Pieces): - Molded-in gasket provides a weather-tight seal at cable entry
- Single crimp termination with captive center-contact design
- Universal crimp tool terminates all 3 SealSmart Connector designs
UPC: 849160002765 In the Box Platinum Tools Premier CCTV Connectivity Kit 10500C Coax & Round Wire Cable Cutter 15020C Double-Ended Coaxial Cable Stripper 16220C SealSmart II Compression Crimp Tool 19001C 6-in-1 Screwdriver 8 x BNC-Type Nickel SealSmart Coaxial RG59 Connector (25 Pieces Bulk Packaging) 4001NPT Heavy-Duty Reinforced Nylon Zippered Case Product Instructions 1-Year Warranty Table of Contents
|
