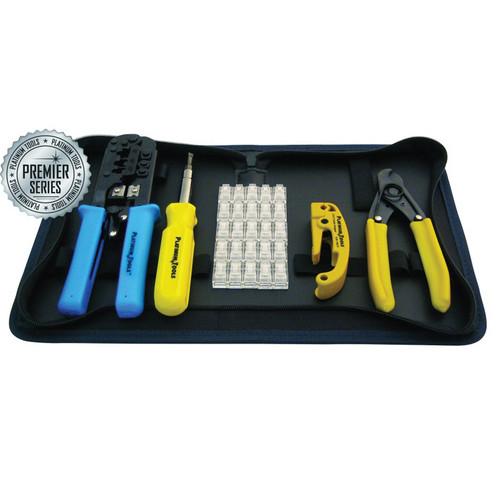

Product description The Platinum Tools Premier Data CCTV Connectivity Kit delivers a practical solution and offers the installer a balanced mix of products that are known to withstand tough jobs repeatedly. The kit also provides essential tools and connectors required for data network installations. This connectivity kit features Coax & Round Wire Cable Cutter, CAT5/6 Cable Jacket Stripper, All-In-One Modular Plug Crimp Tool (Ratcheted), 6-in-1 Screwdriver, and RJ45 (8P8C) CAT5e Modular Plug 3-Prong Solid Wire, all in a rugged nylon zippered case.
The 10500C Coax & Round Wire Cable Cutter is durable and economically designed to cut solid and stranded wires to 8 AWG, multi-conductors, and coaxial cables up to a diameter of 1.5" (38.1mm). It features a curved and precision-ground blade that will not deform the conductors or dielectric and is stamped from high carbon tool steel and heat, which is treated for long life.
The 15015C CAT5/6 Cable Jacket Stripper is an economical tool that strips the cable jacket from Category 5, 5e, and 6 twisted pair cables with professional results. It features a long life blade specifically designed to self-adjust to prevent nicks to the inner conductors. This durable and high impact plastic housing is molded in yellow to make it easy to locate.
The 12503C All-In-One Modular Plug Crimp Tool (Ratcheted) combines a rugged design with multipurpose functions for all telecom and network installers working with RJ45, RJ12, RJ11 and RJ22 (handset) modular plugs. It is manufactured to provide reliable terminations every time.
The 19001C 6-in-1 Screwdriver is a versatile tool, which is a must for any tool belt. It has double-ended reversible bits with ball detent retention and S2 alloy steel bits for long life. The high-impact plastic handle is molded and ergonomic.
The 106150 RJ45 (8P8C) CAT5e Modular Plug (3-Prong Solid Wire, 25 Pieces) is a traditional crimp WE/SS-style modular plug, which is used in terminating cables in both telephone and data applications. Manufactured to comply with FCC 68 guidelines and is UL listed. 10500C Coax & Round Wire Cable Cutter: - Cuts solid and stranded wires up to 8 AWG
- Cuts multi-conductor cables up to a diameter of 1.5" (38.1mm)
- Cuts coaxial cables without deforming the dielectric
- Spring loaded with locking latch
15015C CAT5/6 Cable Jacket Stripper: - Removes the cable jacket on Category 5, 5e, and 6 cables
- Accepts cable diameters from 0.18" to 0.25" (4.5 to 6.3mm)
- No adjustments required; easily switch from one cable type or insulation to another
- Does not nick inner conductors
- Recommended for PVC cable jackets
12503C All-In-One Modular Plug Crimp Tool (Ratcheted): - Works with RJ45 / 12 / 11 / 22 modular plugs with CAT5, 5e, and 6 cables
- Three separate crimp cavities for 4, 6, and 8 position modular plugs
- Ratchet mechanism with quick release assures optimum termination
- Built-in round and flat (silver satin) cable strippers and cable cutter
19001C 6-in-1 Screwdriver: - Includes #1 and #2 Phillips
- Includes #5 and #7 Slotted
- Includes 1.25" (31.75mm) and 5.312" (134.92mm) nut drivers
106150 RJ45 (8P8C) CAT5e Modular Plug (3-Prong Solid Wire, 25 Pieces): - Multiple position and contact configuration styles available
- Round & flat cable versions
- 2-prong stranded conductor contact
- 3-prong solid conductor contact
- Gold-plated contacts provide reliable performance and long life
- Complies with FCC 68 guidelines
- UL94V-2 flammability rating
- Contact material: Phosphor bronze
- Applications: Telecommunications and data communications
UPC: 849160002772 In the Box Platinum Tools Premier Data CCTV Connectivity Kit 10500C Coax & Round Wire Cable Cutter vqdfcsbvweacrrrartwrxs Cat5/6 Cable Jacket Stripper vqdfcsbvweacrrrartwrxs 12503C All-In-One Modular Plug Crimp Tool 19001C 6-in-1 Screwdriver CAT5e RJ45-8P8C Modular Connector (Bag Packaging, 500-Pieces) vqdfcsbvweacrrrartwrxs 4001NPT Heavy-Duty Reinforced Nylon Zippered Case Product Instructions 1-Year Warranty Table of Contents
|
