User Manual for Platinum Tools PRO-Strike Punchdown Tool with 66 Blade Click to enlarge the picture
Contents of the user manual for the Platinum Tools PRO-Strike Punchdown Tool with
- Product category: Installation & Maintenance Tools Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Installation & Maintenance Tools
 |
User manual for the Platinum Tools PRO-Strike Punchdown Tool with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|

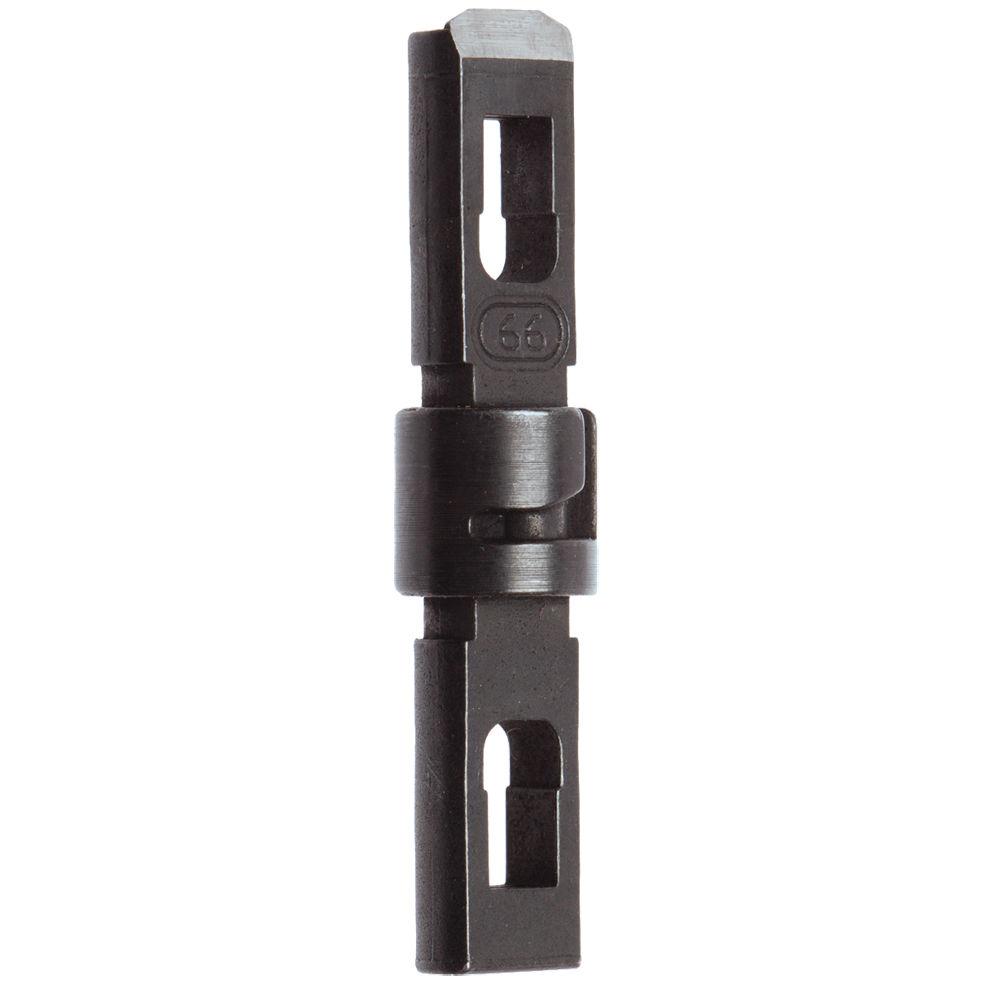

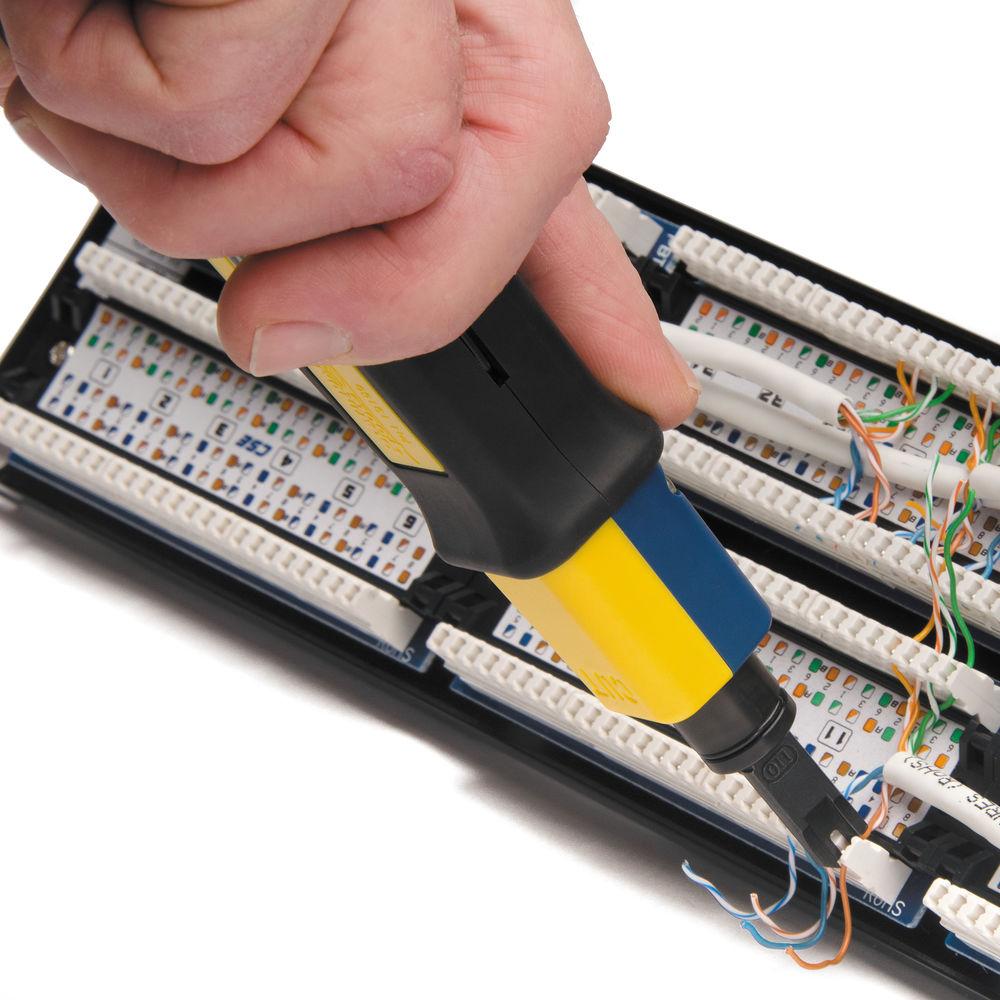

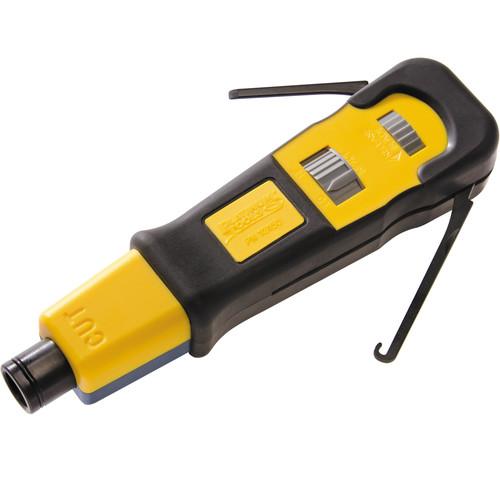

Product description The PRO-Strike Punchdown Tool with 66 Blade from Platinum Tools is a primary tool for all telecom and datacom installers working with 110, 66, Krone and BIX style cross connects. The Punchdown tool combines rugged design, an ergonomic comfort grip handle and enhanced functions. It provides precise and repeatable termination that helps to ensure installations pass certification. - Terminate and cut CAT3/5/5e/6 cables
- Terminate and trim wires in 66, 110, Krone and BIX style cross connect blocks and in 110 and 630 style wall jack modules
- Spring loaded for quick, low effort wire seating and termination
- Bayonet style (twist and lock) blade retention socket is compatible with industry standard tools and blades
- Built-in hook feeds or removes wire
- Multi-use spudger for screwdriver, IDC insert tool or to clean debris
- Color coded yellow on the cut side of the tool per industry standard
- Adjustable low and high force impact settings are precisely controlled to meet the industry standard 8762D specification
- Damage-free sensitive circuitry
- Spare blade storage compartment in the handle
UPC: 849160006473 In the Box Platinum Tools PRO-Strike Punchdown Tool with 66 Blade 1 x 66 Blade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools PRO-Strike Punchdown Tool with 66 Blade in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools 13155C Specs | Compatibility | CAT3/5/5e/6 cables | | Dimensions | 6.0 x 1.5 x 1.0" (152.4 x 38.1 x 25.4 mm) | | Weight | 5.7 oz (161.6 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 10.0 x 2.1 x 1.3" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
