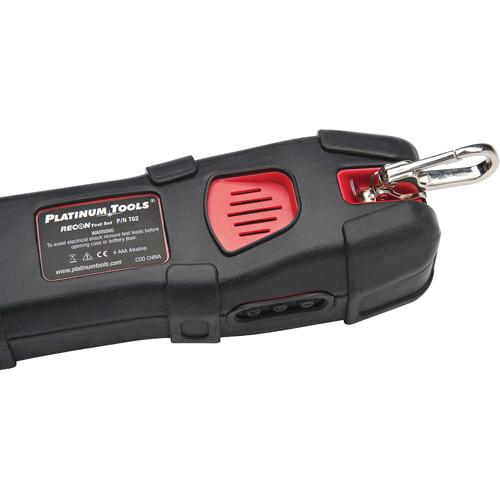

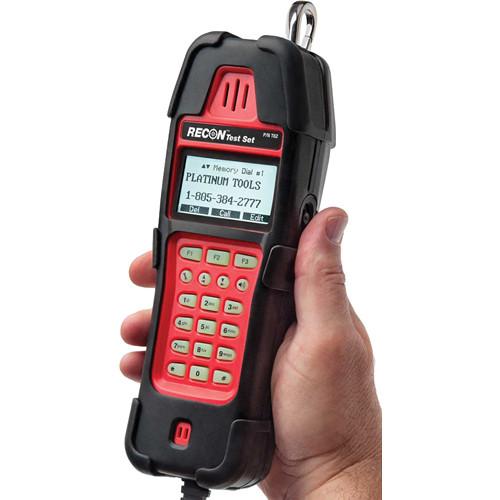

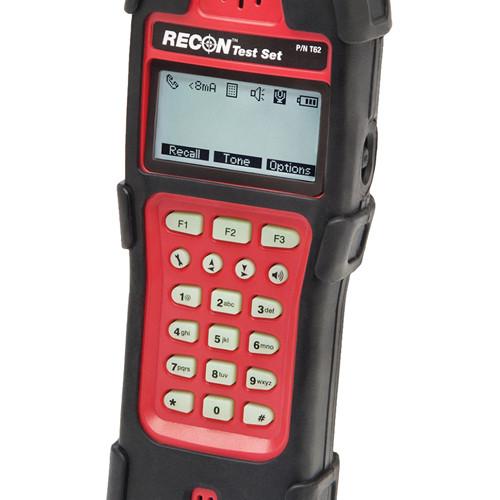

Product description The T62 Recon Test Set by Platinum Tools is a self-contained, battery-powered, telecommunication line analyzer for use by installers and repair technicians. Its state-of-the-art design makes it rugged and water resistant. The Recon Test Set is ideal for temporary communication, servicing and installing telephone and data lines. It comes with a protective silicone boot as well as a deluxe cord set made from nylon cloth covered test lead wire. This field instrument delivers extensive information of online conditions and status. - General Features
-
- Advanced data detection & identification
- Large backlit display for low light environments
- Glow-in-the-dark keypad
- 100% data safe
- Rugged weatherproof case, IP54 Standard
- Drop proof (tested at 20ft)
- Digital Protection Features
-
- Data Defender Data line-in-use capability
- High line voltage detection with next step options
- Data measurement options
- Active monitor circuitry minimizes load on subscriber line
- DTMF digit detection and display in monitor mode
- DigitView, DTMF decode sees defects on customer equipment while dialing out
- PwrSave circuitry for long battery life
- Other Features and Functions
-
- Speaker with fine volume adjustment
- Noise cancelling microphone
- Microphone mute with toggle on/off locking feature
- Soft key menu system
- Metal spring-loaded belt clip
- Cushion boot for extra protection
- Amplified Line Monitor for volume levels comparable to "off hook" operation
- 8 number Stored memory with Alpha/Numeric tags
- Continuous Polarity Indication
- Caller ID/Call Waiting and Caller ID error detection
- Tone and Pulse dialing
- Configurable Auto Off in all modes
- Detects and identifies DSL and T1 lines
- Last number dialed, redialed or received
- Backlight 0-100% adjustable with on/off option
- Adjustable earpiece volume, hearing aid compatible
- Ring amplitude and frequency
- On-hook and call waiting Caller ID info
UPC: 849160004943 In the Box Platinum Tools T62 Recon Test Set 60" (152.4cm) Bed-of-Nails Cord Set 4 x AAA Alkaline Batteries Limited 18-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools T62 Recon Test Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools T62 Specs | Interface | Attached cord set, 60" (152.4 cm) | | Languages | English, Spanish and French | | Ringer Equivalence | In BELL mode: 0.0 (no ringer load) | | Pulse Dialing | Pulse rate: 10 pps ± 10%;
Make/break ratio: 60% to 40% ±2%; USA
Interdigit interval: 820 mS;
Resistance during break: 120kΩ minimum | | Tone Dialing | DTMF output (into 600Ω):
Tone-frequency error: ±1.5%;
Tone Level:
High group: -6 ±2 dBm;
Low group: -8 ±2 dBm;
High group vs. Low group difference
(twist): 2 ±1 dBm | | Flash Duration | 600 ±50 mS | | Pause Duration | Tone: 3 seconds;
Pulse: 3.4 seconds | | Memory | 8 programmable locations, 32 digits with 12 character tag, stored in non-volatile memory. Last number redial plus list of last 10 numbers dialed. | | Return Loss | Minimum 14 dB at 600Ω | | Line Current | 10 to 110 mA | | Resistance Measurement | Apparent Line Resistance:
275Ω @ 20 mA | | Impedance | Monitor Mode Impedance:
DC: 1MΩ typical - AC: 390 KΩ @ 1 kHz typical | | Measurement | Voltage: 0 to 200 VDC ±5%;
Current: 10 to 110 mA ±5%;
Note: Do not attach test set to electric-power lines | | User Controls | 1 x Left-side-mounted TALK/BELL/MON push button switches for operating modes
1 x Right-side-mounted microphone mute pushbutton
4 x Front-mounted pushbuttons for various options
1 x Standard front-mounted 12-key phone keypad | | Display | Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight | | Power | 4 x AAA alkaline batteries | | Battery Life | With 100% backlight and in speaker mode: 20 hours
Backlight off and speaker off: 75 hours
Standby: 2 years | | Dimensions (L x W x D) | 8.25 x 2.5 x 2.0" (21 x 6.4 x 5.1 cm) | | Weight | 19.74 oz (559.7 grams) with battery, cord set and belt clip | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 11.5 x 5.1 x 3.1" |
