User Manual for Platinum Tools TCC200 Coax Clarifier Kit with 2 Coax RF Remotes Click to enlarge the picture
Contents of the user manual for the Platinum Tools TCC200 Coax Clarifier Kit
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
|
User manual for the Platinum Tools TCC200 Coax Clarifier Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|

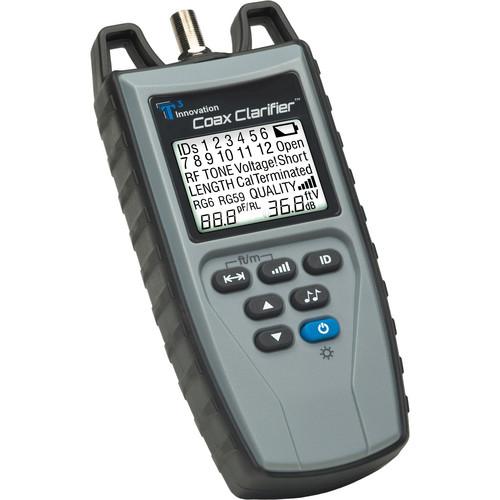

Product description The Platinum Tools TCC200 Coax Clarifier Kit with 2 Coax RF Remotes includes the Coax Clarifier with 4 AA alkaline batteries, No. 1 and 2 Coax RF Remotes, No. 1 to 4 ID Only Coax Remote Set in a Foam Holder, 12” Screw-On Female-Jack to Push-On Female-Plug Cable Assembly, Female-Jack to BNC-Jack Adapter, 3 Female-Jack to Push-On Plug Adapters, 3 F81 Female Connector Couplers, 4 Female Terminator Plugs, and Hanging Storage Pouch.
The included Coax Clarifier makes it easy to discern the layout of a dark coax network, locate faults on individual cable runs, identify remotes through splitters, and determine cable run lengths. Separate wire mapping sets allows mapping the entire coax system and measure the quality and network characterization for carrying high grade video, surveillance data and HD programming. Note: For best measurement accuracy, the cable network or individual splitter must be properly terminated. Use the included F-Terminator plug accessory to terminate unused connections. - Easy to operate and all-in-one handheld instrument
- Test, identify, and qualify dark coax networks
- One pass coax cable run mapping
- Coax Run Mapping: Maps runs through splitters to show an accurate picture of the coax system layout using up to 4 Coax RF Remotes (2 RF remotes included) and up to 12 ID Only Coax Remotes (4 ID Only Coax Remotes Set included) for wire-mapping on home runs
- Determines cable run length and reports the location of an open or un-terminated cable
- Displays cable run quality
- Detects Coax RF Remotes through splitters
- Locates splitters in the system
- Tests and grades splitter performance
- Measures length of coax cable in feet or meters and measures a single cable length up to 1,500' (457.2m)
- Measures overall network quality and clearly depicts network reading as both a bar graph and a digital return loss number, measured in dB
- Large seven-segment, backlight LCD screen with icons that clearly display test results
- Automatic pre-test voltage checks
- Tone generator with selectable tone cadence to easily trace cable runs and Tone Tracking to trace coax runs with 4 unique tones to quickly distinguish between respective outlets
- Conserves power and supports long battery life with Auto-Off feature and battery-low icon
- Four AA alkaline batteries included
- Applications:
Fast testing using multiple wire-mapping remotes
Quickly discover coax system layout configuration to save time
All Testing in One Unit: Discovery, quality, and condition
Clear concise measurement display for easy understanding of capability of each run UPC: 849160004660 In the Box Platinum Tools TCC200 Coax Clarifier Kit with 2 Coax RF Remotes No. 1 Coax RF Remote (Clamshell Packaging) No. 2 Coax RF Remote (Clamshell Packaging) Nos. 1 to 4 ID Only Coax Remote Set in Foam Holder 12" TCA004 Cable Assembly for Coax Clarifier Tester 18303 Female-Jack to BNC-Jack Adapter 3 x 18304 Female-Jack to Push-On Plug Adapter 3 x F81 Coaxial F Connector Coupler (25-Pack) 4 x 18306 Female Terminator Plug 4007 Hanging Pouch 4 x AA Alkaline Battery Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools TCC200 Coax Clarifier Kit with 2 Coax RF Remotes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TCC200 Specs | Frequency | Audio Tone:
1,000 and 600 Hz
4 patterns (High only, low only, 2 warble tones)
3.3 Vpp (pin or shield)
6.6 Vpp (both pin and shield) open circuit
Radio Tone:
10, 20, 30, or 40 MHz, 1 Vrms into 75 Ω | | Capacitance | Range: 0 to 1,500' (0 to 457 m) minimum at 15 pF/ft length constant
Accuracy: ±5% (±1.0' / 0.5 m) with correct length constant
Length Constant Range: 10 to 40 pF/ft (33 to 131 pF/m) | | Return Loss | 0 to 60 dB | | Remotes | ID Only Coax: 100 Ω maximum DC resistance, center conductor plus shield
Coax RF: 17 dB maximum attenuation to remote location (splitters, cable, etc.) | | Power | 4 AA alkaline batteries | | Battery Life | Standby: 4 years
Active: 20 hours average
Low Warning: Approximately 4 V | | Compliance | CE | | Operating Environment | Operating temperature: 32 to 122°F (0 to 50°C)
Storage temperature: -4 to 140°F (-20 to 60°C)
Humidity: 10 to 90%, non-condensing
Altitude: 10,000' (3,050 m) maximum | | Dimensions | Coax Clarifier: 6.8 x 3.2 x 1.3" (17.3 x 8.0 x 3.3 cm) | | Weight | Coax Clarifier: 12 oz (340 g) with battery | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 13.0 x 5.6 x 3.3" |
