User Manual for Platinum Tools TCC220 Coax Clarifier Kit with 4 Coax RF Remotes Click to enlarge the picture
Contents of the user manual for the Platinum Tools TCC220 Coax Clarifier Kit
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
|
User manual for the Platinum Tools TCC220 Coax Clarifier Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|

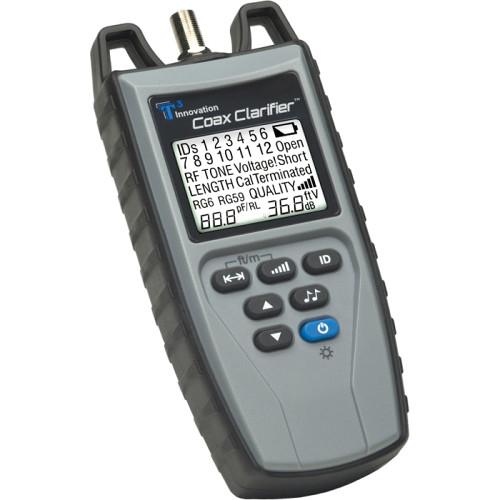

Product description The Coax Clarifier from Platinum Tools allows you to test, identify, and qualify dark coax networks, which typically give no indication as to their configuration, state of operation, or design. The Coax Clarifier, though, discerns the layouts of such networks with ease, locating faults on cable runs, determining the length of cable runs, and identifying remotes through splitters. With separate wire-mapping sets, you can map the entire coax systems of video, surveillance data, and HD programming, measuring the quality and characterization of any giving network.All discovery, quality, and condition testing is accomplished in this one unit, whose measurement display shows you precise and concise readouts. The unit can map runs using up to four coax RF remotes, or up to 12 ID-only coax remotes for home runs. Four unique tones are provided to distinguish quickly between respective outlets. The unit can run for 20 hours off of four AA alkaline batteries, and, at 12 oz including its batteries, the Coax Clarifier is eminently portable. Included with the device are four Coax remotes, as are various adapters, and an F-Terminator plug to terminate unused connections. Note: For best measurement accuracy, the cable network or individual splitter must be properly terminated. Use the included F-Terminator plug accessory to terminate unused connections. - Easy to operate and all-in-one handheld instrument
- Test, identify, and qualify dark coax networks
- Coax Run Mapping: Maps runs through splitters to show an accurate picture of the coax system layout using up to 4 Coax RF Remotes (included) and up to 12 ID Only Coax Remotes for wire-mapping on home runs
- Determines cable run length and reports the location of an open or unterminated cable
- Displays cable run quality
- Detects Coax RF Remotes through splitters
- Locates splitters in the system
- Tests and grades splitter performance
- Measures length of coax cable in feet or meters and measures a single cable length up to 1500' / 457.2m
- Measures overall network quality and clearly depicts network reading as both a bar graph and a digital return loss number, measured in dB
- Tone generator with selectable tone cadence to easily trace cable runs and Tone Tracing to trace coax runs with 4 unique tones to quickly distinguish between respective outlets
- Four AA alkaline batteries included
UPC: 849160004677 In the Box Platinum Tools TCC220 Coax Clarifier Kit with 4 Coax RF Remotes No. 1 Coax RF Remote (Clamshell Packaging) setxtqrqcvwtsteffeucxwsvvvvq No. 2 Coax RF Remote (Clamshell Packaging) No. 3 Coax RF Remote (Clamshell Packaging) No. 4 Coax RF Remote (Clamshell Packaging) 12" TCA004 Cable Assembly for Coax Clarifier Tester 18303 Female-Jack to BNC-Jack Adapter 5 x 18304 Female-Jack to Push-On Plug Adapter 5 x F81 Coaxial F Connector Coupler (25-Pack) 4 x 18306 Female Terminator Plug 4007 Hanging Pouch 4 x AA Alkaline Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools TCC220 Coax Clarifier Kit with 4 Coax RF Remotes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TCC220 Specs | Frequency | Audio Tone:
1000 and 600 Hz
4 patterns (High only, low only, 2 warble tones)
3.3 V pp (pin or shield)
6.6 V pp (both pin and shield) open circuit
Radio Tone:
10, 20, 30, or 40 MHz, 1 V rms into 75 Ohms | | Capacitance | Range: 0 to 1500' / 0 to 457 m, minimum at 15 pF/ft length constant
Accuracy: ±5% at ±1.0' / 0.5 m with correct length constant
Length Constant Range: 10 to 40 pF/ft / 33 to 131 pF/m | | Return Loss | 0 to 40 dB | | Remotes | ID Only Coax: 100 Ohms maximum DC resistance, center conductor plus shield
Coax RF: 17 dB maximum attenuation to remote location (splitters, cable, etc.) | | Power | 4 AA alkaline batteries | | Battery Life | Standby: 4 years
Active: 20 hours average
Low Warning: Approximately 4 V | | Compliance | CE | | Operating Environment | Operating temperature: 32 to 122°F / 0 to 50°C
Storage temperature: -4 to 140°F / -20 to 60°C
Humidity: 10 to 90%, non-condensing
Altitude: 10,000' / 3050 m maximum | | Dimensions | 6.8 x 3.2 x 1.3" / 17.3 x 8.0 x 3.3 cm | | Weight | 12 oz / 340 g with battery | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 13.0 x 5.6 x 3.4" |
