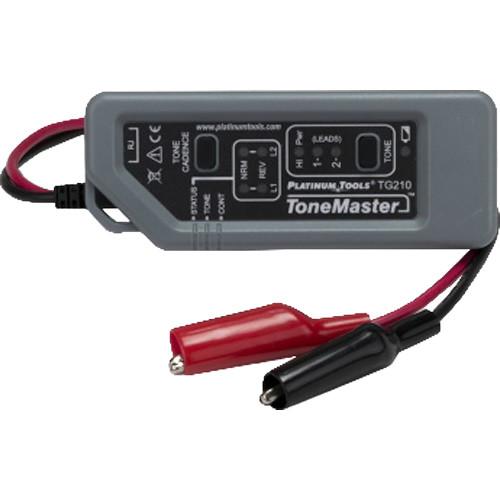

Product description The Platinum Tools TG210C ToneMaster is a high-powered tone generator, which enables signal detection over 20 miles away and makes tracing signal through walls and enclosures easy. It features three distinctly different tones with four tone amplitude levels suited for network, signal wire, coax, and telephone cable applications. - Key Features
-
- 700% more power than standard tone generators
- Signal detection over 20 miles away
- Three distinctly different tones can be selected from the front panel
- Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs
- Unbalanced tone mode supports longer distances on UTP cables
- Constant amplitude output ensures no signal decrease as battery discharges
- Auto-off for battery conservation
- Full talk battery to power a dry line
- Tone may be added in any mode—phone sets without a monitor feature can pick up tone
- Runs on one 9V battery
- Includes molded-in alligator clips
- Includes no-fault, RJ12 cable (connects to RJ11 and RJ45 jacks)
UPC: 849160008941 In the Box Platinum Tools TG210C ToneMaster High-Powered Tone Generator (Alligator Clips) Molded-In Alligator Clips No-Fault RJ12 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools TG210C ToneMaster High-Powered Tone Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TG210C Specs | Tone Frequencies | Dual: 1165 Hz and 874 Hz
Two Single Tones: 1165 Hz and 874 Hz | | Tone Power | Typical Mode (into 600 Ohms, new battery to 5.0 V):
Lo: 3.6 dBm
Hi: 9.3 dBm
High Power Mode:
Lo: 12.3 dBm
Hi: 18.4 dBm | | Voltage Protection | Status:
60 VDC, continuous
300 VAC peak, 2 seconds
Continuity (into 600 Ohms):
52 VDC
Tone Mode:
250 VDC or peak VAC | | Battery | Battery: 9 V Alkaline, 540 mAh
Battery Life: 120 hours, typical (for full-capacity battery used continuously) |
