Platinum Tools TNC950AR Net Chaser Ethernet

Search your instruction manual in PDF to download

User Manual for Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit

Click to enlarge the picture
Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit Contents of the user manual for the Platinum Tools TNC950AR Net Chaser Ethernet
  • Product category: Cable Testers & Tone Generators Platinum Tools
  • Brand: Platinum Tools
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Platinum Tools Cable Testers & Tone Generators

Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit
User manual for the Platinum Tools TNC950AR Net Chaser Ethernet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Platinum Tools product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!



Product description

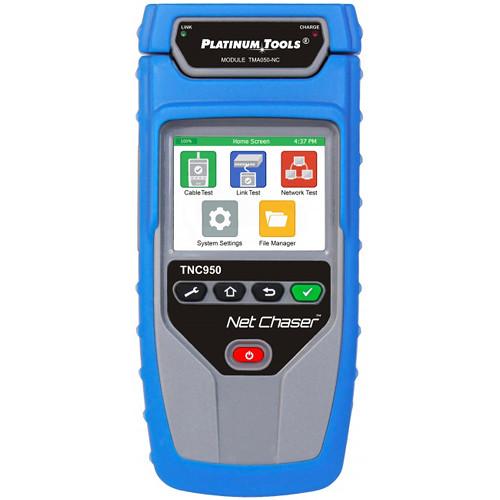

The TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit from Platinum Tools offers a complete solution for testing copper cables. The Net Chaser performs speed certification to test the data-carrying capabilities of electrical Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting faults in the cable wiring, and ensuring that cables can support the speed capabilities of active equipment. The Net Chaser's discovery gives a clear vision of network layout and interfaces between active components like servers, switches, and routers. All the information is collected and stored, and exported to computers in PDF or CSV format.
    Network Testing Features
  • •Port discovery
    •Detects PoE per IEEE 802.3af/at with load test for voltage drop and which pairs the PoE is located on (class)
    •IPV4 support
    •Ping to a specific IP or URL address
    •Ping up to eight IP targets at a time
    •Link light to identify location on a hub/switch/router port
    •Verifies DHCP connectivity and DNS
    •Discovers CDP and LLDP protocols
    •Network mapping
    •VLAN discovery
    •Traceroute
    Cable Testing Features
  • •Bit Error Rate Test (BERT), Signal to Noise Ratio (SNR), SKEW
    •BERT tests 100 Mb/s & 1 Gb/s
    •Measures and displays length for each pair in feet or meters
    •Improperly terminated cables are clearly displayed on a color graphical wire-mapping display
    •Detects length to opens & shorts
    •Verifies continuity for RJ45 and Coax cables
    •Saves test results and easily uploads to a computer
    •Tone generation
    Other Features
  • •Cable testing to TIA 568A/B
    •3.5" color touchscreen display
    •Compact form factor
    •Benchtop, handheld, or hung up
    •Uses modular cable interfaces
    •SD card for data file transfer of cable tests
    •Field-upgradeable firmware
    •Built-in stand

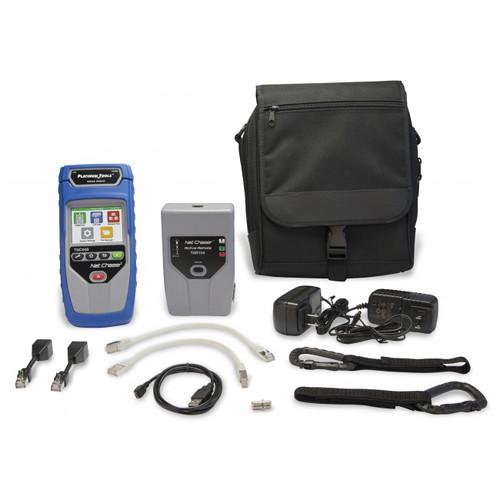

UPC: 849160008309 In the Box Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit
  • Active Remote for Net Chaser Ethernet Speed Certifier ecuafqfbcdzytrtbyesqdazccdevevxxfrarvr
  • 2 x Power Supplies
  • 8GB SD Card
  • Micro-USB Cable
  • 2 x 12" FTP Patch Cables
  • 2 x RJ45 Port Saver Cables
  • 2 x Hanging Straps and Clips
  • F-Connector
  • Large Carrying Case
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Platinum Tools TNC950AR Net Chaser Ethernet Speed Certifier & Network Tester Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Platinum Tools TNC950AR Specs

    Output Connectors 1 x RJ45 8-position shielded modular jack, data
    1 x F-coax, video
    Interfaces Micro USB, SD flash card
    Power Wall Power Adapter:
    Input: 100 to 240 VAC, 50/60 Hz
    Output: 12 VDC 2.5 A, international plug adapters (NA, EU, AU, UK)
    DC Power Jack: 10 to 28 VDC, 20 W
    Battery: Li-ion rated 7.8 V, 5500 mAh, initial capacity
    Battery Life Linked at 1 Gb, up to 8 hours
    Active, not linked up to 20 hours
    Languages English, French, Spanish, German, Italian
    Temperature Operating: 14 to 140°F / -10 to 60°C
    Storage: -22 to 158°F / -30 to 70°C
    Charging: 50 to 113°F / 10 to 45°C
    Humidity (Non-Condensing) 10 to 90%
    Operating Altitude 10,000' / 3048 m
    Enclosure High-strength PC/ABS plastic with UL94 V0 rating with boot
    Dimensions 2.4 x 4.2 x 9.0" / 6.1 x 10.6 x 22.9 cm
    Weight 1.75 lb / 794 g with battery
    Package Weight 7.05 lb
    Box Dimensions (LxWxH) 13.1 x 10.3 x 6.2"

    Rating

    100% users recommend this product to others. And what about you?
