Product description The TNC950DX Net Chaser Deluxe Ethernet Speed Certifier & Network Tester Kit from Platinum Tools offers a complete solution for testing copper cables. The Net Chaser performs speed certification to test the data-carrying capabilities of electrical Ethernet network cables up to 1 Gb/s by testing for noise in the network, detecting faults in the cable wiring, and ensuring that cables can support the speed capabilities of active equipment. The Net Chaser's discovery gives a clear vision of network layout and interfaces between active components like servers, switches, and routers. All the information is collected and stored, and exported to computers in PDF or CSV format. - Network Testing Features
- •Port discovery
•Detects PoE per IEEE 802.3af/at with load test for voltage drop and which pairs the PoE is located on (class)
•IPV4 support
•Ping to a specific IP or URL address
•Ping up to eight IP targets at a time
•Link light to identify location on a hub/switch/router port
•Verifies DHCP connectivity and DNS
•Discovers CDP and LLDP protocols
•Network mapping
•VLAN discovery
•Traceroute - Cable Testing Features
- •Bit Error Rate Test (BERT), Signal to Noise Ratio (SNR), SKEW
•BERT tests 100 Mb/s & 1 Gb/s
•Measures and displays length for each pair in feet or meters
•Improperly terminated cables are clearly displayed on a color graphical wire-mapping display
•Detects length to opens & shorts
•Verifies continuity for RJ45 and Coax cables
•Saves test results and easily uploads to a computer
•Tone generation - Other Features
- •Cable testing to TIA 568A/B
•3.5" color touchscreen display
•Compact form factor
•Benchtop, handheld, or hung up
•Uses modular cable interfaces
•SD card for data file transfer of cable tests
•Field-upgradeable firmware

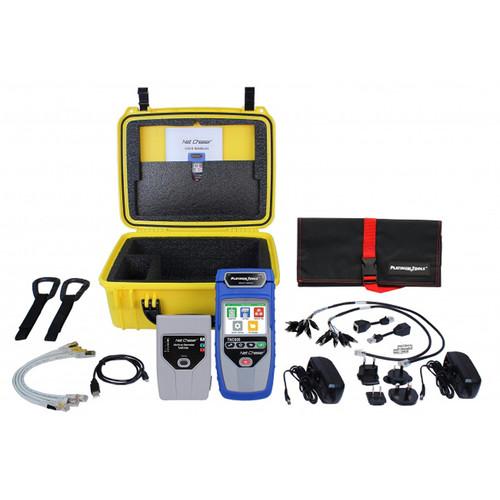

•Built-in stand UPC: 416000336108 In the Box Platinum Tools TNC950DX Net Chaser Deluxe Ethernet Speed Certifier & Network Tester Kit Active Remote for Net Chaser Ethernet Speed Certifier 2 x Power Supplies 8GB SD Card Micro-USB Cable 4 x 12" FTP Patch Cables 2 x RJ45 Port Saver Cables 2 x Hanging Straps and Clips 2 x RJ45 to 8-Way Alligator Clips 2 x F-Jack to BNC Adapters Hanging Pouch Protective Hard Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools TNC950DX Net Chaser Deluxe Ethernet Speed Certifier & Network Tester Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TNC950DX Specs | Output Connectors | 1 x RJ45 8-position shielded modular jack, data
1 x F-coax, video | | Interfaces | Micro USB, SD flash card | | Power | Wall Power Adapter:
Input: 100 to 240 VAC, 50/60 Hz
Output: 12 VDC 2.5 A, international plug adapters (NA, EU, AU, UK)
DC Power Jack: 10 to 28 VDC, 20 W
Battery: Li-ion rated 7.8 V, 5500 mAh, initial capacity | | Battery Life | Linked at 1 Gb, up to 8 hours
Active, not linked up to 20 hours | | Languages | English, French, Spanish, German, Italian | | Temperature | Operating: 14 to 140°F / -10 to 60°C
Storage: -22 to 158°F / -30 to 70°C
Charging: 50 to 113°F / 10 to 45°C | | Humidity (Non-Condensing) | 10 to 90% | | Operating Altitude | 10,000' / 3048 m | | Enclosure | High-strength PC/ABS plastic with UL94 V0 rating with boot | | Dimensions | 2.4 x 4.2 x 9.0" / 6.1 x 10.6 x 22.9 cm | | Weight | 1.75 lb / 794 g with battery | | | | Package Weight | 11.095 lb | | Box Dimensions (LxWxH) | 15.3 x 13.3 x 7.4" |
