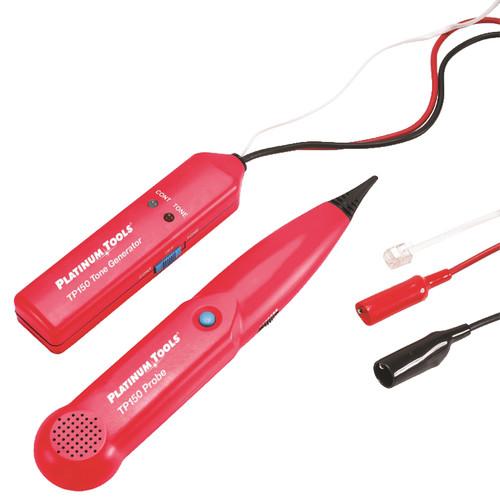

Product description The Tone and Probe Set from Platinum Tools enables you to trace cables and identify cable locations on jacks or through walls. The tone generator comes equipped with a slide switch to move between three different modes, including a continuity mode to verify if a wire is broken. The probe features a recessed push-button to activate tone scanning, a tapered tip to easily penetrate wire bundles, and a thumbwheel to adjust the volume or turn off the probe to reserve battery power. The Tone and Probe Set uses common send and receive frequencies, allowing it to be used with other tone generators or probes. Tone Generator - Tone/Off/Continuity slide switch
- Continuity mode to verify if a wire is broken
- Alligator clips to test pairs
- RJ11 Connector for data or phone lines
Probe - Tapered tip for easy penetration of cable bundles
- Thumbwheel to control volume and power
UPC: 849160007142 In the Box Platinum Tools Tone and Probe Set Carrying Case 2 x 9V Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools Tone and Probe Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools TP150 Specs | | | Output | 1.5 kHz Square waveform | | Connectivity | 2 x Alligator clips
RJ11 connector | | Switches | Slide switch | | Dimensions | 5.7 x 1.7 x 1.1" / 145 x 43 x 28 mm | | Weight | 4.3 oz / 122.8 g | | | | Sensitivity | 100 Hz ~ 300 KHz | | Buttons | Recessed push-button | | Switches | Thumbwheel | | Dimensions | 9.0 x 1.8 x 1.0" / 229 x 46 x 25 mm | | Weight | 3.8 oz / 106.2 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 11.1 x 5.0 x 1.7" |
