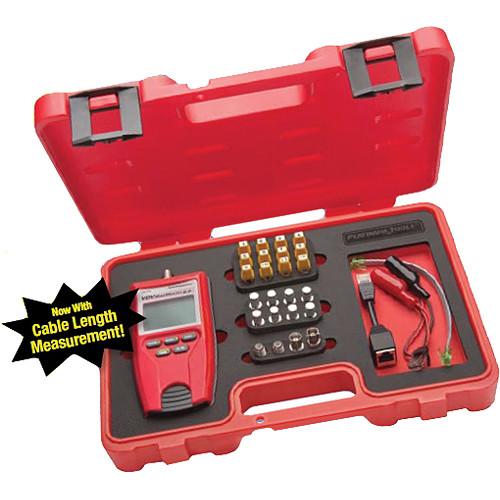

Product description Test, map, generate tone, and measure cable lengths with the Platinum Tools VDV MapMaster 2.0 Test Kit. Equipped with all the accessories required for voice, data, and video testing, and mapping in the field, this kit is handy. In the Length Mode (LM), this equipment can measure the length of entire cables and its pin pairs. It even enables you to view and adjust the length constant value for video, data, and voice cables. Moreover, this testing kit lets you examine patch cables without removing the master remote.Housed in a rugged double-walled blow-molded case with custom cut-out high-density EVA foam, this kit stays durable for years. - Tests CAT6/5e/5/4/3, shielded cables, & coax cables
- Displays length reading in feet or meters
- Mapping: video and data cables using the included remotes 1
Please Note: Optional data and video, custom ID remotes available (sold separately) close - Patch cables may be tested without removing the master remote from storage
- Cable test results displayed in a wire map format with connector pin numbers
- Low battery icon indicator
- Voltage detection warning icon
- LOOP ON sets up continuous mode for troubleshooting
UPC: 849160005230 In the Box Platinum Tools VDV MapMaster 2.0 Test Kit Case & Insert Foam RJ45 #1-12 Remote Set Coax F #1-8 Remote Set RJ45 Port Saver RJ45 to Alligator Clips Cable NO-Fault Cable BNC Female to F Female Adapter BNC Female to F Male Adapter 9V Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools VDV MapMaster 2.0 Test Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools T129K1 Specs | Maximum Voltage | Between any 2 connector pins without damage
RJ Jack: 66 VDC or 55 VAC
F-Connector: 50 VDC or AC | | Cable Types | Shielded or Unshielded; Cat7, Cat6x, Cat5e, Cat5, Cat4, Cat3, Coax | | Cable | Maximum RJ Cable Length Testing: 0 to 1,000’ (305 m)
Minimum Cable Length for Split Pair Detection: 1.5’ (0.5 m)
Maximum Coax Cable Length: Cable resistance varies | | Technology | For measurement: capacitance testing | | Length | Accuracy Without Length Constant Accuracy: ±3% plus ± 1’
Default Length Constant: Restored with power on reset | | Voices | 17.4 pF/ft | | Video | 16.5 pF/ft | | Data | 15 pF/ft | | Battery Life | Typical: 9 V alkaline battery
Standby: 4 years
Active: 425 hours | | Low Battery Warning | Icon flashes when battery voltage falls below 6 V | | Operating Temperature | 32 to 122˚F (0 to 50˚C) | | Storage Temperature | -4 to 140˚F (-20 to 60˚C) | | Humidity | 10 to 90%, non-condensing | | Dimensions | 6.4 x 2.8 x 1.4" (16.3 x 7.1 x 3.6 cm) | | Weight | 9 oz (256 g) with battery and remote | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 13.0 x 9.7 x 2.5" |
