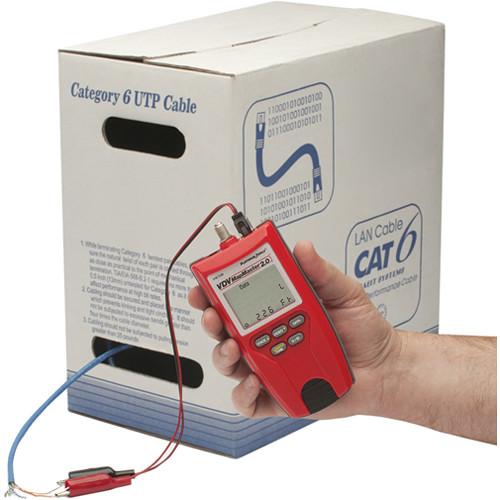

User Manual for Platinum Tools VDV Mapmaster 2.0 Tester Click to enlarge the picture
Contents of the user manual for the Platinum Tools VDV Mapmaster 2.0 Tester
- Product category: Cable Testers & Tone Generators Platinum Tools
- Brand: Platinum Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Platinum Tools Cable Testers & Tone Generators
 |
User manual for the Platinum Tools VDV Mapmaster 2.0 Tester contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Platinum Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Platinum Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Platinum Tools product will considerably shorten its lifespan!
|

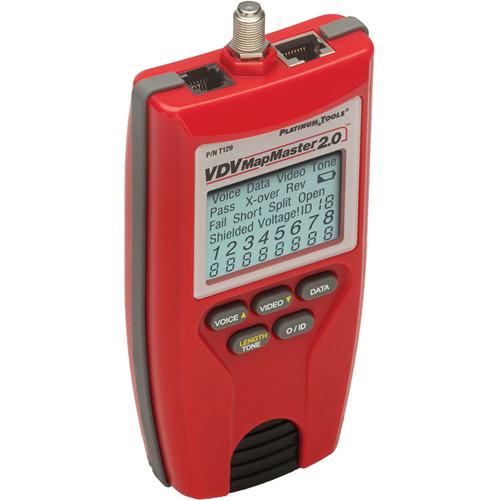

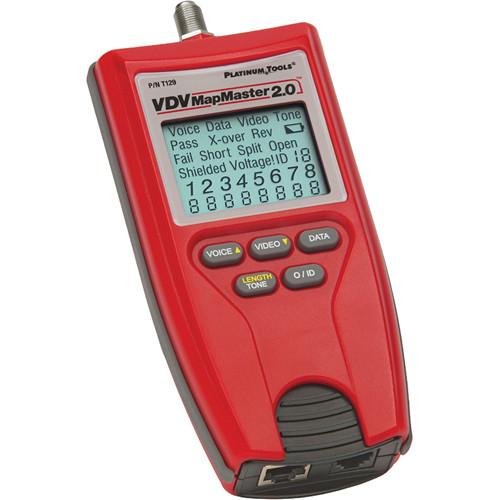

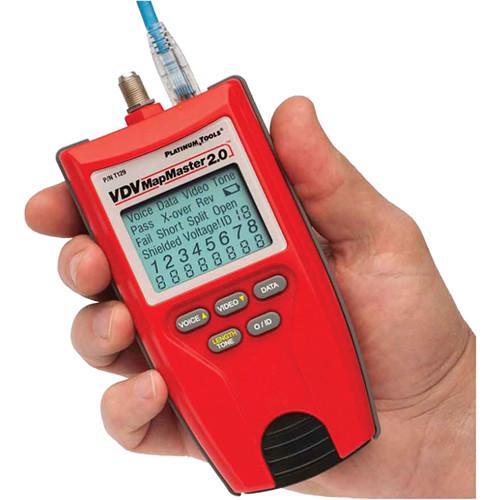

Product description The VDV Mapmaster 2.0 Tester from Platinum Tools combines continuity testing, mapping, a tone generator and length measurement functions into a single unit. It is capable of identifying and mapping 19 locations at one time. Whether your jobs are commercial or residential, the versatility and features of the VDV MapMaster 2.0 make it an essential tool. - Testing Features:
-
- Measures the entire length of a cable and/or individual wire pairs
- Tests Voice (6 wire), Data (8 wire) and Video (coax)
- Easy to read, large 7-segment LCD screen
- Tone generator with selectable tone cadence and selectable pins carrying tone
- Map 19 locations at one time
- Tests and indicates pins with shorts, opens, reversals, miswires and split pairs
- Displays 'Pass' icon for correctly wired T568A/B and crossover/uplink
- Displays 'Pass' icon for correctly wired 6-pin telephone plus 'Rev' for reverse-pinned
- Tests CAT-6, Cat-5e, Cat-5, Cat-4, Cat-3 and coax cables
- Tests shielded cables
- Patch cables may be tested without removing the master remote from storage
- Cable test results displayed in wire map format with connector pin numbers
- Video and data cables can be connected to their respective remotes at the same time to improve testing efficiency of 'tech' cable (both data & coax cables in one jacket)
UPC: 849160004936 In the Box Platinum Tools VDV Mapmaster 2.0 Tester RJ45 #1 Remote Coax #1 Remote RJ45 to Alligator Cable F (F to F) Adapter 9V Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Platinum Tools VDV Mapmaster 2.0 Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlatinum Tools T129 Specs | Maximum Voltage | Between two RJ jack connector pins: 66VDC or 55VAC
Between two F-Connector pins: 50VDC or 50VAC | | Cable Types | Shielded or Unshielded; Cat7, Cat6x, Cat5e, Cat5, Cat4, Cat3, Coax | | Cable Length | Maximum RJ cable length for testing: 0 to 1,000' (0 to 305 m)
Minimum cable length for split pair detection: 1.5' (0.5 m)
Maximum Coax cable length: Cable resistance varies | | Measuring Type | Measurement Technology:
Capacitance testing
Length Accuracy Without Length Constant Accuracy:
± 3% plus ± 1' (0.3 m)
Cable Length Measurement:
1 to 2,000 ft CAT5E cable with 15 pF/ft length constant
Default Length Constant:
Restored with power on reset
Voice: 17.4 pF/ft
Video: 16.5 pF/ft
Data: 15 pF/ft | | Low Battery Warning | Icon flashes when battery voltage falls below 6V | | Battery Life | Standby: 4 years
Active: 425 hours | | Operating Temperature Range | 32 to 122°F (0 to 50°C) | | Storage Temperature Range | -4 to 140°F (-20 to 60°C) | | Humidity Range | 10% to 90%, non-condensing | | Dimensions (L x W x H) | 6.4 x 2.8 x 1.4˝ (16.3 x 7.1 x 3.6 cm) | | Weight | 9 oz (256 g) with battery | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.8 x 4.4 x 3.4" |
