User Manual for Plugable Thunderbolt 3 Single Display Docking Station Click to enlarge the picture
Contents of the user manual for the Plugable Thunderbolt 3 Single Display Docking
- Product category: Docking Stations & Port Replicators Plugable
- Brand: Plugable
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plugable Docking Stations & Port Replicators
 |
User manual for the Plugable Thunderbolt 3 Single Display Docking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plugable product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plugable user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plugable product will considerably shorten its lifespan!
|
Product description Enjoy a desktop-like experience with the Thunderbolt 3 Single Display Docking Station from Plugable. Simply plug your Thunderbolt 3-equipped Macintosh or Windows computer to the Thunderbolt 3 port of the docking station with the included cable. Once connected, your host computer gains access to everything attached to the docking station. This can include a 4K display, a variety of USB 3.0 peripherals, a local network and internet access, and more. It can even recharge your computer while you use it. Note: Please note that your system may not be compatible with all features of this docking station. We recommend that you verify Thunderbolt 3 compatibility before purchase. - Thunderbolt 3

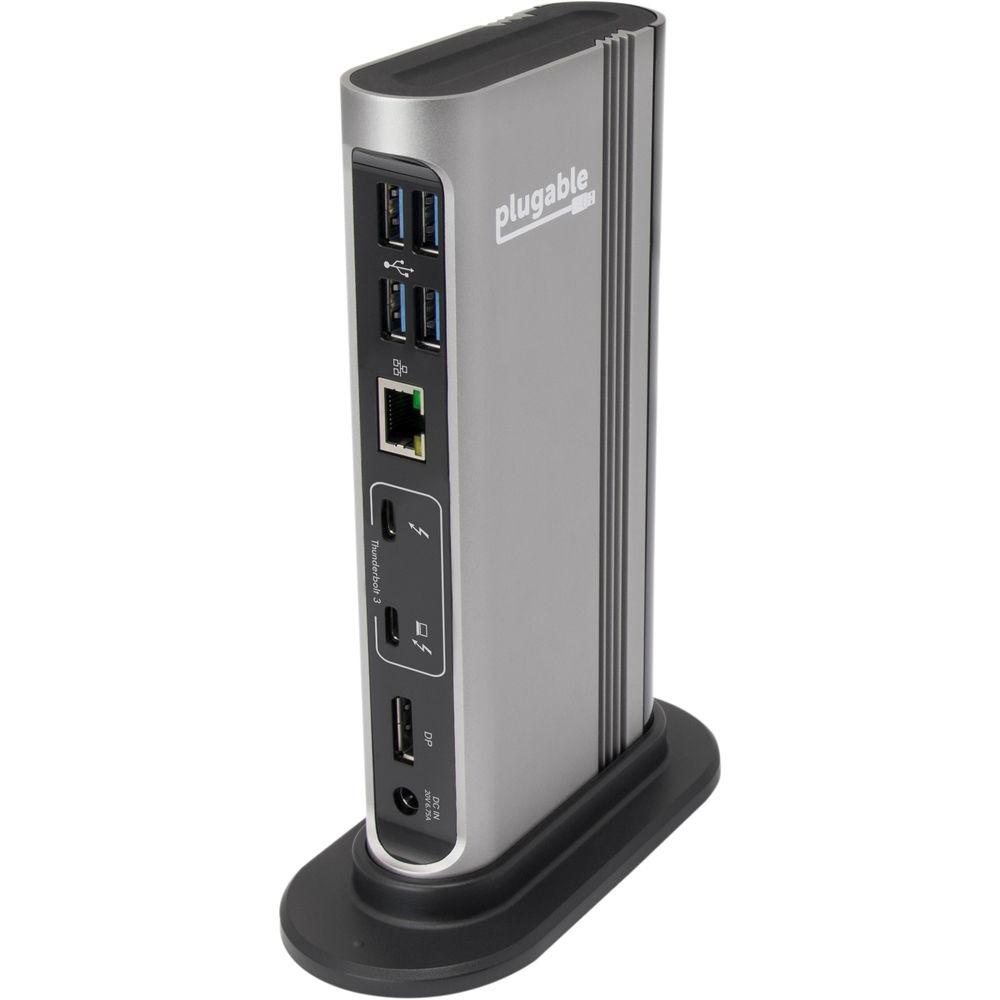

- The docking station features two Thunderbolt 3 ports on the back. One is used to connect your compatible host computer to the docking station. Once connected, the host computer gains access to all other docking station ports and connected devices. If supported, this port will also charge the host computer with up to 60W of charging power.
The other Thunderbolt 3 port can be used for either the connection of additional Thunderbolt 3 devices, or to simply charge a Thunderbolt 3-equipped device with up to 15W of power. - DisplayPort
- With a single display, you can use this port to give yourself a larger monitor with a higher resolution. The port supports displays with resolutions up to 4K at 60 Hz (4096 x 2160). If your computer does not have a DisplayPort, don't worry, because an active DisplayPort-to-HDMI adapter is included.
- USB 3.0 and Gigabit Ethernet
- Four USB Type-A 3.0 ports on the back provide access to external hard drives, printers, and other peripherals. A Gigabit Ethernet port provides immediate access to the local network for whomever connects to the docking station.
- Convenient Front Ports

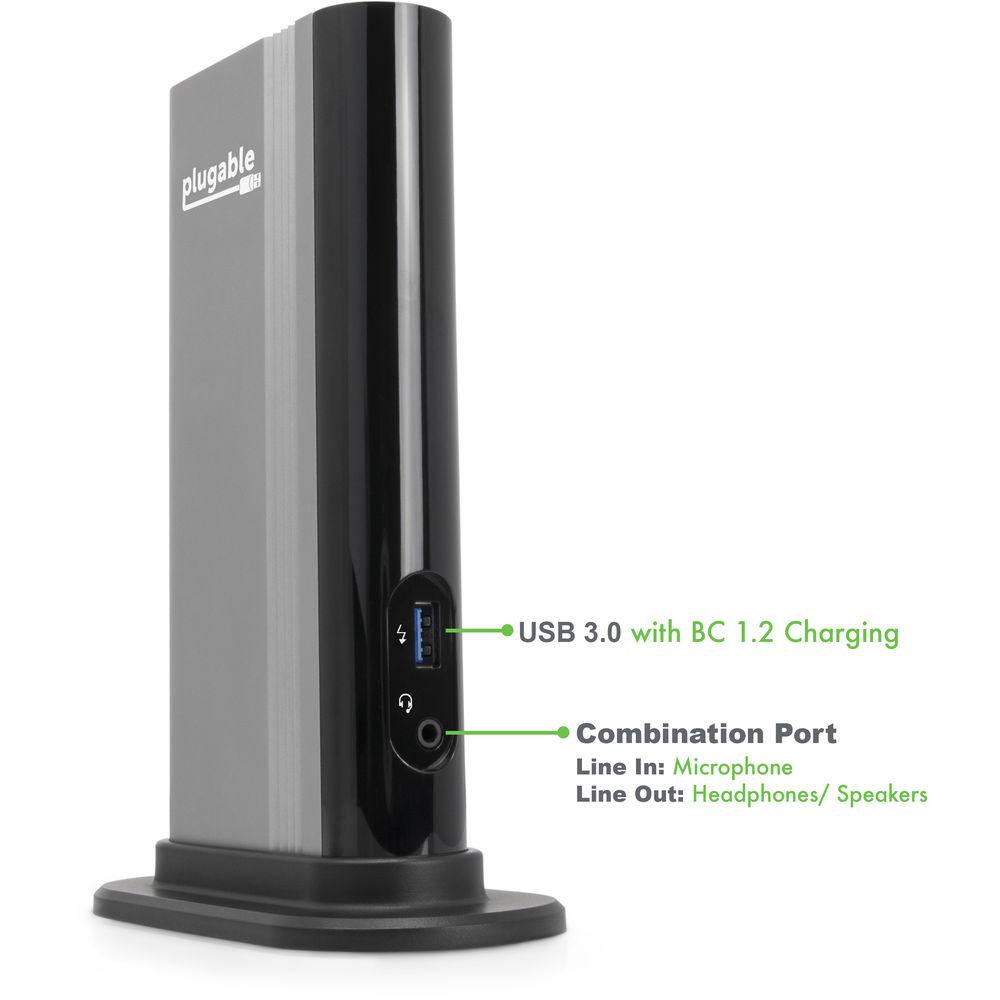

- A USB Type-A 3.0 port provides for quick attachment of a USB flash drive or portable hard drive. The front USB 3.0 port also supports the BC 1.2 protocol for recharging mobile devices.
The 3.5mm combo audio jack can be used as an audio output with headphones or speakers, or as an audio input with a microphone. - Additional Features
- Horizontal or vertical orientation with included stand

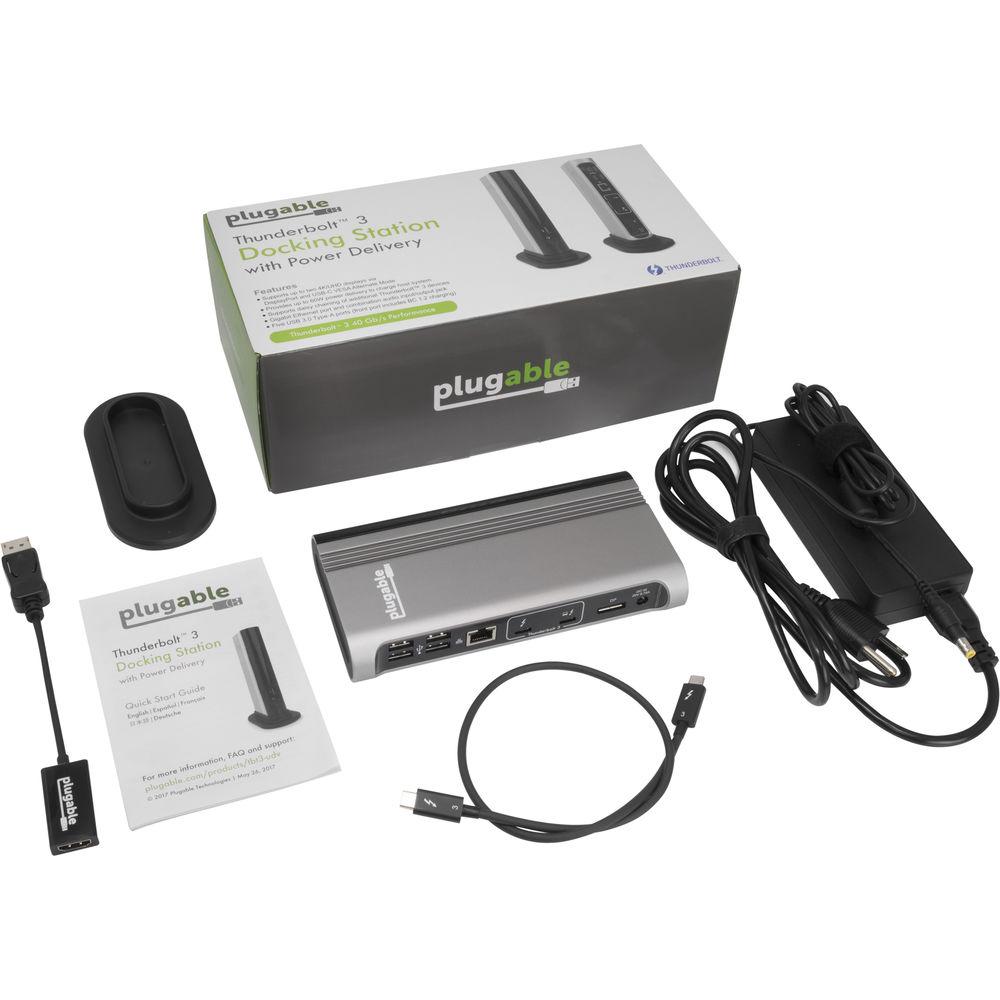

10 Gb/s peer-to-peer networking when two Thunderbolt 3 devices are connected UPC: 819927011019 In the Box Plugable Thunderbolt 3 Single Display Docking Station Thunderbolt 3 40 Gb/s Cable (20") Active DisplayPort-to-HDMI Adapter AC Adapter with 100-240 VAC 50/60 Hz U.S. AC Plug Stand Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Plugable Thunderbolt 3 Single Display Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

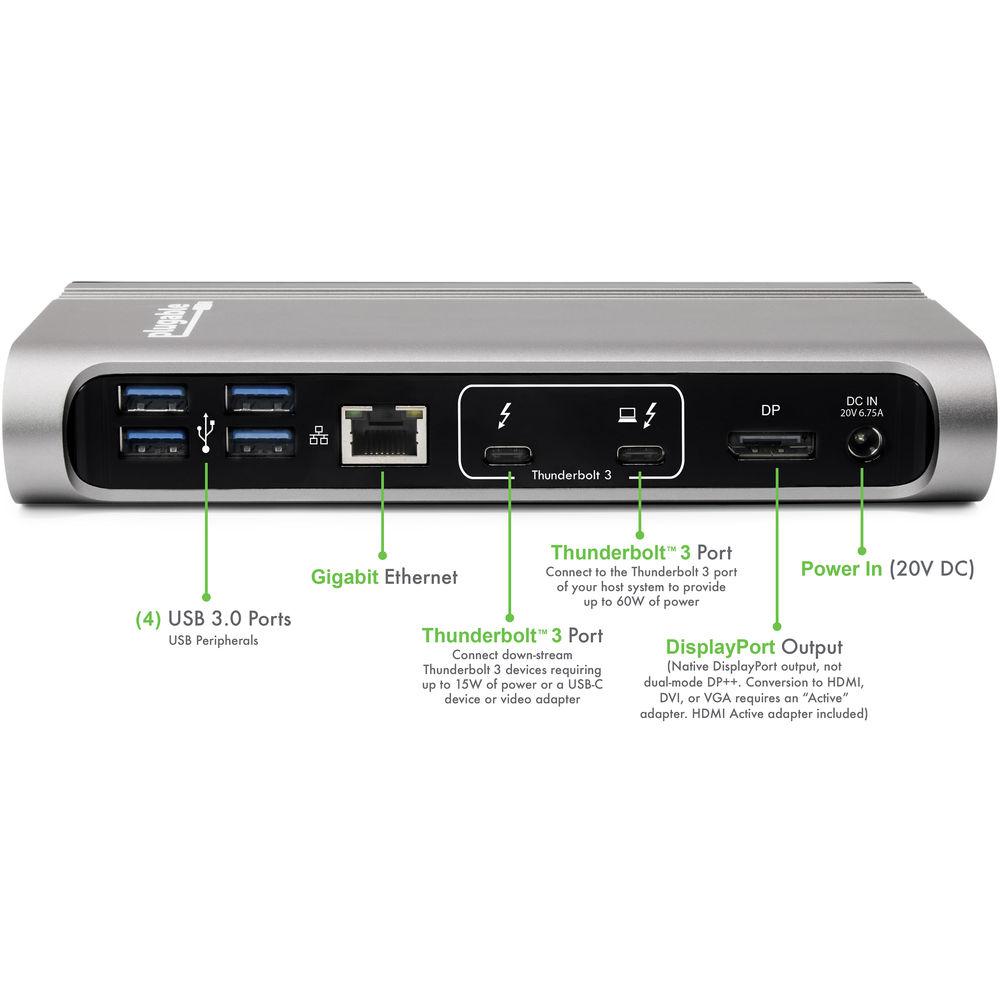

Technical parametersPlugable TBT3-UDV Specs | Rear Ports | 1 x Thunderbolt 3 (docking station access and 60 W output)
1 x Thunderbolt 3 (data or 15 W output)
1 x DisplayPort (native output only, does not support dual-mode DP++)
4 x USB Type-A 3.0
1 x Gigabit Ethernet
1 x 20 VDC / 6.75 A Input | | Front Ports | 1 x USB Type-A 3.0 (with BC 1.2 support)
1 x Combo 3.5mm Audio In/Out | | Display Support | Up to 4K (4096 x 2160) at 60 Hz | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 4.0" |
