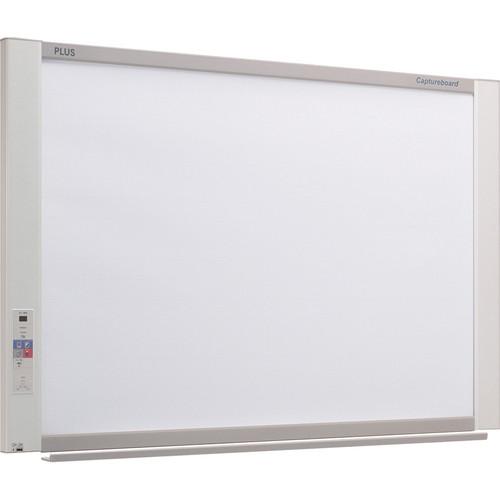

Product description The Plus C-20S Standard CaptureBoard is a digital whiteboard with the ability to capture notes shown on the screen for printing. With the ability to both print and save to a single file on a computer makes the unit especially useful for engaging students and colleagues in a variety of instructional applications, including classrooms and business meetings. The C-20S was designed from the ground up for ease-of-use, making it a breeze to setup and simple to operate. - Capture Ability
- Combine a projected image with your hand written notes to a single digital file or hardcopy printout
- Updated Feature Set
- Easier to use software interface, faster scanning time, networking, and even a mobile app. Combined with the new slimmer design and upgraded, magnetic writing surface, the C-20 board is ready for any meeting
- CaptureBoard Software

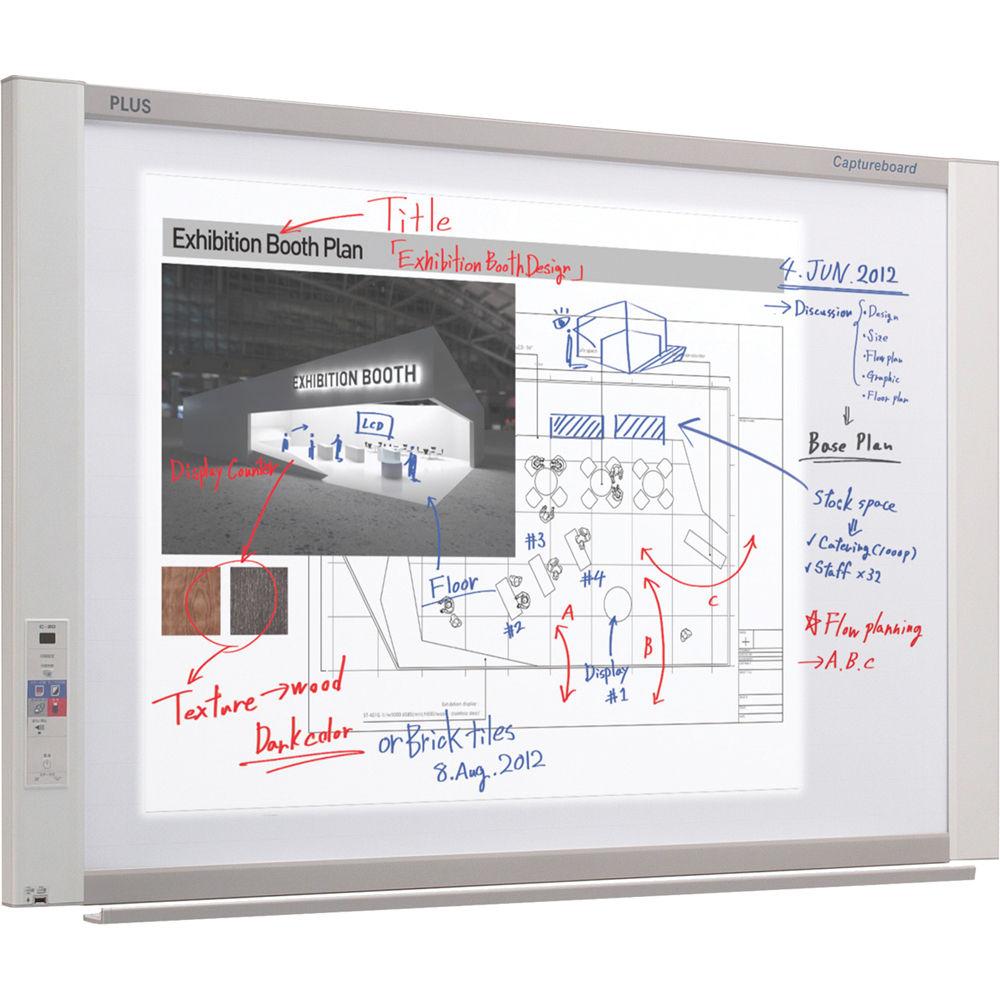

- To take full advantage of the capture ability of this board, connect it to your PC or Mac (OSX 10.5 or later). Connect a projector to your computer and project an image (up to 60") onto the board. Open the software which marks each corner of the projected image to allow for alignment. During your meeting or discussion, you can write anywhere on the board using regular dry erase markers. Push the scan button and the board surface will scan to the left scanning the marker notes. The software then overlays that image onto the image you were projecting. You can then save that image as a JPEG, PNG, or PDF, or you can print a hard copy to your printer. You can even print to an on board printer (mounted on the boards mobile stand) as long as the drivers are installed on your computer
- Enhanced Writing Surface
- The writing surface has a matte finish and will have less glare than previous boards. It is also optimized to be used with regular dry erase markers and is magnetic, so you can stick magnets to it during your presentation. No special markers are necessary; just standard dry erase markers
- Ethernet Port
- The new network function allows you to save images directly to the board's internal memory and access them from any web browser. It can be password protected, and also gives you the ability to save to an FTP server so everyone can access your images
- Mobile App (iOS/Android)
- The mobile app for the C-20 series is compatible with both Apple iOS and Android systems. The app allows you to "scan" by tapping a button on your smartphone, iPhone or iPad. Then, you can save the image to your device, as well as the phone of anyone else in the room with that app. This app also allows for audio and video recording during a meeting and can store them together with any scanned images, so all your meeting information is in one place
- Copyboard Functionality
- The main function of the C-20 is use as a copyboard; simply connect your PC or Mac via USB and you can save hand-written notes without having to install software. If you attach a compatible printer (sold separately, see below) you can print notes right from the board which is very handy during a meeting
- Compatible Printers
-
- InkJet Printers: HP PCL3e & PCL3GUI compatible (with some exceptions)
- Color Laser Printers: Konica Minolta magicolor 1600W and 1690MF
UPC: 817371010046 In the Box Plus C-20S Standard CaptureBoard 4 x Markers (Black, Red, Blue, Green) Eraser AC Power Adapter 9' (2.7 m) USB Cable User's Manual Assembly Setup Manual Printer Shelf Wall Mounting Brackets 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Plus C-20S Standard CaptureBoard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlus C-20S Specs | | | Active Area | 50.4 x 35.4" / 1280 x 900 mm | | Resolution | 2458 x 1728 | | Scroll Method | Motorized, Manual | | Scanning Time | 15 sec (B/W, Color) | | | | USB Ports | 1 x USB (Version Unspecified) Type-B
2 x USB (Version Unspecified) Type-A | | Number of Ethernet Ports | 1 | | | | Supported Document File Types | PDF | | Supported File Systems | FAT32, FAT | | Supported Photo File Types | JPEG, PNG | | Operating System Support | Windows, macOS/OS X | | | | Power Consumption | Standby: 3.0 W
Operational: 12.0 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.75 A | | DC Input Power | 12 VDC at 3 A | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 30 to 85% | | Dimensions | 58.3 x 39.4 x 3.5" / 148.0 x 100.0 x 8.9 cm
58.3 x 76.6 x 6.6" / 148.0 x 194.7 x 16.8 cm (with Stand) | | Weight | 44 lb / 20 kg
23 lb / 10.5 kg (with Stand) | | | | Package Weight | 77.0 lb | | Box Dimensions (LxWxH) | 65.5 x 47.0 x 8.5" |
