User Manual for Plus UPIC-72M Wireless Interactive Panel Click to enlarge the picture
Contents of the user manual for the Plus UPIC-72M Wireless Interactive Panel
- Product category: Whiteboard Projection Screens Plus
- Brand: Plus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plus Whiteboard Projection Screens
|
User manual for the Plus UPIC-72M Wireless Interactive Panel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plus product will considerably shorten its lifespan!
|

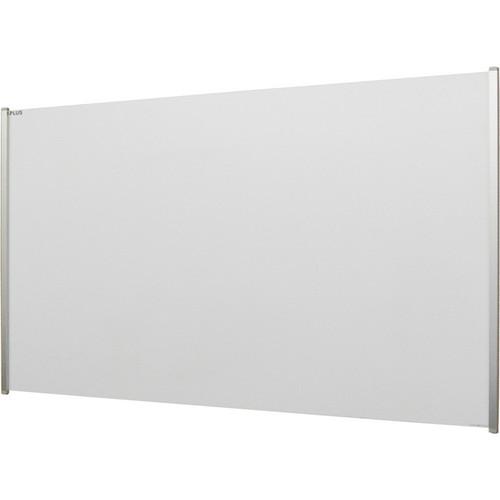

Product description The Plus UPIC-72M Wireless Interactive Panel is three presentation tools in one.First, it's a 72-inch interactive whiteboard with a 16:9 aspect ratio on which you can "draw" with an electronic Bluetooth-enabled digital pen. Second, you can use it as a conventional whiteboard (with the included special markers and eraser to protect the panel's surface). Lastly it can be used as projection screen without the "hotspot" in the middle that plagues regular whiteboards.If you present on the go you'll appreciate its ultra-portable roll-up design and its included carrying case that holds the screen and all of its accessories. At your destination just place the magnetic panel on any metal surface such as a whiteboard or greenboard. The panel itself requires no power and the digital pen uses only a single AAA battery.The only tools you'll have to provide are a Windows laptop on which to run the UPIC software, a projector and a cable to connect the two—tools you probably already have. The digital pen communicates with the PC over Bluetooth. The included UPIC software converts the motion of the digital pen over the panel and sends it to the projector so fast (it scans 50 times per second) that it looks like you're writing right on the panel. You can even save your annotated presentation as a new image file.Oh and don't worry if your PC doesn't have Bluetooth built-in. A USB Bluetooth dongle is included in the kit. - Extremely Easy Set-Up
- Just unroll the sheet against any surface to which a magnet may be adhered: a chalkboard, a whiteboard, a steel wall, etc. This is easily done by one person. After that, you only need to start your computer and projector, remove the digital pen's cap, tap the four corners of the sheet to calibrate the projected image and, lastly, begin the UPIC software. You're now ready for your interactive meeting or lesson.
- The Screen is Really a Dot Matrix Sheet
- To achieve the feat of digital writing, a patent-protected dot pattern from Anoto has been added to the UPIC writing surface. The pattern, almost invisible to the naked eye, consists of numerous intelligent small black dots that can be read by the unique digital pen. The pattern indicates the exact positions of the digital pen and the pen sends this information to your PC via Bluetooth.
- The Unique Digital Pen Does The Work
- The pen contains an integrated digital camera, an advanced image microprocessor and a mobile communications device for wireless connections. When you write over the projected image, the unique pen takes digital snapshots (more than 50 pictures per second) of the dot pattern on the UPIC writing surface. Every snapshot contains enough data to determine the exact position of the pen. The data is transferred via Bluetooth in real time to your computer which in turn sends the writing to your projector. This happens so quickly that it appears as if you are writing on the screen.
- Everything Fits Neatly Into The Compact Carrying Case.
- The UPIC and all of its accessories fit neatly into the included carrying case. Set up an interactive classroom anywhere on campus or take your interactive meeting from city to city. The UPIC is a truly portable interactive solution.
- Wireless. Bluetooth Technology
- The panel does not require any power and the UPIC does not need a cord to communicate with a computer, therefore there is no power cord to connect—or to trip over. The unique digital pen transmits information via Bluetooth. Simply pair the pen with your Bluetooth-enabled computer (or use the included Bluetooth USB dongle) and the UPIC panel becomes an interactive board.
- Like Three Presentation Tools in One
- Beyond the UPIC functioning as an interactive board, with the provided markers and eraser, you can write and erase on the panel just like when using a regular whiteboard. Furthermore, the UPIC can be used as a projection screen. Its unique surface minimizes the reflection and glare of a projector making viewing projected images more comfortable.
- Easy to Use Software With Intuitive Icons
- The "Touch and Draw" software requires very little training to master. The tool bar icons are familiar and will be readily identifiable by anyone who has worked with similar technology. The software allows you to add comments and make annotations as well as insert graphics onto areas of the projected content. This type of visual communication—through drawings and graphics—allows you to express yourself with greater clarity and more nuance than when simply speaking.
- Keep Both Your Original and Your Annotated Copy
- At the end of the presentation, you can save the digitally written comments along with the original projected image as a new digital image file.
In the Box Plus UPIC-72M Wireless Interactive Panel Digital pen Model DP-301 Set (Includes 1 Spare Stylus and 1 AAA Battery) USB Bluetooth Dongle Red Exclusive Marker White Exclusive Marker Exclusive Eraser Exclusive Carrying Case System Operating Instructions (Printed) Digital Pen operating Instructions CD-ROM (Includes UPIC Utility, UPIC Touch&Draw and the System Operating Instructions (Detailed Version) (inPDF Format) Plus 3-Year Limited Warranty on the Wireless Interactive Screen; Plus 1-Year Limited Warranty on Digital Pen ADP-301* Note: * Failure to return the registration card to PLUS Vision Corporation will void the Warranty. Table of Contents
|
Upload User Manual
Have you got an user manual for the Plus UPIC-72M Wireless Interactive Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlus UPIC-72 Specs | Diagonal Size | 72" 16:9 Aspect Ratio | | Active Screen Area | 63 x 41.3" (1600 x 1050 mm) (W x H) | | Surface | White With Virtually Invisible Dot Matrix Pattern | | | | Hardware Requirements | CPU: Pentium 4 Processor or Later
Memory: 512 MB or Greater
Hard Disk Space: 200 MB or Greater
Display: XGA (1024 x 768) or Greater
Bluetooth 2.0 Class 2 Interface or USB Port For Bluetooth Dongle
Projector
Computer Signal Cable | | Software Requirements | One of These OSes:
Windows Vista (SP1 or later, 32-bit version)
Windows XP Home/Professional (SP3 or later, 32-bit version) | | Power Requirements | 1 AAA Battery for Digital Pen | | Weight (Approx.) | 6.2 lb (2.8 kg) Not Including Pen or Accessories |
