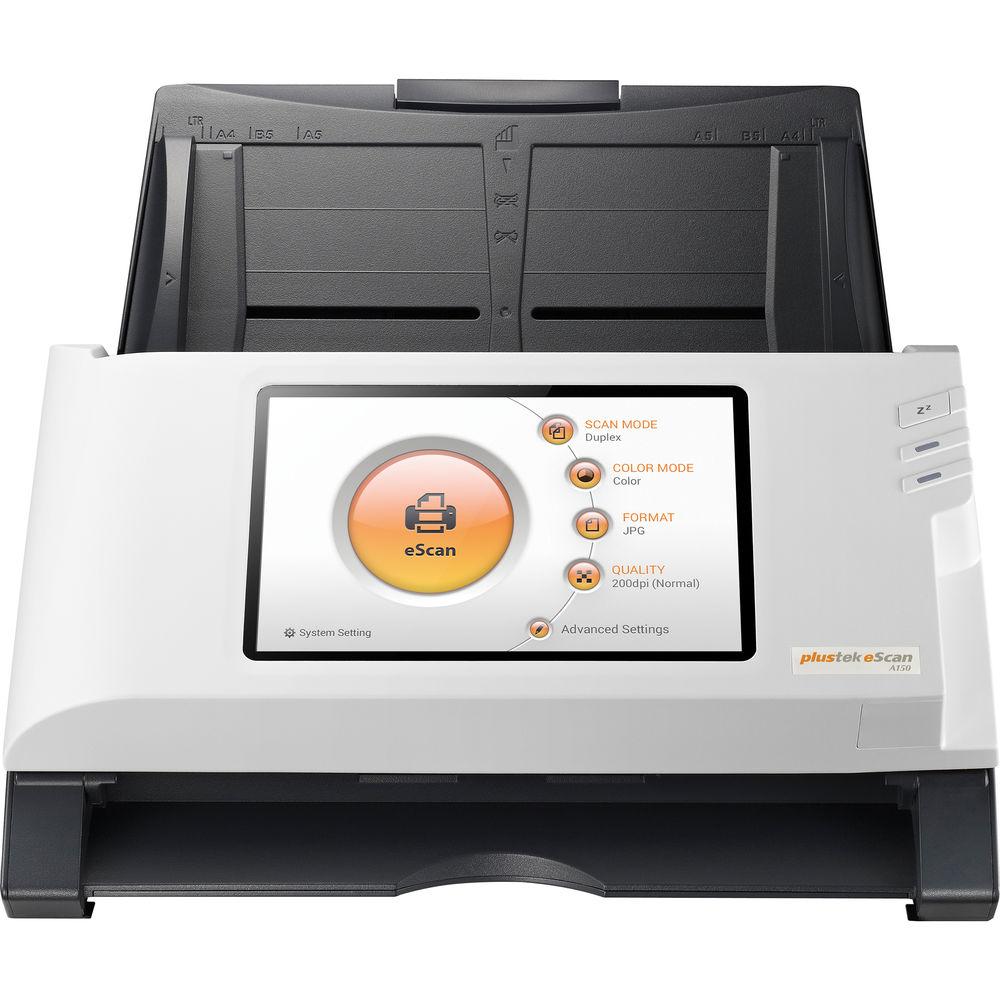

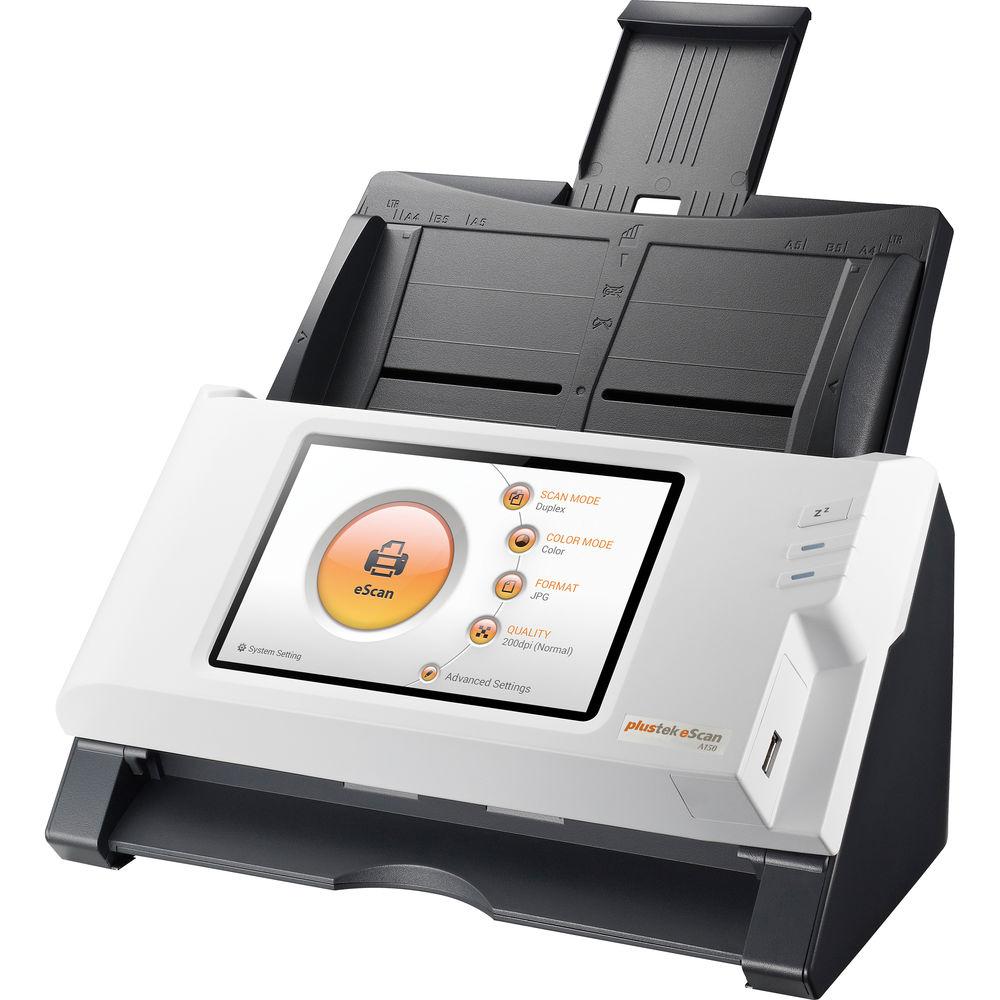

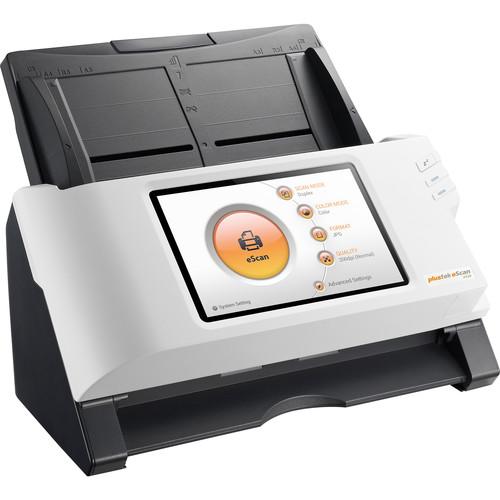

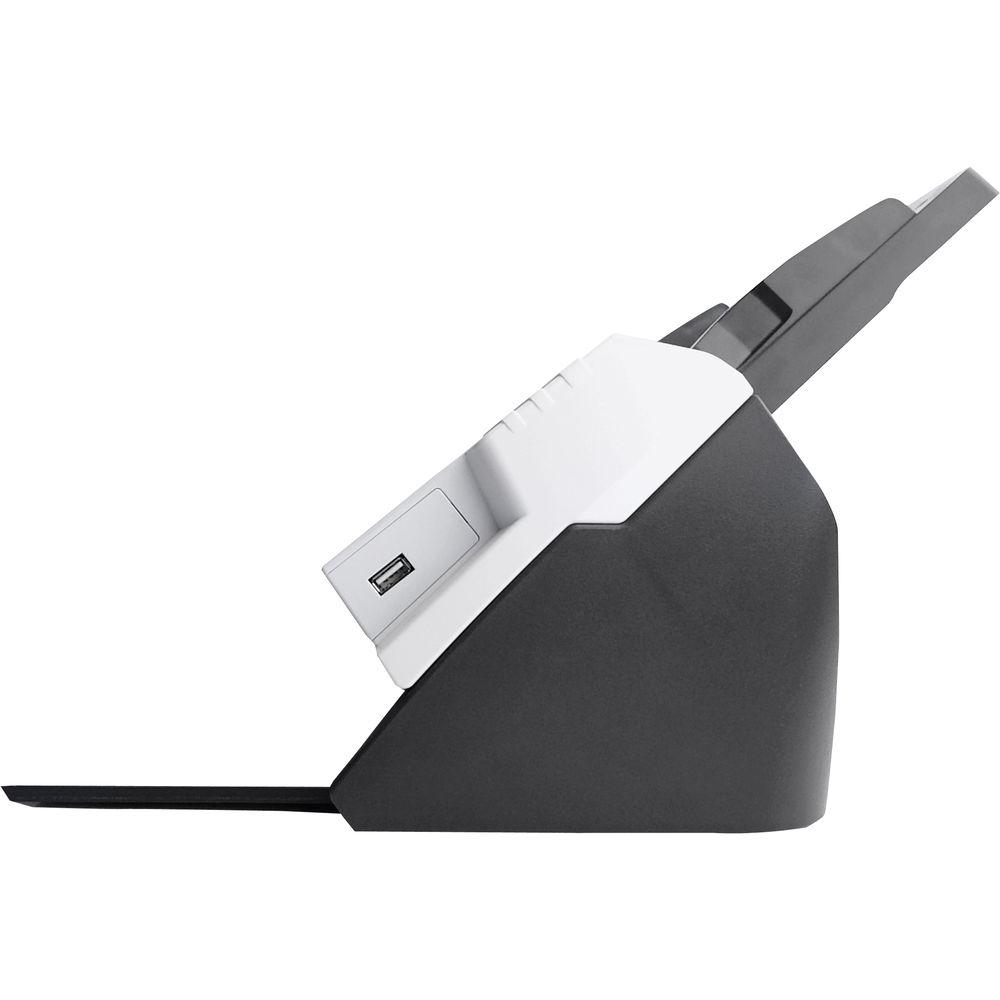

User Manual for Plustek eScan A150 Document Scanner Click to enlarge the picture
Contents of the user manual for the Plustek eScan A150 Document Scanner
- Product category: Flatbed & Document Scanners Plustek
- Brand: Plustek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plustek Flatbed & Document Scanners
 |
User manual for the Plustek eScan A150 Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plustek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!
|
Product description Scan quickly and efficiently with the Wi-Fi enabled eScan A150 Document Scanner from Plustek. It features an optical resolution of 600 dpi and a color scan speed of 5 ppm in simplex or 10 ipm in duplex mode. Also, it has a fast grayscale scan speed of 20 ppm in simplex and 40 ipm in duplex. The 50-sheet automatic document feeder is able to handle a variety of document sizes from 0.52 x 0.52" up to 8.5 x 14".
Changing settings and activating scanning without a computer is possible thanks to a 7" touchscreen IPS LCD display with a resolution of 1280 x 800. This allows users to preview scans, make adjustments, and select the destination, such as USB, email, cloud, a mobile device, or PC. It also has a daily duty cycle of 1,500 sheets as well as USB 2.0 and Ethernet connectivity options. - ABBYY FineReader 9.0 Sprint
- Optical character recognition software with support for up to 183 languages. It converts scanned documents into Microsoft Word, Excel, searchable PDF, and other formats. It offers one-click smart conversion and has Adaptive Document Recognition Technology to preserve document formatting and style.
- NewSoft Presto! PageManager 9 SE
- Front-end client software that handles your documents, including capturing, previewing, converting, and delivering files. It allows users to easily merge files by dragging and dropping as well as use embedded OCR feature to convert documents into searchable formats. It is able to convert files into formatted RTF, HTML, or text files if desires and users can create and edit PDFs. It also works with cloud services for file management.
UPC: 783064636704 In the Box Plustek eScan A150 Document Scanner USB Cable AC Adapter Software CD Limited 1-Year Warranty Brochure PDF 765.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Plustek eScan A150 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlustek A150 Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 10 ipm (Color)
40 ipm (Grayscale) | | Simplex Speed | 5 ppm (Color)
20 ppm (Grayscale) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 14" / 35.6 cm | | Document Feeding | ADF | | Paper Weight | 12 to 40 lb | | Operating System Compatibility | Windows | | Light Source | LED | | Control Panel | LCD Touchscreen | | Processor Speed | 1.6 GHz | | Memory | 1 GB | | Duty Cycle | 1500 Scans | | Maximum Sheet Capacity | 50 | | Operating Temperature | 41 to 95°F / 5 to 35°C | | DC Input Power | 24 VDC | | Dimensions | 12.5 x 6.7 x 7.5" / 31.8 x 17.0 x 18.9 cm | | Weight | 6.2 lb / 2.8 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 17.2 x 11.5 x 10.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
