User Manual for Plustek Mobile Office D620 Scanner Click to enlarge the picture
Contents of the user manual for the Plustek Mobile Office D620 Scanner
- Product category: Portable Scanners Plustek
- Brand: Plustek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plustek Portable Scanners
 |
User manual for the Plustek Mobile Office D620 Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plustek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!
|

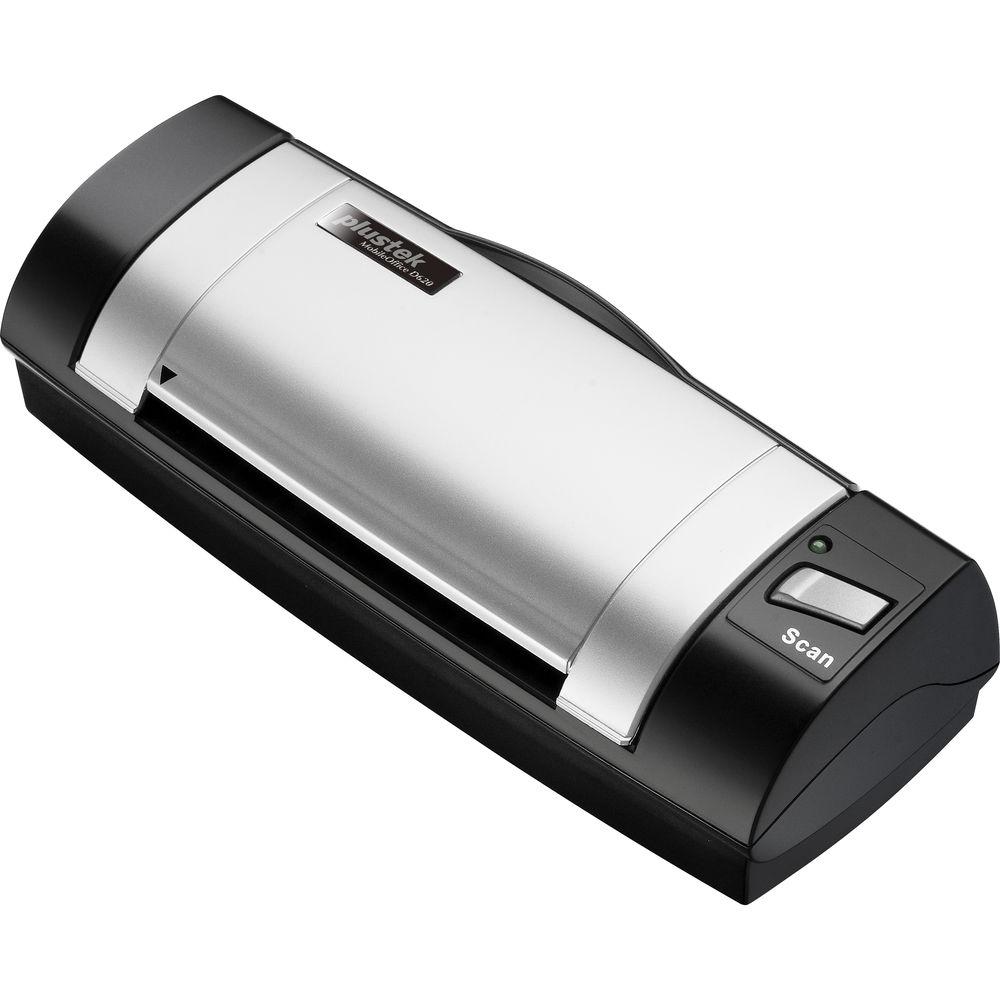

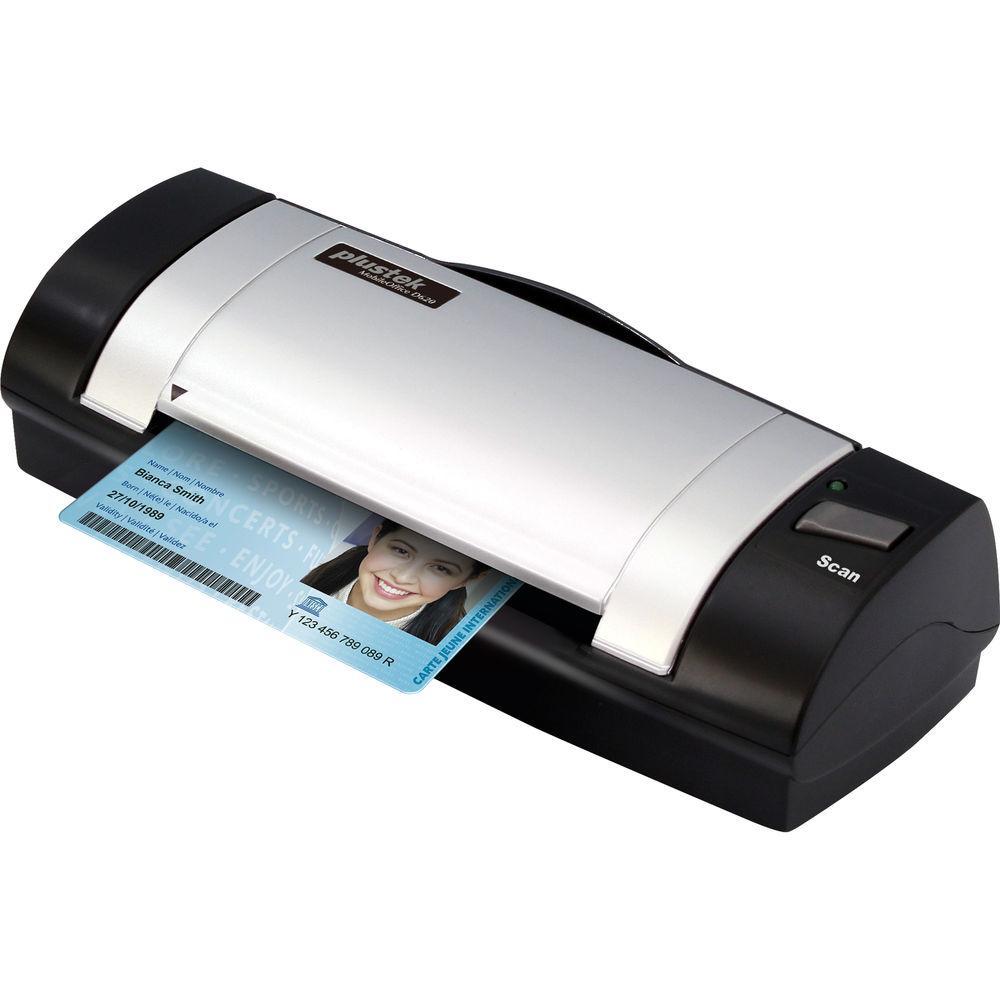

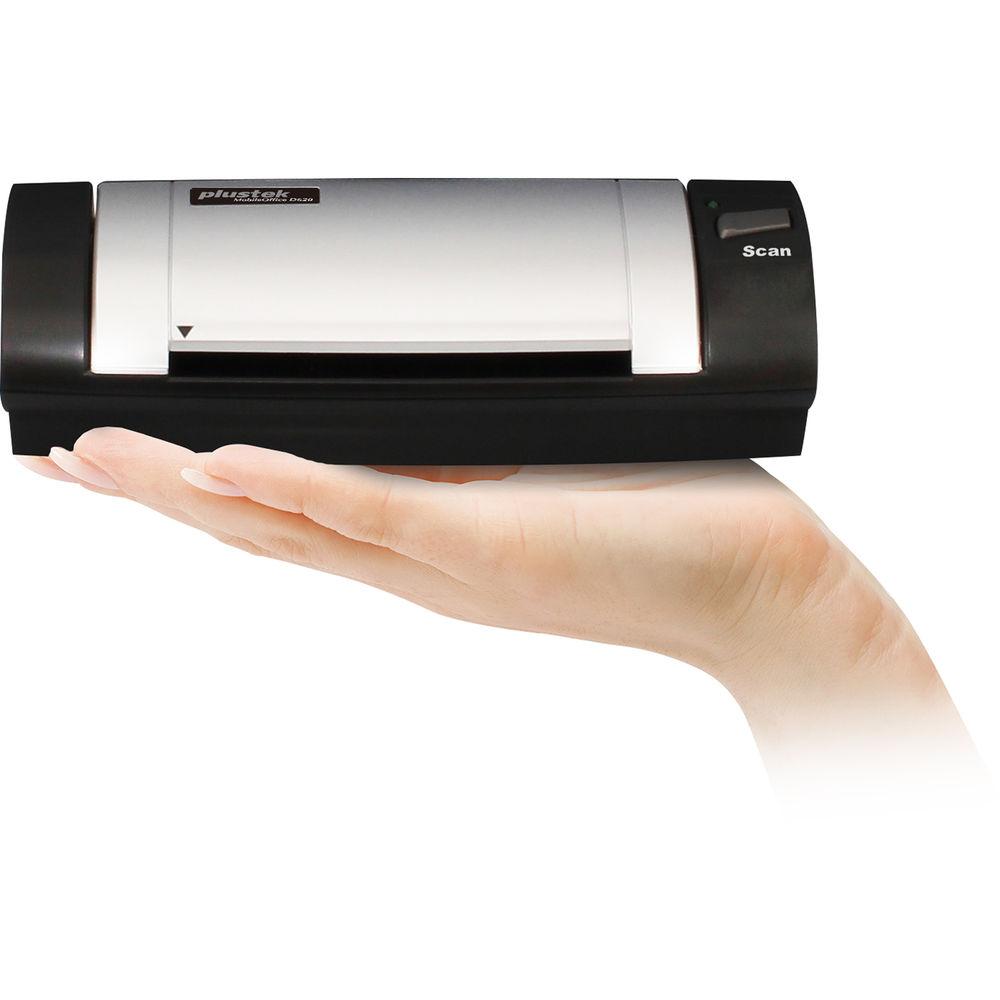

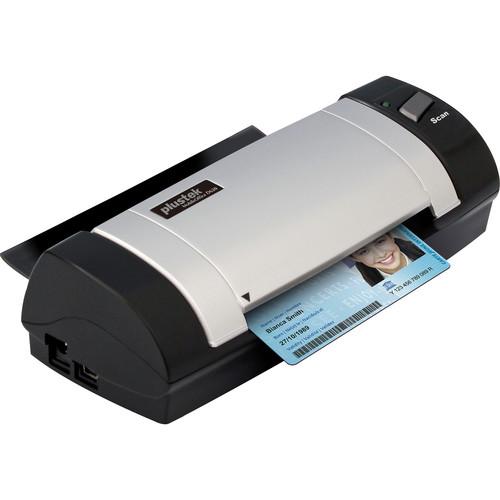

Product description Quickly and easily scan ID cards or other documents with the compact Mobile Office D620 Scanner from Plustek. Weighing just one pound and measuring just 7.63 x 2.95 x 2.17", this unit fits neatly on a desk and is easily portable. It uses USB power and two CIS sensors to scan documents at 600 dpi. Two-sided scanning is possible, and the scanner can scan both sides of an A6-sized document in color at 300 dpi in seven seconds. The maximum accepted thickness for plastic cards are 1.2mm and 1mm for embossed and non-embossed cards, respectively. -
- The D620's compact size fits on a desk without taking up a large amount of space.
- USB power means the scanner is ready to work in a multitude of locations.
- Scans are automatically saved to a selectable destination and any PDF's created are searchable.
UPC: 783064607872 In the Box Plustek Mobile Office D620 Scanner Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Plustek Mobile Office D620 Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlustek MobileOffice D620 Specs | Image Sensor | 2 x CIS | | Light Source | LED | | Optical Resolution | 600 dpi | | Hardware Resolution | 600 x 600 dpi | | Bit Depth | Color: 48-bit input / 24-bit output
Grayscale: 16-bit input / 8-bit output
Black & White: 1-bit output | | Scan Speed | Simplex: 5 seconds for color (A6 at 300 dpi)
Duplex: 7 seconds for color (A6 at 300 dpi) | | Scan File Format | PDF (searchable) | | Minimum Scan Size | 1.75 x 1.77" / 40 x 45 mm | | Maximum Scan Size | 4.13 x 23.36" / 104.9 x 593.3 mm | | Media Weight Supported | Paper: 50-120 gsm | | Maximum Media Thickness | Plastic Cards:
Non-Embossed: 39.4 mil / 1 mm
Embossed: 47.2 mil / 1.2 mm | | Buttons | Scan | | Interface | USB 2.0 | | Protocol | TWAIN compliant | | Compatible Operating Systems | Windows 7, 8, 10 | | System Requirements | Pentium IV 2.4 GHz processor or higher
DVD-ROM drive
USB 2.0 port
1 GB RAM (2 GB recommended)
2 GB free hard disk space (3 GB recommended) | | Power Requirements | USB Power: 5 V / 0.5 A | | Dimensions | 7.63 x 2.95 x 2.17" / 194 x 75 x 55 mm | | Weight | 1 lb / 450 g | | | | Package Weight | 1.74 lb | | Box Dimensions (LxWxH) | 10.4 x 7.1 x 3.95" |
