Plustek MobileOffice D430 Scanner

Search your instruction manual in PDF to download

User Manual for Plustek MobileOffice D430 Scanner

Click to enlarge the picture
Plustek MobileOffice D430 Scanner Contents of the user manual for the Plustek MobileOffice D430 Scanner
  • Product category: Portable Scanners Plustek
  • Brand: Plustek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Plustek Portable Scanners

Plustek MobileOffice D430 Scanner Plustek MobileOffice D430 Scanner Plustek MobileOffice D430 Scanner Plustek MobileOffice D430 Scanner Plustek MobileOffice D430 Scanner
User manual for the Plustek MobileOffice D430 Scanner contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Plustek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!



Product description

The Plustek MobileOffice D430 lets you scan anywhere by simply plugging the compact unit into a USB port on your computer, no power outlet is needed. The D430 features 2 sensors for easy auto duplex scanning. The scanner works at a fast 33 ppm (1-sided) and can scan pages up to 8.5" wide and 50" long. In addition to scanning standard pages, you can even scan plastic cards such as credit cards, licenses, and membership cards. 2 customizable buttons provide an easy way to automate common scan types such as scan to PDF, to OCR software, Evernote, Picasa, and Microsoft Office. The included software suite lets you take full advantage of what the scanner has to offer. Hotcard BizCard Finder automatically extracts contact information from scanned business cards and stores the data in a spreadsheet. ABBYY FineReader converts scanned documents into editable text and support up to 183 languages. Once scanned, the documents can be saved into useful formats such as Microsoft Word and Excel files, and Adobe PDF files. Other software includes Plustek DI Capture for managing your scanned files, and DI Express which provides OCR support for Traditional & Simplified Chinese, Japanese, and Korean.

Small Footprint, High Speed

  • The small footprint and 33 ppm scanning speed makes this scanner ideal for front desk applications: pharmacy, patient registration, bank teller

Single-Touch Button Design

  • Nine customizable single touch settings enable you to automate frequent scanning jobs and tasks

Plastic/Embossed Card Scanning

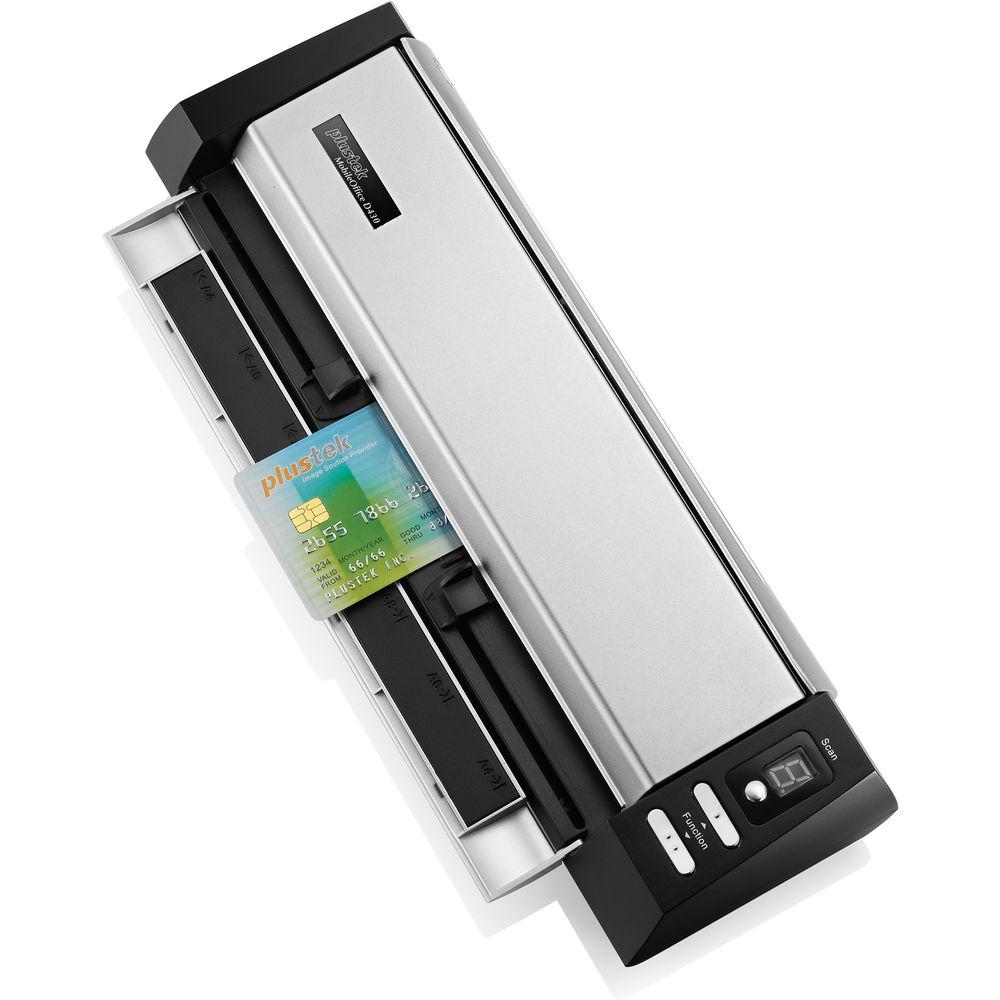

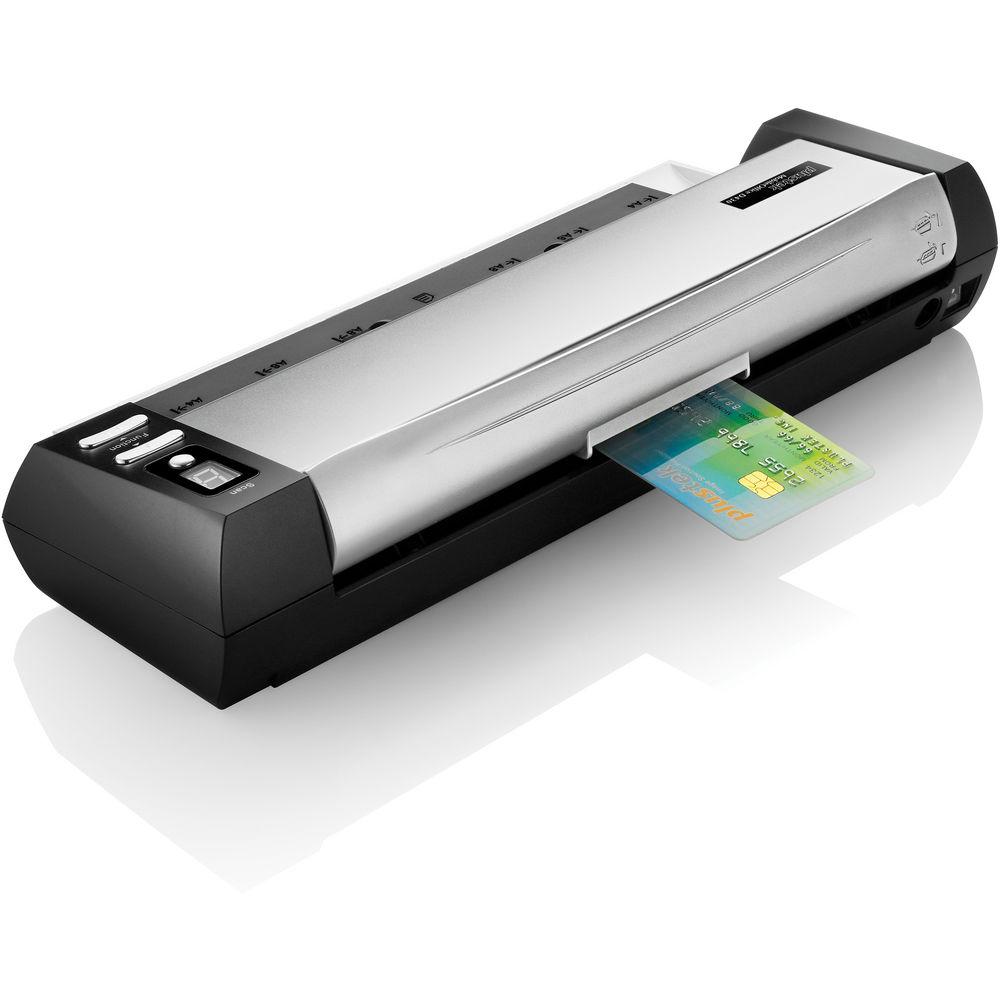

  • Scans embossed plastic cards up to 1.2mm thick including, credit cards, driver license cards, ID cards, medical cards or membership cards

Self-Maintenance Design

  • Simply lift the upper part of the scanner for cleaning. Simple maintenance improves image quality and paper feeding

Paper Output Options

  • Paper can be ejected to the rear of the scanner or out the top. It allows the scanner to be placed right up against a wall in space constrained environments

Bundled Software Packages

    Hotcard BizCard Finder 3.0
  • BizCard Finder provides BCR Technology and Photo /Document database for information management. Through BizCard Finder, you can quickly and easily convert the vital contact information on business cards into a convenient, searchable, digital database that can be easily synchronized between PC, Notebook, and PDA
    • Support Batch scan and Process
    • Customize Category
    • Calendar Reminding function
    • Password Protection and Public Database management
    • Browse image conveniently by the SlideShow applet
    • Database backup and Merge management
    • Multiple Sort function to search the available data easily
    • Send email with images attached
    • Multiple print option
    • Slide Show
    • Recognize Language: English, Chinese, Japanese, German, French, Spanish, Italian and Portuguese (For Business card database only)
    • Synchronize /Export and Import in table format (For Business card database only)
    Plustek DI Capture
  • Image capture and management software featured with indexed archives. It also makes it easy to import, export, edit, and organize documents and images in an efficient way
    Plustek DocAction
  • Button utility is designed to specify your personalized scanning configuration settings which make documents scanning easily
    ABBYY FineReader 9.0 Sprint
  • Comes with simple user interface, supports recognition up to 183 languages and has the following features:
    • Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats
    • Superior recognition accuracy & layout retention in 183 languages
    • One-click smart conversion for easy access - no learning curve
    • Multi-language recognition with automatic language detection
    • Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
    Plustek DI Express 6
  • OCR software for 4 main Asian languages, Traditional Chinese, Simplify Chinese, Japanese and Korean. Better and faster recognizer for documents
UPC: 783064605533 In the Box Plustek MobileOffice D430 Scanner
  • USB Cable
  • Power Adapter
  • Calibration Sheet
  • User Manual
  • Driver & Software CD:
    • Scanner Drivers
    • Hotcard BizCard Finder 3.0
    • Plustek DI Capture
    • Plustek DocAction
    • ABBYY FineReader 9.0 Sprint
    • Plustek DI Express 6
  • 1-Year Limited Warranty
  • Brochure PDF 1.1mbasvdwxqufdfvfqba Table of Contents




    Upload User Manual

    Have you got an user manual for the Plustek MobileOffice D430 Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Plustek D430 Specs

    Scan Sensor 2 contact image sensors (CIS)
    Optical Resolution 600 dpi
    Hardware Resolution 600 x 600 dpi
    Color Depth Color Input: 48-bit
    Color Output: 24-bit
    Grayscale Input: 16-bit
    Grayscale Output: 8-bit
    B/W: 1-bit
    Scan Speed 33 ppm
    Scan Area 0.5 x 0.5 to 8.5 x 50.0" (12.7 x 12.7 to 216 x 1270 mm)
    Paper Sizes 1.18 x 1.38 to 9.45 x 50.0" (30 x 35 to 240 x 1270 mm)
    Media Weight Paper: 50 to 125 g/m2
    Non-Embossed Plastic Card: up to 29.92 mil (0.76 mm)
    Embossed Plastic Card: up to 48.82 mil(1.24 mm)
    Scan Speed 1-Sided (200 dpi): 1.8 sec (grayscale, A4)
    Duplex (200 dpi): 2.4 sec (grayscale, A4)
    Daily Duty Scan (Sheets) 1000
    Computer Interface USB 2.0
    OS Compatibility Windows 7, XP, Vista, 2000
    System & Software Requirements Processor: Pentium IV 2 GHz or higher
    Optical Drive: CD-ROM/DVD-ROM
    Interface: 1 available USB 2.0 port
    Memory: 512 MB RAM
    Disk Space: 800 MB (1 GB recommended)
    Protocol TWAIN compliant
    Front Panel Controls Scan, Up, Down)
    Power Requirements AC Adapter: 24 V DC / 0.75 A
    Dimensions (WxDxH) 11.93 x 3.7 x 2.36" (303 x 94 x 60 mm)
    Weight 2.13 lb (960 g)
    Package Weight 4.11 lb
    Box Dimensions (LxWxH) 15.95 x 9.75 x 4.85"
