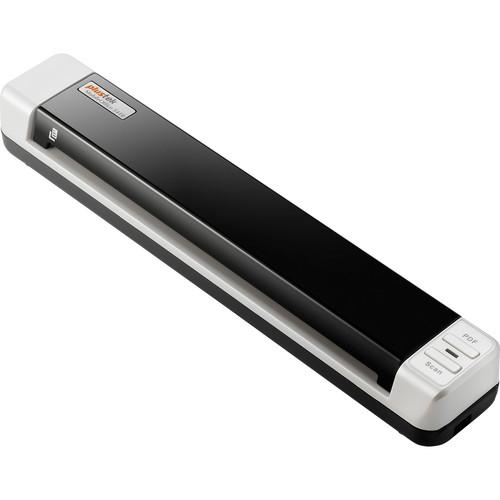

User Manual for Plustek MobileOffice S410 Portable Scanner Click to enlarge the picture
Contents of the user manual for the Plustek MobileOffice S410 Portable Scanner
- Product category: Portable Scanners Plustek
- Brand: Plustek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plustek Portable Scanners
|
User manual for the Plustek MobileOffice S410 Portable Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plustek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!
|
Product description Scan documents at the source with the MobileOffice S410 Portable Scanner from Plustek, featuring a compact design that makes it easy to keep by your side. It is a very capable scanning unit with the ability to handle documents ranging from 2 x 2" embossed business cards to long 8.5 x 36" documents, and each scan is highly detailed thanks to a 600 dpi optical resolution. It also works quickly with a speed of 9 seconds per A4-sized page in color at 300 dpi.
Operation is simplified with two single-touch buttons, PDF and Scan as well as advanced image enhancement to ensure each scan is of the highest quality. It is powered through the USB 2.0 connection to your PC and can be set up to scan directly to Evernote and Google Picasa for linking to the cloud. Additionally, it is TWAIN compliant and supports Windows 2000, XP, Vista, 7, and 8. Features - USB powered mobile scanner with Simplex Scanning in Color, Grayscale, or B/W
- Scan to Evernote and Google Picasa
- Bundled with document management, OCR, BCR and imaging applications
- 6 ppm Scan Speed (9 sec/page in color mode, 300 dpi, A4)
- Support scans to searchable PDF
- Scan rigid embossed cards such as licenses, insurance cards, membership cards, credit cards
- 2 Single-touch buttons automates frequent scanning jobs
- Advanced image enhancement to automatically straighten and rotate pages, adjust brightness, and crop images to minimize file size and increase OCR / BCR accuracy
- Software productivity suite enables PDF, Microsoft Office, JPG / TIF creation and management
- Includes Abbyy FineReader Sprint and Hotcard BizCard Finder
TWAIN Support - Features industry standard TWAIN drivers that are supported by thousands of document management and imaging applications. Bundled software packages
Hotcard BizCard Finder 3.0 - BizCard Finder provides BCR Technology and Photo /Document database for information management. Through BizCard Finder, you can quickly and easily convert the vital contact information on business cards into a convenient, searchable, digital database that can be easily synchronized between PC, Notebook, and PDA
- Support Batch scan and Process
- Customize Category
- Calendar Reminding function
- Password Protection and Public Database management
- Browse image conveniently by the SlideShow applet
- Database backup and Merge management
- Multiple Sort function to search the available data easily
- Send email with images attached
- Multiple print option
- Slide Show
- Recognize Language: English, Chinese, Japanese, German, French, Spanish, Italian, and Portuguese (For Business card database only)
- Synchronize /Export and Import in table format (For Business card database only)
Plustek DI Capture - Image capture and management software featured with indexed archives. It also makes it easy to import, export, edit, and organize documents and images in an efficient way
Plustek DocAction - Button utility is designed to specify your personalized scanning configuration settings which make documents scanning easily
Plustek DocTWAIN - Industry standard TWAIN drivers ensure compatibility with thousands of image enabled applications including: document management, document capture, enterprise content management, forms processing, photographic imaging, and image management applications
ABBYY FineReader 9.0 Sprint - Comes with simple user interface, supports recognition up to 183 languages
- Convert scanned document and images into Microsoft Word, Excel, searchable PDF and other formats.
- Superior recognition accuracy & layout retention in 183 languages
- One-click smart conversion for easy access - no learning curve
- Multi-language recognition with automatic language detection
- Instant on-screen OCR and capture with bonus ABBYY Screenshot Reader
Plustek DI Express 6 - OCR software for 4 main Asian languages, Traditional Chinese, Simplify Chinese, Japanese, and Korean. Better and faster recognizer for documents
UPC: 783064285391 In the Box Plustek MobileOffice S410 Portable Scanner Limited 1-Year Warranty Brochure PDF 777.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Plustek MobileOffice S410 Portable Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlustek S410 Specs | | | Scan Sensor | Contact Image Sensor (CIS) | | Optical Resolution | 600 dpi | | Hardware Resolution | 600 x 600 dpi | | Color Depth | Color: 48-bit input / 24-bit output
Grayscale: 16-bit input / 8-bit output
Black & White: 1-bit | | | | Scan Speed | 9 seconds for color A4-size document at 300 dpi | | Scan Area | Maximum: 8.5 x 36.0" (21.6 x 91.0 cm)
Minimum: 0.5 x 0.5" (1.3 x 1.3 cm) | | Document Size | Maximum: 8.5 x 36.0" (21.6 x 91.0 cm)
Minimum: 2.0 x 2.0" (5.1 x 5.1 cm) | | Paper Weight | 50-125 gsm | | Media Thickness | Plastic Card, Non-Embossed: 29.9 mil (0.76 mm)
Plastic Card, Embossed: 48.8 mil (1.24 mm) | | | | Computer Interface | USB 2.0 | | Protocol | TWAIN | | System & Software Requirements | Windows 2000, XP, Vista, 7, and 8
Pentium IV 2.4 GHz processor
CD-ROM drive
Available USB port
512 MB or more memory
800 MB free hard disk space (1 GB or more recommended)
VGA or higher High Color graphic card | | | | Front Panel Controls | PDF button
Scan button | | Power Requirements | USB bus power | | Power Consumption | Operation: 2.5 W
Idle: 1.2 W | | Dimensions | 11.6 x 2.0 x 1.6" (29.5 x 5.0 x 4.1 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 1.67 lb | | Box Dimensions (LxWxH) | 14.15 x 5.3 x 2.65" |
