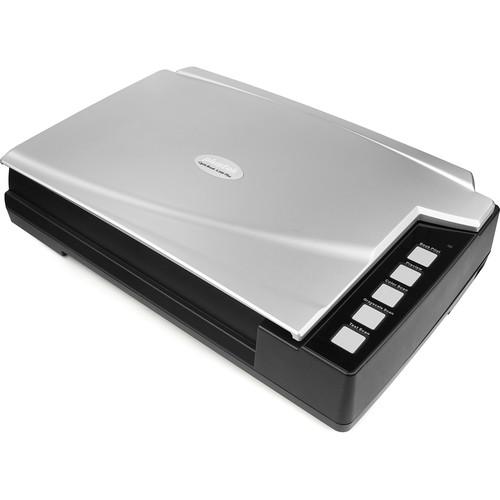

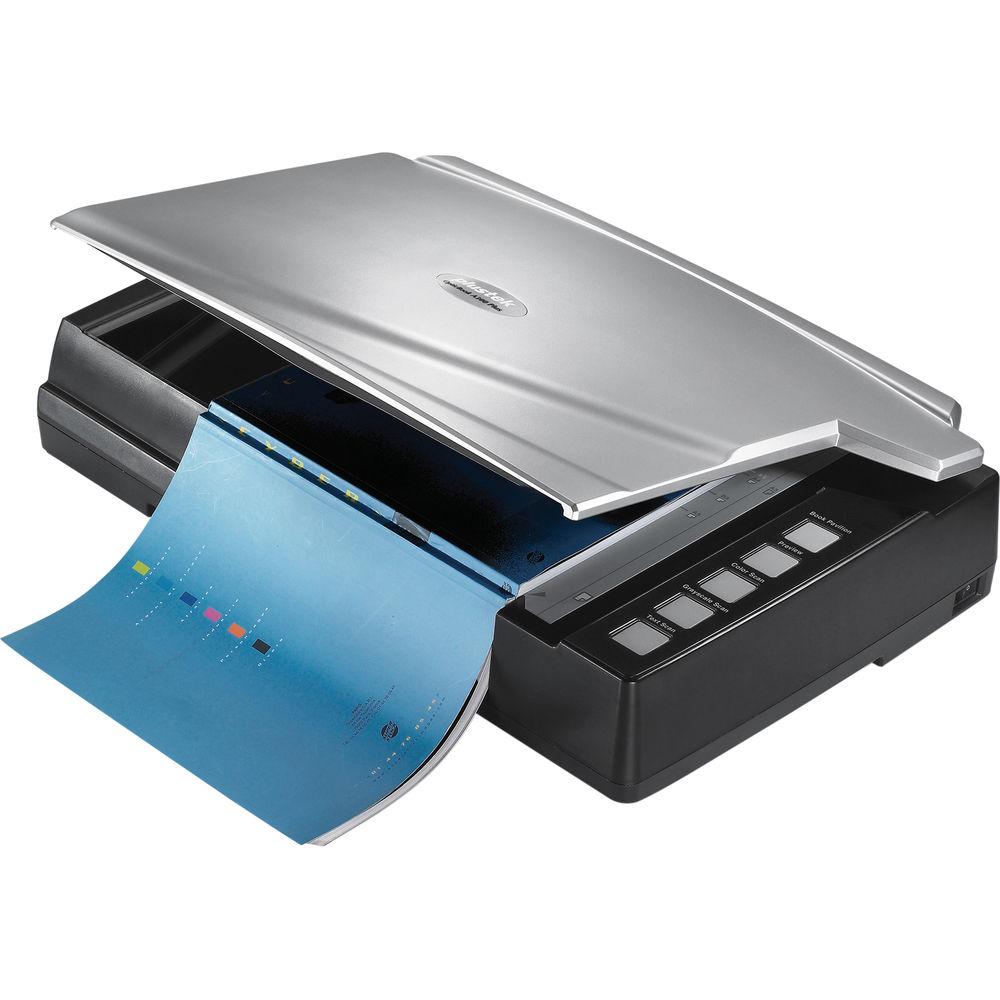

Plustek OpticBook A300 Plus Scanner

Search your instruction manual in PDF to download

User Manual for Plustek OpticBook A300 Plus Scanner

Click to enlarge the picture
Plustek OpticBook A300 Plus Scanner Contents of the user manual for the Plustek OpticBook A300 Plus Scanner
  • Product category: Flatbed & Document Scanners Plustek
  • Brand: Plustek
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Plustek Flatbed & Document Scanners

Plustek OpticBook A300 Plus Scanner Plustek OpticBook A300 Plus Scanner
User manual for the Plustek OpticBook A300 Plus Scanner contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Plustek product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!



Product description

The OpticBook A300 Plus flatbed scanner from Plustek is designed for high usage environments and is ideal for scanning book pages and other documents. With the A300 Plus you can scan an A3 sized page in less than 2.5 seconds, or a 200 page 8.5 x 11" book in approximately 20 minutes. Integrating mechanical, optical, and software technology to provide clear text and images within 2mm's of the book's spine, the scanner minimizes the spine shadow and distorted text associated with book scanning on flatbed scanners and eliminates the need to remove book pages from their bindings.

Users no longer have to damage bindings by pressing them flat or cutting pages to achieve a clean scan edge, making it an ideal scanning tool for students, schools, graphic designers, and any other work groups in need of scanning original binded documents. Additionally, this makes the A300 Plus ideal for library scanning as it allows books and texts to be efficiently digitized without unbinding, dismantling, and damaging them.

The included Book Pavilion Software streamlines book digitization processes, and allows pages to be automatically scanned and rotated at preset intervals, and user interaction via a PC screen is not required. The software automatically crops and rotates pages and will save to a variety of file formats including PDF, Searchable PDF, EPUB, BMP, JPEG, and TIFF.
    Book Scanning
  • The OpticBook A300 Plus can scan books, binded texts, and A3-sized documents up to 12 x 17".
    High Quality and High Speed
  • Scans an A3-sized image in less than 2.5 seconds at 600 dpi.
    Scans Text Close to Book Spine
  • Integrated mechanical, optical, and software technology provides clear text and images within 2mm's of the book's spine. This minimizes the spine shadow and distorted text associated with book scanning on flatbed scanners and eliminates the need to remove book pages from their bindings.
    One Touch Control
  • The buttons on the scanner's panel perform Book Pavilion, Preview, Color Scan, Grayscale Scan, and Text Scan functions. The settings for each are configured through Book Pavilion and offers quick access to the most frequently used scanning functions. This is especially useful when needing to repeatedly scan with the same settings and send images to the same destinations.
    Productivity Software
  • With the included Plustek Book Pavilion software, images can be saved into a variety of formats such as BMP, JPEG, or TIFF. The software automatically rotates page images as consecutive pages are scanned, maintaining book layout and page sequence. The OpticBook A300 Plus also comes with image processing and document management software, including PDF conversion and Optical Character Recognition, which creates searchable scanned books.
UPC: 783064357968 In the Box Plustek OpticBook A300 Plus Scanner
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Plustek OpticBook A300 Plus Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Plustek OpticBook A300 Plus Specs

    Maximum dpi Resolution 600 dpi
    Optical Resolution 600 dpi
    Maximum Document Width 12" / 30.5 cm
    Maximum Document Length 17" / 43.2 cm
    Color Depth 48-Bit (Internal)
    24-Bit (External)
    Grayscale Bit-Depth 16-Bit (Internal)
    8-Bit (External)
    Scan Modes Color, Grayscale
    Life Expectancy 5000 Sheets per Day
    Connectivity USB 2.0
    Wireless Connectivity None
    Operating System Compatibility Windows
    Light Source LED
    Image Sensor 1 x Charge-Coupled Device (CCD)
    Control Panel 5 Buttons
    Drivers TWAIN, WIA
    Maximum Power Consumption 24 W
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 24 VDC at 1.25 A
    Power Source AC Adapter
    Dimensions 24.5 x 5.5 x 15.7" / 62.2 x 14.0 x 39.9 cm
    Weight 17.00 lb / 7.71 kg
    Package Weight 27.0 lb
    Box Dimensions (LxWxH) 31.5 x 22.75 x 10.0"
