User Manual for Plustek OpticFilm 8200i SE Film Scanner Click to enlarge the picture
Contents of the user manual for the Plustek OpticFilm 8200i SE Film Scanner
- Product category: Film Scanners Plustek
- Brand: Plustek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plustek Film Scanners
 |
User manual for the Plustek OpticFilm 8200i SE Film Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plustek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!
|
Product description - SilverFast 8.8-History Feature

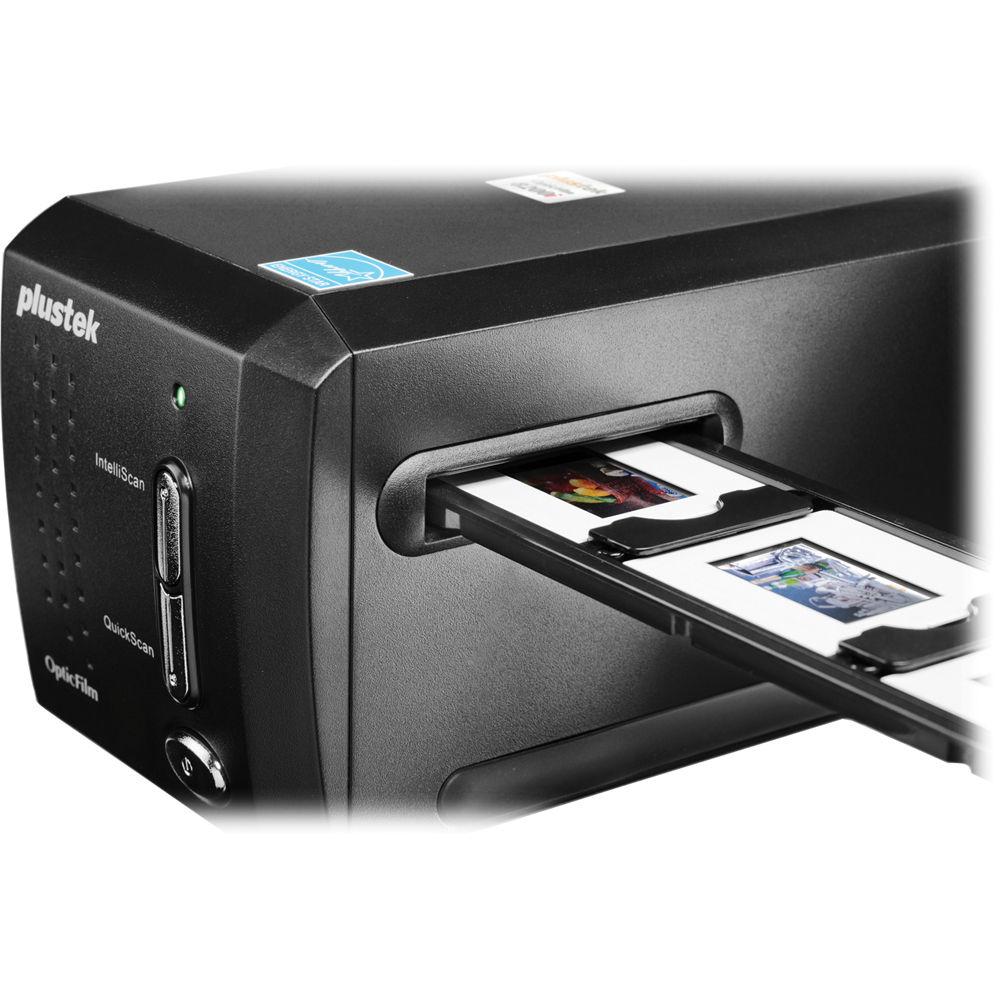

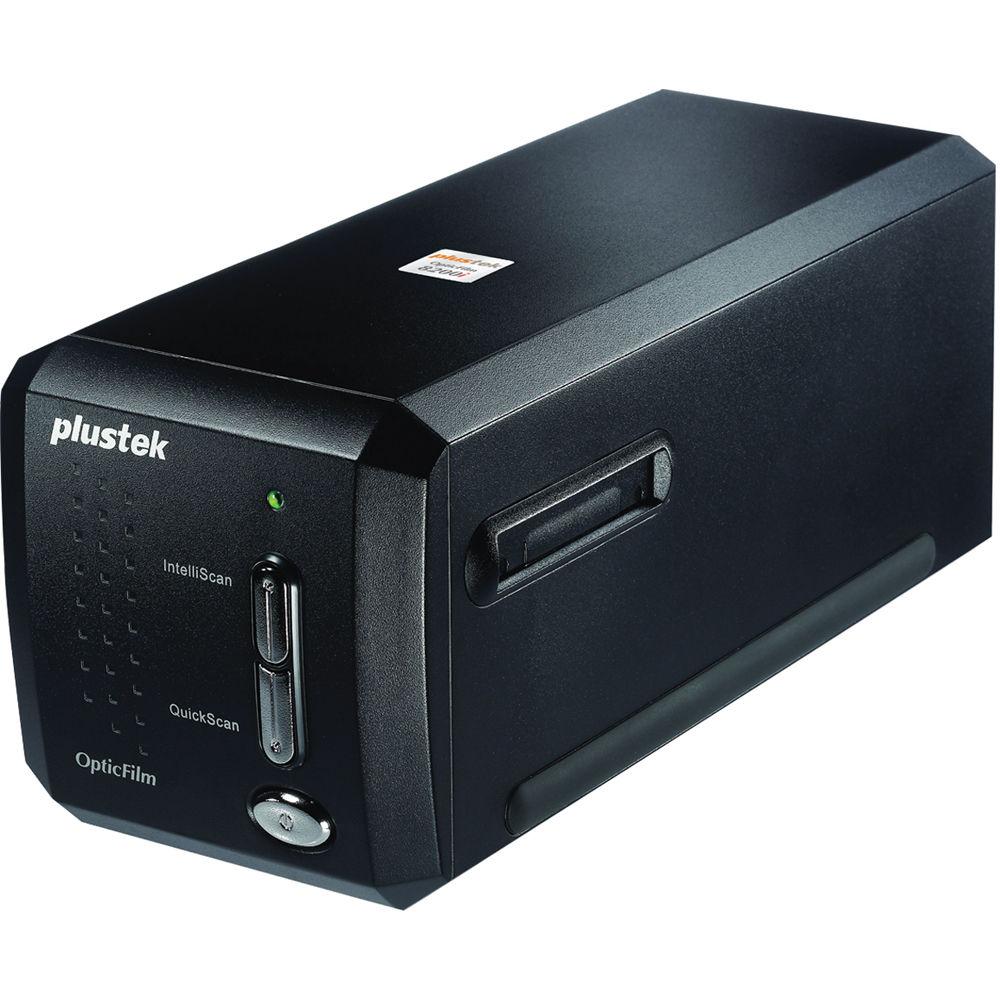

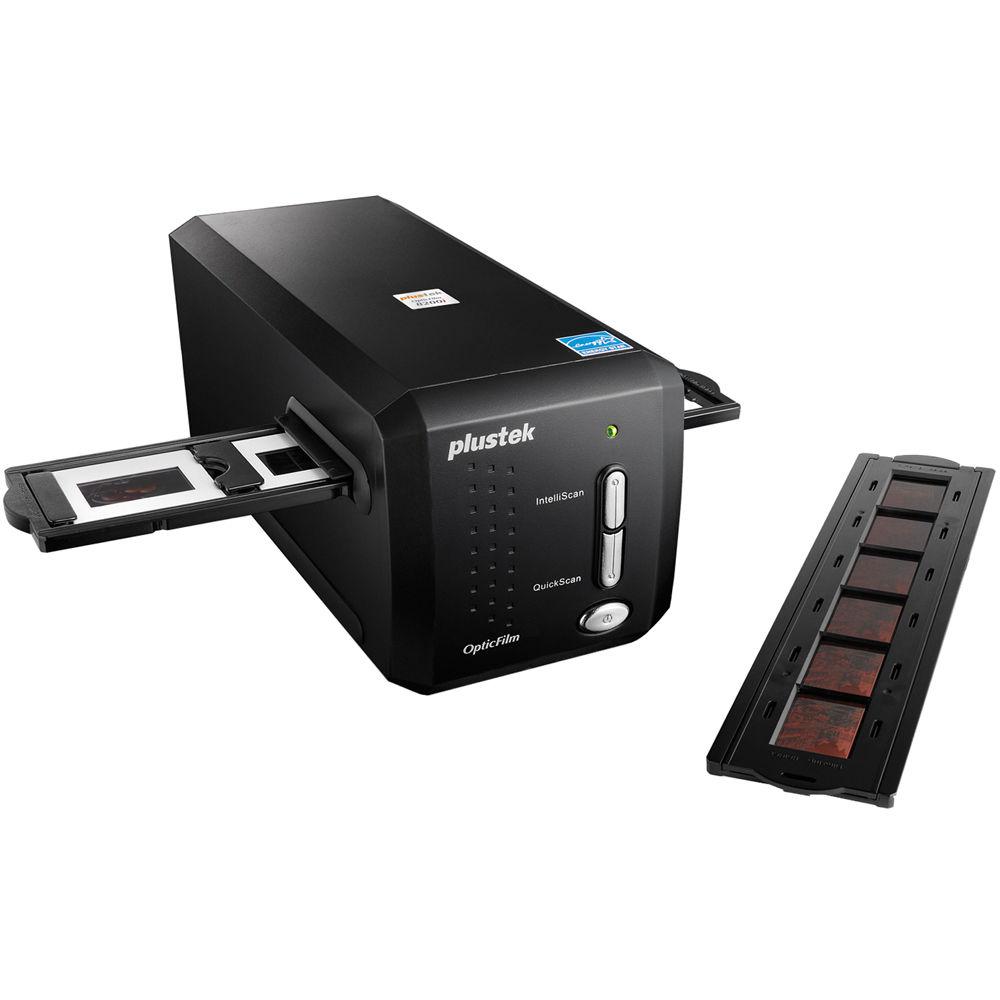

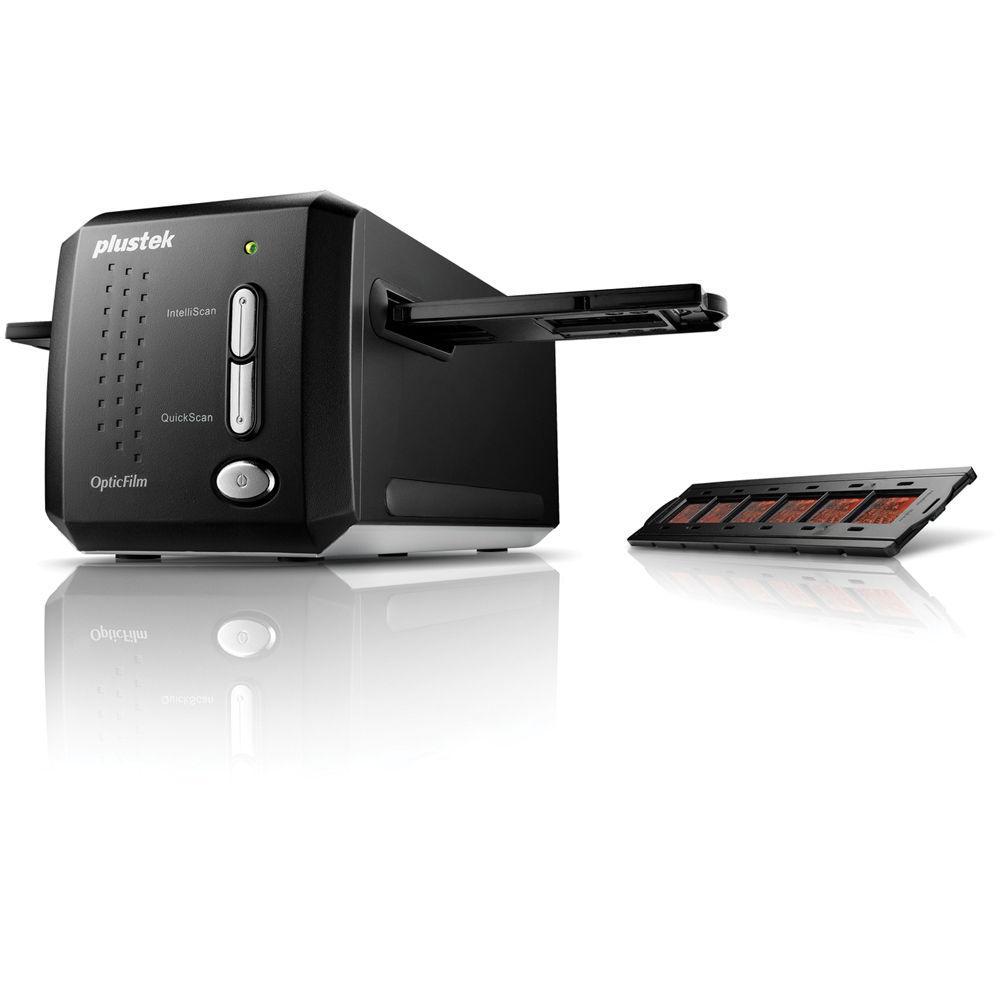

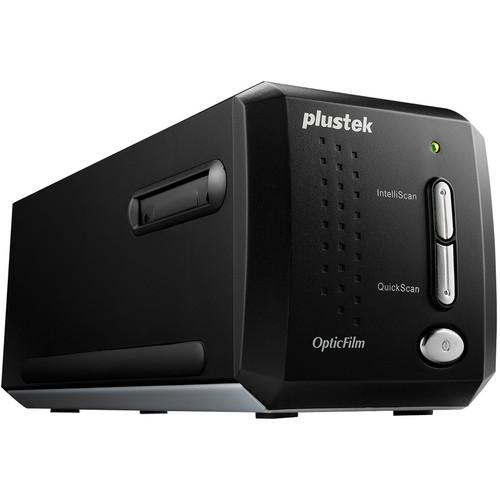

The OpticFilm 8200i SE Film Scanner from Plustek converts all your 35mm negatives and mounted slides into digital files you can edit and view on the computer. The scanner uses a high resolution 7200 dpi sensor with 48-bit color depth to capture all the detail from your originals. The scanner's built-in infrared channel provides dust and scratch removal during scanning to cut down on the amount of editing required. The included SilverFast SE Plus 8 software works together with the scanner to improve your workflow and ensure proper results the first time. This updated version features an improved user interface and provides an advanced preview option that lets you see the results of adjustments beforehand. Key Features - 64-bit hardware & software support
- Enhanced with Multi-Exposure Function for improved image quality
- Built-in infrared channel
Plustek QuickScan - Plustek QuickScan is a PC-Only (does not work on Apple computers) button utility software for scanning 35mm negative films and positive slides. It is ideal for digitizing snapshots with just one click. It is easy to operate and speedy to scan
SilverFast SE Plus 8 - Professional-grade software for scanning, editing, and color reproduction
- WorkflowPilot provides a step-by-step guide for different workflows
- Preview allows for immediate control of any image adjustment
- Concurrent scanning and optimizing provide effective multitasking
- Multi-Exposure increases dynamic range
- Negafix converts negatives into positives
- iSRD reduces the amount of post-scan editing and retouching by removing the results of dust and scratches from the original
UPC: 783064365345 In the Box Plustek OpticFilm 8200i SE Film Scanner SilverFast SE Plus 8 Plustek QuickScan Carrying Case Mounted Slides Tray Negatives Tray USB Cable Power Adapter Limited 1-Year Warranty Brochure PDF 584.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Plustek OpticFilm 8200i SE Film Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlustek 8200i SE Specs | Film Types | 35mm negatives
35mm mounted slides | | | | Scan Sensor | CCD | | Optical Resolution | 7200 dpi | | Color Depth | Color: 48-bit input, 24 / 48-bit output
Grayscale: 16-bit input, 8 / 16-bit output
Black / White: 1-bit | | Dynamic Range | 3.6 | | Infrared | Built-in | | Scan Area | 1.45 x 1.0" (36.8 x 25.4 mm) | | | | Preview Speed | ~ 8 seconds, Multi-Sampling on (negatives & slides) | | Scan Speed | 3600 dpi: ~ 36 seconds, Multi-Sampling on
7200 dpi: ~ 113 seconds, Multi-Sampling on | | | | Computer Interface | USB 2.0 | | OS Compatibility | Windows: Windows 10, 8, 7, Vista, XP
Mac: OS X 10.5, 10.6, 10.7, 10.8 | | Windows System Requirements | 2 GHz processor or faster, 2 GB RAM (4 GB recommended), 10 GB disk space, CD / DVD drive or internet connection | | Apple System Requirements | 2 GHz or faster Intel Processor (PowerPC not supported), 2 GB RAM (4 GB recommended), 10 GB disk space, CD / DVD drive or internet connection | | | | Light Source | LED | | Button | IntelliScan, QuickScan (PC Only) | | Power Requirements | 15 VDC, 1.0 A | | Dimensions (WxHxD) | 4.73 x 4.7 x 10.7" (12.0 x 11.9 x 27.2 cm) | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 7.8 lb | | Box Dimensions (LxWxH) | 17.0 x 10.0 x 8.25" |
