User Manual for Plustek SmartOffice PS4080U Document Scanner Click to enlarge the picture
Contents of the user manual for the Plustek SmartOffice PS4080U Document Scanner
- Product category: Flatbed & Document Scanners Plustek
- Brand: Plustek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Plustek Flatbed & Document Scanners
 |
User manual for the Plustek SmartOffice PS4080U Document Scanner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Plustek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Plustek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Plustek product will considerably shorten its lifespan!
|

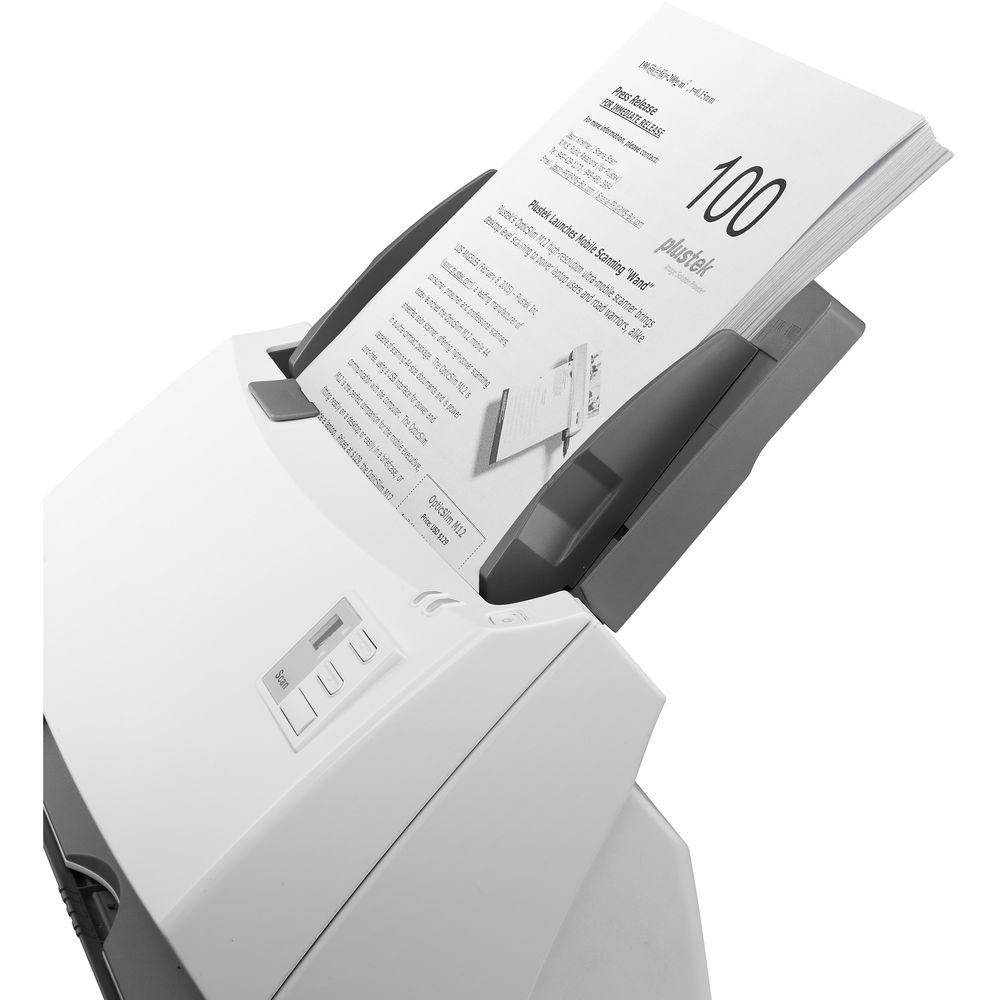

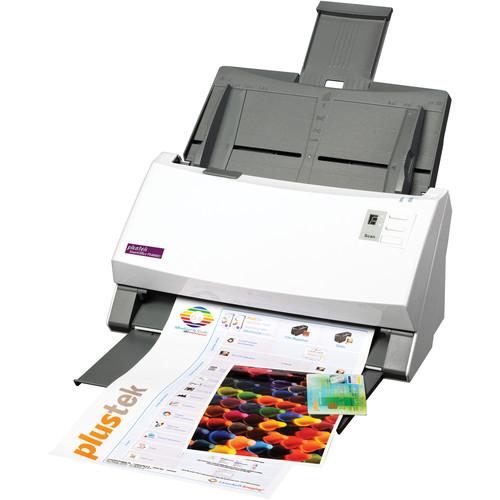

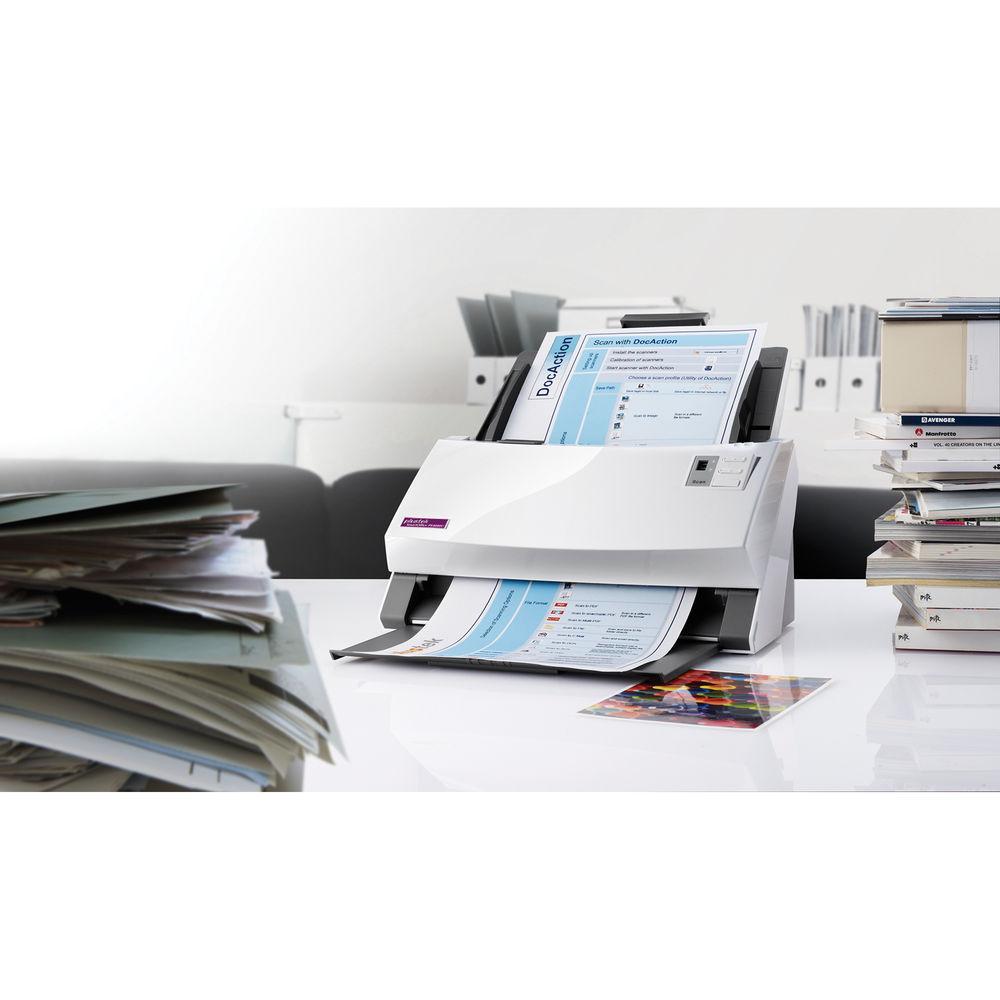

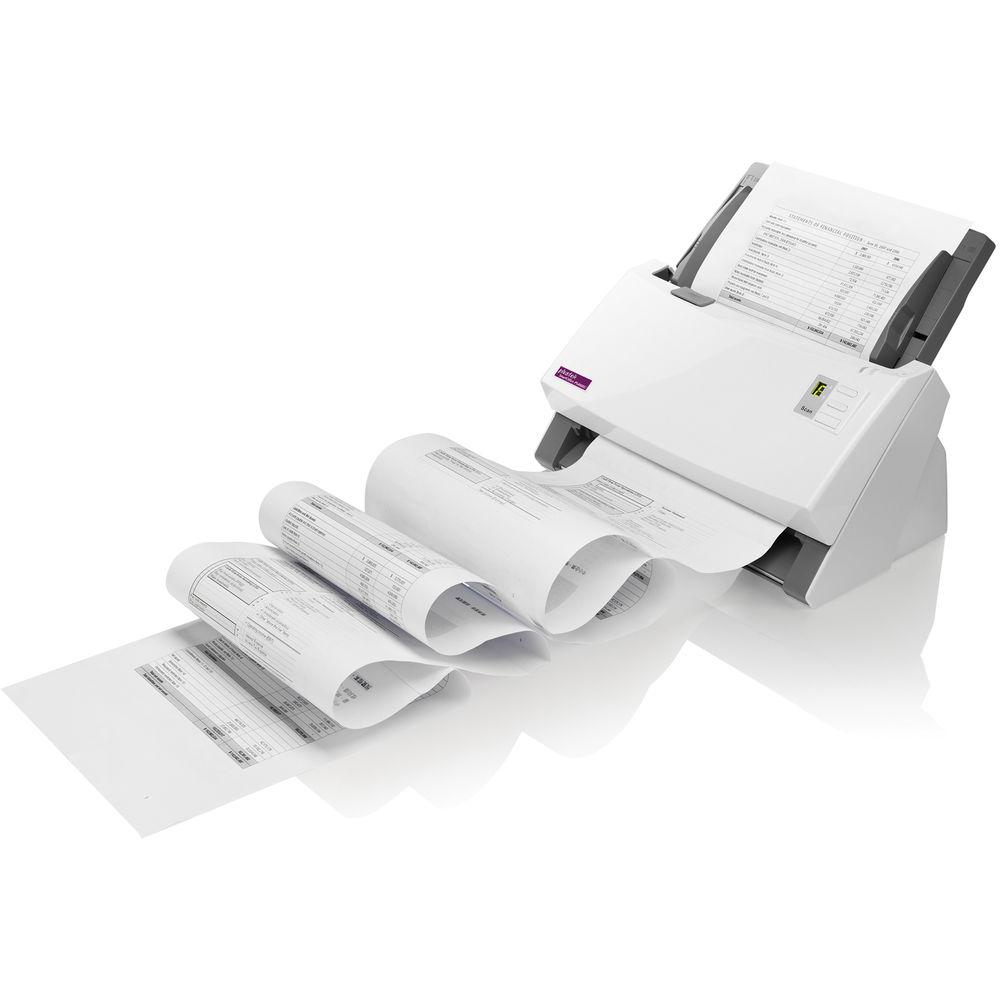

Product description Scan documents quickly in simplex or duplex modes at 40 ppm or 80 ipm with the SmartOffice PS4080U Document Scanner from Plustek. It is able to produce detailed scans at an optical resolution of 600 dpi. Also, it has a 100-sheet automatic document feeder that can handle documents or business cards as small as 0.52 x 0.52" as well as long documents up to 8.5 x 200". This enables quick processing of a variety of different files, which will improve the overall productivity of your office.
Further benefitting the PS4080U's speed is ultrasonic multi-feed detection which ensures that only one document is fed and scanned at a time during batch jobs. Also, it has a daily duty cycle of 4,000 pages for ensuring it will keep working under demanding conditions. Additionally, it features USB 2.0 connectivity. - Auto Threshold converts the images into a binary black & white image.
- Auto Rotate rotates document based on contents of the document.
- Auto Crop & Deskew straightens and crops the image to the documents actual size.
- Auto Mode detects document color and scans document in the appropriate mode.
- Multi-Image Output scans and saves document in 2 or 3 modes at the same time.
- Color Dropout removes red, green, or blue color when scanning forms.
- Blank Page Removal automatically removes blank pages from batch scans.
- The scanner is TWAIN compliant.
- Plustek DocAction
- Button utility that simplifies scanning by enabling users to specify personalized scanning configuartion settings and scan with the touch of a button. Scanned documents can be sent directly to printers, email, folders, or FTP and it also enables you to scan directly to many applications. It will save documents in multiple formats, including JPEG, TIFF, and PDF.
- Plustek DocTWAIN
- Standard TWAIN drivers for compatibility with a variety of software.
- ABBYY FineReader 9.0 Sprint
- Optical character recognition software with support for up to 183 languages. It converts scanned documents into Microsoft Word, Excel, searchable PDF, and other formats. It offers one-click smart conversion and has Adaptive Document Recognition Technology to preserve document formatting and style.
- NewSoft Presto! PageManager 9 SE
- Front-end client software that handles your documents, including capturing, previewing, converting, and delivering files. It allows users to easily merge files by dragging and dropping as well as use embedded OCR feature to convert documents into searchable formats. It is able to convert files into formatted RTF, HTML, or text files if desires and users can create and edit PDFs. It also works with cloud services for file management.
UPC: 783064426305 In the Box Plustek SmartOffice PS4080U Document Scanner USB Cable AC Adapter Pad Calibration Sheet Setup CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Plustek SmartOffice PS4080U Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlustek PS4080U Specs | Maximum dpi Resolution | 600 dpi | | Duplex Speed | 80 ipm (Color)
80 ipm (Grayscale) | | Simplex Speed | 40 ppm (Color)
40 ppm (Grayscale) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 200" / 508 cm | | Multi-Feed Detection | Yes | | Document Feeding | ADF | | Connectivity | USB 2.0 | | Paper Weight | 10 to 58 lb | | Operating System Compatibility | Windows | | Light Source | LED | | Control Panel | 4 Buttons | | Drivers | TWAIN | | Duty Cycle | 4000 Scans | | Maximum Sheet Capacity | 100 | | DC Input Power | 24 VDC | | Dimensions | 12.6 x 9.1 x 9.0" / 31.9 x 23.1 x 22.8 cm | | Weight | 6.0 lb / 2.7 kg | | | | Package Weight | 9.4 lb | | Box Dimensions (LxWxH) | 17.0 x 11.0 x 10.0" |
