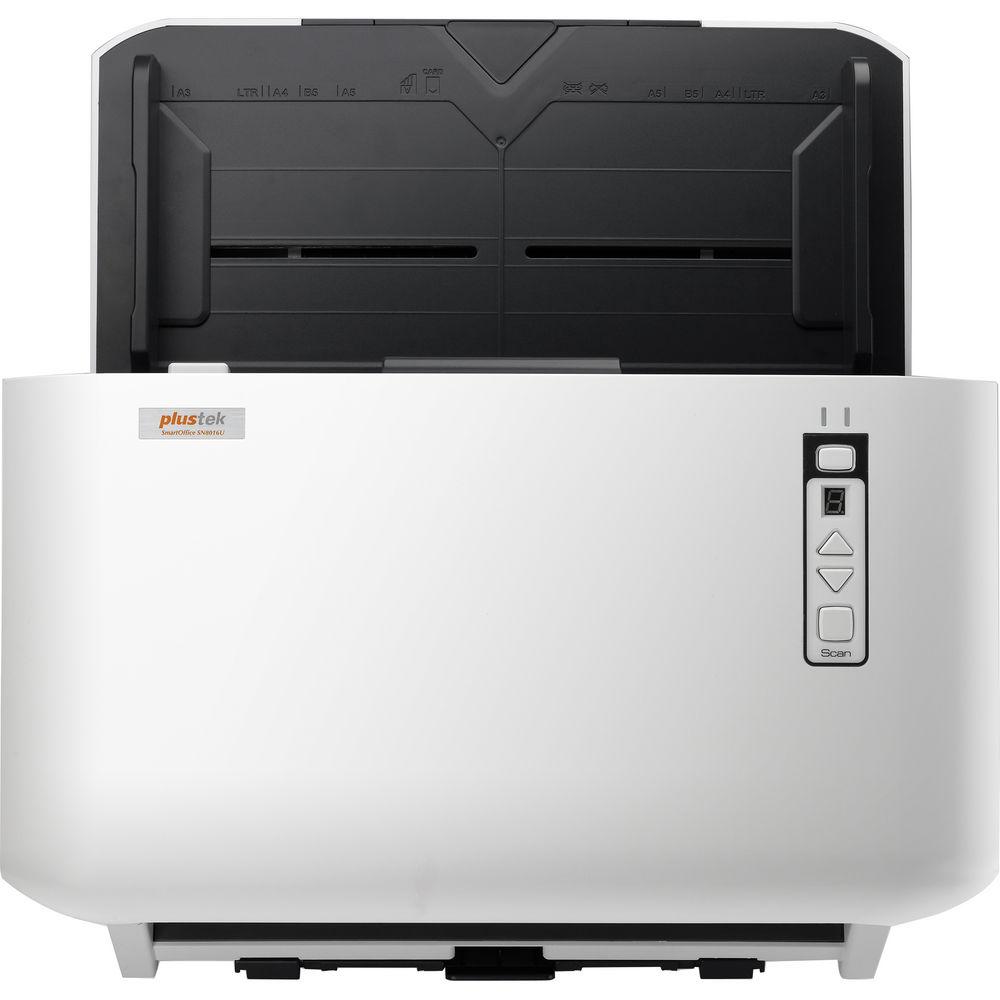

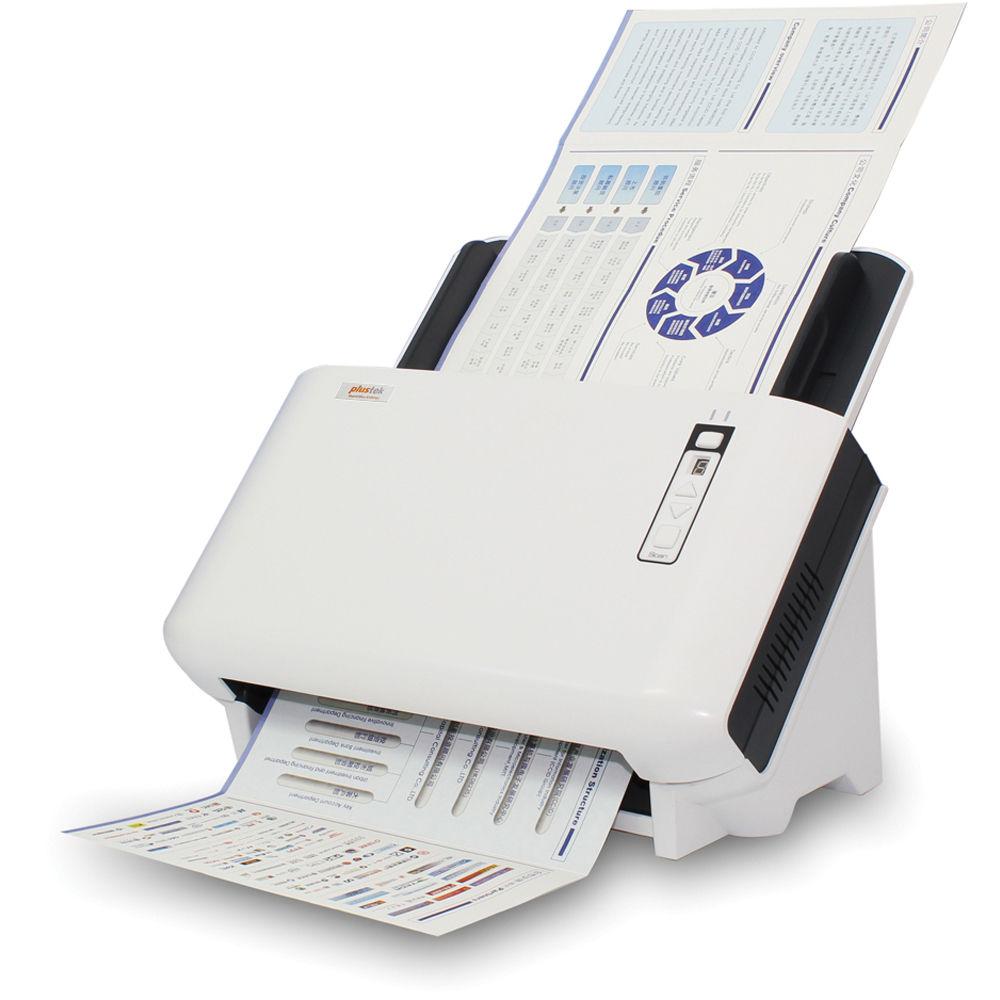

Product description The Plustek SmartOffice SC8016U Scanner is a 600 dpi A3-size document scanner with a 100-sheet automatic document feeder. This scanner features a scan speed of 80 pages per minute, or 160 images per minute in duplex mode, when scanning A4-size documents in grayscale at 300 dpi. This allows for high quality scans at a quick rate, especially with a duty cycle of 8,000 scans per day for a rated lifetime of 300,000 scans.

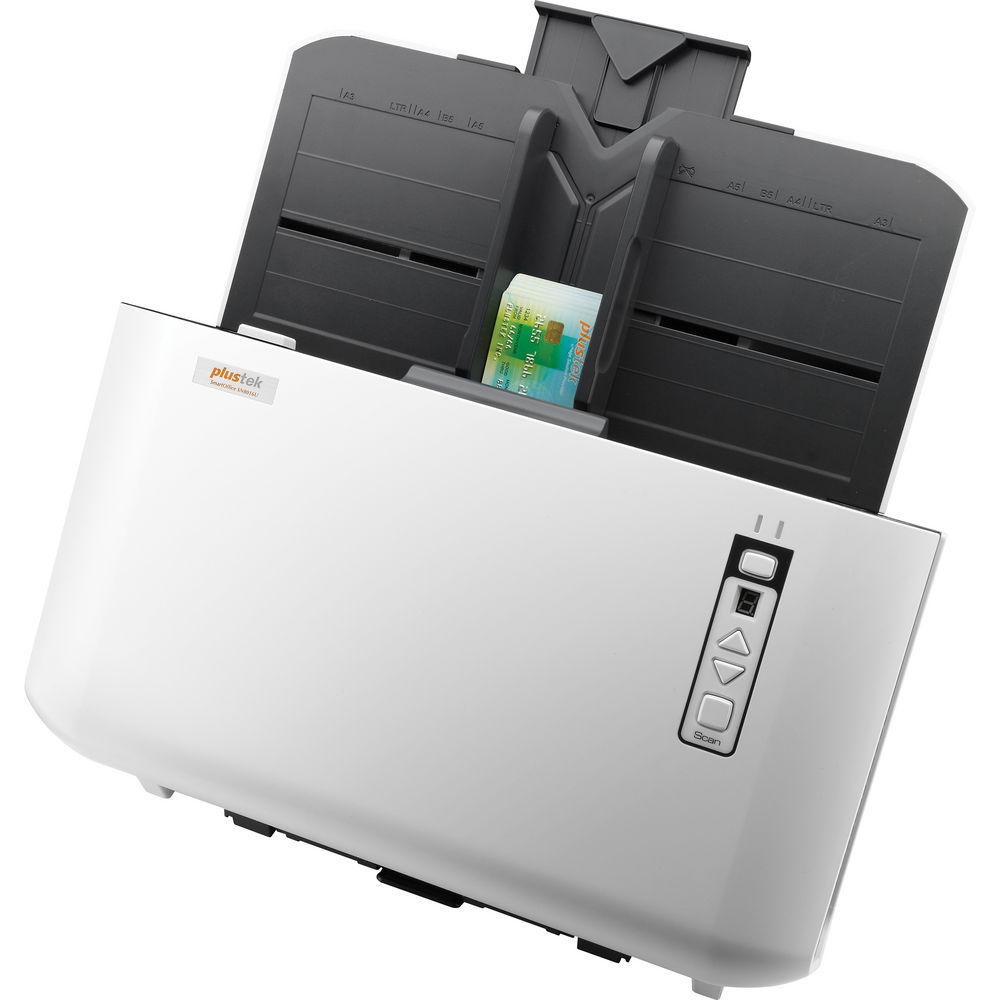

The scanner can handle a variety of media types all the way up to 11.7 x 200", even including plastic and embossed cards. Additionally, all these items can be stacked in the feeder without any sorting or separation.
The SC8016U features an intelligent misfeed function that utilizes an ultrasonic sensor to detect double feeding. It also uses standard TWAIN and WIA drivers for compatibility with many scanning and imaging programs.
Also, the scanner includes a USB 2.0 cable, an AC adapter, a power cable, a setup/application CD-ROM, a calibration sheet, a memo label, a cleaning cloth, 2 pad modules, a feed roller, and a paper chute. Scanning Features - Auto Threshold
- Converts scans into a binary black and white image
- Auto Rotate
- Automatically rotates document based on the contents
- Auto Crop & Deskew
- Automatically straightens and crops the documents
- Auto Mode
- Detects document color and scans in color, grayscale, or black & white mode
- Multi-Image Output
- Scans and saves document in 2 or 3 color modes at the same time
- Color Dropout
- Removes red, green, or blue color when scanning forms
- Black Page Removal
- Automatically removes blank pages without manual editing
Included Software - Barcode Reader Library
- Reads and extracts data from numerous 1D/2D barcodes, including EAN-13, 39, UPC-A, UPC-E, ITF-14, ITF-16, 128, NW-7, PDF417, Datamatrix and QR code, and allows for auto-searching and exporting of barcode date to TXT, XML, and CSV formats
- Check Reader Library
- Recognizes and extracts data from MICR E13B and CMC 7 fonts, saves the check image as TIF, JPG, or BMP, and outputs information in XML, TXT, or CSV files
- Multi-Scanner Configuration Utility
- Copy configuration data from a source computer to numerous target computers for reduced setup time in networks
- Plustek DocAction
- Button utility for setting up personalized configurations for scanning at the press of a button
- ABBYY FineReader 9.0 Sprint
- Optical Character Recognition software for converting scans and PDF files into searchable and editable documents with recognition for up to 183 languages
- NewSoft Presto! PageManager 9 SE
- Client allows you to convert documents using Optical Character Recognition and for organizing your documents into a specific location
UPC: 783064615846 In the Box Plustek SmartOffice SC8016U Scanner USB 2.0 Cable AC Adapter Power Cable Setup CD-ROM Calibration Sheet Memo Label Cleaning Cloth 2 x Pad Module Feed Roller Paper Chute Limited 1-Year Warranty Brochure PDF 2.7mbwasuvqzxtdwsuydawvvdawczuf Table of Contents
|
Upload User Manual
Have you got an user manual for the Plustek SmartOffice SC8016U Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPlustek SC8016U Specs | Maximum dpi Resolution | 600 dpi | | Simplex Speed | 45 ppm (Color)
80 ppm (Grayscale) | | Maximum Document Width | 8.3" / 21.1 cm | | Maximum Document Length | 200" / 508 cm | | Document Feeding | ADF | | Connectivity | USB 2.0 | | Paper Weight | 10 to 58 lb | | Operating System Compatibility | Windows | | Light Source | LED | | Control Panel | 4 Buttons | | Drivers | TWAIN | | Duty Cycle | 8000 Scans | | Maximum Sheet Capacity | 100 | | Environmental Compliance | ENERGY STAR | | DC Input Power | 24 VDC | | Dimensions | 17.2 x 10.3 x 10.5" / 43.6 x 26.2 x 26.6 cm | | Weight | 19.8 lb / 9.0 kg | | | | Package Weight | 26.2 lb | | Box Dimensions (LxWxH) | 22.7 x 19.1 x 18.0" |
