User Manual for PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD

Click to enlarge the picture
PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD Contents of the user manual for the PNY Technologies 960GB CS900 SATA III
  • Product category: Internal Drives PNY Technologies
  • Brand: PNY Technologies
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for PNY Technologies Internal Drives

PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD
User manual for the PNY Technologies 960GB CS900 SATA III contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any PNY Technologies product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!



Product description

Hard Drives by Application: Which Is Best for You? Read More yuswwxxubzzwadtywartdsdrawdzvwysyafbra Designed for media storage, use as a boot drive, or as a replacement for an existing drive, the 960GB CS900 SATA III 2.5" Internal SSD from PNY Technologies allows users to store and access up to 960GB of data. It is equipped with a SATA III 6 Gb/s interface that is compatible with SATA II 3 Gb/s and fits into your system's 2.5" / 7mm drive bay, providing load and access times for files and programs that are faster than those of a traditional spinning hard drive. In terms of speed, this drive offers sequential write speeds of up to 515 MB/s and sequential read speeds of up to 535 MB/s via its Triple-Level Cell (TLC) NAND flash memory. In addition to its enhanced data transfer rates, this drive also offers a life expectancy of 2 million hours MTBF, TRIM support (OS dependent), and S.M.A.R.T support.

With solid-state drive technology you benefit from load and access times for your files and programs that are faster than a conventional 7200 rpm hard drive. As SSDs have no moving parts, they are also more durable than traditional hard drives and are better protected against damage from drops and bumps. Having no moving parts also means that SSDs receive less wear and tear, as there are no read or write heads for the drive media to come into contact with. SSDs also help to deliver improved battery life and cooler operating temperatures.

PNY's 960GB CS900 SATA III 2.5" Internal SSD includes Acronis True Image HD 2017 data migration software, which allows data to be transferred from an existing drive to this PNY SSD. Supported operating systems include Windows, Mac, Linux, and Ubuntu. A 2.5mm spacer is also included, which allows this 7mm SSD to be used in 2.5" / 9.5mm drive bays. Protection is provided by a limited 3-year warranty.
    High Performance
  • Sequential read speeds of up to 535 MB/s and write speeds up to 515 MB/s.
    Low Power Consumption & Long Battery Life
  • Supports power saving features that result in extended battery life for mobile applications.
    Applications
  • Entry-level SSD for PC upgrades and faster system boots / application launches.

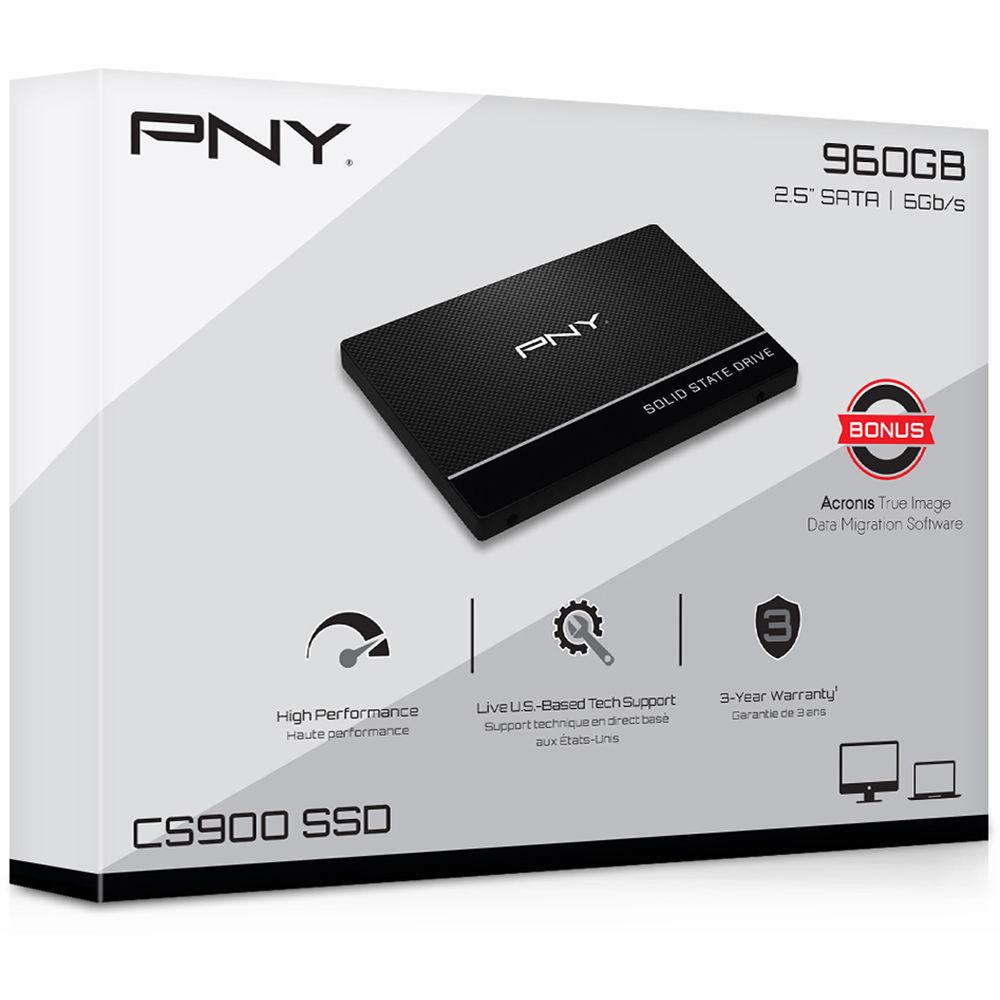

UPC: 751492604183 In the Box PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD
  • 2.5mm Spacer for 9.5mm Bays
  • Limited 3-Year Warranty
  • Guides & Manuals More info from PNY Technologies Table of Contents




    Upload User Manual

    Have you got an user manual for the PNY Technologies 960GB CS900 SATA III 2.5" Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    PNY Technologies CS900 Specs

    Capacity 960 GB
    Sequential Reads Up to 535 MB/s
    Sequential Writes Up to 515 MB/s
    Interface SATA III 6 Gb/s, compatible with SATA II 3 Gb/s
    NAND Components Triple-Level Cell (TLC) NAND Flash Memory
    Power Consumption Active: 2.0 W
    Idle: 0.3 W
    SATA Link Power Management Idle, Partial, Slumber
    Power Island Support Power Efficiency Management System
    Operating Temperature 32 to 158°F / 0 to 70°C
    Storage Temperature -40 to 185°F / -40 to 85°C
    Certifications RoHS, CE, FCC, VCCI, BSMI, SATA I0, WEEE
    Mean Time Between Failures (MTBF) 2,000,000 hours
    Error Correction Code Up to 120 bits per 2K sector
    Secure Erase Standard, Enhanced Secure Erase
    Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
    Full End-to-End Data Path Protection Supported
    RAID Supports RAID 0 and 1
    Form Factor 2.5" / 7 mm
    Serial ATA SATA-IO: Serial ATA Revision 3.0. ATA ATAPI-8 Standard Native Command Queuing (NCQ)
    Operating Systems Windows 10, 8, 7, Vista, XP
    Mac OS X
    Linux
    Ubuntu 14
    TRIM Support Dependent on OS
    Dimensions 3.9 x 2.8 x 0.3" / 100 x 70 x 7 mm
    Weight 1.6 oz / 45 g
    Package Weight 0.15 lb
    Box Dimensions (LxWxH) 5.1 x 3.9 x 0.7"
