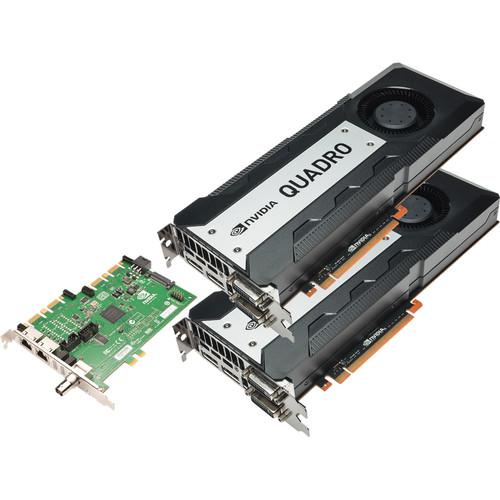

User Manual for PNY Technologies Dual NVIDIA Quadro K6000 Ultra-High Res Video Wall Kit Click to enlarge the picture
Contents of the user manual for the PNY Technologies Dual NVIDIA Quadro K6000
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
|
User manual for the PNY Technologies Dual NVIDIA Quadro K6000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|
Product description The PNY Technologies Dual NVIDIA Quadro K6000 Ultra-High Res Video Wall Kit is a turnkey solution for driving a video wall with up to 8 displays. Included in the kit are two Quadro K6000 GPUs and an NVIDIA Sync Card. When connecting multiple displays to create a video wall, the sync card synchronizes the outputs to make sure the displays refresh simultaneously to prevent tearing and flickering. Each Quadro K6000 features 12GB of DDR5 RAM and a 384-bit memory interface, which work together to move data to and from the GPU as efficiently, and with as little latency, as possible. In addition, 2880 CUDA cores (stream processors) allow the card to perform hundreds of computations simultaneously when interacting with APIs that support parallel processing.
The K6000 cards can be connected to a variety of display types, including computer monitors, HDTVs, broadcast video monitors, projectors, as well as 4K and 3D displays. They feature feature a dual-link DVI-I (digital and analog) port, a dual-link DVI-D (digital only) port, and two DisplayPort ports with DP 1.2 support. Using the DisplayPort outputs the card can drive displays with up to 4K (4096 x 2160) resolution at up to 60 Hz and can drive digital displays through dual-link DVI at up to 2560 x 1600 resolution at up to 60 Hz. In addition, it supports professional 3D displays and features a stereo connector that will provide synchronization for certain types of active 3D glasses.
For extended desktops, multi-view applications, immersive gaming, and other multi-monitor arrangements, up to four displays can be connected concurrently to one card. For video walls and other larger multi-display setups, up to four K6000s can be installed in one workstation, allowing a single computer to manage a total of 16 displays.
In addition to driving displays, the card features broad API support including CUDA, OpenCL, DirectX 11.2, Shader Model 5.0, and OpenGL 4.3, allowing it to provide GPU acceleration for a growing number of GPU-aware applications. Applications that benefit from GPU acceleration include video editing, 3D animation, CAD, computer modeling, cryptography, complex mathematical computations, and any other applications involving calculations that GPU architecture is more efficient at processing than the CPU. The card can be even used as a standalone parallel processing solution when installed alongside an existing graphics card. Quadro Sync Board Features - Quadro Sync Board
- Two RJ-45 frame lock connectors
BNC genlock connector
Status LEDs on bracket
Supports up to four NVIDIA Quadro Kepler GPUs per system
Synchronizes up to 16 displays per system
Fully compatible with NVIDIA Mosaic Technology
Hosted by any available expansion slot
Powered by 6-pin PCIe or SATA hard drive power cable - Quadro Sync Genlock Video Format Support
- 720 x 486 59.94i NTSC
720 x 576 50i PAL
1280 x 720 60i
1920 x 1035 59.94i
1920 x 1080 60i
1920 x 1080 59.94i (same as 1920 x 1080 29.87 psf)
1920 x 1080 50i (same as 1920 x 1080 25 psf)
1920 x 1080 24 psf
1920 x 1080 23.976 psf
TTL level sync pulse GPU Features - NVIDIA Scalable Geometry Engine
- Improves geometry performance across a broad range of CAD, DCC, and medical applications, enabling you to work interactively with complex models and scenes
- Large Framebuffers with Ultra-Fast Bandwidth
- Large GPU memory with fast bandwidth for display of complex models and scenes as well as computation of large datasets
- Dual Copy Engines
- Enables high rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading, and physical simulation
- Bindless Textures
- Increases the number of unique textures available to shaders at run-time, enabling more different materials and richer texture detail in scenes
- NVIDIA SMX
- Delivers more processing performance and efficiency through this streaming multi-processor design that allows a greater percentage of space to be applied to processing cores versus control logic
- H.264 Encoder
- Dedicated H.264 encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications
- PCIe 3.0 Compliance
- Enables data transfer rate up to 8 GT/s per lane for an aggregate bandwidth of 32 GB/s bi-directional (16 GB/s in each direction)
- Ultra-Quiet Design
- Silent cooling design enables acoustics lower than 28 db for an ultra-quiet desktop environment
Image Quality - Full-Scene Anti-aliasing (FSAA)
- Up to 64x FSAA for reducing visual aliasing artifacts or "jaggies," resulting in higher image quality and realistic scenes
- GPU Tessellation with Shader Model 5.0
- Quadro Tessellation Engines automatically generate detailed geometry for cinematic quality environments and scenes
Display Features - NVIDIA Quadro Mosaic Technology
- Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality
- Quad-Display Support
- The display engine drives up to four displays simultaneously and fully supports the next generation DisplayPort 1.2 standard capable of resolutions such as 3840 x 2160 at 60 Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a stereoscopic 3D CAVE environment
- NVIDIA NVIEW Advanced Desktop Software
- This software delivers maximum flexibility for single large display or multi-display options, providing quality end-user control of the desktop experience for increased productivity
- DisplayPort 1.2 Support (with Audio)
- Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and high-resolution panels (up to 3840 x 2160 at 60 Hz). This enables maximum range, resolution, refresh rate, and color depth designed to support display technologies
- NVIDIA 3D Vision and 3D Vision Pro
- Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative workspaces. 3D Vision and 3D Vision Pro are sold separately
- OpenGL Quad Buffered Stereo Support
- Provides a smooth and immersive 3D stereo experience for professional applications
- Professional 3D Stereo Synchronization
- Enables robust control of stereo effect through a dedicated 3-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card
Quadro Sync Features - Quadro Sync
- Ensures image and frame synchronization between up to four GPUs when running Quadro Mosaic or independent GPUs in clusters. Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters
- Frame Lock RJ-45 Connectors
- Allows display channels from multiple systems to be synchronized, creating one large virtual display. The resulting virtual display can be driven by a multi-system cluster for performance scalability. For frame lock applications, the Quadro Sync board has to be connected to one or more additional Quadro Sync boards
- Genlock (House Synchronization) BNC Connector
- One analog or digital genlock connector provides connectivity to a video sync source for SMPTE standard (digital, black burst, tri-level) synchronization. Expanded cross sync functionality permits an incoming house signal to synchronize a much larger number of video output signal formats
- Supports up to Four NVIDIA Kepler Architecture Quadro GPUs
- Each Quadro Sync board is capable of supporting up to four GPUs with up to 16 displays. For additional performance scalability multiple nodes can be connected into a cluster
- Windows Management Instrumentation Support
- Industry-standard WMI interfaces make it easy to script and remotely manage Quadro Sync and other GPU features on any system within a visualization cluster
Software Support - NVIDIA GPUDirect
- NVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by 3rd-party devices such as SDI video adapters, NICs, and SSDs
- NVIDIA GPUDirect for Video
- NVIDIA GPUDirect for Video technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. With this software, the devices are fully synchronized and the CPU does not waste cycles copying data between device drivers
Multi-GPU Technology - NVIDIA Maximus Technology
- Maximus-powered workstations combine the visualization and interactive design capability of NVIDIA Quadro GPUs and the optimal computing power of NVIDIA Tesla GPUs into a single workstation
UPC: 751492575704 In the Box PNY Technologies Dual NVIDIA Quadro K6000 Ultra-High Res Video Wall Kit 2 x Stereo Connector Bracket 4 x DisplayPort to DVI-D SL Adapters 2 x DVI-I to VGA Adapter 4 x 6-Pin PCIe Auxiliary Power Cables 2 x NVIDIA Quadro Sync Board 8 x Ribbon Connector Cables 6 x Cable Retention Clips Limited 3-Year Warranty User Manual PDF 536.2kbfvtwsyadrwetevcfuctzfdbwucyas Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies Dual NVIDIA Quadro K6000 Ultra-High Res Video Wall Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies K6000 Specs | CUDA Cores | 2880 | | GPU Memory | 12 GB GDDR5 | | Memory Interface | 384-bit | | Memory Bandwidth | 288 GB/s | | System Interface | PCIe 3.0 x16 | | Power Consumption | 225 W (maximum) | | ENERGY STAR | Yes | | Thermal Solution | Ultra-quiet active fansink | | Form Factor | Dimensions (H x L): 4.376 x 10.500" (11.115 x 26.670 cm)
Dual slot | | Display Connectors | DVI-I DL + DVI-D DL + DisplayPort 1.2 + DisplayPort 1.2 | | Number of Displays Supported | 4 | | DisplayPort with Audio | Yes | | DVI-D Single-Link Connector | Via included adapters | | VGA Support | Via included adapter | | Maximum Resolution | DisplayPort 1.2: 3840 x 2160 at 60 Hz
DVI-I DL: 2560 x 1600 at 60 Hz
DVI-I SL: 1920 x 1200 at 60 Hz
VGA: 2048 x 1536 at 85 Hz | | HDCP Support | Yes | | Professional 3D Support | Yes, via included stereo connector bracket | | Quadro Sync Compatible | Yes | | HD SDI Capture/Output Compatible | Yes | | NVIDIA GPU Direct Compatible | Yes | | Graphics APIs | Shader Model 5.0, OpenGL 4.3, DirectX 11 | | Compute APIs | CUDA, DirectCompute, OpenCL | | NVIEW | Yes | | Mosaic Mode | Yes (Windows 8/7, and Linux) | | NVIDIA 3D Vision and 3D Vision Pro | Yes | | Quadro Sync Connectors | RJ-45 frame lock + RJ-45 frame lock + BNC Genlock | | Quadro Sync Thermal Solution | Passive | | Quadro Sync System Interface | Any available PCIe or PCI expansion slot | | Quadro Sync Power | 6-pin PCIe or SATA power cable | | Minimum System Requirements | Windows 8/7/Vista/XP SP3, Linux, or Solaris
PCIe x16 expansion slot
1 GB or more of system memory (2 GB recommended)
200 MB of available disk space for full driver installation
Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort, DVI, or VGA compatible displays | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 15.75 x 14.0 x 13.0" |
