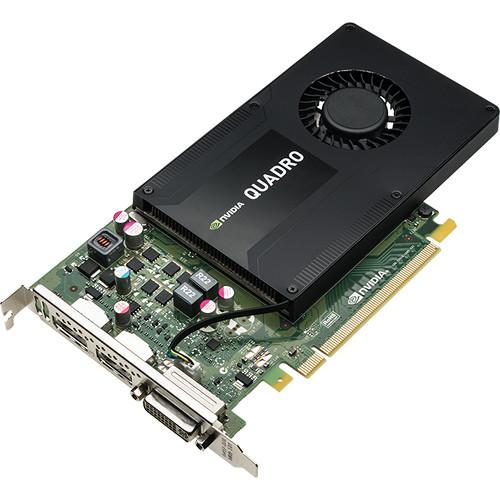

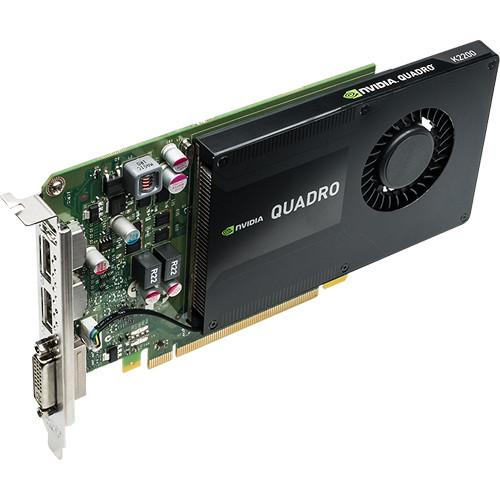

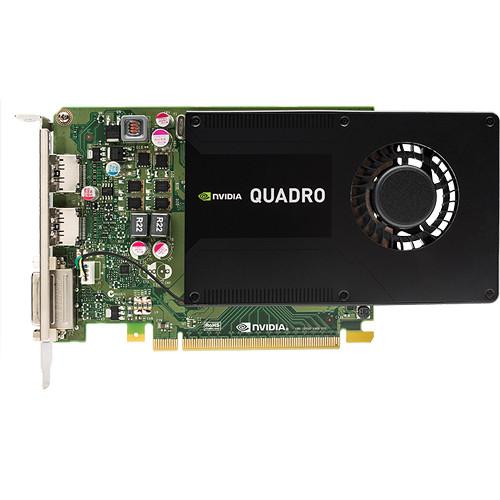

Product description The NVIDIA Quadro K2200 Professional Graphics Card from PNY Technologies provides the API support and parallel processing performance required for modeling and DDC applications that involve rendering 3D graphics. The processing power can also be harnessed for other computationally intensive tasks, such as transcoding video or data analysis. It features 640 CUDA Cores, which are general purpose stream processors that not only render display graphics, they also allow dozens of computations to be performed simultaneously. To help move data in and out of the core as efficiently as possible, there is 4GB of GDDR5 RAM over a 128-bit memory interface. All told, the card delivers a memory bandwidth of 80 GB/s.

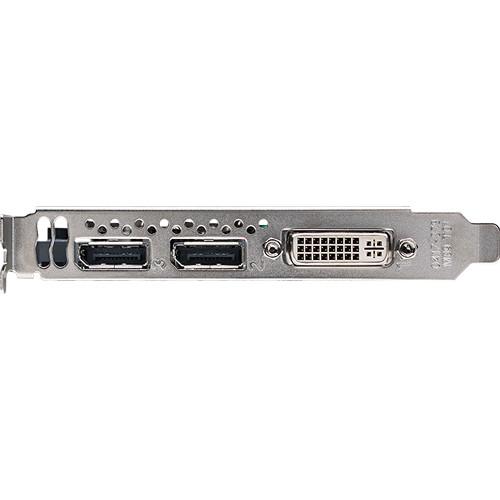

For connection to computer monitors, HDTVs, projectors, 4K and 3D displays, and more the card features two DisplayPort and one DVD-I dual-link output. The DisplayPort ouputs features DP 1.2 compatibility for use with 4K displays or connecting multiple screens using an MST hub, and can support HDMI 1.4 as well as HDCP when using a separately available adapter. Through the DVI-I output it is also possible to connect legacy VGA devices using the included VGA adapter. A DisplayPort to DVI-D SL is also included. - Popular API Support
- Supports Shader Model 5.0, OpenGL 4.4, DirectX 11, CUDA, Direct3D, and other APIs to provide software with direct, low-level access to the graphics processing and computational power of the card
- Supports DP 1.2 MST Technology
- Not only can the card support three directly connected displays, thanks to MST (Multi Stream Transport) technology it is possible to drive up to four displays through a DisplayPort output when using separately available MST hubs
- Parallel Computing Capabilities
-
- SMX Architecture: a streaming multi-processor design that delivers greater processing power and efficiency than earlier architectures
- Support for all CUDA 6 features, including Unified Memory, Dynamic Parallelism and Dedicated Shared Memory
- Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python, and Fortran
- 3D Graphics Architecture
-
- Scalable geometry architecture
- Hardware tessellation engine
- FXAA/TSAA dedicated antialiasing engine
- Bindless Textures
- Up to 16K x 16K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per component floating point texture filtering and blending
- Up to 64X full scene antialiasing (FSAA)
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 encoder (requires application support)
- Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
- Quadro Boost: Automatically increases GPU engine throughput to maximize application performance
- Stereoscopic 3D Support
- 3D types supported include NVIDIA 3D Vision Pro and 3D Vision, 3D DLP, interleaved, and passive stereo. It also supports quad-buffered stereo
- NVIDIA Scalable Geometry Engine
- Improves geometry performance across a broad range of CAD, DCC, and medical applications, enabling you to work interactively with models and scenes that are much more complex than ever before
- Audio Support
- Supported via DisplayPort and HDMI (HDMI requires separately available DisplayPort to HDMI adapter):
- Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC, DTS-HD, TrueHD
- Data rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, and 192 kHz
- Word sizes of 16-bit, 20-bit, and 24-bit
- NVIDIA Parallel DataCache
- Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering
- Ultra-Quiet Cooling System
- Virtually silent cooling design enables lower acoustics for an ultra-quiet desktop environment
- Additional Features
-
- Unified driver architecture (UDA) for simplified deployment and management in an enterprise setting
- Enterprise management tools
- Supports HBR2: Allows the data from a DisplayPort output to travel at up to 5.4 GB/s
- Internal 400 MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz)
- Supports Quad buffered stereo 3D content for OpenGL-based 3D software
- Underscan/overscan compensation and hardware scaling
- Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
- Bindless textures
- Supports Deep Color (12-bit per channel color)
- Supports multi GPU configurations when combined with other compatible NVIDIA-based devices
- PCI Express 2.0 Host Interface
- PCIe 2.0 doubles the bandwidth for a given interface width compared to PCIe 1.0. For example, an x8 slot in PCIe 2.0 is the equivalent of a x16 slot in PCIe 1.0

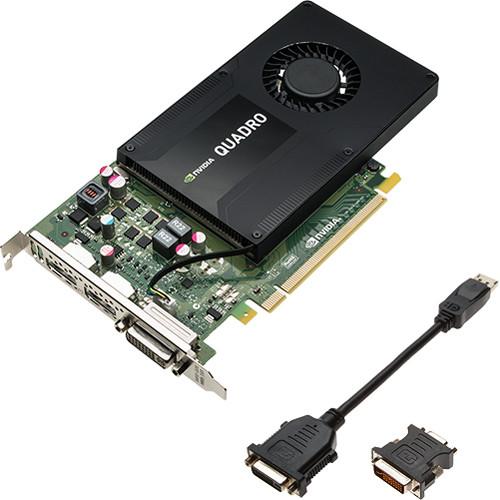

UPC: 751492576015 In the Box PNY Technologies NVIDIA Quadro K2200 Professional Graphics Card DisplayPort to DVI-D SL Adapter DVI-I to VGA Adapter Driver Disc Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies NVIDIA Quadro K2200 Professional Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies K2200 Specs | | | GPU | Quadro K2200 | | Stream Processors (CUDA Cores) | 640 | | Memory | 4 GB | | Memory Type | GDDR5 | | Memory Interface | 128-bit | | Memory Bandwidth | 80 GB/s | | | | Outputs | 1 x DVI-I dual-link
2 x DisplayPort (DP 1.2 and audio support) | | Maximum Resolution | DisplayPort: 3840 x 2160 (UHD 4K) at 60 Hz
DVI Dual-Link: 2560 x 1600 at 60 Hz
DVI Single-Link: 1920 x 1200 at 60 Hz
VGA (with Supplied Adapter): 2048 x 1536 at 85 Hz | | Number of Displays Supported | Three connected directly; four using a single DisplayPort output and separately available MST hub | | HDCP Support | Yes | | Host Interface | PCIe 2.0 x16 | | | | Software | Windows: 8.1, 8, 7, Vista, XP SP3
Linux
Solaris | | Hardware | 1 x Free PCIe expansion slot
1 GB RAM (2 GB or more recommended)
200 MB free disk space for drive installation
DVD-ROM to install drivers from disc
Internet connection to install drivers as download
Display with DisplayPort, DVI, or VGA input | | | | Supported APIs | Graphics APIs: Shader Model 5.0, OpenGL 4.4, DirectX 11
Compute APIs: CUDA, DirectCompute, OpenCL | | NVIEW Support | NVIDIA Mosaic: Supported on Windows 8.1, 8, 7, and select Linux distributions
NVIDIA 3D Vision and 3D Vision Pro: Via USB connection to 3D Vision hub | | Thermal Solution | Active fansink | | Power Consumption | Maximum: 68 W | | Form Factor | Single-Slot: Full-height | | Dimensions | 4.4 x 8" / 11.1 x 20.2 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 11.1 x 6.4 x 2.7" |
