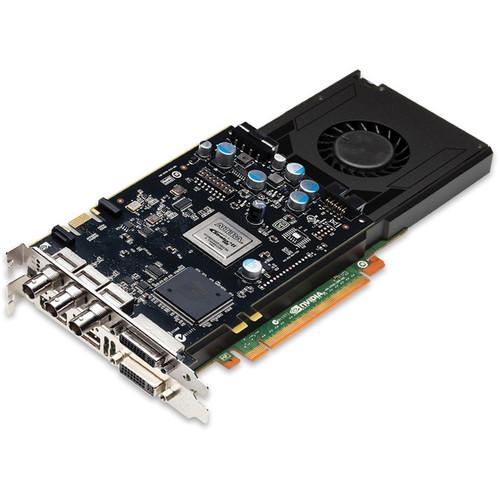

User Manual for PNY Technologies NVIDIA Quadro K4000 SDI Click to enlarge the picture
Contents of the user manual for the PNY Technologies NVIDIA Quadro K4000 SDI
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
|
User manual for the PNY Technologies NVIDIA Quadro K4000 SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|
Product description The PNY Technologies NVIDIA Quadro K4000 SDI provides an integrated graphics-to-video solution for broadcast, video, and film. There is good interaction when utilizing sophisticated virtual sets, augmented reality broadcast solutions, or rendering rich scene details and effects for video, film, or broadcast production.Offering 3GB of GDDR5 graphics memory, 768 NVIDIA CUDA parallel processing cores and built on the NVIDIA Kepler architecture, the NVIDIA Quadro 4000K SDI delivers good performance across a broad range of broadcast, video and film pre- and post-production applications that require the compositing of 3D or other computer generated graphics in real-time with 2K, HD, and SD video.The NVIDIA Quadro K4000 features SMX for increased per-clock throughput of key graphics operations and bindless textures that enable the GPU to reference textures directly in memory. Combined with the Quadro SDI Output card it allows broadcast, video, and film production, post-production, and finishing professionals to preview the results of 3D compositing, editing, and color grading in real-time on high definition broadcast monitors. The 8-, 10-, or 12-bit SDI generated from programmable graphics enables a direct connection to broadcast monitors, switchers, tape decks, or SDI projectors. - 3D Graphics Architecture
- Scalable geometry architectureHardware tessellation engineNVIDIA GigaThread engine with dual copy enginesShader Model 5.0 (OpenGL 4.3 and DirectX 11)Up to 16K x 16K texture and render processingTransparent multisampling and super sampling16x angle independent anisotropic filtering128-bit floating point performance32-bit per component floating point texture filtering and blending64X full scene anti-aliasingFXAA and TXAA full scene anti-aliasingDecode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)Dedicated H.264 encoderBlu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
- NVIDIA CUDA Parallel Processing Architecture
- SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and FortranNVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches)Error-Correction Code (ECC) memory64KB of RAM (configurable partitioning of shared memory and L1 cache)Dual Warp Schedules (schedules and dispatches simultaneously instructions from 2 independent warps)
- Advanced Display Features
- 30-bit color (10-bit per each red, green, and blue channel)Support for any combination of 3 connected displaysDisplayPort 1.2 (up to 3840 x 2160 at 60 Hz and 2560 x 1600 at 120 Hz)DVI-I Dual-Link output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz)Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz)HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)10-bit internal display processingNVIDIA 3D Vision technology, 3D DLP, interleaved, and other 3D stereo format supportFull OpenGL quad buffered stereo supportUnderscan / overscan compensation and hardware scalingNVIDIA NVIEW multi-display technologyNVIDIA Mosaic technologySupport for large-scale, ultra-high resolution visualization including Quadro Mosaic, Quadro Sync and Warp/Blend technologies
- DisplayPort and HDMI Digital Audio
- Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AACData rates of 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176 kHz, and 192 kHzWord sizes of 16-bit, 20-bit, and 24-bit
GPU Features - NVIDIA CUDA Architecture
- Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows
- NVIDIA Scalable Geometry Engine
- Improves geometry performance across a broad range of CAD, DCC, and medical applications, enabling you to work interactively with models and scenes that are an order of complex magnitude
- Large Frame Buffer with Ultra-Fast Bandwidth
- Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets
- Dual Copy Engines
- Enables high rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation
- Bindless Textures
- Increases the number of unique textures available to shaders at run-time, enabling vastly different materials and rich texture detail in scenes
- NVIDIA SMX
- Delivers processing performance and efficiency through this streaming multiprocessor design that allows a great percentage of space to be applied to processing cores versus control logic
- H.264 Encoder1
- Dedicated H.264 encode engine that's independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications
- Ultra-Quiet Design
- Silent cooling design enables acoustics lower than 28 dB for an ultra-quiet desktop environment
SDI Features - Uncompressed 8-, 10-, or 12-bit SDI Output
- Enables on-air broadcast, video production, and post-production professionals to composite and output live video and graphics to true, uncompressed 12-bit SDI in 2K, SD, or HD resolutions and allows direct connection to a broadcast monitor, switcher, tape deck, or SDI projector
- Ancillary Data Support
- Support for ancillary data channel (for audio, time code, etc.) is available through an NVIDIA API. Support for the introduction of ancillary data into the outgoing SDI video is also supported. This ancillary data can include up to 16 channels of embedded 24-bit digital audio as defined by SMPTE 272M and SMPTE 299M as well as time-code
- 2D Video Pass through Compositing
- 2D Video Compositing enables incoming video to be passed through and alpha composited, luma keyed, or chroma keyed with the Quadro rendered graphics image on the outgoing SDI video
- Genlock (House Synchronization)
- One genlock (Standard BNC) connector (digital or analog) provides connectivity to a video sync source for SMPTE standard (digital, black burst, tri-level) synchronization. Expanded cross sync functionality permits an incoming house signal to synchronize a large number of video output signal formats
Image Quality - Full-Scene Anti-aliasing (FSAA)
- Up to 64x FSAA for reducing visual aliasing artifacts or jaggies, resulting in good image quality and realistic scenes
- NVIDIA FXAA and TXAA
- Reduces visible aliasing and delivers high image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques
- GPU Tessellation with Shader Model 5.0
- Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance
- 16K Texture and Render Processing
- Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing
Display Features - NVIDIA Quadro Mosaic Technology
- Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality
- Quad-Display Support
- Display engine drives up to 4 displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60 Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment
- NVIDIA NVIEW Advanced Desktop Software
- Software delivers flexibility for single large display or multi-display options, providing end-user control of the desktop experience for increased productivity
- DisplayPort 1.2 Support (with Audio)
- Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning, and ultra-high-resolution panels (up to 3840 x 2160 at 60 Hz) enabling maximum range, resolution, refresh rate, and color depth
- 30-Bit Color Fidelity
- 10-bits per red, green, and blue; enables billions of color variations for rich, vivid image quality with the broadest dynamic range
- NVIDIA 3D Vision and 3D Vision Prosup
- Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience; Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.
- OpenGL Quad Buffered Stereo Support
- Provides a smooth and immersive 3D Stereo experience for professional applications. Professional 3D stereo synchronization enables robust control of stereo effect through a dedicated 3-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card
Software Support - NVIDIA CUDA Parallel Computing Architecture
- Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates the techniques like ray tracing, video and image processing, and computation fluid dynamics
- NVIDIA GPUDirect for Video
- This technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. Taking advantage of this API addresses the historical issues of introducing too much delay or latency because devices are fully synchronized and the CPU doesn't waste cycles copying data between device drivers
- NVIDIA Enterprise Management Tools
- Comprehensive tools for maximizing your system uptime by enabling seamless wide-scale deployment;this allows remote query and control of graphics and display settings for systems spread across installations
- Other Features
- Energy star enablingDisplayPort 1.2 with AudioDVI-D SL and VGA connectors via included adapterHDCP supportProfessional 3D support via included stereo connector bracketNVIDIA 3D Vision Pro ready
In the Box PNY Technologies NVIDIA Quadro K4000 SDI Stereo Connector Bracket DisplayPort to DVI-D SL Adapters DVI-I to VGA Adapter 6-pin Auxiliary Power Cable Driver DVD for Windows 8, 7, Vista, and XP SP3 (32- and 64-bit) NVIDIA Quadro SDI Output Board DVI to DVI Crossover Cable Ribbon Cable Large Cable Retention Clip 2 x Small Cable Retention Clip Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies NVIDIA Quadro K4000 SDI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies K4000 SDI Specs | CUDA Cores | 768 | | GPU Memory | 3 GB GDDR5 | | Memory Interface | 192-bit | | Memory Bandwidth | 134 Gb/s | | System Interface | PCI Express 2.0 x16 | | SDI Output System Interface | Any available slot | | Power | K4000 Maximum Power: 80 WK4000 Idle Power: 18 WSDI Output Maximum Power: 7 W | | Thermal Solution | K000: Ultra-quiet active fansinkSDI Output: Passive | | Display Connectors | DVI-I DL + DP 1.2 + DP 1.2 + Stereo (K4000) | | Number of Displays Supported | 3 | | Connectors | SDI Output Connectors: 3 x BNC (SDI Fill, SDI Key, Genlock) | | Resolution | Maximum DP 1.2: 3840 x 2160 at 60 HzMaximum DVI DL: 2560 x 1600 at 60 HzMaximum DVI SL: 1920 x 1200 at 60 HzMaximum VGA: 2048 x 1536 at 85 Hz | | APIs | Graphics APIs: Shader Model 5.0, OpenGL 4.3, DirectX 11Compute APIs: CUDA, DirectCompute, OpenCL | | Minimum System Requirements | Windows 7, Vista, XP SP3, Linux, or Solaris PCIe x16 expansion slot1 GB or more of system memory, 2 GB recommended200 MB of available disk space for full driver installationBlu-ray, DVD-ROM or CD-ROM driveDisplayPort, DVI or VGA compatible display(s) | | Dimensions (H x L) | K4000: 4.38 x 9.50” (11.13 x 24.13 cm) (single slot, full height)SDI Output: 3.88 x 6.60” (9.86 x 16.76 cm) (single slot) | | | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 3.5" |
