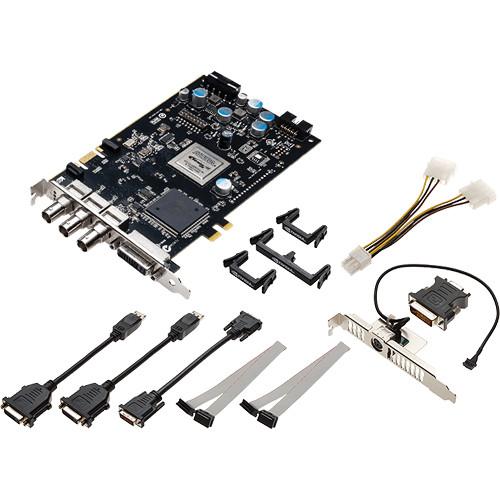

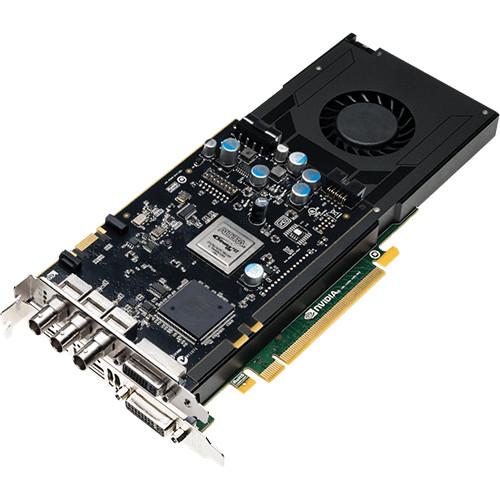

Product description The combination of an SDI output board with the PNY Technologies NVIDIA Quadro K4200 Graphics Card can be used to drive high-end broadcast monitors, switchers, tape decks, or projectors in addition to standard computer displays using DVI or DisplayPort. To provide the computing power on the back-end, the K4200 chipset employs 4GB of GDDR5 vRAM tied to 1344 CUDA cores arranged using NVIDIA's Kepler architecture. Using that processing power, the K4200 can support up to four displays simultaneously, achieving resolutions of up to 3840 x 2160 at 60 Hz with 30-bit color. Not only for driving displays, the K4200 can also be used for hardware acceleration through parallel processing. Taking advantage of the Kepler architecture, the K4200 can assist in video and graphics rendering, taking a large computing load off of the CPU. The K4200 and SDI output board take up one PCI slot each. The K4200 GPU is cooled by an active fansink for quiet, efficient cooling that blows the hot air out of the back of the tower as opposed to just recirculating it inside the case. The SDI card is cooled passively. Included with the graphics card are the necessary power connection cables, DisplayPort to DVI adapter, DVI-I to VGA adapter, and cable retention clips for keeping internal cabling organized. General Features - 3D Graphics Architecture
-
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA GigaThread engine with dual copy engines
- Shader Model 5.0 (OpenGL 4.4 and DirectX 11)
- Up to 16K x 16K texture and render processing
- Transparent multi-sampling and super-sampling
- 16x angle independent anisotropic filtering
- 128-bit floating point performance
- 32-bit per component floating point texture filtering and blending
- 64x full scene anti-aliasing (FSAA)
- FXAA and TXAA full scene anti-aliasing
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 encoder (requires application support)
- Blu-ray dual-stream hardware accelerating (supproting HD picture-in-picture playback)
- Quadro Boost (Automatically adjusts GPU engine througput to maximize application performance
- Parallel Computing Capabilities
-
- SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
- HyperQ (allows multiple CPU cores to simultaneously utilize a single K4200 GPU to execute independent compute kernels)
- API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- NVIDIA Parallel Data Cache hierarchy (configurable L1 and L2 caches)
- 64KB of RAM (configurable partitioning of shared memory and L1 cache)
- Advanced Display Features
-
- 30-bit color (10-bit per each red, green, and blue channel)
- Support for any combination of three directly connected displays
- DisplayPort 1.2 (up to 3840 x 2160 @ 60 Hz and 2560 x 1600 @ 120 Hz)
- DVI-I Dual-Link output (up to 2560 x 1600 @ 60 Hz and 1920 x 1200 @ 120 Hz)
- DVI-D Dual-Link output (up to 2560 x 1600 @ 60 Hz and 1920 x 1200 @ 120 Hz)
- Internal 400 MHz DAC DVI-I output (analog display up to 2048 x 1536 @ 85 Hz)
- DisplayPort 1.2, HDMI 1.4 and HDCP support (HDMI requires 3rd-party adapter)
- 10-bit internal display processing
- Full OpenGL quad buffered stereo support
- Underscan/Overscan compensation and hardware scaling
- Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
- Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync, and NVIDIA Warp/Blend technologies
- DisplayPort and HDMI Digital Audio
-
- Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1, 48, 88.2, 96, 176, 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
- SDI Output Card
-
- 2 channel fill or 1 channel fill + 1 channel key
- 8-bit, 10-bit, or 12-bit SDI output modes
- RGB 4:4:4
- YCrCb 4:2:2 or 4:4:4
- 2x YCrCb 4:2:2 + 4:2:2
- YCrCbA 4:2:2:4
- RBGA 4:4:4:4 (8-bit only)
- Supports RP188 time code
- 16 channels AES/EBU 24-bit 48 KHz audio per SDI stream
- SDI Output Card 2K, HD, and SD Formats
-
- 480i 59.94 Hz (SMPTE259) NTSC
- 576i 50.00 Hz (SMPTE259) PAL
- 720p 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 Hz (SMPTE296)
- 1035i 59.94, 60 Hz (SMPTE260)
- 1080i 47.96, 48, 50, 59.94, 60 Hz (SMPTE274), 50 Hz (SMPTE295)
- 1080PsF 23.98, 24, 25, 29.97, 30 Hz (SMPTE274)
- 1080p 23.976, 24, 25, 29.97, 30 Hz (SMPTE274)
- 2048 x 1080i 47.96, 48, 50, 59.94, 60 Hz (SMPTE372)
- 2048 x 1080p 23.976, 24, 25, 29.97, 30 Hz (SMPTE372)
GPU Features - NVIDIA CUDA Architecture
- Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.
- NVIDIA Scalable Geometry Engine
- Improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with more models and scenes.
- Large Framebuffers with Ultra-Fast Bandwidth
- Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.
- NVIDIA Parallel DataCache
- Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.
- Dual Copy Engines
- Enables high rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.
- Bindless Textures
- Increases the number of unique textures available to shaders at run-time, enabling more unique materials and richer texture detail in scenes.
- NVIDIA Streaming Multiprocessor
- Delivers more processing performance and efficiency through this streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic.
- H.264 Encoder
- Dedicated H.264 encoding engine that independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications (requires application support).
- PCI Express 2.0 Compliance
- Supports data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16 GB/sec bi-directional (16 GB/s bi-directional and 8 GB/s in each direction).
- Unified Driver Architecture (UDA)
- Ensures forward and backward compatibility with software drivers, simplifies upgrading to a new Quadro solution.
- Ultra-Quiet Design
- Silent cooling design for a quiet desktop environment.
- NVIDIA GPU Boost
- Maximum application performance through automatic adjustment of the GPU clock to take maximum advantage of the power and thermal headroom of the card in real-time.
Image Quality Features - Full Scene Anti-Aliasing (FSAA)
- Up to 64x FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in high image quality and realistic scenes.
- NVIDIA FXAA and TXAA
- Reduces visible aliasing and delivers higher image quality without a performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.
- GPU Tessellation
- Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic environments and scenes, without sacrificing performance.
- 16K Texture and Render Processing
- Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for high-resolution applications.
Display Features - NVIDIA Quadro Mosaic Technology
- Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation.
- Multi-Display Support
- This display engine in the NVIDIA GPU drives up to four displays simultaneously, whether they're directly connected to the board or connected using a single cable using DisplayPort 1.2's multi-streaming capabilities. With support for the next-generation DisplayPort 1.2 standard, each DisplayPort connector is also capable of driving high resolutions like 3840x2160 at 60 Hz with 30-bit color. The flexible display connectivity of the Quadro family makes it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.
- NVIDIA NVIEW Desktop Software
- This software delivers maximum flexibility for single large display or multi-display options, providing a customizable desktop experience for increased productivity.
- DisplayPort 1.2 Support (with Audio)
- Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and high-resolution panels (up to 3840 x 2160 at 60 Hz). This provides flexibility regarding range, resolution, refresh rate, and color depth designed to support the latest display technologies.
- 30-Bit Color Fidelity
- 10-bits per red, green, and blue. Enables billions of color variants for vivid image quality with a broad dynamic range.
- HD-SDI Capture and Output
- The SDI card performs real time acquisition, processing, and delivery of high-resolution SDI video across traditional and 3D broadcast environments. Supports uncompressed 8-bit, 10-bit, and 12-bit SDI via the included Quadro SDI output card.
- NVIDIA 3D Vision and 3D Vision Pro
- Compatible with separately available advanced active shutter glasses that deliver clear stereoscopic 3D visualization for an immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enables a range of immersive environments from your desktop workstation to collaborative work spaces.
- Professional 3D Stereo Synchronization
- Enables control of stereo effect through a dedicated three-pin mini-DIN connection to directly synchronize 3D stereo hardware to a Quadro graphics card.
- Deep Color Processing and Display
- Preserves color detail and precision throughout the processing and display pipeline for smooth gradients and transitions. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.
SDI Features - Uncompressed 8-Bit, 10-Bit, or 12-Bit SDI Output
- Enables on-air broadcast, video production, and post-production professionals to composite and output live video and graphics to true uncompressed 12-bit SDI in 2K, HD, or SD resolutions. It also allows direct connection to a broadcast monitor, switcher, tape deck, or SDI projector.
- Ancillary Data Support
- Support for ancillary data channel (for audio, timecode, etc...) is available through NVIDIA API. Support for the introduction of ancillary into the outgoing SDI video is also supported. This ancillary data can include up to 16 channels of embedded 24-bit digital audio as defined by SMPTE 272M and SMPTE299M as well as timecode.
- 2D Video Pass Through Compositing
- 2D Video Compositing enables incoming video to be passed through and have the alpha channel composited, luma keyed, or chroma keyed with the Quadro rendered graphics image on the outgoing SDI video.
- Genlock (House Synchronization)
- One genlock (standard BNC) connector (digital or analog) provides connectivity to a video source for SMPTE standard(digital, black burst, tri-level) synchronization. Expanded cross sync functionality permits an incoming house signal to synchronize a much larger number of video output signal formats.
Software Support - NVIDIA CUDA Parallel Computing Architecture
- Quadro solutions leverage general-purpose GPU computing using standard programming languages like C++ and Fortran, and APIs such as OpenCL and DirectCompute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, as well as computation fluid dynamics.
- NVIDIA GPUDirect
- NVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by third-party devices such as SDI video adapters, NICs and SSDs.
- NVIDIA GPUDirect for Video
- NVIDIA GPUDirect for Video technology allows third-party hardware to communicate directly with NVIDIA GPUs. By taking advantage of this API the issues of introducing delay or latency are reduced. With NVIDIA GPUDirect for Video, devices are synchronized and the CPU doesn't waste cycles copying data between device drivers.
- NVIDIA Enterprise-Management Tools
- These are tools for maximizing your system uptime by enabling seamless wide-scale deployment. This allows remote query and control of graphics and display settings for systems spread across installations.
Multi-GPU Technology - NVIDIA Multi-GPU Technology
- NVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs by leveraging any combination of Quadro and Tesla GPUs to intelligently scale the performance of your application and speed up your production workflow.

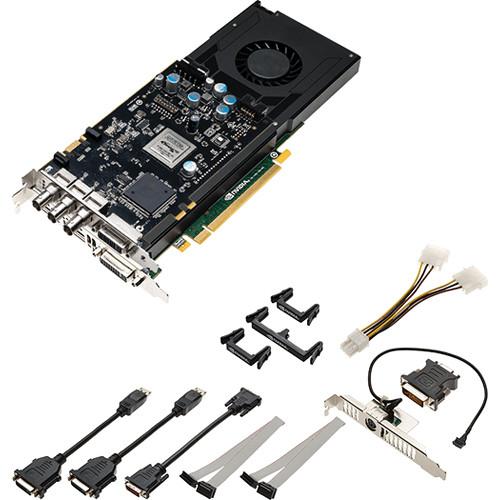

UPC: 751492576022 In the Box PNY Technologies NVIDIA Quadro K4200 Graphics Card with SDI Output Board Stereo Connector Bracket DisplayPort to DVI-D SL adapter 6-Pin PCIe Power Cable 4-Pin Power Cable DVI to DVI Crossover Cable Ribbon Connector Cable Cable Retention Clips DVI-I to VGA Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies NVIDIA Quadro K4200 Graphics Card with SDI Output Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies K4200 Specs | CUDA Cores | 1344 | | GPU Memory | 4GB GDDR5 | | Memory Interface | 256-bit | | Memory Bandwidth | 173 GB/s | | System Interface | K4200: PCI Express 2.0 x16
SDI Output Board: Any available slot | | Max Power Consumption | K4200: 105 W
SDI Output Board: 7 W | | Thermal Solution | K4200: Active fansink
SDI Output Board: Passive | | Form Factor | K4200: 4.4 x 9.5" / 11 x 24 cm, single slot width
SDI Output Board: 3.9 x 6.6" / 9.8 x 16.8 cm, single slot width | | Display Connectors | 1 x DVI-D DL
2 x DisplayPort 1.2 | | VGA Support | Via included adapter | | Number of Displays Supported | 4 (DisplayPort 1.2 Multi-Streaming) | | Maximum Resolution | DisplayPort 1.2: 3840 x 2160 @ 60Hz
DVI-I DL: 2560 x 1600 @ 60Hz
DVI-I SL: 1920 x 1200 @ 60Hz
VGA: 2048 x 1536 @ 85Hz | | SDI Output Connectors | 3 x BNC (SDI Fill, Key, Genlock) | | HDCP Support | Yes | | 3D Support | Yes, via included stereo bracket | | Graphics APIs | Shader Model 5.0
OpenGL 4.4
DirectX 11 | | Compute APIs | CUDA
DirectCompute
OpenCL | | System Requirements | Microsoft Windows 8.1, 8, 7, Vista, Linux, or Solaris
PCIe x16 expansion slot
2GB or more of system memory, 8GB recommended
200MB of available disk space for full driver installation
Blu-ray or DVD-ROM drive
Internet connection (if preferred for driver installation)
DisplayPort, DVI, or VGA compatible display(s) | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 3.5" |
