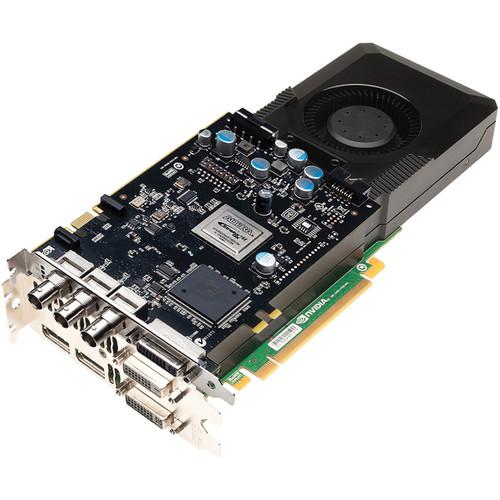

User Manual for PNY Technologies nVIDIA Quadro K5000 SDI Bundled Board Kit Click to enlarge the picture
Contents of the user manual for the PNY Technologies nVIDIA Quadro K5000 SDI
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
|
User manual for the PNY Technologies nVIDIA Quadro K5000 SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|
Product description The nVIDIA Quadro K5000 SDI Bundled Board Kit from PNY Technologies is a graphics kit that provides you a superior graphical interface when utilizing sophisticated virtual sets, augmented reality broadcast solutions or rendering richer scene details and effects for video, film or broadcast production. It offers you a 4GB of GDDR5 graphics memory, 1536 nVIDIA CUDA parallel processing cores and is built on the latest nVIDIA Kepler architecture, which help you deliver excellent performance across a broad range of broadcast, video and film pre- and post-production applications that require the compositing of 3D or other computer-generated graphics in real-time with 2K, HD and SD videos. It provides you a range of innovative features, including SMX for increased per-clock throughput of key graphics operations and bindless textures that enable the GPU to reference textures directly in memory. It is combined with the Quadro SDI Output card which allows broadcast, video and film production, post-production and finishing professionals to preview the results of 3D compositing, editing and color grading in real-time on high-definition broadcast monitors. The 8/10/12-bit SDI generated from programmable graphics enables a direct connection to broadcast monitors, switchers, tape decks or SDI projectors . - GPU Features
- nVIDIA CUDA Architecture
Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows nVIDIA Scalable Geometry Engine Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are of complex order in magnitude Large Frame Buffer with Ultra-Fast Bandwidth Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets Dual Copy Engines Enables high rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation Bindless Textures Dramatically increases the number of unique textures available to shaders at run-time, enabling vastly different materials and richer texture detail in scenes nVIDIA SMX Delivers high processing performance and efficiency through this new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic H.264 Encoder A dedicated H.264 encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing and other encoding applications Ultra-Quiet Design Silent cooling design enables acoustics lower than 28 dB for an ultra-quiet desktop environment - SDI Features
- Uncompressed 8/10/12-Bit SDI Output
Enables on-air broadcast, video production and post-production professionals to composite and output live video and graphics to true, uncompressed 12-bit SDI in 2K, SD or HD resolutions, and allows direct connection to a broadcast monitor, switcher, tape deck or SDI projector Ancillary Data Support Support for ancillary data channel (for audio, time code and more) is available through the nVIDIA API. Support for the introduction of ancillary data into the outgoing SDI video is also available. This ancillary data can include up to 16 channels of embedded 24-bit digital audio as defined by SMPTE 272M and SMPTE 299M as well as time code 2D Video Pass-Through Compositing enables incoming video to be passed through and alpha composited, luma keyed or chroma keyed with the Quadro-rendered graphics image on the outgoing SDI video Genlock (House Synchronization) A genlock (Standard BNC) connector (digital or analog) provides connectivity to a video sync source for SMPTE standard (digital, black burst, tri-level) synchronization. The expanded cross sync functionality permits an incoming house signal to synchronize a much larger number of video output signal formats - Image Quality
- Full Scene Anti-Aliasing (FSAA)
Up to 64 x FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes nVIDIA FXAA and TXAA Reduces visible aliasing and delivers high image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques GPU Tessellation with Shader Model 5.0 Quadro Tessellation Engines automatically generates finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance 16K Texture and Render Processing Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand high resolution and quality image processing - Display Features
- nVIDIA Quadro Mosaic Technology
Enables transparent scaling of the desktop and applications across up to 16 displays with 4 GPUs from a single workstation, while delivering full performance and image quality Quad-Display Support An all-new display engine drives up to 4 displays simultaneously and fully supports the next generation DisplayPort 1.2 standard capable of resolutions such as 3840 x 2160 at 60 Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall or create a sophisticated stereoscopic 3D CAVE environment nVIDIA NVIEW Advanced Desktop Software This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity DisplayPort 1.2 Support (with Audio) Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high resolution panels (up to 3840 x 2160 at 60 Hz). This enables maximum range, resolution, refresh rate and color depth designed to support the latest display technologies 30-Bit Color Fidelity 10-bit per red, green and blue. It enables billions of color variations for rich, vivid image quality with the broadest dynamic range nVIDIA 3D Vision and 3D Vision Pro Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces OpenGL Quad Buffered Stereo Support Provides a smooth and immersive 3D Stereo experience for professional applications. Professional 3D Stereo synchronization enables robust control of stereo effect through a dedicated 3-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics cards - Software Support
- nVIDIA CUDA Parallel Computing Architecture
Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing and computation fluid dynamics nVIDIA GPUDirect Increases compute performance when data throughput or latency reduction are key considerations, by allowing direct access to GPU memory by third-party devices such as SDI video adapters, NICs and solid-state drives nVIDIA GPUDirect for Video Allows third-party hardware to communicate directly with nVIDIA GPUs. With this technology, devices are fully synchronized and the CPU doesn't waste cycles copying data between device drivers UPC: 751492544267 In the Box PNY Technologies nVIDIA Quadro K5000 SDI Bundled Board Kit Stereo Connector Bracket 2 x DisplayPort to DVI-D SL Adapters DVI-I to VGA Adapter 6-Pin Auxiliary Power Cable Driver CD for Windows 7, Vista and XP SP3 (32 & 64-Bit) nVIDIA Quadro SDI Output Board DVI to DVI Crossover Cable Ribbon Cable Large Cable Retention Clip 2 x Small Cable Retention Clips 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies nVIDIA Quadro K5000 SDI Bundled Board Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies K5000 SDI Specs CUDA Cores | 1536 | GPU Memory | 4 GB GDDR5 | Memory | Interface: 256-bit Bandwidth: 173 GB/s | K5000 System Interface | PCIe 2.0 x16 | SDI Output System Interface | Any available slot | K5000 Maximum Power | 122 W | K5000 Idle Power | 18 W | SDI Output Maximum Power | 14 W | Energy Star Compliant | Yes | K5000 Thermal Solution | Ultra-quiet active fan sink | SDI Output Thermal Solution | Passive | K5000 Display Connectors | DVI-I DL + DVI-D DL + DP 1.2 + DP 1.2 + Stereo | DisplayPort 1.2 | Yes | DisplayPort with Audio | Yes | DVI-D SL connectors | Yes, via included adapters | VGA Connector | Yes, via included adapter | Number of Displays Supported | 3 | SDI Output Connectors | 3 BNC (SDI Fill, SDI Key, Genlock) | Maximum DP 1.2 Resolution | 3840 x 2160 at 60 Hz | Maximum DVI DL Resolution | 2560 x 1600 at 60 Hz | Maximum DVI SL Resolution | 1920 x 1200 at 60 Hz | Maximum VGA Resolution | 2048 x 1536 at 85 Hz | HDCP Support | Yes | Professional 3D Support | Yes, via included stereo connector bracket | Graphics APIs | Shader Model 5.0, OpenGL 4.3, DirectX 11 | Compute APIs | CUDA, DirectCompute, OpenCL | nVIDIA 3D Vision Pro Ready | Yes | 3D Graphics Architecture | Scalable geometry architecture Hardware tessellation engine nVIDIA GigaThread engine with dual copy engines Shader Model 5.0 (OpenGL 4.3 and DirectX 11) Up to 16K x 16K texture and render processing Transparent multisampling and super sampling 16x angle independent anisotropic filtering 128-bit floating point performance 32-bit per component floating point texture filtering and blending 64 x full scene anti-aliasing FXAA and TXAA full scene anti-aliasing Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later) and Flash (10.1 and later) Dedicated H.264 encoder Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback) | nVIDIA CUDA Parallel Processing Architecture | SMX architecture (streaming multi-processor design that delivers greater processing and efficiency) API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran nVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches) Error-Correction Code (ECC) memory 64KB of RAM (configurable partitioning of shared memory and L1 cache) Dual warp schedules (schedules and dispatches simultaneously instructions from two independent warps) | Advanced Display Features | 30-bit color (10-bit per each red, green and blue channel) Support for any combination of 3 connected displays DisplayPort 1.2 (up to 3840 x 2160 at 60 Hz and 2560 x 1600 at 120 Hz) DVI-I Dual-Link output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz) DVI-D Dual-Link output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz) Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz) DisplayPort 1.2, HDMI 1.4 and HDCP support (HDMI requires 3rd party adapter) 10-bit internal display processing nVIDIA 3D Vision technology, 3D DLP, interleaved and other 3D stereo format support Full OpenGL quad buffered stereo support Underscan/Overscan compensation and hardware scaling nVIDIA NVIEW multi-display technology - nVIDIA Mosaic technology Support for large-scale, ultra-high resolution visualization including Quadro Mosaic, Quadro Sync and Warp/Blend technologies | DisplayPort and HDMI Digital Audio | Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+) and MPEG-2/MPEG-4 AAC Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz and 192 KHz Word sizes of 16-bit, 20-bit and 24-bit | Minimum System Reuirements | Windows 7, Vista, XP SP3, Linux or Solaris PCIe x16 expansion slot 1 GB or more of system memory, 2 GB recommended 200 MB of available disk space for full driver installation Blu-ray, DVD-ROM or CD-ROM drive DisplayPort, DVI or VGA compatible display(s) | Dimensions (L x H) | K5000: 10.50 x 4.376" (267.0 x 111.1 mm) - dual slot SDI Output: 6.60 x 3.875" (167.7 x 98.4 mm) - single slot | | Package Weight | 3.65 lb | Box Dimensions (LxWxH) | 15.9 x 13.9 x 3.0" |
