PNY Technologies NVIDIA Quadro K6000 Graphics

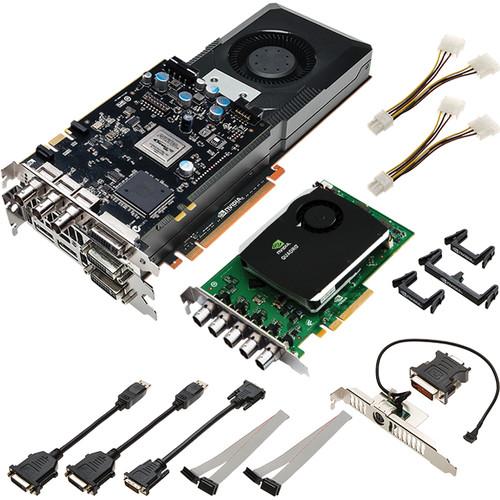

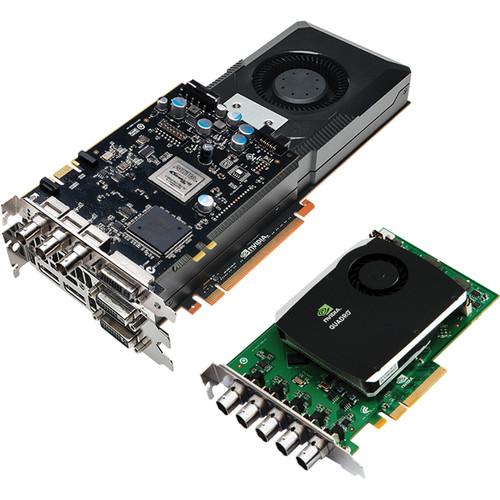

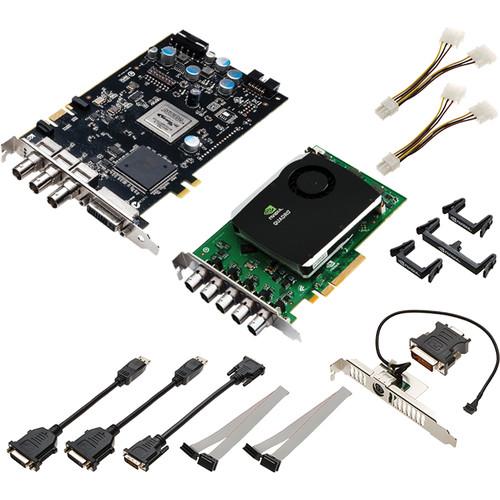

User Manual for PNY Technologies NVIDIA Quadro K6000 Graphics Card with SDI I O Board

• Product category: Graphic Display Cards PNY Technologies
• Brand: PNY Technologies
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for PNY Technologies Graphic Display Cards

Product description

Features and Benefits

3D Graphics Architecture
• Scalable geometry architecture
  Hardware tessellation engine
  NVIDIA GigaThread engine with dual copy engines
  Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
  Up to 16K x 16K texture and render processing
  Transparent multisampling and super sampling
  16x angle independent anisotropic filtering
  128-bit floating point performance
  32-bit per component floating point texture filtering and blending
  64X full scene antialiasing
  FXAA and TXAA full scene antialiasing
  Decode acceleration for MPEG-2, MPEG-4 part 2 advanced simple profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  Dedicated H.264 encoder
  Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)

NVIDIA CUDA Parallel Processing Architecture
• SMX architecture (streaming multi-processor design that delivers enhanced processing and efficiency)
  API support including CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
  NVIDIA parallel data cache hierarchy (configurable L1 and unified L2 caches)
  Error-Correction Code (ECC) memory
  64 KB of RAM (configurable partitioning of shared memory and L1 cache)
  Dual warp schedules (schedules and dispatches simultaneously instructions from two independent warps)

Advanced Display Features
• 30-bit color (10-bit per each red, green and blue channel)
  Support for any combination of four connected displays
  DisplayPort 1.2 (up to 3840 x 2160 at 60 Hz and 2560 x 1600 at 120 Hz)
  DVI-I dual-link output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz)
  DVI-D dual-link output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz)
  Internal 400 MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz)
  DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)
  10-bit internal display processing
  NVIDIA 3D Vision technology, 3D DLP, interleaved, and other 3D stereo format support
  Full OpenGL quad buffered stereo support
  Underscan/overscan compensation and hardware scaling
  NVIDIA NVIEW multi-display technology
  NVIDIA Mosaic technology
  Support for large-scale, ultra-high resolution visualization including Quadro Mosaic, Quadro Sync and Warp/Blend technologies

DisplayPort and HDMI Digital Audio
• Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
  Word sizes of 16-bit, 20-bit, and 24-bit

GPU Features

NVIDIA CUDA Architecture
• Parallel-computing architecture that tightly integrates advanced visualization and computes features to significantly accelerate professional workflows

NVIDIA Scalable Geometry Engine
• Improves geometry performance across a broad range of CAD, DCC, and medical applications, enabling you to work interactively with models and scenes that are more complex than ever before

Large Framebuffers with Ultra-Fast Bandwidth
• Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets

Dual Copy Engines
• Enables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation

Bindless Textures
• Increases the number of unique textures available to shaders at run-time, enabling more different materials and richer texture detail in scenes

NVIDIA SMX
• Delivers more processing performance and efficiency through this new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic

H.264 Encoder
• Dedicated H.264 encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications

PCIe 3.0 Compliance
• Enables data transfer rate up to 8 GT/s per lane for an aggregate bandwidth of 32 GB/s bi-directional (16 GB/s in each direction)

Ultra-Quiet Design
• Silent cooling design enables acoustics lower than 28 db for an ultra-quiet desktop environment

SDI Features

Capture up to 4 SDI Sources Directly to GPU Memory
• Enables direct transfer of video directly to graphics memory

Uncompressed 8, 10, or 12-Bit SDI Output
• Enables on-air broadcast, video production and post-production professionals to composite and output live video and graphics to true, uncompressed 12-bit SDI in 2K, SD, or HD resolutions and allows direct connection to a broadcast monitor, switcher, tape deck, or SDI projector

Ancillary Data Support
• Support for ancillary data channel (for audio, time code, etc.) is available through an NVIDIA API. Support for the introduction of ancillary data into the outgoing SDI video is also supported. This ancillary data can include up to 16 channels of embedded 24-bit digital audio as defined by SMPTE 272M and SMPTE 299M as well as timecode

2D Video Pass Through Compositing
• 2D video compositing enables incoming video to be passed through and alpha composited, Luma keyed, or Chroma keyed with the Quadro rendered graphics image on the outgoing SDI video

Genlock (House Synchronization)
• One genlock (standard BNC) connector (digital or analog) provides connectivity to a video sync source for SMPTE standard (digital, black burst, tri-level) synchronization. Expanded cross sync functionality permits an incoming house signal to synchronize a much larger number of video output signal formats

Image Quality

Full-Scene Antialiasing (FSAA)
• Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes

GPU Tessellation with Shader Model 5.0
• Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance

Display Features

NVIDIA Quadro Mosaic Technology
• Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality

Quad-Display Support
• All-new display engine drives up to four displays simultaneously and fully supports the next generation DisplayPort 1.2 standard capable of resolutions such as 3840 x 2160 at 60 Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment

NVIDIA NVIEW Advanced Desktop Software
• This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity

DisplayPort 1.2 Support (with Audio)
• Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60 Hz). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies

30-Bit Color Fidelity (10-Bits per Red, Green, and Blue Channel)
• Enables billions of color variations for rich, vivid image quality with the broadest dynamic range

NVIDIA 3D Vision and 3D Vision Pro
• Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative workspaces. 3D Vision and 3D Vision Pro are sold separately

OpenGL Quad Buffered Stereo Support
• Provides a smooth and immersive 3D stereo experience for professional applications

Professional 3D Stereo Synchronization
• Enables robust control of stereo effect through a dedicated 3-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card

Software Support

NVIDIA CUDA Parallel Computing Architecture
• Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics

NVIDIA GPUDirect
• NVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by 3rd-party devices such as SDI video adapters, NICs and SSDs

NVIDIA GPUDirect for Video
• NVIDIA GPUDirect for Video technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. By taking advantage of this new API the historical issues of introducing too much delay or latency are gone. With NVIDIA GPUDirect for Video, devices are fully synchronized and the CPU does not waste cycles copying data between device drivers

Multi-GPU Technology

NVIDIA Maximus Technology
• Maximus-powered workstations combine the visualization and interactive design capability of NVIDIA Quadro GPUs and the optimal computing power of NVIDIA Tesla GPUs into a single workstation
