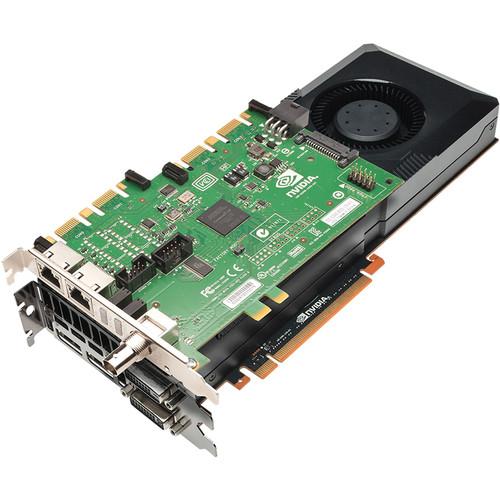

User Manual for PNY Technologies NVIDIA Quadro K6000 with NVIDIA Quadro Sync Graphics Card

• Product category: Graphic Display Cards PNY Technologies
• Brand: PNY Technologies
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for PNY Technologies Graphic Display Cards

Product description

Features and Benefits

3D Graphics Architecture
• NVIDIA GigaThread engine with dual copy engines
  Shader Model 5.0 (OpenGL 4.3 and DirectX 11)
  Up to 16K x 16K texture and render processing
  Transparent multi-sampling and super sampling
  16x angle independent anisotropic filtering
  128-bit floating point performance
  32-bit per component floating point texture filtering and blending
  64x Full scene anti-aliasing
  FXAA and TXAA full scene anti-aliasing
  Decode acceleration for MPEG-2, MPEG-4 part 2 advanced simple profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  Dedicated H.264 encoder
  Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)

NVIDIA CUDA Parallel Processing Architecture
• SMX architecture (streaming multi-processor design that delivers enhanced processing and efficiency)
  API support including CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
  NVIDIA parallel data cache hierarchy (configurable L1 and unified L2 caches)
  Error-Correction Code (ECC) memory
  64KB of RAM (configurable partitioning of shared memory and L1 cache)
  Dual warp schedules (schedules and dispatches simultaneously instructions from two independent warps)

Advanced Display Features
• 30-bit color (10-bit per each red, green and blue channel)
  Support for any combination of four connected displays
  DisplayPort 1.2 (up to 3840 x 2160 at 60 Hz and 2560 x 1600 at 120 Hz)
  DVI-I/DVI-D dual-link output (up to 2560 x 1600 at 60 Hz and 1920 x 1200 at 120 Hz)
  Internal 400 MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85 Hz)
  DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)
  10-bit internal display processing
  NVIDIA 3D Vision technology, 3D DLP, interleaved, and other 3D stereo format support
  Full OpenGL quad buffered stereo support
  Underscan/overscan compensation and hardware scaling
  NVIDIA NVIEW multi-display technology
  NVIDIA Mosaic technology
  Support for large-scale, ultra-high resolution visualization including Quadro Mosaic, Quadro Sync and warp/Blend technologies

DisplayPort and HDMI Digital Audio
• Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
  Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
  Word sizes of 16-bit, 20-bit, and 24-bit

Quadro Sync Board
• Two RJ-45 frame lock connectors
  BNC Genlock connector
  Status LEDs on bracket
  Supports up to four NVIDIA Quadro Kepler GPUs per system
  Synchronizes up to 16 displays per system
  Fully compatible with NVIDIA Mosaic Technology
  Hosted by any available expansion slot
  Powered by 6-pin PCIe or SATA hard drive power cable

Quadro Sync Genlock Video Format Support
• 720 x 486 59.94i NTSC
  720 x 576 50i PAL
  1280 x 720 60i
  1920 x 1035 59.94i
  1920 x 1080 60i
  1920 x 1080 59.94i (same as 1920 x 1080 29.87 psf)
  1920 x 1080 50i (same as 1920 x 1080 25 psf)
  1920 x 1080 24psf
  1920 x 1080 23.976 psf
  TTL level sync pulse

GPU Features

NVIDIA Scalable Geometry Engine
• Improves geometry performance across a broad range of CAD, DCC and medical applications, thus enabling you to work interactively with complex models and scenes

Large Framebuffers with Ultra-Fast Bandwidth
• Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets

Dual Copy Engines
• Enables high rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation

Bindless Textures
• Increases the number of unique textures available to shaders at run-time, enabling more different materials and richer texture detail in scenes

NVIDIA SMX
• Delivers more processing performance and efficiency through this streaming multi-processor design that allows a greater percentage of space to be applied to processing cores versus control logic

H.264 Encoder
• Dedicated H.264 encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications

PCIe 3.0 Compliance
• Enables data transfer rate up to 8 GT/s per lane for an aggregate bandwidth of 32 GB/s bi-directional (16 GB/s in each direction)

Ultra-Quiet Design
• Silent cooling design enables acoustics lower than 28 db for an ultra-quiet desktop environment

Image Quality

Full-Scene Anti-aliasing (FSAA)
• Up to 64x FSAA for reducing visual aliasing artifacts or "jaggies", resulting in higher image quality and realistic scenes

GPU Tessellation with Shader Model 5.0
• Quadro Tessellation Engines automatically generate detailed geometry for cinematic quality environments and scenes

Display Features

NVIDIA Quadro Mosaic Technology
• Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality

Quad-Display Support
• The display engine drives up to four displays simultaneously and fully supports the next generation DisplayPort 1.2 standard capable of resolutions such as 3840 x 2160 at 60 Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a stereoscopic 3D CAVE environment

NVIDIA NVIEW Advanced Desktop Software
• This software delivers maximum flexibility for single large display or multi-display options, providing quality end-user control of the desktop experience for increased productivity

DisplayPort 1.2 Support (with Audio)
• Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and high-resolution panels (up to 3840 x 2160 at 60 Hz). This enables maximum range, resolution, refresh rate, and color depth designed to support display technologies

NVIDIA 3D Vision and 3D Vision Pro
• Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative workspaces. 3D Vision and 3D Vision Pro are sold separately

OpenGL Quad Buffered Stereo Support
• Provides a smooth and immersive 3D stereo experience for professional applications

Professional 3D Stereo Synchronization
• Enables robust control of stereo effect through a dedicated 3-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card

Quadro Sync Features

Quadro Sync
• Ensures image and frame synchronization between up to four GPUs when running Quadro Mosaic or independent GPUs in clusters. Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters

Frame Lock RJ-45 Connectors
• Allows display channels from multiple systems to be synchronized, creating one large virtual display. The resulting virtual display can be driven by a multi-system cluster for performance scalability. For frame lock applications, the Quadro Sync board has to be connected to one or more additional Quadro Sync boards

Genlock (House Synchronization) BNC Connector
• One analog or digital genlock connector provides connectivity to a video sync source for SMPTE standard (digital, black burst, tri-level) synchronization. Expanded cross sync functionality permits an incoming house signal to synchronize a much larger number of video output signal formats

Supports up to Four NVIDIA Kepler Architecture Quadro GPUs
• Each Quadro Sync board is capable of supporting up to four GPUs with up to 16 displays. For additional performance scalability multiple nodes can be connected into a cluster

Windows Management Instrumentation Support
• Industry-standard WMI interfaces make it easy to script and remotely manage Quadro Sync and other GPU features on any system within a visualization cluster

Software Support

NVIDIA GPUDirect
• NVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by 3rd-party devices such as SDI video adapters, NICs, and SSDs

NVIDIA GPUDirect for Video
• NVIDIA GPUDirect for Video technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. With this software, the devices are fully synchronized and the CPU does not waste cycles copying data between device drivers

Multi-GPU Technology

NVIDIA Maximus Technology
• Maximus-powered workstations combine the visualization and interactive design capability of NVIDIA Quadro GPUs and the optimal computing power of NVIDIA Tesla GPUs into a single workstation
