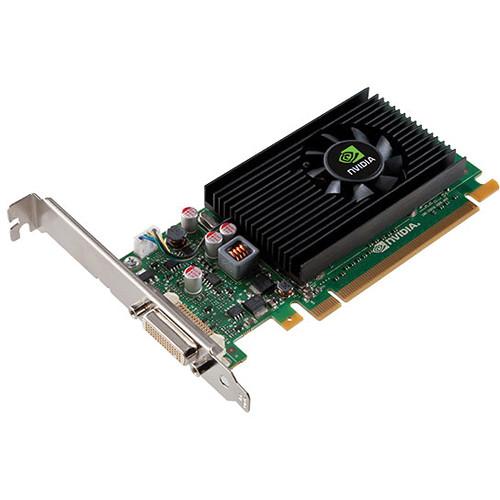

User Manual for PNY Technologies NVIDIA Quadro NVS 315 Dual Display Graphics Card Click to enlarge the picture
Contents of the user manual for the PNY Technologies NVIDIA Quadro NVS 315
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
|
User manual for the PNY Technologies NVIDIA Quadro NVS 315 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|
Product description The PNY NVIDIA NVS 315 is a quadro graphics card with support for multiple displays. The NVS 315 has a maximum DVI resolution of 1920 x 1200 and a maximum VGA resolution of 2048 x 1536. There's also 1GB of DDR3 GPU memory on-board which is instrumental in rendering high-definition content This graphics card can output video to 2 displays simultaneously. If your motherboard has room for additional graphics cards you can utilize Mosaic mode, which allows you to output video on up-to 8 displays and view them as a single large display.
Network and multi-installation users can take advantage of NVIDIA Enterprise Management Tools, allowing you to control graphics and display settings remotely. The included NVIDIA nView desktop software will allow you to customize graphics and display settings for multiple users on the sane computer. This video card also incorporates NVIDIA High-Definition Video Technology which helps optimize picture clarity, video smoothness, and color reproduction.
The NVIDIA NVS 315 comes with a DMS-59 to dual DVI-I SL adapter for the connection of DVI-D hardware and two DVI to VGA adapters - giving you multiple connection options. The NVS 315 also features a low profile PCI express 2.0 interface, which gives the video card a small foot-print. The included low profile bracket works for using the NVS 315 with smaller PC enclosures. - NVIDIA CUDA
- Parallel-computing architecture that enables increased computing performance by using the processing power of the GPU (graphics processing unit). The NVS 315 contains 48 NVIDIA CUDA parallel-computing cores compatible with all GPU-accelerated web, photo, and video applications.
- NVIDIA High-Definition Video Technology
- Combines high-definition video processors and software to deliver picture clarity, smooth video, accurate color, and image scaling for SD and HD video content. Features include, high-quality scaling, spatial temporal de-interlacing, inverse telecine and high quality HD video playback-with low CPU utilization and power consumption.
- Mosaic Mode
- Motherboards capable of running multiple graphics cards in SLI mode can utilize Mosaic Mode - this will deliver a unified desktop experience across as many as 8 displays. You can view multiple displays as a single monitor without software customization or performance degradation. Mosaic mode also enables taskbar spanning as well as transparent scaling of any application over multiple displays, giving you the feel of using one large monitor as supposed to multiple displays.
- NVIDIA Enterprise Management Tools
- Allows query and control of graphics and display settings for remote or networked systems.
- NVIDIA nView Desktop Management Software
- NVIDIA nView desktop software features a setup wizard and extended Windows taskbar to spread the application buttons across displays. You can create user profiles to customize display and graphics settings for different users.
- Intelligent Power Management
- Intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user.
- Low Noise Cooling Solution
- The built-in fan-sink is to quietly and efficiently cool the graphics card. This will prevent your graphics card from putting extra pressure on your computer system's fans.
- Optional HDMI and DisplayPort Connectivity
- The NVS 315 also supports video and multi-channel audio for HDMI 1.4a and DisplayPort 1.2 with the use of optional HDMI and DisplayPort adapters.
UPC: 751492565262 In the Box PNY Technologies NVIDIA Quadro NVS 315 Dual Display Graphics Card 2 x DVI to VGA Adapters DMS-59 to Dual DVI-I SL Adapter Low Profile Bracket CD-ROM with NVIDIA Desktop Software and Documentation Limited 3-Year Warranty Brochure PDF 844.3kbscfbxdvqxq Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies NVIDIA Quadro NVS 315 Dual Display Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies NVS 315 Specs | | | Maximum Resolution Supported | DVI: 1920 x 1200 at 60 Hz
VGA: 2048 x 1536 at 85 Hz
DP 1.2: 2560 x 1600 at 60 Hz (Via optional DMS-59 to dual DisplayPort Adapter) | | CUDA Cores | 48 | | GPU Memory | 1.0 GB DDR3 | | Memory Interface | 64-bit | | Memory Bandwidth | 14 GB/s | | System Interface | PCI Express Gen 2 x16 | | Display Connectors | 2x DVI (with appropriate adapters)
2x VGA (with appropriate adapters) | | Maximum Power Consumption | 19.5 W | | Idle Power | 7 W | | Thermal Solution | Low Noise Fan-sink | | Form Factor | Single Slot, Low-Profile | | Number of Displays Supported | 2 | | Graphics APIs | Shader Model 5.0 (OpenGL 4.3, DirectX 11) | | Compute APIs | CUDA, OpenCL, DirectCompute | | HDCP | Yes | | NVIEW | Yes | | Mosaic | Yes | | | | Compliancy | Energy Star Compliant | | Dimension (HxL) | 2.70 x 5.73" / 6.85 x 14.55 cm | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 11.0 x 6.3 x 2.7" |
