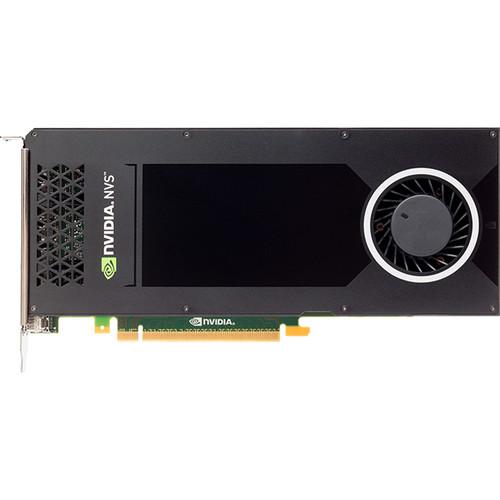

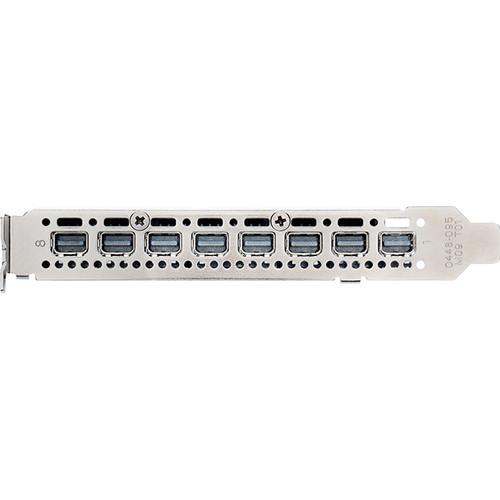

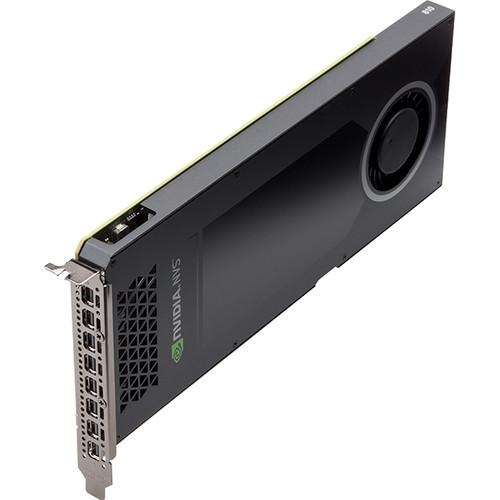

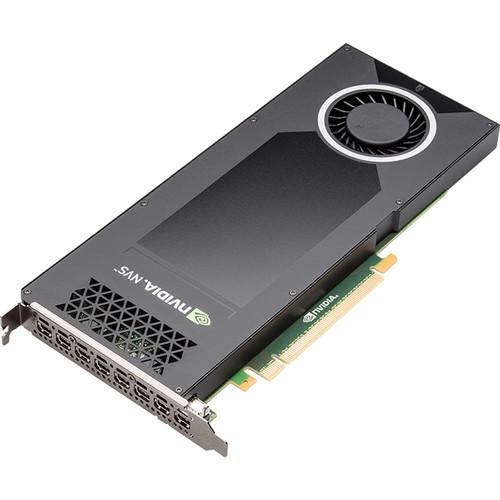

Product description With 8 Mini DisplayPort outputs, the PNY Technologies NVS 810 Graphics Card can drive up to 8 4K displays without requiring splitters or other hardware. The Maxwell architecture dual-GPU has a total 1024 CUDA cores and 4GB of DDR3 vRAM, a 128-bit memory bus, and 2.1 TFLOPS of single-precision computing power between them. This card supports APIs such as OpenCL and and OpenGL that can accelerate graphics rendering and improve computing speed. The output panel of this card contains 8 Mini DisplayPort terminals. Without any additional hardware, up to 8 monitors can be used simultaneously with resolutions up to 4K, per monitor. Monitors connected to the outputs can be arranged into high-resolution video walls or projector arrays with resolutions up to 16K. NVIDIA's built-in video processing includes bezel compensation and projector overlapping tools to ensure seamless array construction. This card comes with single-link DVI adapters for each output, enabling compatibility with legacy devices out-of-the-box. For cooling PNY implemented NVIDIA's blower-style cooler. This cooler uses a radial fan to force air through the card's heatsink and out of the card through the front. This cooling configuration is good for lower-powered cards in workstation case configurations where space between computer components can be a concern. General Features - NVS Architecture
-
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA GigaThread engine with dual copy engines
- Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per component floating point texture filtering and blending
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- NVIDIA GPU Boost automatically adjusts the GPU engine throughput to maximize application performance.
- Advanced Display Features
-
- Support for up to 8 displays with bezel correction, synchronization, and warp & blend
- Mini DisplayPort outputs natively drive up to 8 DisplayPort panels at resolutions up to 4,096 x 2,160 at 30 Hz or 4 panels at resolutions up to 4,096 x 2,160 at 60 Hz
- Connect to various monitor types using included mini-DisplayPort cable adapters
- HDCP support
- DisplayPort 1.2 Multi-Stream Technology simplifies cable management
- Supports Stream Cloning Technology for driving up to 32 displays (8 groups of cloned images via each DisplayPort connector)
- Support for embedded audio via DisplayPort
- Support for multiple display modes including DualView, Span, and Clone modes
- Parallel Computing Capabilities
-
- SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
- HyperQ (allows multiple CPU cores to simultaneously utilize a single GPU to execute independent compute kernels)
- API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- NVIDIA CUDA Architecture
- Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.
- NVIDIA Mosaic Technology
- Enables transparent scaling of the desktop and applications across up to 16 displays from a single PC with 2 NVS cards.
Image Quality Features - H.264 Encoder
- Dedicated H.264 encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.
- NVIDIA FXAA and TXAA
- Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.
- Full-Scene Anti-Aliasing (FSAA)
- Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in improved image quality and realistic scenes.
- 16K Texture and Render Processing
- Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand high resolution and quality image processing.

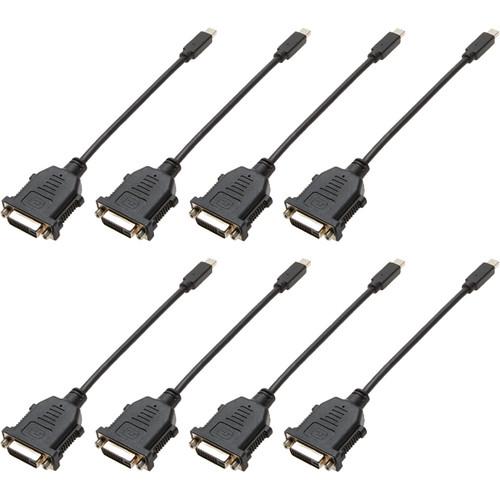

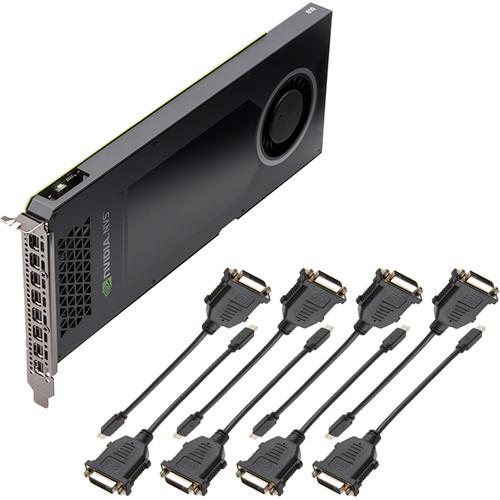

UPC: 751492587554 In the Box PNY Technologies NVS 810 Graphics Card 8 x Mini DisplayPort to Single-Link DVI-D Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies NVS 810 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies NVS 810 Specs | GPU | NVIDIA NVS 810:
CUDA Cores: 1024
Node Size: 28 nm
Architecture: Maxwell | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 128-bit
Interface: DDR3
Bandwidth: 28.8 GB/s
Configuration: 4 GB | | Floating Point | Single Precision Performance: 2.1 TFLOPS
Double Precision Performance: 65 GFLOPS | | Outputs | 8 x Mini-DisplayPort | | Maximum Resolution | DisplayPort: 4096 x 2160
Dual-link DVI: 2560 x 1600
Single-link DVI: 1920 x 1200 | | APIs | OpenGL: 4.5
DirectX: 12
Shader Model: 5.0
CUDA: Yes
DirectCompute: Yes
OpenCL: Yes | | Form Factor | Width: Single-slot
Length: 7.8" / 198 mm
Form Factor: Full-height, Full-length | | Power Consumption | 68 W | | Compliance | Not Specified by Manufacturer | | System Requirements | Power Supply: Not Specified by Manufacturer
PCI Slots: 1 x PCI Express 3.0 x16
RAM: 1 GB (2 GB recommended)
OS: Microsoft Windows 8/8.1/10, Solaris, Linux
Optical Drive: Blu-ray, DVD-ROM, or CD-ROM drive for software installation | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 14.2 x 8.6 x 3.1" |
