Product description

General Features

3D Graphics Architecture
• • Scalable geometry architecture
  • Hardware tessellation engine
  • NVIDIA GigaThread engine with dual copy engines
  • Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per component floating point texture filtering and blending
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  • Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
  • NVIDIA GPU Boost automatically adjusts the GPU engine throughput to maximize application performance.

Parallel Computing Capabilities
• • Support for all the latest CUDA 6 features, including Unified Memory, Dynamic Parallelism and Dedicated Shared Memory)
  • Support for all the latest CUDA 6.5 features
  • Programming support for CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Python and Fortran

Advanced Display Features
• • Simultaneously drive up to four displays when connected natively or when using DisplayPort MST

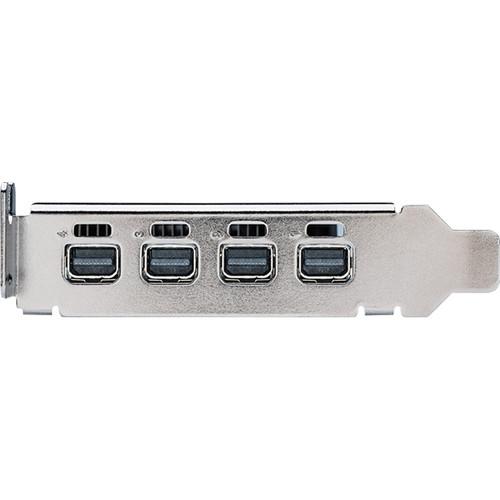

  • Four DisplayPort 1.2 outputs including Multi-Stream and HBR2 support

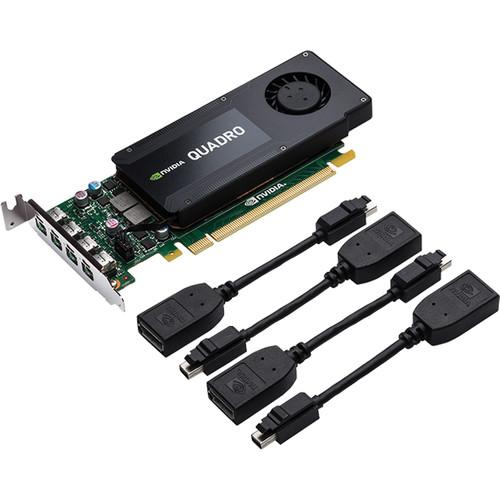

  • DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables available (resolution support based on dongle specifications)
  • 12-bit internal display pipeline
  • Stereoscopic 3D display support including NVIDIA 3D Vision technology, 3D DLP, Interleaved, and passive stereo
  • OpenGL and Direct 3D quad buffered stereo support
  • Underscan/overscan compensation and hardware scaling
  • Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools

GPU Features

NVIDIA CUDA Architecture
• Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.

NVIDIA Scalable Geometry Engine
• Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with complex models and scenes.

NVIDIA Parallel DataCache
• Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.

Bindless Textures
• increases the number of unique textures available to shaders at run-time, enabling vastly more different materials and richer texture detail in scenes.

NVIDIA Streaming Multiprocessor
• Delivers more processing performance and efficiency through this streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic.

H.264 Encoder
• Dedicated H.264 encode engine that is independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications.

Unified Driver Architecture
• Provides forward and backward compatibility with software drivers, simplifying upgrading to a new Quadro solution whenever you're ready.

NVIDIA GPU Boost
• Increases application performance through automatic adjustment of the GPU clock to take maximum advantage of the power and thermal headroom of the card in real-time.

NVIDIA Multi-GPU Technology
• NVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs, by leveraging any combination of Quadro and Tesla GPUs to intelligently scale the performance of your application and dramatically speed up your production workflow.

Image Quality Features

Full-Scene Anti-Aliasing (FSAA)
• Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in improved image quality and realistic scenes.

NVIDIA FXAA and TXAA
• Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.

GPU Tesselation
• Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.

16K Texture and Render Processing
• Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand high resolution and quality image processing.

Display Features

NVIDIA Quadro Mosaic Technology
• Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.

Multi-Display Support
• All-new display engine drives up to four displays simultaneously and fully supports the Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.

NVIDIA 3D Vision Support
• When used with a 3D Vision compatible monitor and 3D Vision active-shutter glasses, full-HD resolution images are delivered to each eye. Additionally, with a 3D LightBoost compatible screen, image brightness will be maintained while using the glasses and ghosting will be reduced.

Deep Color Processing and Display
• Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays
