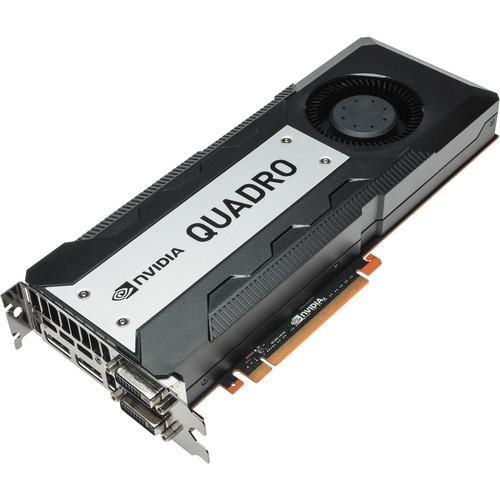

User Manual for PNY Technologies Quadro K6000 Graphics Card Click to enlarge the picture
Contents of the user manual for the PNY Technologies Quadro K6000 Graphics Card
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
|
User manual for the PNY Technologies Quadro K6000 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|
Product description The Quadro K6000 Graphics Card from PNY Technologies is a professional computer graphics card for applications that require or benefit from dedicated GPU processing power. It features driver and API support for Windows as well as many Linux and Solaris distributions.
Alongside the GPU, the K6000 features 12GB of DDR5 RAM and a 384-bit memory interface, which work together to move data to and from the GPU as efficiently, and with as little latency, as possible. In addition, 2880 CUDA cores (stream processors) allow the card to perform hundreds of computations simultaneously when interacting with APIs that support parallel processing.
The K6000 can be connected to a variety of display types, including computer monitors, HDTVs, broadcast video monitors, projectors, as well as 4K and 3D displays. It features a dual-link DVI-I (digital and analog) port, a dual-link DVI-D (digital only) port, and two DisplayPort ports with DP 1.2 support. Through DisplayPort in can drive displays up to 4K (4096 x 2160) resolution at up to 60 Hz and can drive digital displays through dual-link DVI at up to 2560 x 1600 resolution at up to 60 Hz. In addition, it supports professional 3D displays, and features a stereo connector that will provide synchronization for certain types of active 3D glasses.
For extended desktops, multi-view applications, immersive gaming, and other multi-monitor arrangements, up to four displays can be connected concurrently to one card. For video walls and other larger multi-display setups, up to four K6000s can be installed in one workstation, allowing a single computer to manage a total of 16 displays.
In addition to driving displays, the card features broad API support including CUDA, OpenCL, DirectX 11.2, Shader Model 5.0, and OpenGL 4.3, allowing it to provide GPU acceleration for a growing number of GPU-aware applications. Applications that benefit from GPU acceleration include video editing, 3D animation, CAD, computer modeling, cryptography, complex mathematical computations, and any other applications involving calculations that GPU architecture is more efficient at processing than the CPU. The card can be even used as a standalone parallel processing solution when installed alongside an existing graphics card. - Nvidia CUDA Technology
- Allows GPU-aware applications with CUDA support to divert computationally-intensive operations such as encoding video, rendering 3D animation, or performing complex floating point calculations to the graphics card. GPU architecture can perform these calculations more efficiently, and doing so to frees up the CPU resources for other tasks
- Quad-Display Support
- Drive up to four displays using a single graphics card for video wall, immersive gaming, and other multi-screen applications
- 3D Support
- Supports various 3D technologies including Nvidia 3D Vision and 3D Vision Pro. In addition, supports OpenGL quad buffering as well as stereo synchronization (via 3-pin mini-din connector) for driving various professional 3D display systems
- Popular API Support
- Wide API support allowing GPU-aware applications to leverage additional processing power from the card. Compatible APIs include: DirectX 11.2, Shader Model 5.0, OpenGL 4.3, CUDA C, CUDA C++, OpenCL, Java, Python, and Fortran
- H.264 Encoder
- Exploits GPU hardware to accelerate H.264 encoding for significantly faster than real time transcoding when using compatible GPU-aware video encoding software
- Accelerated Video Decoding
- Uses GPU hardware to decode MPEG-2, MPEG-4, H.264, MVC, VC1, Divx, and Flash for higher quality and less errors compared with software-only decoding
- Quadro Mosaic Technology
- Designed to enable transparent scaling of the desktop and applications running on a single workstation across up to 16 displays when using four compatible Quadro GPUs working in aggregate
- Quadro Sync
- Provides a common reference clock to keep all displays in sync when using multiple GPUs in one workstation or GPUs distributed in a cluster
- 30-Bit Color
- Provides up to 10 bits per RGB channel, when used with compatible display devices, allowing the card to generate billions of colors
- Image Processing Features
- Applies anti-aliasing and other processing filters when rendering graphics, designed to produce smoother, more realistic images, including:
- FXAA Technology: Shader-based anti-aliasing that enables fast anti-aliasing in numerous games
- TXAA Technology: Temporal anti-aliasing
- Bindless Textures: Increases the number of unique textures available to shaders at run-time, designed to give richer texture detail in scenes
- 16x angle independent anisotropic filtering
- 16K x 16K texture and render processing
- Transparent multisampling and super sampling
- 32-bit per component floating point texture filtering and blending
- GPU Acceleration for SDI Capture
- Provides GPU accelerated processing for SDI and HD-SDI video capture when used in conjunction with a compatible Nvidia Quadro SDI capture card
- Scalable Geometry Engine
- Provides the framework required for users to interface interactively with complex 3D environments in CAD, DCC, medical, and other applications
- Dual Copy Engines
- Allows data to be sent and received simultaneously by the GPU for faster performance when using compatible applications or APIs
- GPU Direct
- Allows certain third-party devices such as SDI video adapters, NICs and SSDs direct access to the GPU so they can accomplish processing-intensive tasks more efficiently
- Low-Noise Operation
- Cooling system designed to keep operational noise level below 28db
- SMX Architecture
- Dedicates more space on the board to processing and less to controller circuitry compared to earlier architectures
- PCI Express 3.0 x16 Support
- Provides twice the bandwidth of PCI Express 2.0; for example, an x8 PCI Express 3.0 slot has the same bandwidth as a x16 PCI 2.0 slot. In addition, the card remains backward-compatible with motherboards using earlier generations of PCI Express
UPC: 751492544298 In the Box PNY Technologies Quadro K6000 Graphics Card - Stereo Connector Bracket
- 2 x DisplayPort to DVI-D SL Adapter
- DVI-I to VGA Adapter
- 2 x 6-Pin Auxiliary Power Cables
- Limited 3-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies Quadro K6000 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies K6000 Specs | GPU | NVIDIA Quadro K6000 | | Stream Processors | 2880 | | Memory | 12 GB GDDR5 | | Memory Interface | 384-bit | | Memory Bandwidth | 288 GB/s | | TDP | 225 W | | Multi-Screen Display | Up to 4 concurrent, depending on total resolution | | Multi-GPU Support | Combine a total of 4 compatible cards to drive up to 16 displays | | Outputs | 1 x DVI-I dual-link
1 x DVI-D dual-link
2 x DisplayPort - with DP 1.2 support
1 x Stereo on Din connector - for certain 3D devices, requires additional physical PCI-E slot | | Maximum Resolution | DisplayPort: 4K (4096 x 2160) up to 60 Hz
DVI-I dual-link: 2560 x 1600 up to 60Hz
DVI-I single-link: 1920 x 1200 up to 60Hz
VGA: 2048 x 1536 at up to 85Hz | | Audio Support | Via DisplayPort:
Codecs: Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
Data Rates: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz
Word Sizes: 16-bit, 20-bit, and 24-bit | | Decode Acceleration | MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later) | | Encode Acceleration | H.264 | | Bus Type | PCI Express 3.0 x16 | | Power Consumption | 225 W Max | | Minimum System Requirements | Windows: 8, 7, Vista, or XP SP3
Unix-like: Linux or Solaris - API and driver support varies depending on distribution
At least 1 GB RAM (at least 2 GB recommended)
200 MB available disk space for driver installation
Blu-ray or DVD-ROM drive
Internet connection if preferred for driver installation and updates
DisplayPort, or VGA compatible display - HDMI and VGA supported via adapters
1 x Free PCI-E x16 expansion slot for electrical - PCI-E 3.0 x16 required for best performance
2 x Free PCI-E physical expansion slot - 3 x required for stereo connector 2 x 6-pin PCI power connectors | | Dimensions | 4.4 x 10.5" (11.2 x 26.7 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 3.45 lb | | Box Dimensions (LxWxH) | 13.9 x 8.1 x 4.2" |
