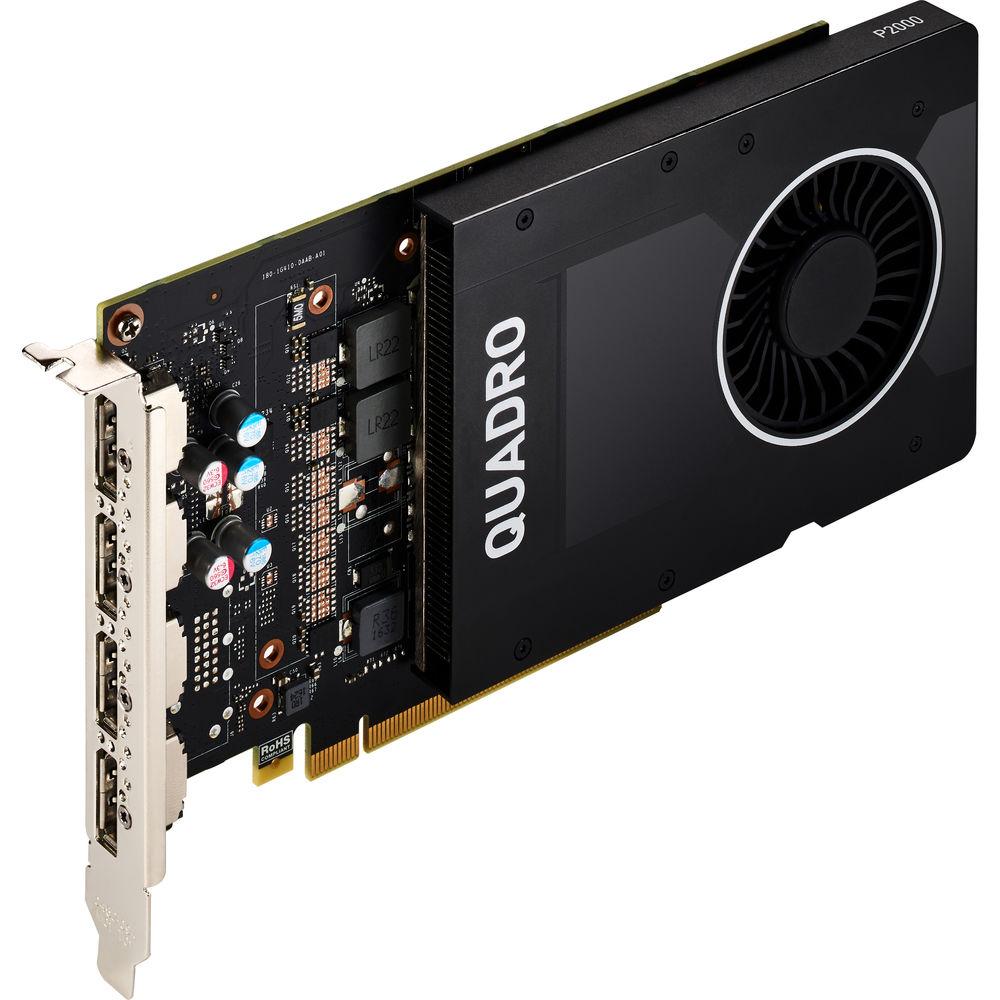

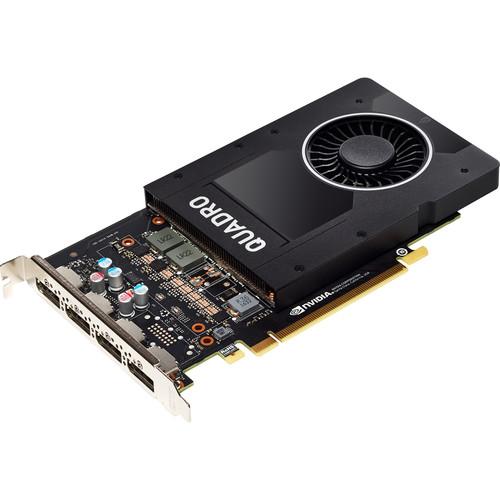

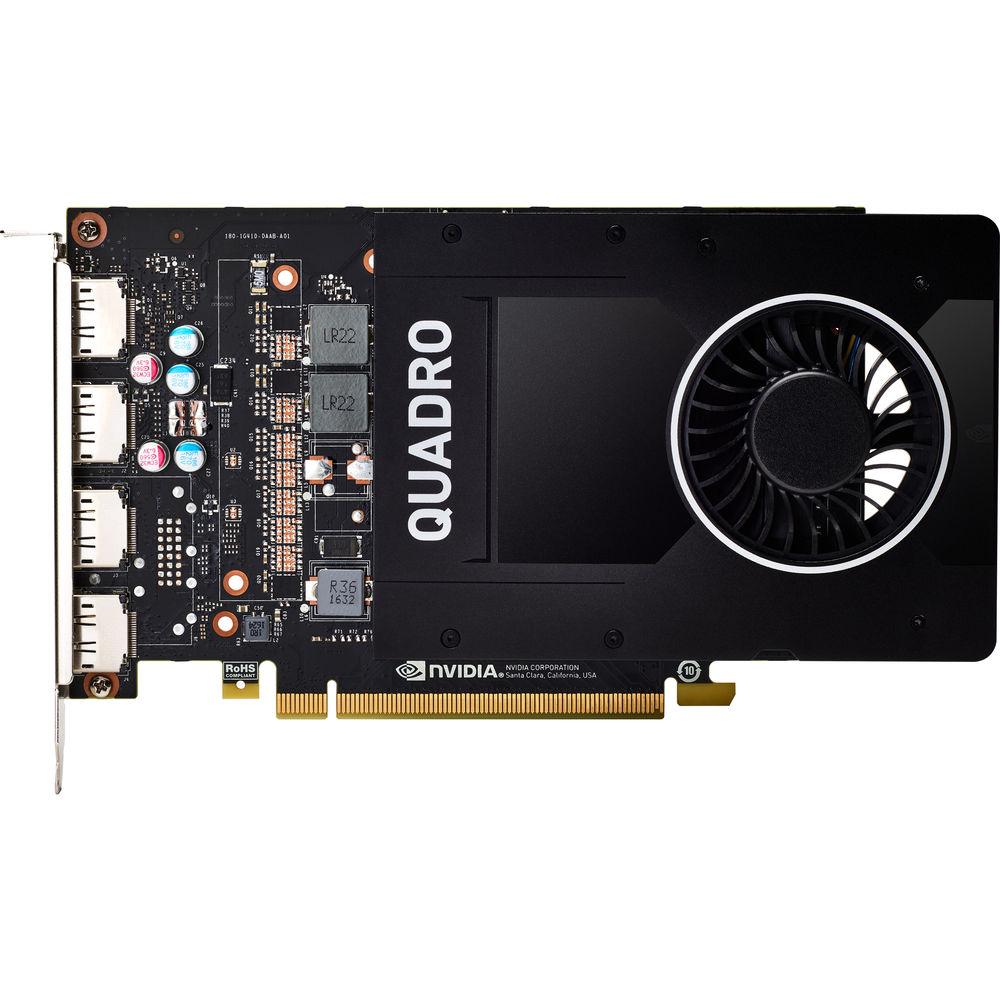

User Manual for PNY Technologies Quadro P2000 Graphics Card Click to enlarge the picture
Contents of the user manual for the PNY Technologies Quadro P2000 Graphics Card
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
 |
User manual for the PNY Technologies Quadro P2000 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|

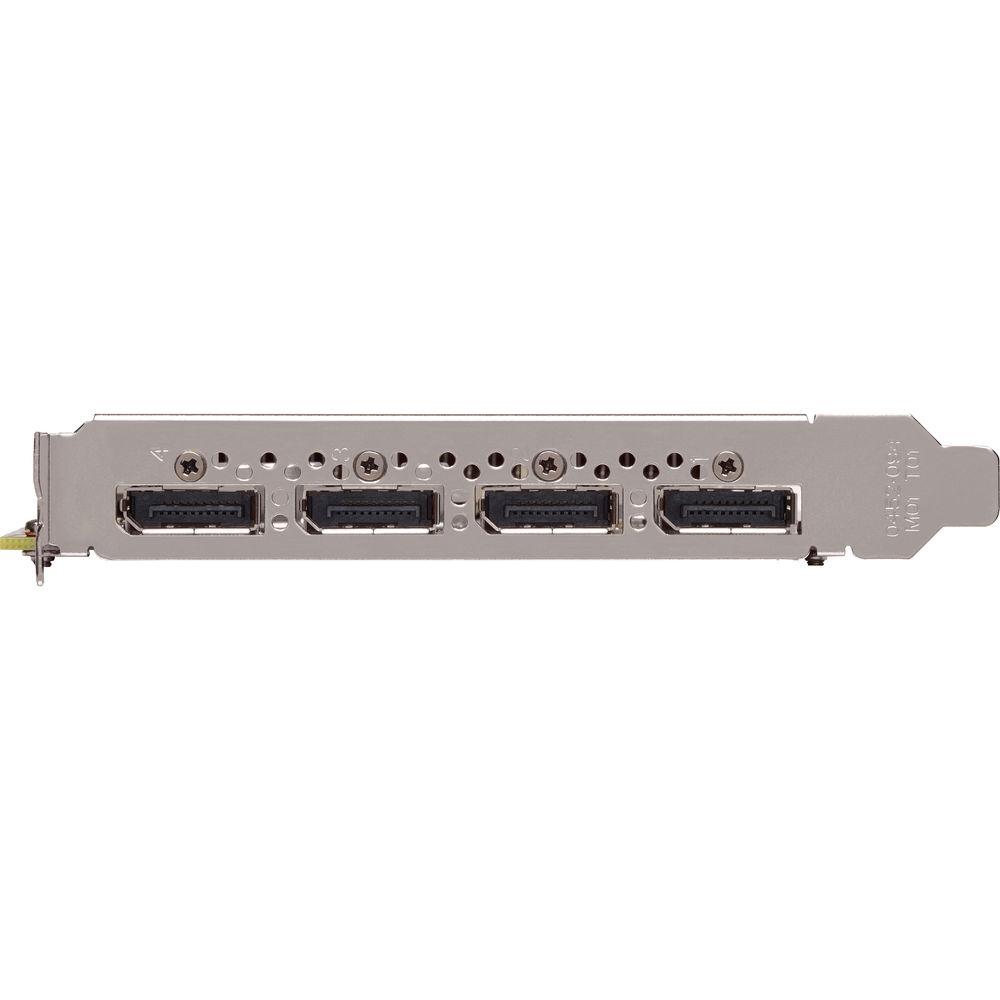

Product description Next-Gen Pascal-Based Quadro Workstation Cards Now at B&H Read More Designed for CAD workflows, professional graphics rendering, and processing the PNY Technologies Quadro P2000 Graphics Card incorporates NVIDIA's efficient Pascal architecture. The GPU features 1024 CUDA cores coupled to 5GB of VRAM with a 160-bit memory bus providing a maximum of 3 TFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high resolution and realistic real-time 2D and 3D graphics rendering or improved computing speed with hardware acceleration. The output panel on this card features four DisplayPort terminals. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. Included with the card is one DisplayPort to DVI-D SL adapter for connecting to legacy displays. Other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, PNY implemented an active fansink cooler. This cooler uses a radial fan to force air through the card's heatsink, dissipating heat from the GPU and other internal components. This cooling configuration is best suited for cases with unrestricted airflow. General Features - 3D Graphics Architecture
-
- Scalable geometry architecture
- Hardware tesselation engine
- NVIDIA Giga Thread with dual copy engines
- Up to 32K x 32K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 and HEVC encoder
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
- Advanced Display Features
-
- Supports any combination of four compatible connected displays
- HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
- NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
- Underscan/overscan compensation and hardware scaling
- DisplayPort and HDMI Digital Audio Support
- Codecs: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), MPEG-2/MPEG-4 AAC
Data Rate: 44.1/48/88.2/96/176/192 kHz
Word Size: 16/20/24-bit GPU Performance Features - Pascal Microarchitecture
- Based on 16nm FinFET process technology with 1024 CUDA cores, the Quadro P2000 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.
- Dynamic Load Balancing
- Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
- Frame Buffer and Memory Bandwidth
- 5GB GDDR5 memory with up to 140 GB/s memory bandwidth delivers the performance and responsiveness demanded by entry level graphics applications.
- H.264 and HEVC Encode/Decode Engines
- Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with a dedicated H.264 and HEVC encode engine and a dedicated decode engine that are independent of 3D/compute pipeline.
- NVIDIA GPU Boost 3.0
- Boosts the card's clock speed in real time based on the target temperature. If the card is running below the set target temperature, GPU Boost will increase the clock speed to improve performance. GPU Booost 3.0 adds granular control over the clock speed and voltage adjustments for performance increases.
Image Quality Features - NVIDIA Quadro MOSAIC Technology
- Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
- DisplayPort 1.4 Support
- Support up to four 5K monitors at 60 Hz, or dual 8K displays per card. The P2000 supports HDR color for 4K at 60 Hz for 10/12-bit HEVC decode and up to 4K at 60 Hz for 10-bit HEVC encode. Each DisplayPort connector is capable of driving DCI 4K displays at 120 Hz with 30-bit color.
- NVIDIA NVIEW Advanced Desktop Software
- Configure single or multi-display environments for increased desktop workspace and productivity.
- OpenGL Quad Buffered Stereo Support
- Provide a smooth and immersive 3D Stereo experience for professional applications.
Software Support - NVIDIA CUDA Parallel Computing Platform
- Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics. Dynamic Parallelism allows the GPU to dynamically spawn new processing threads without going back to the CPU, lowering processing latency.
- NVIDIA Enterprise-Management Tools
- Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.
- NVIDIA Multi-GPU Technology
- Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
UPC: 751492604398 In the Box PNY Technologies Quadro P2000 Graphics Card DisplayPort to DVI Adapter Limited 3-Year Warranty Data Sheet PDF 488.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies Quadro P2000 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies P2000 Specs | | | GPU Model | NVIDIA Quadro P2000 | | Stream Processors | 1024 CUDA Cores | | Floating Point Performance | Single Precision Performance: 3.0 TFLOPS
Double Precision Performance: 93.00 GFLOPS | | Interface | PCI Express 3.0 x16 | | Supported APIs | Shader Model: 5.1
OpenGL: 4.5
DirectX: 12
Vulkan: 1 | | | | Memory Configuration | 5 GB | | Memory Interface | GDDR5 | | Memory Interface Width | 160-Bit | | Memory Bandwidth | 140 GB/s | | | | Display Connectors | 4 x DisplayPort 1.4 | | Maximum Digital Resolution | 5120 x 2880 @ 60 Hz | | | | Max Power Consumption | 75 W | | | | Height | 4.4" / 111.76 mm | | Length | 7.9" / 200.66 mm | | Width | Single-Slot | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 10.9 x 6.1 x 2.4" |
