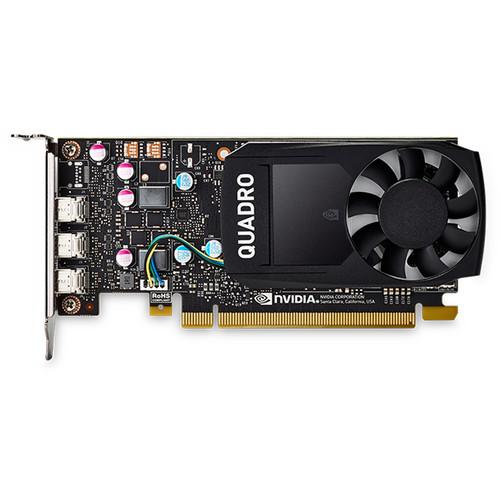

User Manual for PNY Technologies Quadro P400 Graphics Card Click to enlarge the picture
Contents of the user manual for the PNY Technologies Quadro P400 Graphics Card
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
 |
User manual for the PNY Technologies Quadro P400 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|

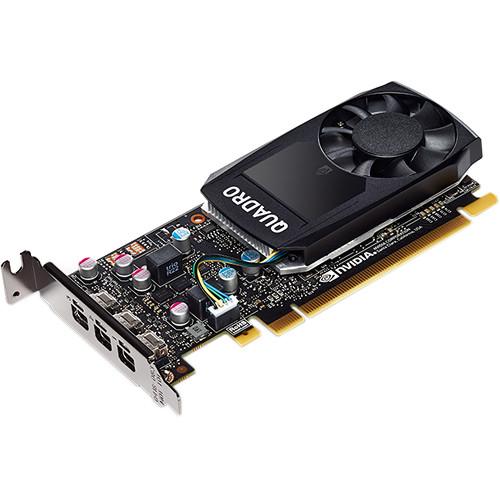

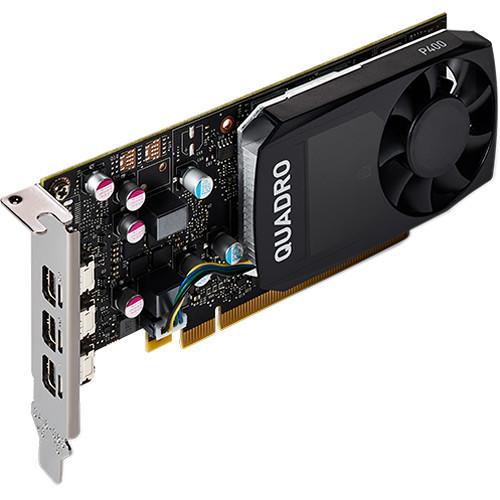

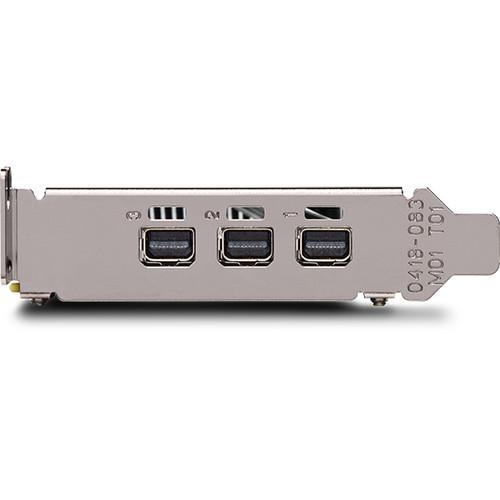

Product description Next-Gen Pascal-Based Quadro Workstation Cards Now at B&H Read More Designed for small workstations and basic graphics or hardware acceleration applications, PNY Technology's Quadro P400 Graphics Card is a low-profile graphics card built on NVIDIA's Pascal architecture. The GPU features 256 CUDA cores coupled to 2GB of VRAM with a 64-bit memory bus providing a maximum of 641 GFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high-resolution graphics rendering and improved computing speed with hardware acceleration. The output panel on this card features three Mini-DisplayPort terminals. Up to four monitors can be simultaneously supported by a single card, with the addition of an MST hub splitter, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. Included with the card are three Mini-DisplayPort to full-size DisplayPort adapters. Other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, PNY implemented an active fansink cooler. This cooler uses a radial fan to force air through the card's heatsink, dissipating heat from the GPU and other internal components. This cooling configuration is best suited for cases with unrestricted airflow. While the attached low-profile bracket allows for mounting in small-form-factor cases, a full-height bracket is included for installing in standard ATX systems. General Features - 3D Graphics Architecture
-
- Scalable geometry architecture
- Hardware tesselation engine
- NVIDIA Giga Thread with dual copy engines
- Up to 32K x 32K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 and HEVC encoder
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
- Advanced Display Features
-
- Supports any combination of four compatible connected displays
- HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
- NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
- Underscan/overscan compensation and hardware scaling
- DisplayPort and HDMI Digital Audio Support
- Codecs: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), MPEG-2/MPEG-4 AAC
Data Rate: 44.1/48/88.2/96/176/192 kHz
Word Size: 16/20/24-bit GPU Performance Features - Pascal Microarchitecture
- Based on 14nm FinFET process technology with 256 CUDA cores, the Quadro P400 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.
- Dynamic Load Balancing
- Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
- Frame Buffer and Memory Bandwidth
- 2GB GDDR5 memory with up to 32 GB/s memory bandwidth delivers the performance and responsiveness demanded by entry level graphics applications.
- H.264 and HEVC Encode/Decode Engines
- Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with a dedicated H.264 and HEVC encode engine and a dedicated decode engine that are independent of 3D/compute pipeline.
- NVIDIA GPU Boost 3.0
- Boosts the card's clock speed in real time based on the target temperature. If the card is running below the set target temperature, GPU Boost will increase the clock speed to improve performance. GPU Booost 3.0 adds granular control over the clock speed and voltage adjustments for performance increases.
Image Quality Features - NVIDIA Quadro MOSAIC Technology
- Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality, optimized for still image visualizations and unified desktops.
- DisplayPort 1.4 Support
- Drive up to three UHD 4K monitors at 60 Hz, or one 5K monitor at 60 Hz. The P400 supports HDR color for 4K at 60 Hz for 10/12-bit HEVC for decoding and up to 4K at 60 Hz for 10-bit HEVC for encoding.
- NVIDIA NVIEW Advanced Desktop Software
- Configure single or multi-display environments for increased desktop workspace and productivity.
- OpenGL Quad Buffered Stereo Support
- Provide a smooth and immersive 3D Stereo experience for professional applications.
Software Support - NVIDIA CUDA Parallel Computing Platform
- Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics. Dynamic Parallelism allows the GPU to dynamically spawn new processing threads without going back to the CPU, lowering processing latency.
- NVIDIA Enterprise-Management Tools
- Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.
- NVIDIA Multi-GPU Technology
- Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
UPC: 751492604534 In the Box PNY Technologies Quadro P400 Graphics Card 3 x Mini DisplayPort to DisplayPort Adapters Full-Height Bracket Limited 3-Year Warranty Data Sheet PDF 290.9kbyayfsecyusedqzaewtvdxcvrz Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies Quadro P400 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies P400 Specs | GPU | NVIDIA Quadro P400:
CUDA Cores: 256
Node Size: 14 nm
Architecture: Pascal | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 64-bit
Interface: GDDR5
Bandwidth: 32 GB/s
Configuration: 2 GB | | Floating Point | Single Precision Performance: 641 GFLOPS
Double Precision Performance: 20 GFLOPS | | Outputs | 3 x Mini DisplayPort 1.4 | | Maximum Resolution | DisplayPort: 5120 x 2880
Dual-link DVI: 2560 x 1600
Single-link DVI: 1920 x 1200 | | APIs | Graphics:
Shader Model 5.1
OpenGL: 4.5
DirectX: 12
Vulkan 1.0
Compute:
CUDA
DirectCompute
OpenCL | | Form Factor | Width: Single-slot
Length: 5.7" / 145 mm
Form Factor: Half-height, half-length | | Power Consumption | 30 W | | Compliance | Not Specified by Manufacturer | | System Requirements | Power Supply: Not Specified by Manufacturer
CPU: Intel Core i5/i7/Xeon or newer, AMD Phenom/Opteron or newer
PCI Slots: 1 x PCI Express 3.0 x16
RAM: 2 GB (8 GB recommended)
Storage: 200 MB of available disk space
OS: Microsoft Windows 7/8/8.1/10, Server 2008/2012/2012 R2 64/2016, Linux
Optical Drive: Blu-ray or DVD-ROM drive for software installation (downloads also available) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 11.0 x 6.4 x 2.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
