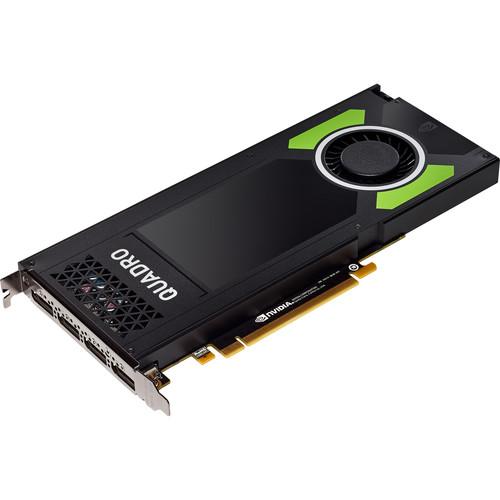

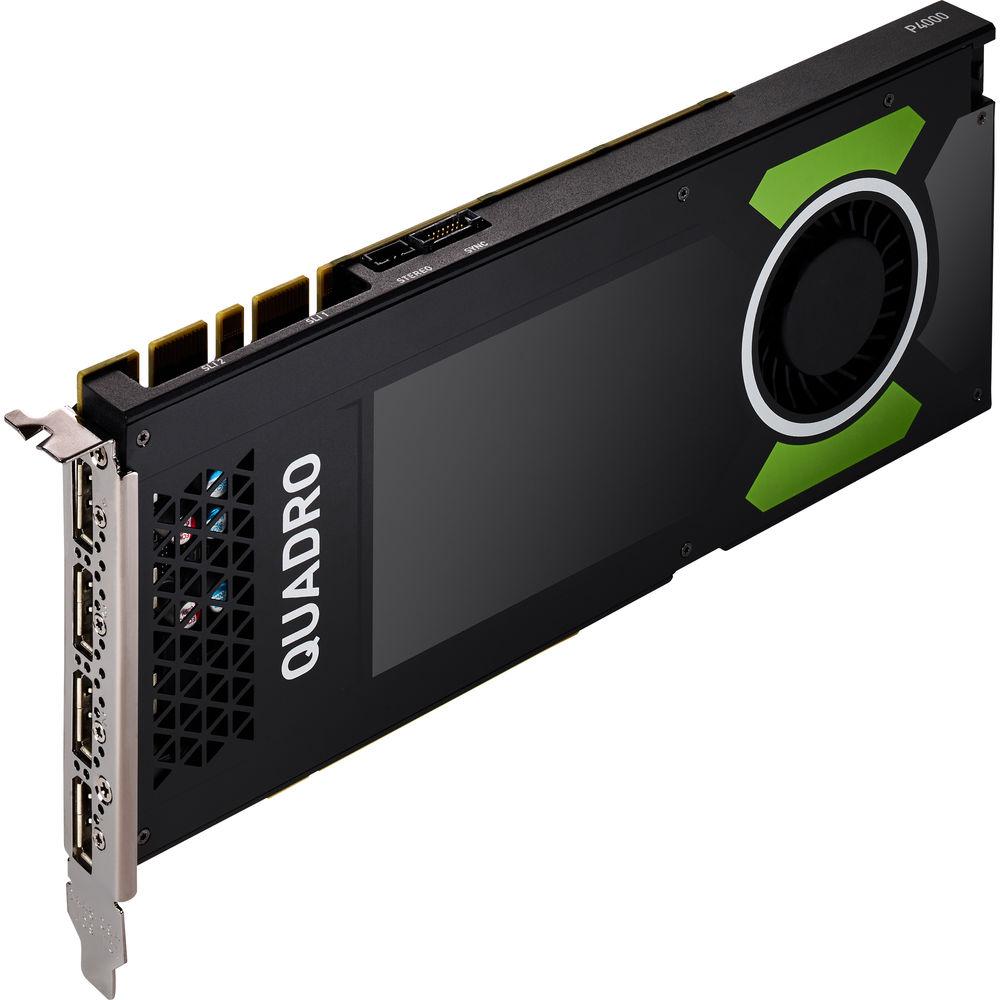

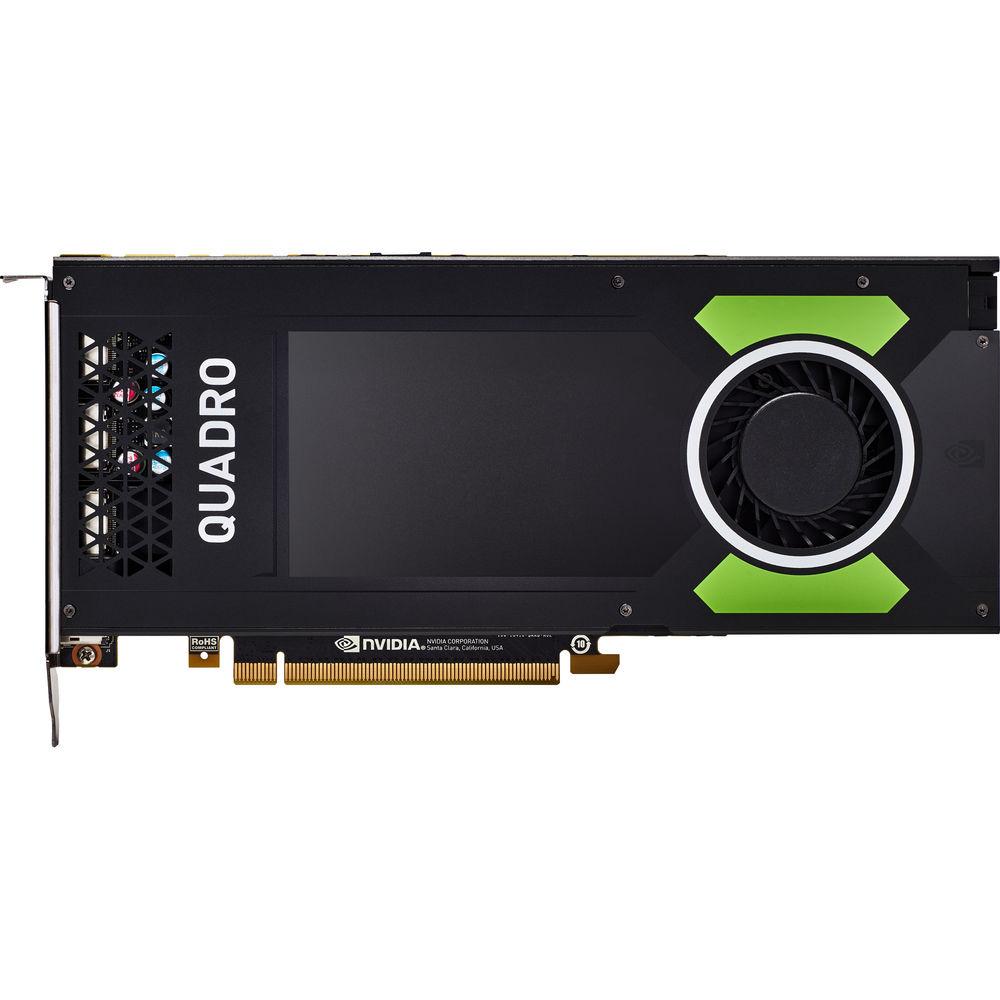

PNY Technologies Quadro P4000 Graphics Card

User Manual for PNY Technologies Quadro P4000 Graphics Card

• Product category: Graphic Display Cards PNY Technologies
• Brand: PNY Technologies
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for PNY Technologies Graphic Display Cards

Product description

General Features

3D Graphics Architecture
• • Scalable geometry architecture
  • Hardware tesselation engine
  • NVIDIA Giga Thread with dual copy engines
  • Up to 32K x 32K texture and render processing
  • Transparent multisampling and super sampling
  • 16x angle independent anisotropic filtering
  • 32-bit per-component floating point texture filtering and blending
  • 64x full scene antialiasing (FSAA), 128x supported in SLI configurations
  • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
  • Dedicated H.264 and HEVC encoder
  • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)

Advanced Display Features
• • Supports any combination of four compatible connected displays
  • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
  • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
  • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
  • Underscan/overscan compensation and hardware scaling

DisplayPort and HDMI Digital Audio Support
• Codecs: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), MPEG-2/MPEG-4 AAC
  Data Rate: 44.1/48/88.2/96/176/192 kHz
  Word Size: 16/20/24-bit

GPU Performance Features

Pascal Microarchitecture
• Based on 16nm FinFET process technology with 1792 CUDA cores, the Quadro P4000 provides performance for computationally demanding design visualization or immersive design reviews with VR support.

Simultaneous Multi-Projection
• Complete stereo rendering of geometry in a single pass to double the effective throughput for applications such as VR.

Pascal VR-Centric Features
• Dynamic Load Balancing: Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
  Preemption: Pixel level graphics preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking. Compute preemption at the thread and instruction level provides finer grain control over compute tasks.

H.264 and HEVC Encode/Decode Engines
• Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with a dedicated H.264 and HEVC encode engine and a dedicated decode engine that are independent of 3D/compute pipeline.

NVIDIA GPU Boost 3.0
• Boosts the card's clock speed in real time based on the target temperature. If the card is running below the set target temperature, GPU Boost will increase the clock speed to improve performance. GPU Booost 3.0 adds granular control over the clock speed and voltage adjustments for performance increases.

Image Quality Features

Memory Compression
• Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.

NVIDIA Quadro MOSAIC Technology
• Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

DisplayPort 1.4 Support
• Support up to four 5K monitors at 60 Hz, or dual 8K displays per card. The P2000 supports HDR color for 4K at 60 Hz for 10/12-bit HEVC decode and up to 4K at 60 Hz for 10-bit HEVC encode. Each DisplayPort connector is capable of driving DCI 4K displays at 120 Hz with 30-bit color.

NVIDIA NVIEW Advanced Desktop Software
• Configure single or multi-display environments for increased desktop workspace and productivity.

OpenGL Quad Buffered Stereo Support
• Provide a smooth and immersive 3D Stereo experience for professional applications.

3D Stereo Synchronization
• Connect to a separately available compatible Quadro sync card for robust control of 3D effects.

Software Support

NVIDIA CUDA Parallel Computing Platform
• Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics. Dynamic Parallelism allows the GPU to dynamically spawn new processing threads without going back to the CPU, lowering processing latency.

NVIDIA GPUDirect for Video
• GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

NVIDIA Enterprise-Management Tools
• Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.

NVIDIA Multi-GPU Technology
• Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.

NVIDIA SLI HB Technology
• Leverage multiple P4000 GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.
