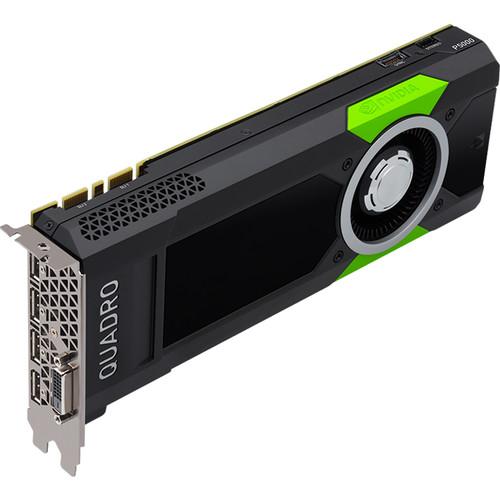

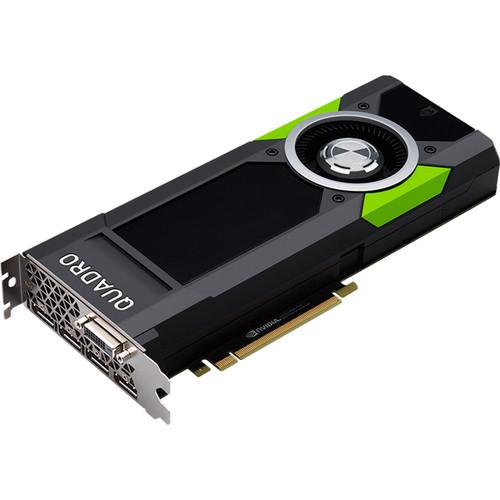

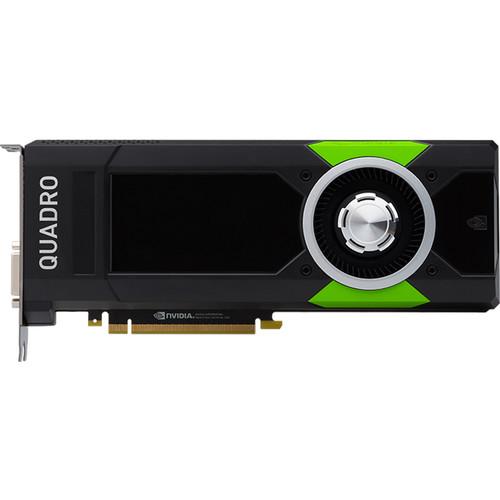

User Manual for PNY Technologies Quadro P5000 Graphics Card Click to enlarge the picture
Contents of the user manual for the PNY Technologies Quadro P5000 Graphics Card
- Product category: Graphic Display Cards PNY Technologies
- Brand: PNY Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PNY Technologies Graphic Display Cards
 |
User manual for the PNY Technologies Quadro P5000 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PNY Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PNY Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PNY Technologies product will considerably shorten its lifespan!
|

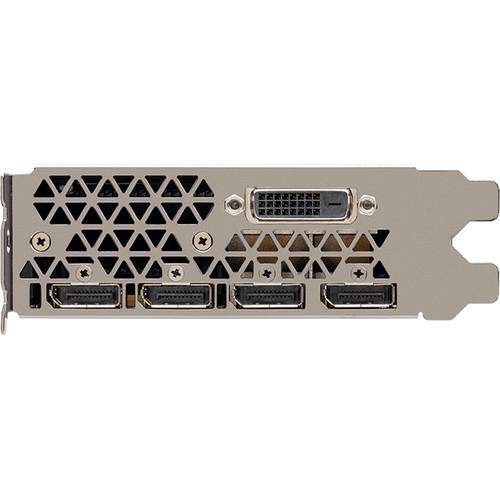

Product description Designed for generating high-resolution graphics and large datasets for VR, graphic design, and advanced calculations, PNY Technology's Quadro P5000 Graphics Card can beef up your workstation to increase performance. Based on NVIDIA's 16nm Pascal architecture, the Quadro P5000 features 2560 CUDA cores coupled to 16GB of VRAM with a 256-bit memory bus providing a maximum of 8.9 TFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high resolution and realistic real-time 2D and 3D graphics rendering or improved computing speed with hardware acceleration. The output panel on this card features four DisplayPort terminals and a dual-link DVI-D port. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. The DVI port and the included DisplayPort to DVI adapters can be used for connecting to legacy hardware while separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, the P5000 uses a blower-style cooler. This cooler uses a radial fan to force air through the card's heatsink and out through the rear of the case. This cooling configuration can be used in crowded workstation environments with multiple GPUs or where space between computer components can be a concern, as hot air is not recirculated back into the case. - CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- GPUDirect Support
- Using GPUDirect, multiple GPUs, third party network adapters, solid-state drives (SSDs), and other devices can directly read and write CUDA host and device memory, eliminating unnecessary memory copies, dramatically lowering CPU overhead, and reducing latency, resulting in significant performance improvements in data transfer times for applications.
- Quadro Sync II
- By connecting up to four compatible Quadro GPUs to a separate Quadro Sync board you can perfectly synchronize the display outputs of all the connected GPUs for critical video wall and extended desktop applications utilizing multiple displays. Quadro Sync also enables NVIDIA Quadro Mosaic technology on those synchronized displays and projectors, providing an easy way to scale the resolution of any application. Quadro Sync II allows for two Quadro Sync cards to be used in the same system, enabling support for up to 32 displays with stereoscopic visuals and support for projector overlap, and WMI (Windows Instrumentation Management).
- Mosaic
- Leverage multiple displays to easily span any application across multiple displays or projectors from a single workstation, without sacrificing performance or power. Combined with NVIDIA's nView desktop management software you also get bezel correction and projector overlap for seamless multi-display exhibition.

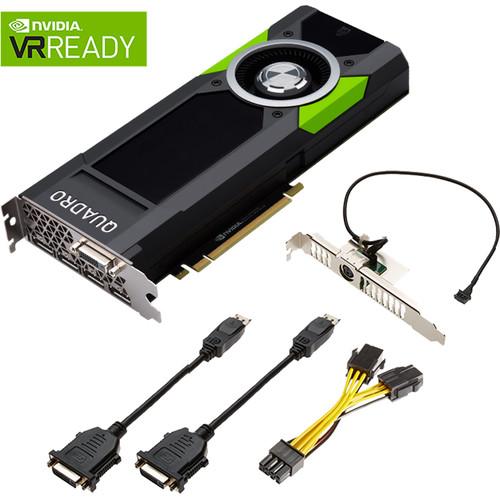

UPC: 751492598383 In the Box PNY Technologies Quadro P5000 Graphics Card Stereo Connector Bracket 2 x DisplayPort to DVI-D SL Adapters Auxiliary Power Cable Limited 3-Year Warranty Brochure PDF 534.6kbayfuuuatdtwaazxq Table of Contents
|
Upload User Manual
Have you got an user manual for the PNY Technologies Quadro P5000 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPNY Technologies P5000 Specs | GPU | NVIDIA Quadro P5000:
CUDA Cores: 2560
Node Size: 16 nm
Architecture: Pascal | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 256-bit
Interface: GDDR5X
Bandwidth: 288 GB/s
Configuration: 16 GB | | Floating Point | Single Precision Performance: 8.9 TFLOPS | | Outputs | 4 x DisplayPort 1.4
1 x DVI-D DL | | Maximum Resolution | DisplayPort: 5120 x 2880
Dual-link DVI: 2560 x 1600
Single-link DVI: 1920 x 1200 | | APIs | Graphics:
Shader Model 5.1
OpenGL: 4.5
DirectX: 12
Vulkan 1.0
Compute:
CUDA
DirectCompute
OpenCL | | Form Factor | Width: Dual-slot
Length: 10.5" / 267 mm
Form Factor: Full-height, full-length | | Power Consumption | 180 W | | Compliance | Not Specified by Manufacturer | | System Requirements | Power Supply: Not Specified by Manufacturer
CPU: Intel Core i5/i7/Xeon or newer, AMD Phenom/Opteron or newer
PCI Slots: 1 x PCI Express 3.0 x16
RAM: 2 GB (8 GB recommended)
Storage: 200 MB of available disk space
OS: Microsoft Windows 7/8/8.1/10, Server 2008/2012/2012 R2 64/2016, Linux
Optical Drive: Blu-ray or DVD-ROM drive for software installation (downloads also available) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 14.2 x 8.5 x 2.9" |
