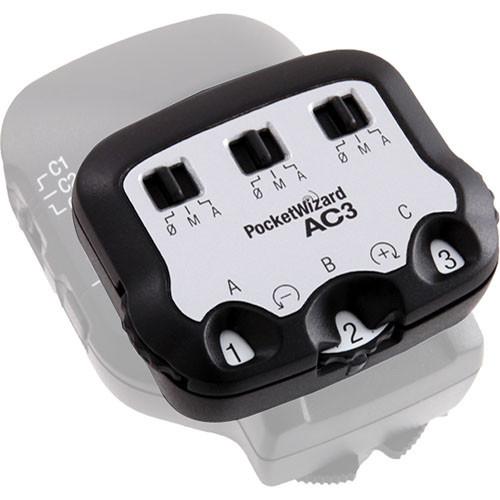

Product description When you add the PocketWizard AC3 ZoneController for Nikon to your on-camera MiniTT1 Transmitter or FlexTT5 Transceiver, you instantly have three zones of flash control. Whether in CLS/i-TTL or Manual mode, you have control over all your flashes from your camera position. Put your flashes wherever you want, without worrying about having to access them during a shoot. Three clearly labeled dials let you increase or decrease power to three zones of flash in 1/3-stop increments with a range of up to six stops. Three switches allow you to change zones between Manual, Auto (PowerTracking / CLS/i-TTL) or OFF. Best of all, with its intuitive interface, the design is simple to use. When matched with the PowerST4 or AC9 AlienBees Adapter, you can now control Elinchrom RX, White Lightning and AlienBees flashes right from the camera's position.
All the PocketWizard radios in your system should be using the same firmware version for proper functionality. The AC3 for Nikon is compatible with any firmware version used on the MiniTT1 and FlexTT5 for Nikon. - ControlTL
- PocketWizard's new firmware platform taps into the full potential of your camera and flash system enabling an entirely new level of remote flash capability through our proven radio communications. ControlTL firmware is configurable and upgradeable for "future-proof" continuous improvement.
- CLS/i-TTL Compatibility
- Designed to work seamlessly with Nikon's CLS/i-TTL systems, the AC3 ZoneController removes operating complexity with its easy-to-use design.
- Manual Power Control
- With three simple dials, you can quickly adjust the power settings for three independent zones in 1/3rd stop increments with a six stop range.
- ZoneControl
- Control up to three zones of light, each with one or more flashes, right from the camera's position. Set them all on manual, auto, or mix the settings between zones. Need to turn a zone off? Just slide a switch and it's off.
- PowerTracking
- In Auto Mode, change ISO, aperture, or FEC and the lights automatically adjust their compensating power setting with PocketWizard PowerTracking. Set your AC3 ZoneController to manual and PowerTracking is turned off for absolute manual control. PowerTracking can be customized via the PocketWizard Utility.
- Studio Flash Compatibility
- When used in conjunction with a PowerST4 Receiver for Elinchrom RX, or a FlexTT5 paired with an AC9 AlienBees Adapter, you have remote power control over Elinchrom RX, AlienBees and White Lightning studio flash. You can also mix these Nikon CLS/i-TTL or any other PocketWizard triggered flash.
- Simple Design

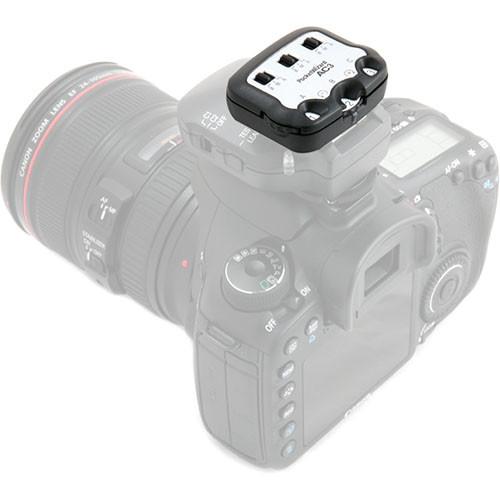

- The AC3 weighs almost nothing and slips into the top-shoe of your on-camera MiniTT1 or FlexTT5. There are three dials and three switches, one for each zone.
- Auto-Manual Switch
- This switch allows you to set each zone to either Manual Power Control, Auto (PowerTracking CLS/i-TTL) or OFF. Set it to OFF and that zone will not fire.
- Easy to Read Dials
- Clearly labeled from +3 to -3 in 1/3 stop increments. In Auto mode, the dials act as flash exposure compensation. In manual mode, +3 on the dial is your flashes maximum power level. Adjust the dial down to control your power in 1/3 stop increments for up to six stops of control.
UPC: 893577001743 In the Box PocketWizard AC3 ZoneController for Nikon Quick Guide 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PocketWizard AC3 ZoneController for Nikon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPocketWizard AC3 Specs | Compatibility | Nikon CLS/i-TTL, Elinchrom RX, AlienBees, White Lightning | | Mounting | Hot shoe | | Adjustments | Auto = +/- 3 stops, 1/3 stop increments
Selector switch: Off, Manual, Auto (PowerTracking, CLS/i-TTL) | | Status Indicator | LED: Green status indicator | | Operating Temperature | Above 5°F (-15°C) and below 120°F (50°C) | | Storage Temperature | Above -22°F (-30°C) and below 185°F (85°C) | | Power | Receives power from MiniTT1 Transmitter or FlexTT5 Pocket Wizard | | Dimensions | 2 x 1.7 x 0.9" (5 x 4.2 x 2.1 cm) | | Weight | 0.82 oz (23.25g) | | Requirements | MiniTT1 Transmitter or FlexTT5 Transceiver with firmware version 2.100 | | | | Package Weight | 0.09 lb | | Box Dimensions (LxWxH) | 4.4 x 4.3 x 1.8" |
