User Manual for PocketWizard AC7 RF Shield for FlexTT5 Click to enlarge the picture
Contents of the user manual for the PocketWizard AC7 RF Shield for FlexTT5
- Product category: Slave Accessories PocketWizard
- Brand: PocketWizard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PocketWizard Slave Accessories
 |
User manual for the PocketWizard AC7 RF Shield for FlexTT5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PocketWizard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PocketWizard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PocketWizard product will considerably shorten its lifespan!
|

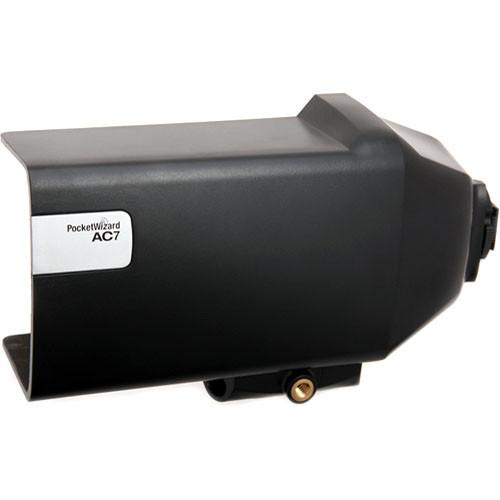

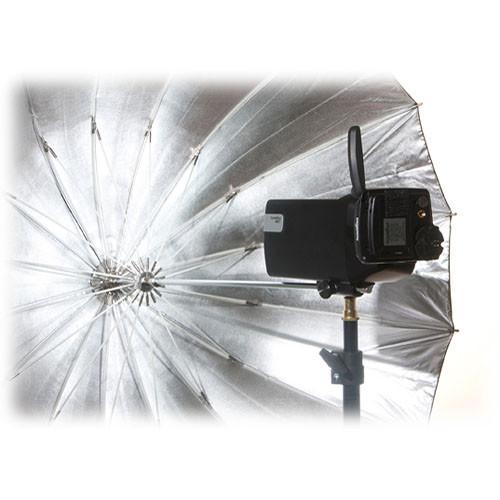

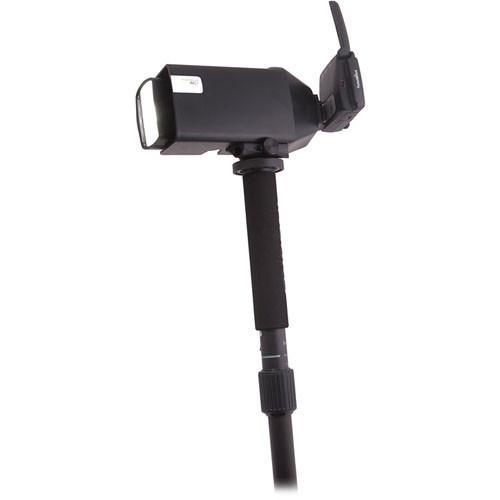

Product description The PocketWizard AC7 RF Shield for FlexTT5 solves the problem of limited performance of the FlexTT5 radio transceiver when operated using the Canon 580EX, 580EX II and 430EX flashes, caused by interference emanating from the flashes. The AC7 is a hard plastic shield with a special RF coating that effectively blocks RF interference (EMI) from clouding the FlexTT5 antenna. To block noise traveling through connections in the hot shoe, an electronic filter has been added to a hot shoe built into the AC7. Combined, the AC7 shield allows the FlexTT5 to receive transmissions at distances 300 to 500% farther than before and well within the range of most off-camera lighting needs. The AC7 also integrates a ¼-20 mounting device and umbrella mount to aid in positioning your flash where you want it. With two ¼-20 mounting points, the AC7 can be mounted both vertically and horizontally on light stands, clamps, brackets or simply handheld. The back of the flash remains open for complete access to the LCD and flash controls and there is access to the remote power port. The flash head can be rotated when using the AC7 shield due to a small cut-away in the side of the shield. When used with an umbrella, the AC7's lay-flat design places the flash more in the center of the umbrella than usual and produces a symmetrical light shape. Most of the popular diffusers, grids, snoots and reflectors can still be used with the shield in place. An optional pistol grip makes hand-held flash a breeze. The grip's integrated umbrella holder places the flash in the best position; next to the umbrella post for incredibly even light dispersion and no unusual shadows. - For FlexTT5 radio transceiver
- Improves performance with Canon 580EX, 580EX II and 430EX flashes
UPC: 893577001668 Table of Contents
|
Upload User Manual
Have you got an user manual for the PocketWizard AC7 RF Shield for FlexTT5 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPocketWizard AC7 Specs | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 8.8 x 4.6 x 2.8" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
