User Manual for PocketWizard FlexTT5 Transceiver Radio Slave for Nikon i-TTL Flash System Click to enlarge the picture
Contents of the user manual for the PocketWizard FlexTT5 Transceiver Radio Slave for
- Product category: Radio & Infrared Transmitters PocketWizard
- Brand: PocketWizard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PocketWizard Radio & Infrared Transmitters
 |
User manual for the PocketWizard FlexTT5 Transceiver Radio Slave for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PocketWizard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PocketWizard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PocketWizard product will considerably shorten its lifespan!
|

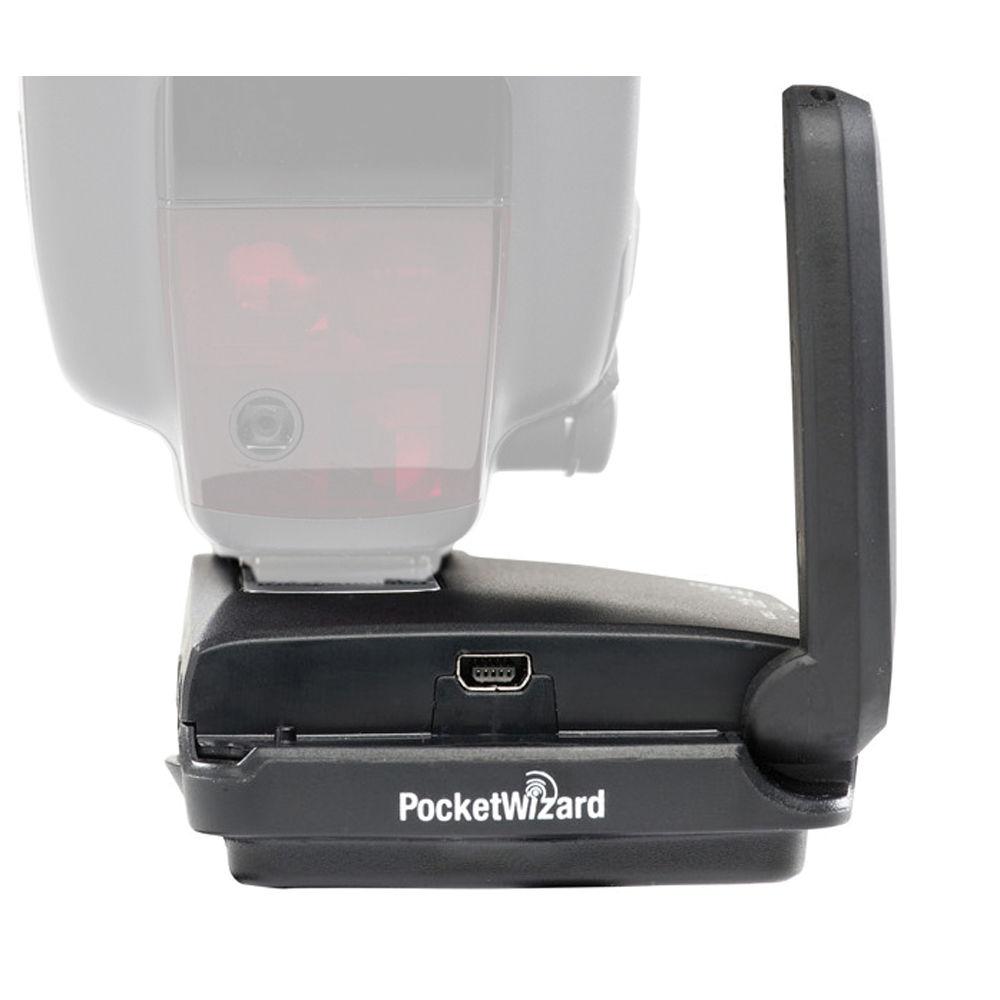

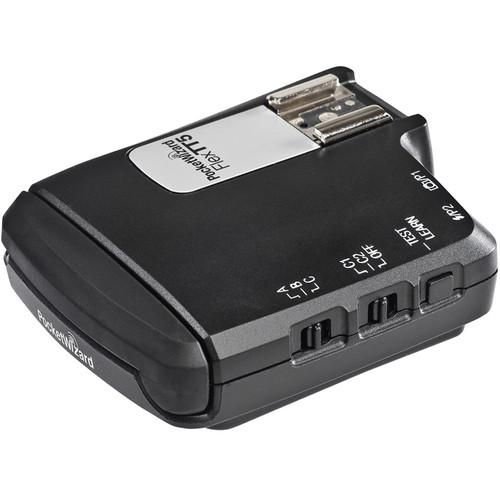

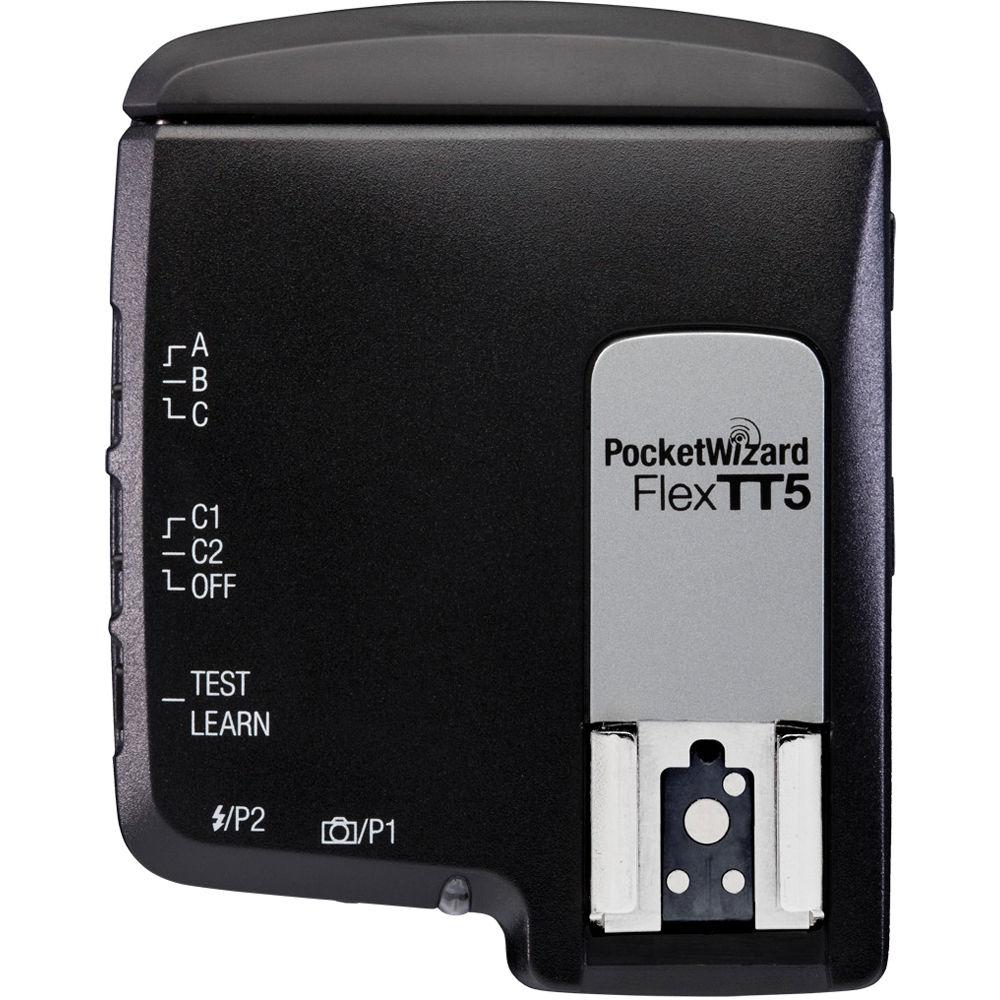

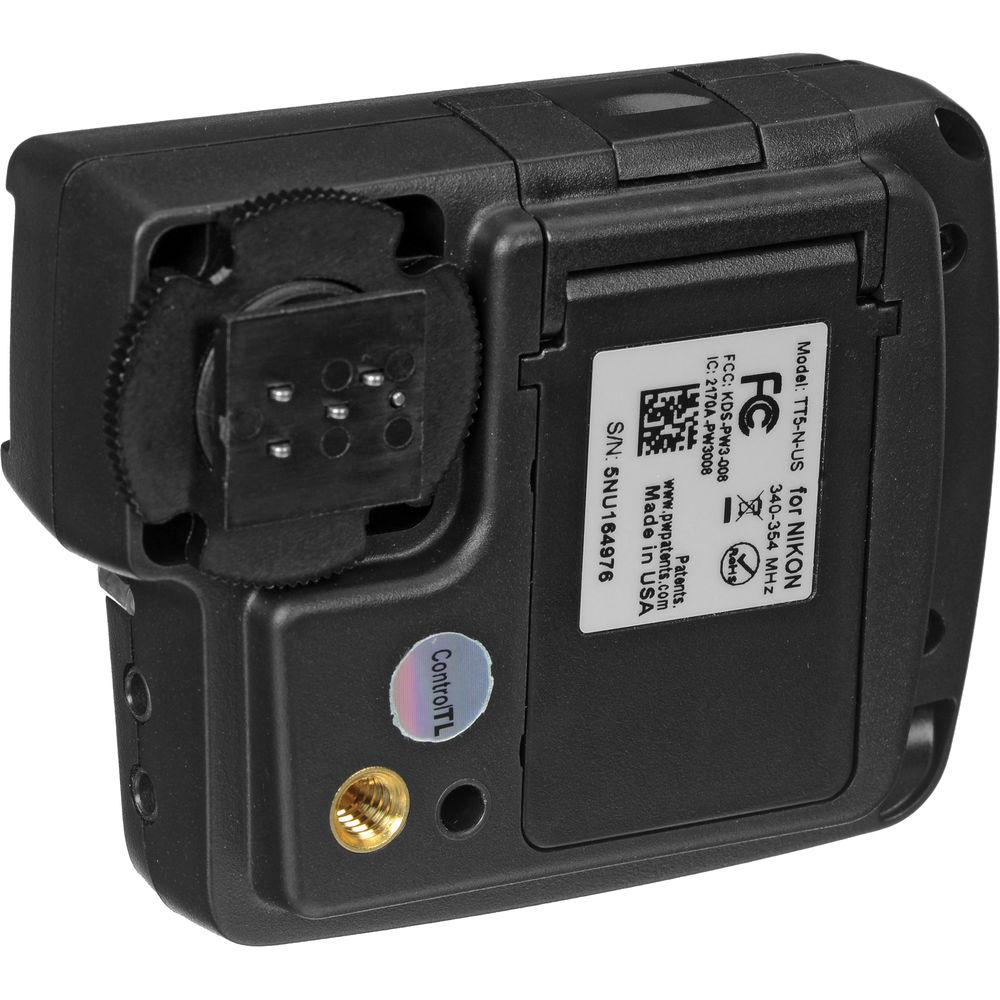

Product description The PocketWizard FlexTT5 Transceiver Radio Slave is part of an ultra-versatile radio slave system, and is dedicated specifically to the Nikon i-TTL flash control system. It simply slides directly into the camera's hot shoe, and there are no special settings to make or modes to call up. Use the camera, on-camera flash, or flash commander controls for flash compensation, zone and ratio control. It supports single or multiple dedicated flash units. The FlexTT5 is the ideal addition to any Nikon i-TTL flash system. Since this system works on digital radio technology, it can support i-TTL operation around corners, out-of-sight, or in bright sunlight. The FlexTT5 is a "Transceiver", meaning it can be used either as a transmitter placed into the camera's hot shoe, in combination with another FlexTT5 unit on the flash end, or as a receiver, with a MiniTT1 transmitter-only unit placed on the camera's hot shoe. - Compatibility
- Cameras
D4, D3x, D3s, D3, D2x, D800, D800e, D700, D600, D300, D300s, D200 D90, D80, D40x, D40, D7000, D5100, D5000, D3200, D3100, D3000
Nikon Speedlights as Remotes:
SB-400, SB-600, SB-700, SB-800, SB-900, SB-910
Nikon On-Camera Master Flashes:
SB-700 (GN ratio mode not supported),SB-800, SB-900, SB-910, SU-800 - 2 Channel Settings + Learn Mode
- Each setting can be programmed to support up to 20 ControlTL channels for TTL photography, or 32 standard channels for manual flash photography. The FlexTT5 Transceiver also has a three-zone selector switch, which integrates with Nikon zones and ratios. The Learn Mode allows the unit to detect the channel used by any other unit in the area.
- Reverse Compatible
- Operates on the same channels as all other PocketWizards and will work with any unit you may already have.
- HyperSync & High-Speed Sync Technology
- Supports flash sync speeds of up to 1/500th sec. High-Speed Sync auto syncs flash system with the camera's shutter speed setting, up to 1/8000th.
- Built-in Hot Shoe
- Features a hot shoe on the top, so that you can still mount a flash unit directly onto the camera. This allows you to combine your remote flash with the on-camera flash, or use the on-camera flash for additional i-TTL control only.
- Camera/Flash Ports
- The FlexTT5 Transceiver has two plug-in ports for use with remote Nikon i-TTL cameras, or other non-TTL flash units. Camera remote triggering also requires use of a camera-specific "motor cord".
- Remote Camera Triggering/Relay Mode
- Can be used to trigger a camera remotely. Requires use of a camera-specific "motor cord". Auto Relay Mode allows you to trigger a remote camera in sync with a remote flash.
- Low-Profile Design
- The FlexTT5 lies flat to stay out of the way and uses a flip-up antenna for additional range when needed.
- Configurable and Upgradeable
- The FlexTT5 features a mini-USB port, which makes it upgradeable and "future-proof" for continuous improvements and compatibility upgrades. The included PocketWizard Utility software allows you to select custom settings through the USB connection, and to set it to use specific channels used by other Pocket Wizard units.
- Important Information
-
- Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
- Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
- USA and Euro models cannot converse with each other
- USA models may interfere with devices in Europe
UPC: 893577001552 In the Box PocketWizard FlexTT5 Transceiver Radio Slave for Nikon i-TTL Flash System USB Mini Cable 2 x AA Battery PocketWizard Utility Software Disk Limited 1-Year Warranty Quick start Guide PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PocketWizard FlexTT5 Transceiver Radio Slave for Nikon i-TTL Flash System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPocketWizard FlexTT5 Specs | | | Channels | 52.0 | | Wireless Range | 800 to 1200' / 240 to 365 m | | Radio Frequency | 340 to 354 MHz | | | | Ports | 1 x 3.5 mm (Camera Shutter)
1 x 3.5 mm (Flash) | | | | Bottom Mount | 1/4"-20 Thread | | Top Mount | Hot Shoe | | | | Dimensions | 3.6 x 2.8 x 1.4" / 9.2 x 7.1 x 3.6 cm (Transmitter) | | Weight | 5.4 oz / 153.1 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.2" |
