User Manual for PocketWizard FlexTT6 Transceiver for Canon Click to enlarge the picture
Contents of the user manual for the PocketWizard FlexTT6 Transceiver for Canon
- Product category: Radio & Infrared Transmitters PocketWizard
- Brand: PocketWizard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PocketWizard Radio & Infrared Transmitters
 |
User manual for the PocketWizard FlexTT6 Transceiver for Canon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PocketWizard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PocketWizard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PocketWizard product will considerably shorten its lifespan!
|
Product description PocketWizard Updates the FlexTT6 for Latest Canon Cameras Read More - PocketWizard FlexTT6 Transceiver for Canon

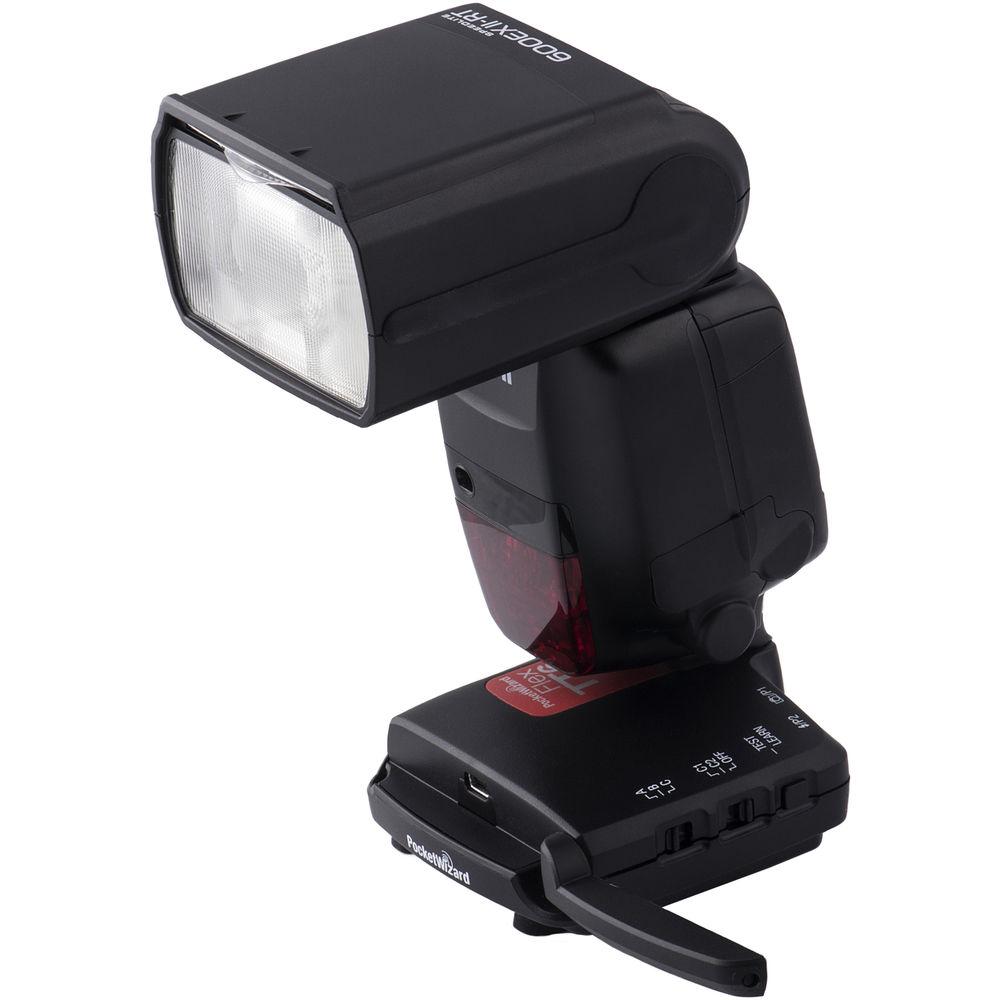

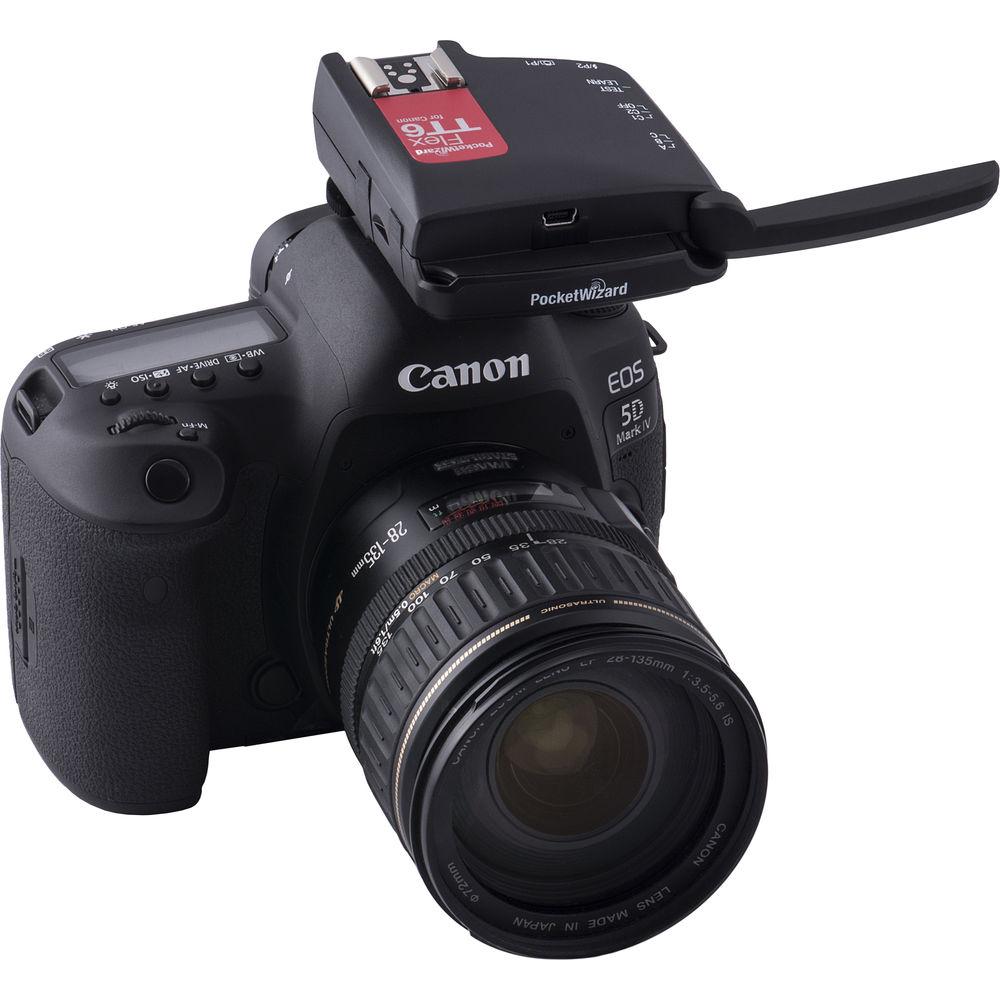

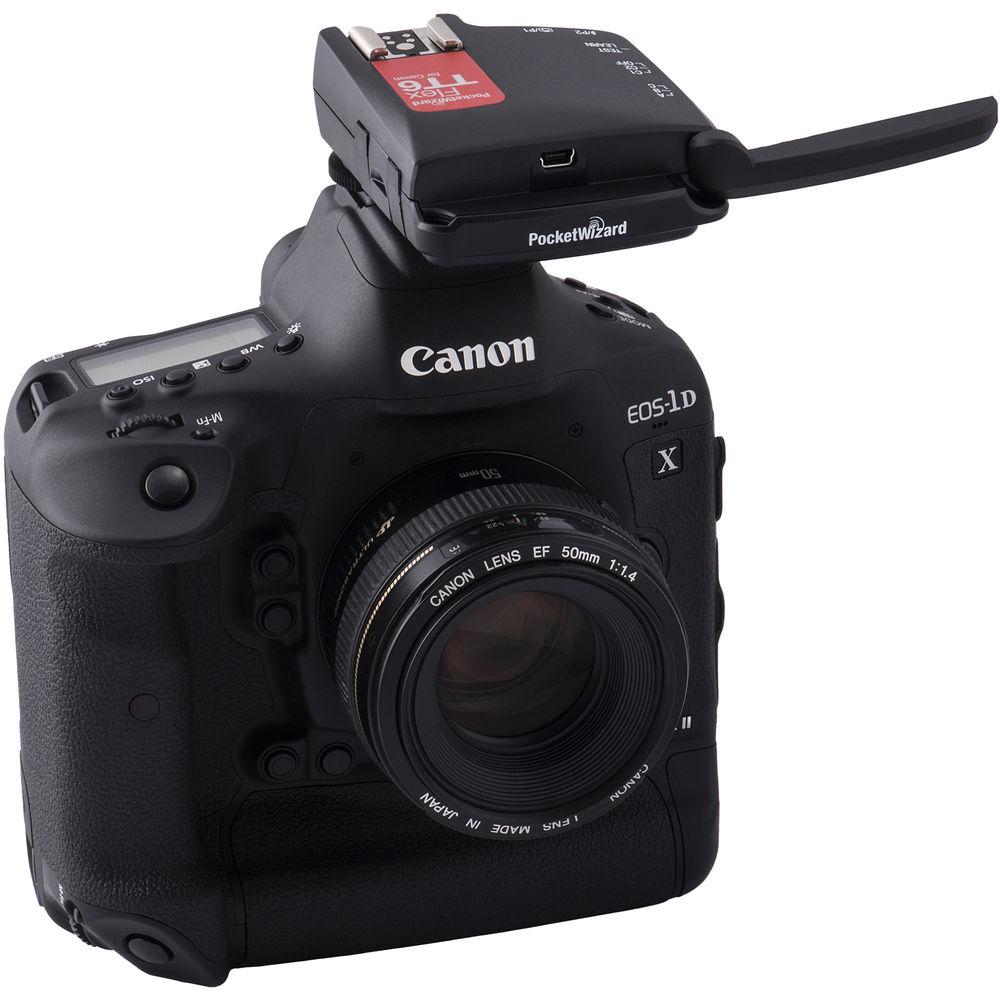

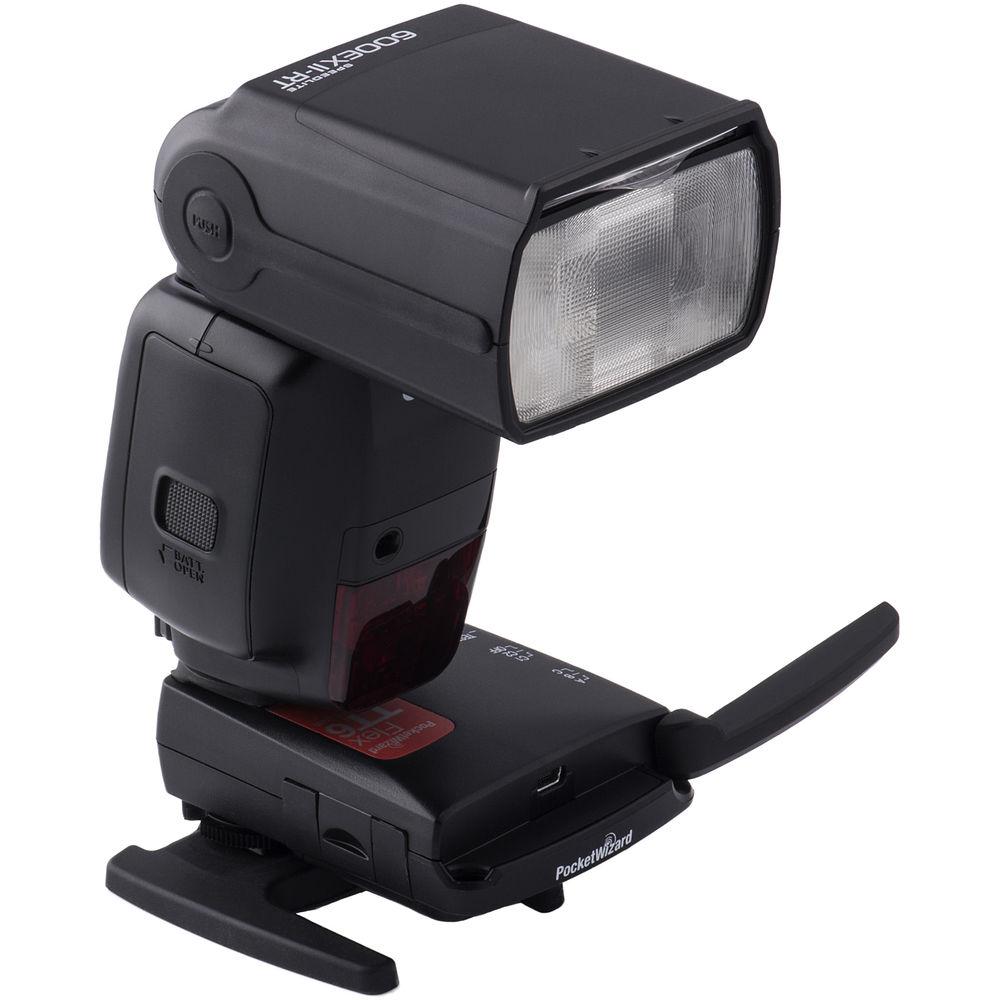

Take complete control over your wireless radio flash system with the FlexTT6 Transceiver from PocketWizard. Compatible with nearly every PocketWizard radio and with support for Canon's latest cameras and flashes, this E-TTL / E-TTL II compatible transceiver will open the door to advanced off-camera lighting techniques. As a combination transmitter and receiver, the FlexTT6 can function as both an on-camera master or as a remote slave, and it features a hot shoe on the top for using a flash both on-camera and off. Also, it enjoys PocketWizard's ControlTL technology for both wireless TTL and Manual Power Control settings when working.
The FlexTT6 utilizes a standard 340-354 MHz frequency with access to 52 channels that make it less susceptible to interference. It also provides a maximum range of 800' when using TTL or 1200' when operating as a simple trigger. Users can work without line-of-sight and they will have access to features such as HyperSync and high-speed sync for shooting at shutter speeds up to 1/8000 second. Along with this, the Canon model has optimized performance for rear curtain sync. Beyond flashes, shooters can use the FlexTT6 to trigger cameras as well as larger studio strobes via the two 3.5mm sync ports. Additionally, it will run on two AA batteries and features a mini-USB port for future firmware updates. - ControlTL works with Canon's E-TTL / E-TTL II system to provide full TTL support with the latest cameras and flashes. It also provides the option for Manual Power Control for up to three zones as well as PowerTracking for automatic changes. Another benefit is an optimized High Speed Sync mode for shooting at shutter speeds up to 1/8000 second. Additionally, the Canon model has an optimized rear curtain sync method.
- HyperSync technology uses advanced processing to enable faster sync speeds without requiring TTL and dedicated high-speed sync technologies.
- A Pre-Flash Boost setting will help compensate for light loss over distance or through diffusion to help the camera accurately meter.
- The FlexTT6 is compatible with all PocketWizard radios that operate with a 340-354 MHz frequency.
- Users will enjoy a range of up to 800' when using TTL or up to 1200' when used as a basic trigger. This is assisted by a 2.7" rubberized antenna that can be tilted 180° for optimal positioning.
- A basic trigger mode is available for use with other brand cameras and for simple manual operation.
- Auto-sensing technology allows it to automatically switch between operation as a transmitter or receiver.
- An Auto-Relay mode is available for triggering a remote camera as well as remote flashes.
- A mini-USB port is available for using the PocketWizard Utility to install firmware updates.
- Shoot at speeds within 1 fps of the camera's max fps when using TTL or at the camera's max fps when in basic triggering mode.
- Compatible Cameras
- Canon: 5D Mark IV, 5D Mark III, 5D Mark II, 5D, 1D X Mark II, 1D X, 1D Mark III, 5DS, 5DS R, 6D, 7D Mark II, 80D, 77D, 70D, 60D, 7D, T7i, T6, T5, SL1, XSi
- Compatible Flashes
- Canon: 600EX II-RT, 600EX-RT, 430EX III-RT, 430EX II, 430EX, 580EX II, 580EX
UPC: 850386005638 In the Box PocketWizard FlexTT6 Transceiver for Canon USB Cable 2 x AA Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PocketWizard FlexTT6 Transceiver for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPocketWizard FlexTT6 Specs | | | Channels | 52 | | Groups | 3 | | Wireless Range | 800 to 1200' / 240 to 365 m | | Radio Frequency | 340 to 354 MHz | | | | Control Modes | E-TTL/E-TTL II, Manual, TTL | | | | Ports | 1 x 3.5 mm (Camera Shutter)
1 x 3.5 mm (Flash)
1 x Mini-USB (Power) | | | | Bottom Mount | 1/4"-20 Thread | | Top Mount | Hot Shoe | | | | Operating Temperature | 5 to 120°F / -15 to 50°C | | Storage Temperature | -22 to 185°F / -30 to 85°C | | | | Dimensions | 3.6 x 2.9 x 1.4" / 9.2 x 7.3 x 3.6 cm (Transmitter) | | Weight | 5.4 oz / 153.1 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.1 x 5.1 x 2.2" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
