Product description

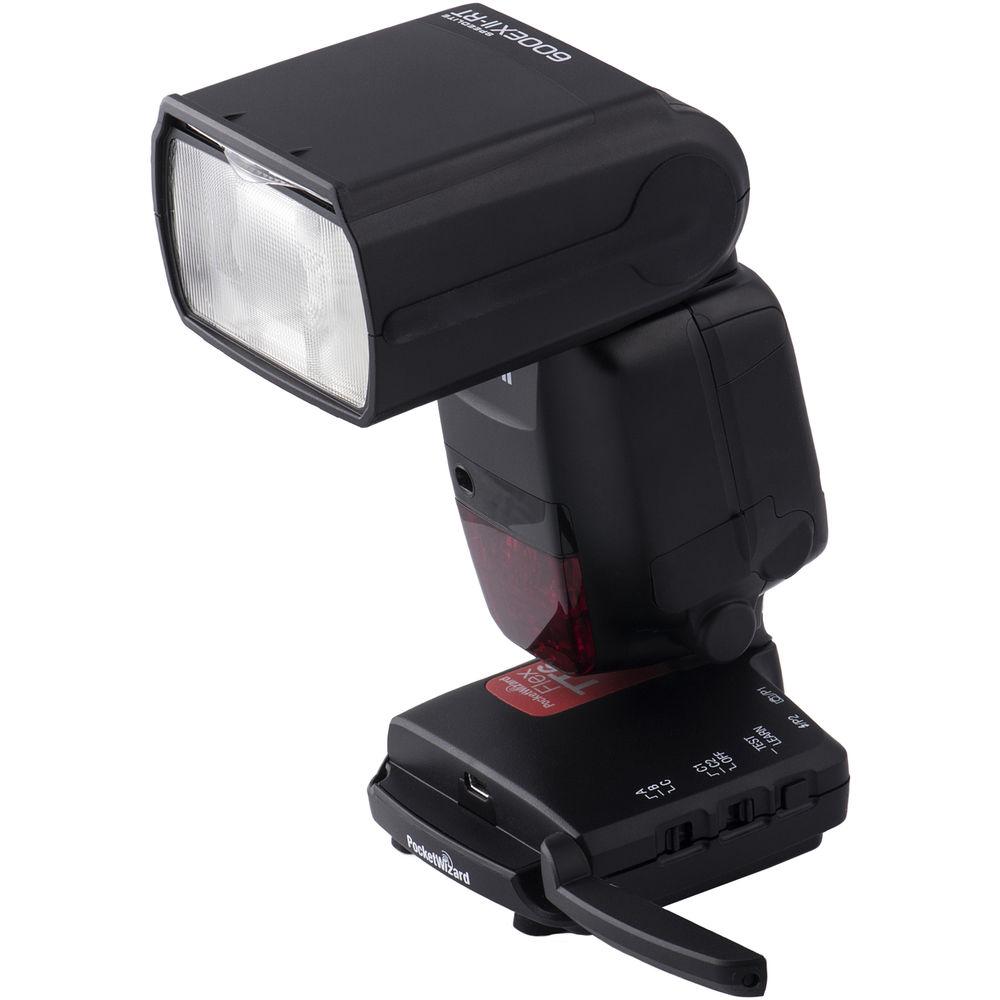

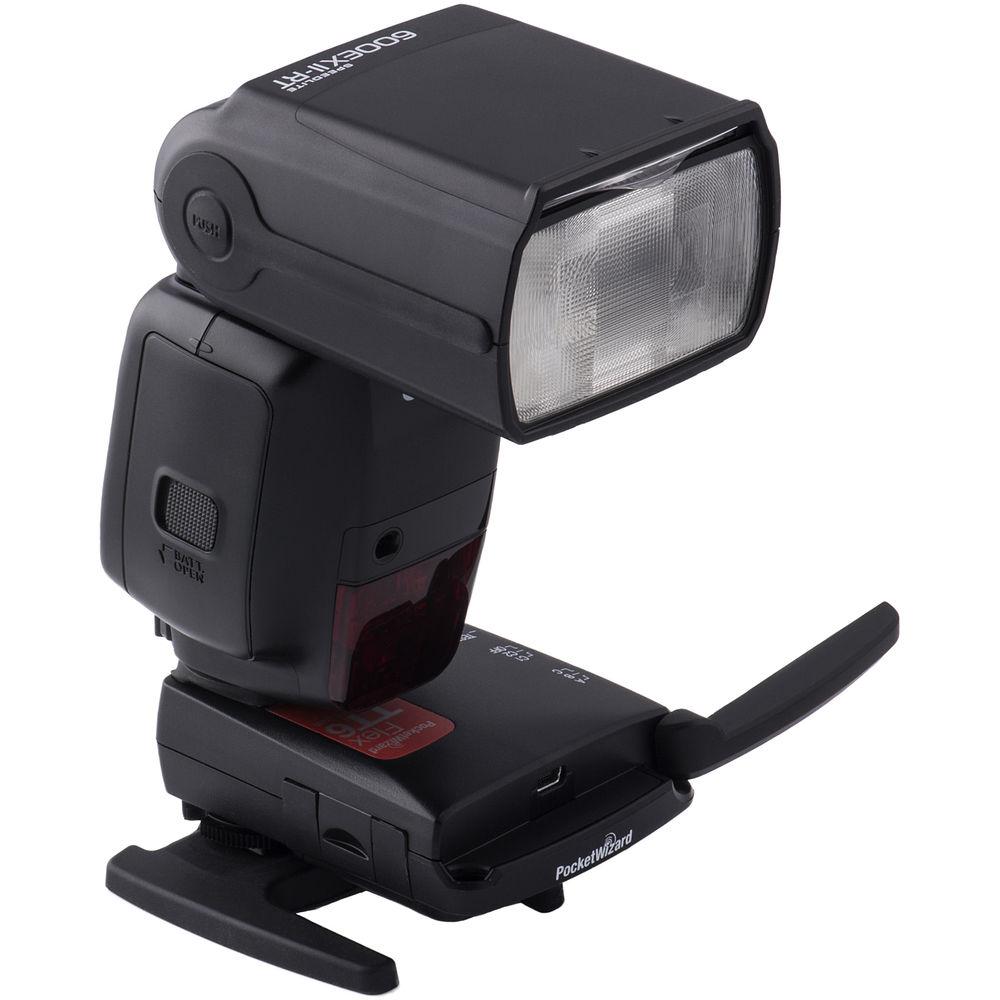

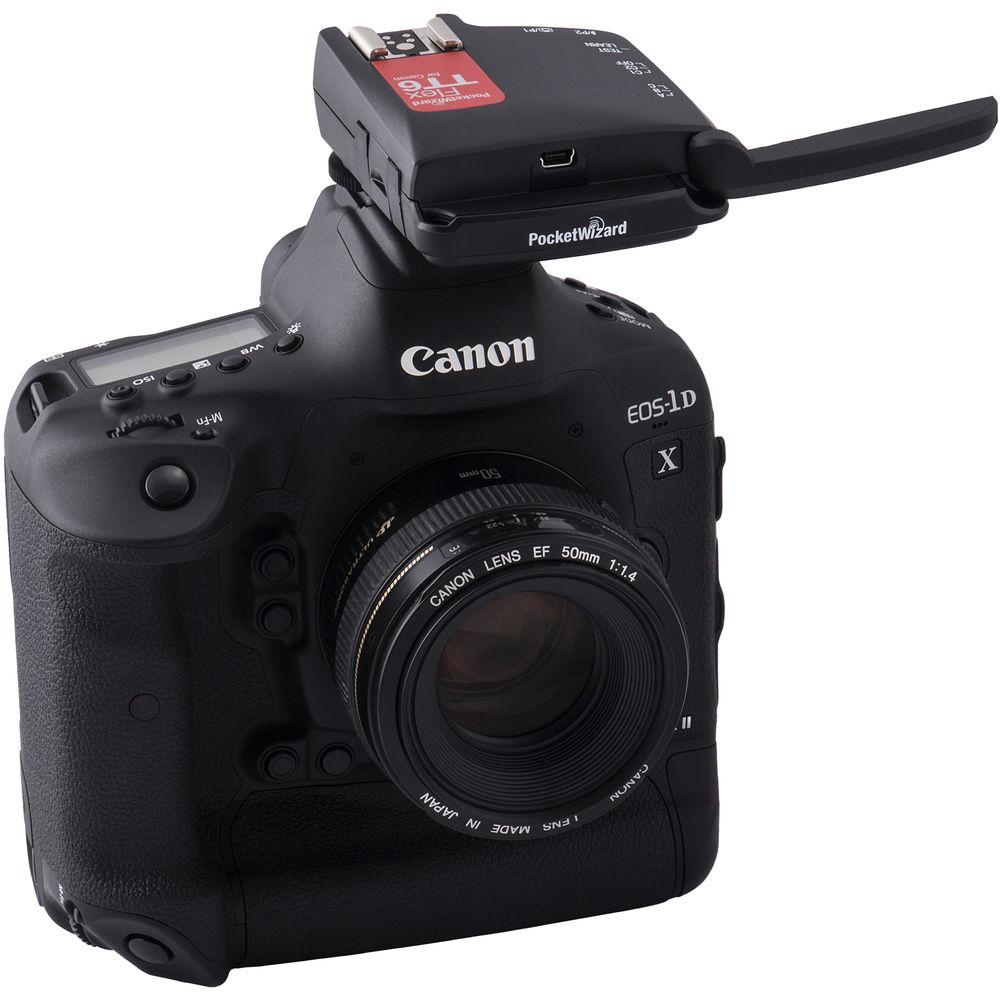

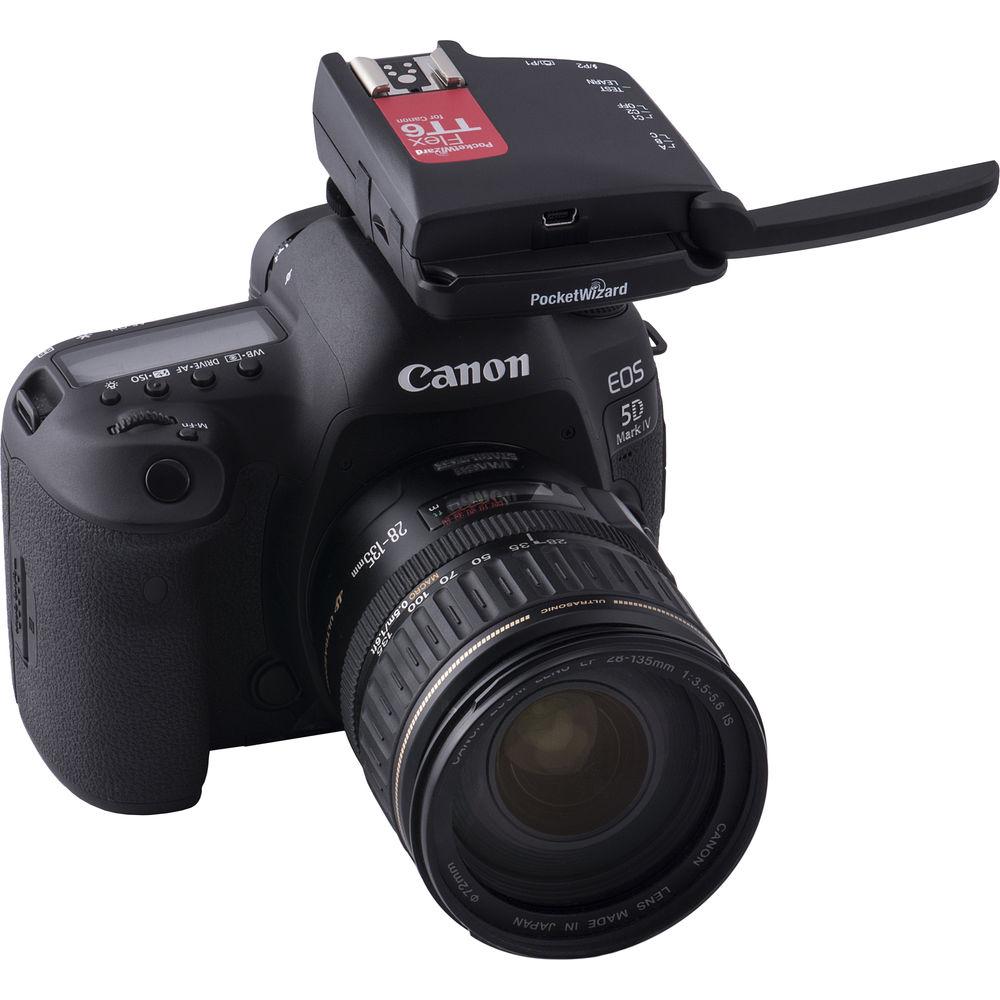

• FlexTT6 Transceiver for Canon Take complete control over your wireless radio flash system with the FlexTT6 Transceiver from PocketWizard. Compatible with nearly every PocketWizard radio and with support for Canon's latest cameras and flashes, this E-TTL / E-TTL II compatible transceiver will open the door to advanced off-camera lighting techniques. As a combination transmitter and receiver, the FlexTT6 can function as both an on-camera master or as a remote slave, and it features a hot shoe on the top for using a flash both on-camera and off. Also, it enjoys PocketWizard's ControlTL technology for both wireless TTL and Manual Power Control settings when working.

  The FlexTT6 utilizes a standard 340-354 MHz frequency with access to 52 channels that make it less susceptible to interference. It also provides a maximum range of 800' when using TTL or 1200' when operating as a simple trigger. Users can work without line-of-sight and they will have access to features such as HyperSync and high-speed sync for shooting at shutter speeds up to 1/8000 second. Along with this, the Canon model has optimized performance for rear curtain sync. Beyond flashes, shooters can use the FlexTT6 to trigger cameras as well as larger studio strobes via the two 3.5mm sync ports. Additionally, it will run on two AA batteries and features a mini-USB port for future firmware updates.
  • ControlTL works with Canon's E-TTL / E-TTL II system to provide full TTL support with the latest cameras and flashes. It also provides the option for Manual Power Control for up to three zones as well as PowerTracking for automatic changes. Another benefit is an optimized High Speed Sync mode for shooting at shutter speeds up to 1/8000 second. Additionally, the Canon model has an optimized rear curtain sync method.
  • HyperSync technology uses advanced processing to enable faster sync speeds without requiring TTL and dedicated high-speed sync technologies.
  • A Pre-Flash Boost setting will help compensate for light loss over distance or through diffusion to help the camera accurately meter.
  • The FlexTT6 is compatible with all PocketWizard radios that operate with a 340-354 MHz frequency.
  • Users will enjoy a range of up to 800' when using TTL or up to 1200' when used as a basic trigger. This is assisted by a 2.7" rubberized antenna that can be tilted 180° for optimal positioning.
  • A basic trigger mode is available for use with other brand cameras and for simple manual operation.
  • Auto-sensing technology allows it to automatically switch between operation as a transmitter or receiver.
  • An Auto-Relay mode is available for triggering a remote camera as well as remote flashes.
  • A mini-USB port is available for using the PocketWizard Utility to install firmware updates.
  • Shoot at speeds within 1 fps of the camera's max fps when using TTL or at the camera's max fps when in basic triggering mode.
  Compatible Cameras
  • Canon: 5D Mark IV, 5D Mark III, 5D Mark II, 5D, 1D X Mark II, 1D X, 1D Mark III, 5DS, 5DS R, 6D, 7D Mark II, 80D, 77D, 70D, 60D, 7D, T7i, T6, T5, SL1, XSi
  Compatible Flashes
  • Canon: 600EX II-RT, 600EX-RT, 430EX III-RT, 430EX II, 430EX, 580EX II, 580EX
  UPC: 850386005638

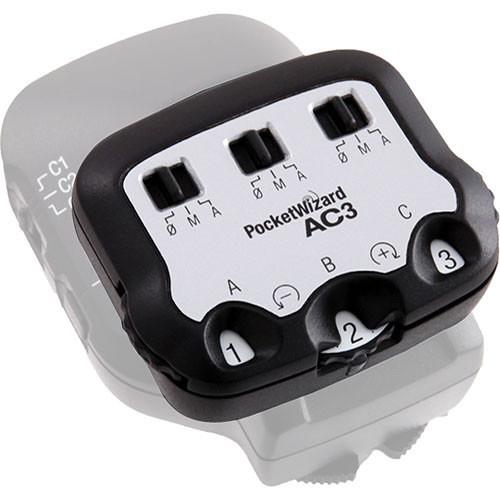

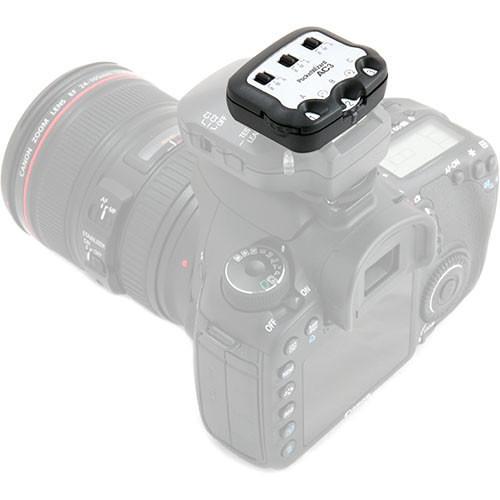

• AC3 ZoneController for Canon DSLR When you add the Pocket Wizard AC3 ZoneController for Canon to your on-camera MiniTT1 Transmitter or FlexTT5 Transceiver, you instantly have three zones of flash control. Whether in E-TTL II or Manual mode, you have control over all your flashes from your camera position. Put your flashes wherever you want, without worrying about having to access them during a shoot. Three clearly labeled dials let you increase or decrease power to three zones of flash in 1/3-stop increments--with a range of up to six stops. Three switches allow you to change zones between Manual, Auto (PowerTracking/E-TTL II) or OFF. Best of all, the design is simple to use, with an intuitive interface. When matched with the PowerST4 or AC9 AlienBees Adapter, you can now control ElinchromRX1, White Lightning2 and AlienBees2 flashes right from the camera's position. The AC3 requires firmware version 5.10 (or later) be installed on paired MiniTT1's and FlexTT5's.
  • Three independent zones of flash control
  • 6 stops of flash control in 1/3rd stop increments
  • Works in PowerTracking/E-TTL II or Manual mode
  • Turn zones on and off remotely
  • Put your flashes where you want, without worrying about accessing them during a shoot
  UPC: 893577001699

• USB Cable

• 2 x AA Batteries

• Limited 1-Year Warranty

• Quick Guide

• 1-Year Limited Warranty

Also Includes

• Padded Carrying Bag
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FlexTT6 Transceiver for Canon

  Channels	52
  Groups	3
  Wireless Range	800 to 1200' / 240 to 365 m
  Radio Frequency	340 to 354 MHz

  Control Modes	E-TTL/E-TTL II, Manual, TTL

  Ports	1 x 3.5 mm (Camera Shutter) 1 x 3.5 mm (Flash) 1 x Mini-USB (Power)

  Bottom Mount	1/4"-20 Thread
  Top Mount	Hot Shoe

  Battery Type	2 x AA

  Operating Temperature	5 to 120°F / -15 to 50°C
  Storage Temperature	-22 to 185°F / -30 to 85°C

  Dimensions	3.6 x 2.9 x 1.4" / 9.2 x 7.3 x 3.6 cm (Transmitter)
  Weight	5.4 oz / 153.1 g

  Box Dimensions (LxWxH)	5.1 x 5.1 x 2.2"

• AC3 ZoneController for Canon DSLR

  Mounting	Hot shoe
  Status Indicator	LED: Green status indicator
  Operating Temperature	Above 5°F (-15°C) and below 120°F (50°C)
  Storage Temperature	Above 22°F (-30°C) and below 185°F (85°C)
  Power	Receives power from MiniTT1 Transmitter or FlexTT5 Pocket Wizard
  Dimensions	2 x 1.7 x 0.9" (5 x 4.2 x 2.1 cm)
  Weight	0.82 oz (23.25 g)
  Requirements	MiniTT1 Transmitter or FlexTT5 Transceiver with firmware version 5.10 (or later) needed as a host

  Box Dimensions (LxWxH)	4.4 x 4.3 x 1.5"
