User manual

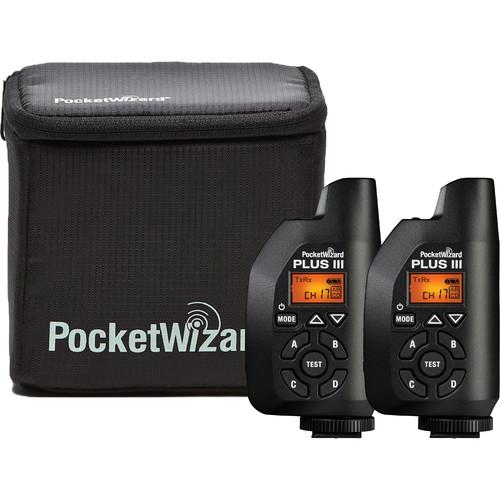

PocketWizard Plus III Bonus Bundle

User Manual for PocketWizard Plus III Bonus Bundle

• Product category: Radio & Infrared Transmitters Others
• Brand: Others
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Others Radio & Infrared Transmitters

Product description

• Plus III Transceiver (Black) The black PocketWizard Plus III Transceiver is a highly versatile and robust radio trigger that is compatible with all prior FCC-version PocketWizards, as well as most flash and camera systems. Featuring 32 channels to choose from, this transceiver is simple to use in even the busiest of situations. Wireless remote control is possible through the use of Quad-Zone Triggering, which allows you to manage up to 4 zones of remote PocketWizard-enabled cameras or flashes from one position. Without having to leave camera position, you can activate and deactivate groups of flashes quickly and easily. This transceiver also employ's PocketWizard's Auto-Sensing technology, which instantly allows your device to fluctuate from transmitter to receiver. This technology works directly in line with the Auto-Relay function for a completely remote workflow.

  The efficiency of this transceiver is further extended by allowing up to 1640' transmissions in normal mode, and nearly double with Long Range mode. High speed, continuous shooting is made possible with the High Speed Receive mode, permitting up to 14.5 fps firing at up to 1/250 sec. for focal plane shutter and 1/500 sec. for leaf shutters.

  The design of the Plus III incorporates a side-view LCD screen and touch pad interface for switching between modes, zones, and settings. It connects to any camera featuring a hot shoe and is also compatible with a variety of cables for linking to lighting and other remote systems.
  32 Channels
  • Featuring 16 standard and 16 Quad-Zone Triggering channels, finding an open channel to use is simplified and efficient. Switching between channels is accomplished with one-touch operation.
  Quad-Zone Triggering
  • You can program up to 4 working zones for remote control of flashes. This allows you the ability to wirelessly activate and deactivate your flashes, enabling you to remain in camera position without having to manually adjust lighting setups. This is ideal for using multiple lighting setups and managing remote cameras as needed.
  Auto-Sensing Transceiver
  • When set in TxRx mode, the transceiver is able to instantly switch between transmitter and receiver modes for the greatest amount of flexibility. You can also manually override this and choose to have it act as a dedicated transmitter or receiver.
  Auto-Relay Mode
  • When using 3 PocketWizard radios; you can remotely trigger a camera to fire and trigger a flash simultaneously. Utilizing the Auto-Sensing technology, the transceiver mounted to the camera can instantly receive a signal from an auxiliary transceiver, and then instantly convey the transmission to a remote flash. This provides a simplistic and highly efficient remote workflow.
  Long Range Capability
  • When used in ideal conditions, this transceiver is capable of producing and receiving a signal up to 1640' / 500m away. When conditions are not ideal for a long range transmission, Long Range mode can be used to nearly double the effective range of the signal. There is also Repeater mode, which will repeat the signal several times, increasing the possibility of a successful transmission at long range.
  High Speed Capability
  • When in High Speed Receive mode, this transceiver is capable of triggering cameras or flashes up to 14.5 fps. Normal performance also permits triggering up to 12 fps. It is also capable of sync speeds up to 1/250 sec. for focal plane shutters and 1/500 sec. for leaf shutters.
  Simplified User Interface and Design
  • Clearly displayed on a 1" / 2.5cm backlit LCD, all of the channels, zones, and modes can be configured using a soft-touch keypad. The design of the transceiver also incorporates a side-view LCD for easier viewing and an internal antenna for a less obtrusive appearance.
  Wide Compatibility and Connectability
  • The transceiver is easily attached to most cameras through the hot shoe, with no extraneous cables required. For attaching to remotes and lights, there is an all-in-one sync port for wide compatibility. Cables are included for attaching from miniphone to miniphone, miniphone to phono, and miniphone to PC sync for cameras without a hot shoe. It is also compatible with all PocketWizard transmitters and receivers (of the same frequency) as well as PocketWizard-enabled lighting and metering equipment. The Plus III is powered by 2 x AA batteries and can be kept up to date with firmware updates utilizing the USB port.
  Important Information
  • Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
  • Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
  • USA and Euro models cannot converse with each other
  • USA models may interfere with devices in Europe
  UPC: 893577001811
• G-Wiz Squared Gear Case (Black) The black G-Wiz Squared Gear Case from Pocket Wizard is a padded, rip stop nylon case that holds up to four Pocket Wizard Plus III Transceivers. The case opens from the top via a three-sided zipper giving you full view of the contents. The G-Wiz Squared features a zippered interior pocket for connector cables and other small accessories. Padded touch fastened dividers allow you to configure the case to suit your gear needs and help guard against incidental contact and impact. Snap Closure attachment straps allow you to mate the case with another bag. The case is backed by a one-year warranty from Pocket Wizard.
  • Holds up to four Plus III Transceivers
  • Padded, movable touch fastened dividers prevent your equipment from rubbing against each other and guard against impact and incidental contact
  • Inside zippered accessory pocket
  • Three-sided top zipper closure
  • Snap Closure attachment straps for securing to another bag or belt
  UPC: 893577001835

• Quick Guide

• Stereo 3.5mm Miniphone to Miniphone Cable

• Mono 3.5mm Miniphone to Locking PC Cable

• Stereo 3.5mm Miniphone to 1/4" Adapter

• Lanyard

• Operation Reference Sticker

• Limited 3-Year Warranty

• One-Year Warranty

Also Includes

• Cable Kit
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Plus III Transceiver (Black)

  Channels	16 (Normal) 16 (Selective)
  Groups	4 (A, B, C, D)
  Wireless Range	1640' / 500 m
  Radio Frequency	340 to 354 MHz

  Flash Interval	14.5 Flashes per Sec
  Sync Speed	1/250 Sec (Normal) 1/500 Sec (Leaf)

  Ports	1 x 3.5 mm (Flash)

  Bottom Mount	Hot Foot

  Battery Type	2 x AA
  Sync Voltage	300 V

  Operating Temperature	5 to 120°F / -15 to 49°C
  Storage Temperature	-22 to 185°F / -30 to 85°C

  Dimensions	5.25 x 2 x 1" / 13.3 x 5.1 x 3.2 cm (Transmitter)
  Weight	4 oz / 120 g

  Box Dimensions (LxWxH)	5.6 x 4.8 x 2.3"

• G-Wiz Squared Gear Case (Black)

  Closure Type	Snap Fastener, Zipper
  Material of Construction	Ripstop Nylon
  Exterior Dimensions (W x H x D)	2.8 x 4.7 x 4.7" / 7.1 x 11.9 x 11.9 cm

  Box Dimensions (LxWxH)	6.7 x 5.1 x 3.7"
