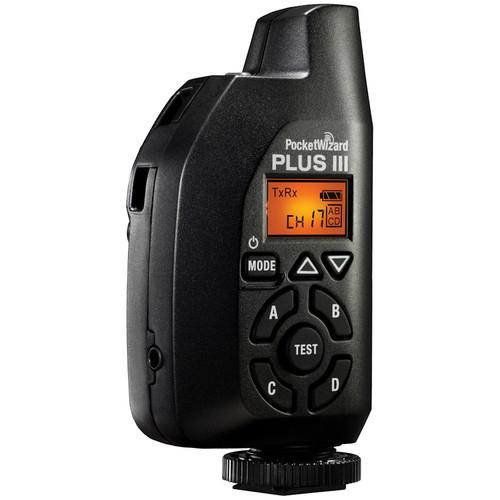

Product description

32 Channels
• Featuring 16 standard and 16 Quad-Zone Triggering channels, finding an open channel to use is simplified and efficient. Switching between channels is accomplished with one-touch operation.

Quad-Zone Triggering
• You can program up to 4 working zones for remote control of flashes. This allows you the ability to wirelessly activate and deactivate your flashes, enabling you to remain in camera position without having to manually adjust lighting setups. This is ideal for using multiple lighting setups and managing remote cameras as needed.

Auto-Sensing Transceiver
• When set in TxRx mode, the transceiver is able to instantly switch between transmitter and receiver modes for the greatest amount of flexibility. You can also manually override this and choose to have it act as a dedicated transmitter or receiver.

Auto-Relay Mode
• When using 3 PocketWizard radios; you can remotely trigger a camera to fire and trigger a flash simultaneously. Utilizing the Auto-Sensing technology, the transceiver mounted to the camera can instantly receive a signal from an auxiliary transceiver, and then instantly convey the transmission to a remote flash. This provides a simplistic and highly efficient remote workflow.

Long Range Capability
• When used in ideal conditions, this transceiver is capable of producing and receiving a signal up to 1640' / 500m away. When conditions are not ideal for a long range transmission, Long Range mode can be used to nearly double the effective range of the signal. There is also Repeater mode, which will repeat the signal several times, increasing the possibility of a successful transmission at long range.

High Speed Capability
• When in High Speed Receive mode, this transceiver is capable of triggering cameras or flashes up to 14.5 fps. Normal performance also permits triggering up to 12 fps. It is also capable of sync speeds up to 1/250 sec. for focal plane shutters and 1/500 sec. for leaf shutters.

Simplified User Interface and Design

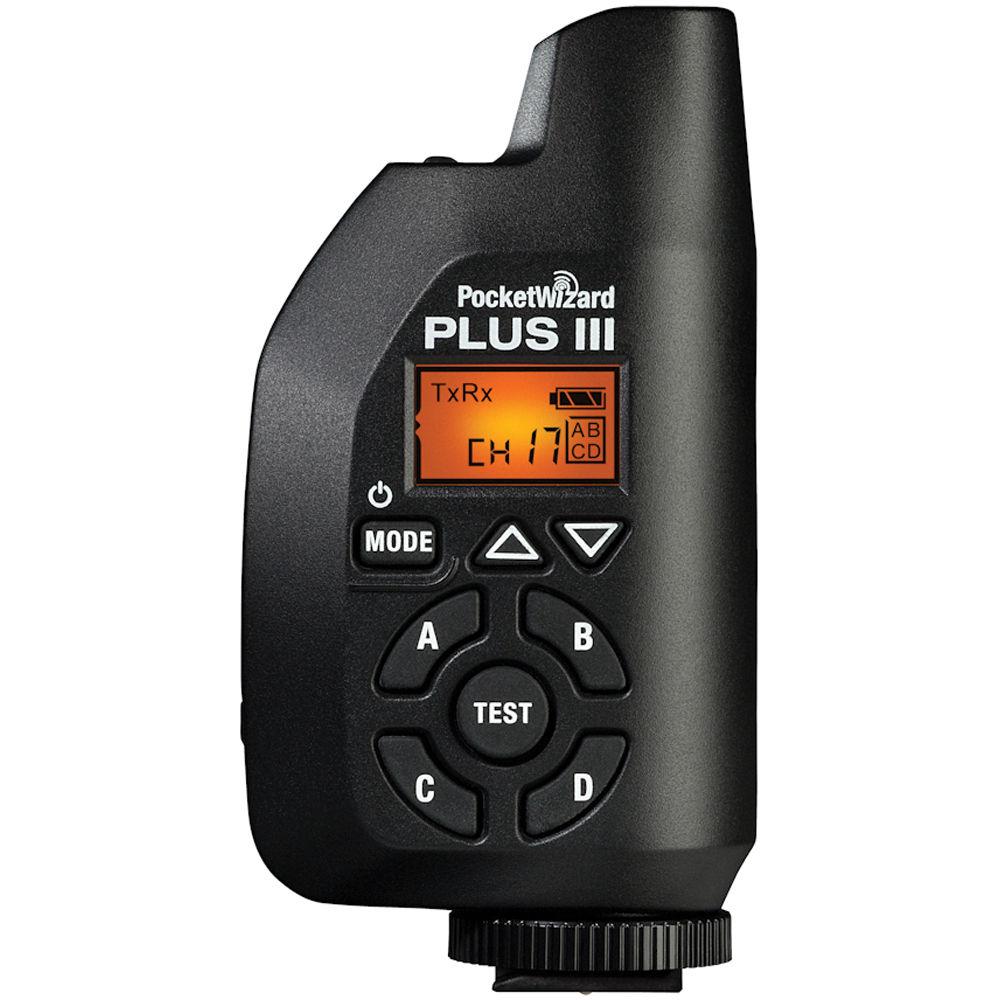

• Clearly displayed on a 1" / 2.5cm backlit LCD, all of the channels, zones, and modes can be configured using a soft-touch keypad. The design of the transceiver also incorporates a side-view LCD for easier viewing and an internal antenna for a less obtrusive appearance.

Wide Compatibility and Connectability

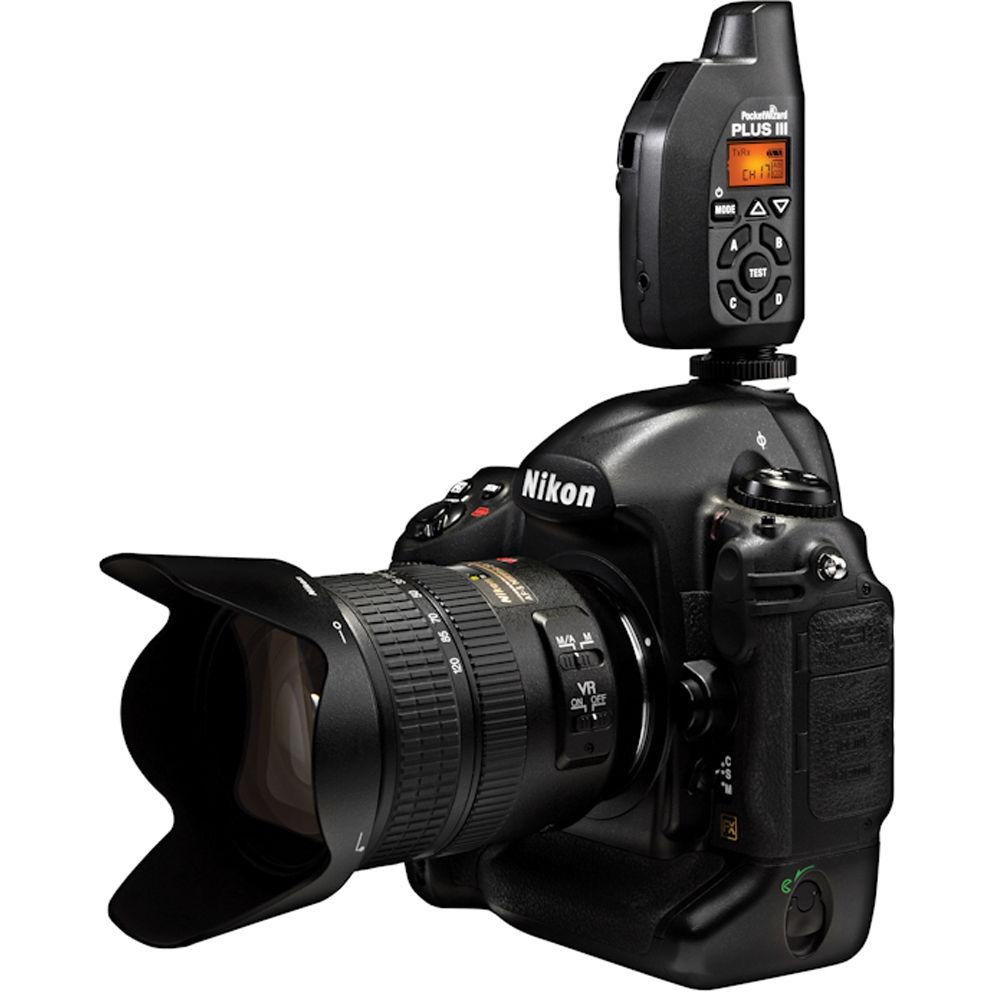

• The transceiver is easily attached to most cameras through the hot shoe, with no extraneous cables required. For attaching to remotes and lights, there is an all-in-one sync port for wide compatibility. Cables are included for attaching from miniphone to miniphone, miniphone to phono, and miniphone to PC sync for cameras without a hot shoe. It is also compatible with all PocketWizard transmitters and receivers (of the same frequency) as well as PocketWizard-enabled lighting and metering equipment. The Plus III is powered by 2 x AA batteries and can be kept up to date with firmware updates utilizing the USB port.

Important Information
• Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
• Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
• USA and Euro models cannot converse with each other
• USA models may interfere with devices in Europe
