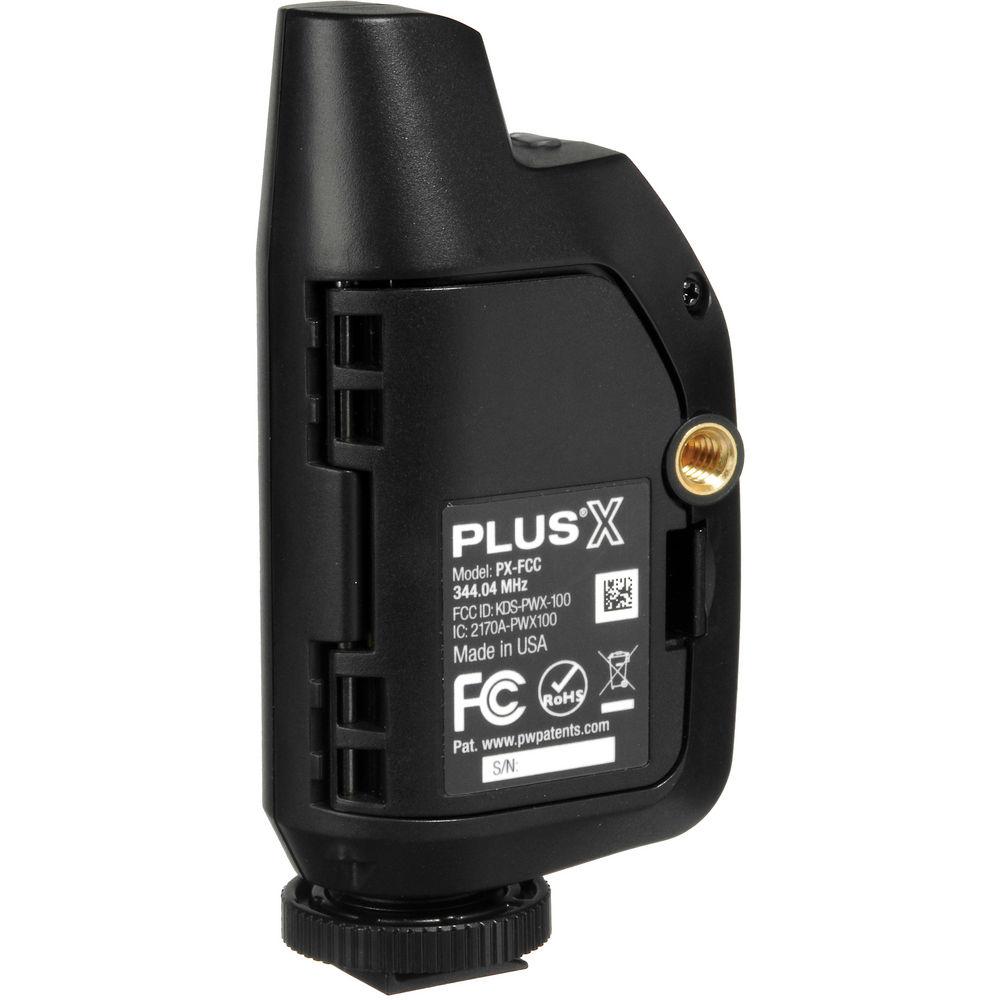

User Manual for PocketWizard PlusX Transceiver Click to enlarge the picture
Contents of the user manual for the PocketWizard PlusX Transceiver
- Product category: Radio & Infrared Transmitters PocketWizard
- Brand: PocketWizard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PocketWizard Radio & Infrared Transmitters
 |
User manual for the PocketWizard PlusX Transceiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PocketWizard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PocketWizard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PocketWizard product will considerably shorten its lifespan!
|
Product description PocketWizard Announces the Easy-to-Use Plus X Transceiver Read More zardzvbwcwwwzwdffaybwdfzdxsufbrxvwbt The PocketWizard PlusX Transceiver is a versatile radio trigger that features a wealth of functionality within a simple-to-use and intuitive design. This transceiver offers 10 standard channels from which to use, and navigation between these channels is easily controlled by a backlit channel dial. These 10 channels are fully backward-compatible with all other PocketWizard radios and PocketWizard-enabled devices for maximum efficiency with existing radio setups. Contributing to its functional abilities, the PlusX also features intelligent Auto-Sensing technology, which allows the device to instantly fluctuate between transmitter and receiver duties. Auto-relay is also supported in order to promote a completely remote workflow.
The PlusX design revolves around an internal antenna and side-profile design that contribute to overall durability and a streamlined appearance. This minimal design aesthetic is also benefitted by the simplified connection strategies that allow the radio to be fully functional when attached to a camera's hot shoe, without any cabled connections required. For attaching to remotes and external lights, a 3.5mm miniphone socket is available and three cables are included to offer an array of popular connection types. - 10 Standard Channels
- The PlusX features 10 standard channels for use to provide greater availability when working amongst other photographers or for greater control over complex lighting situations. These channels are compatible with all other PocketWizard of the same frequency.
- Backlit Channel Dial and Status Indicator

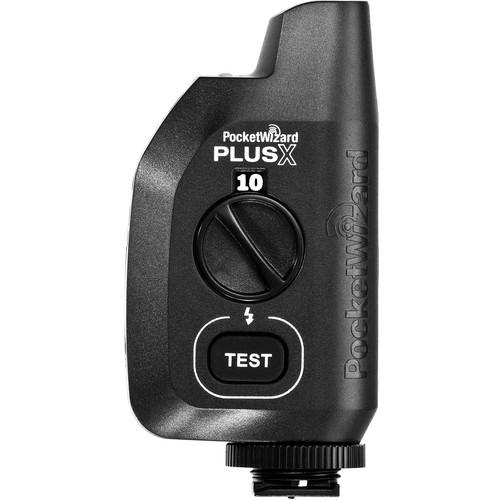

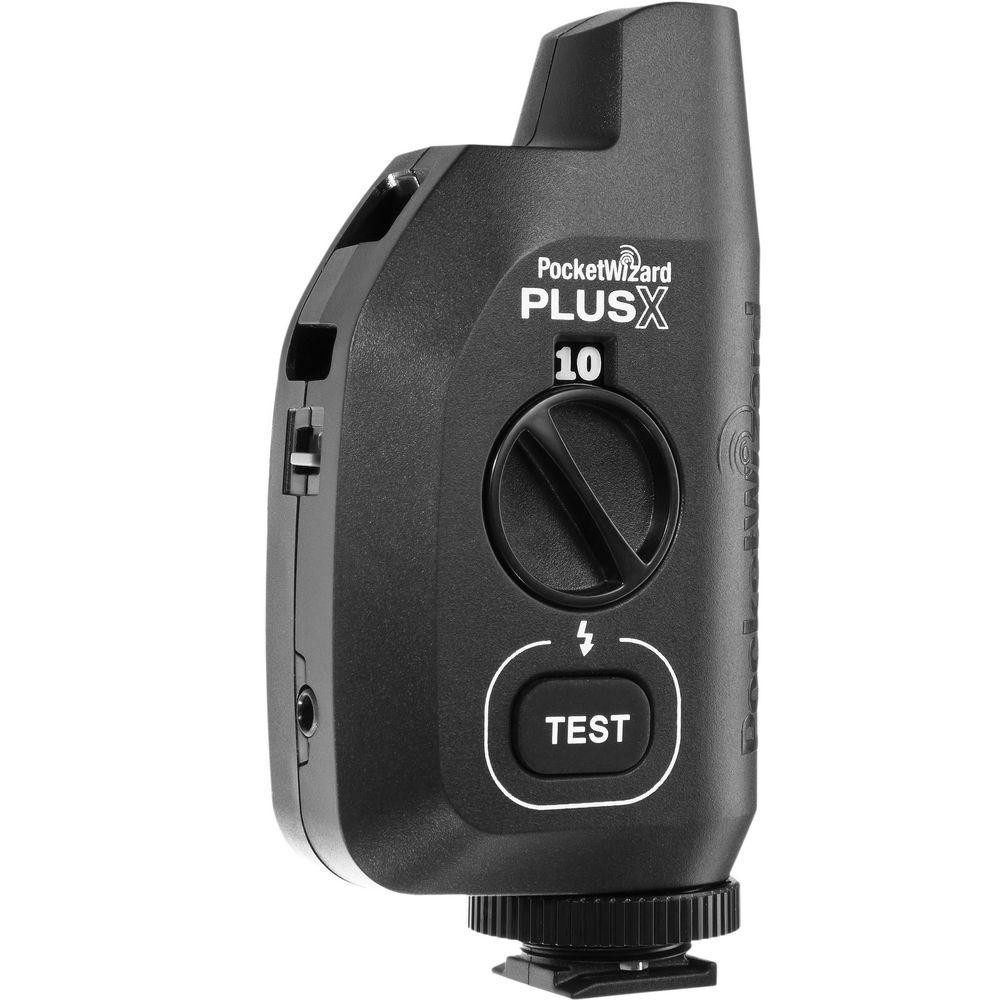

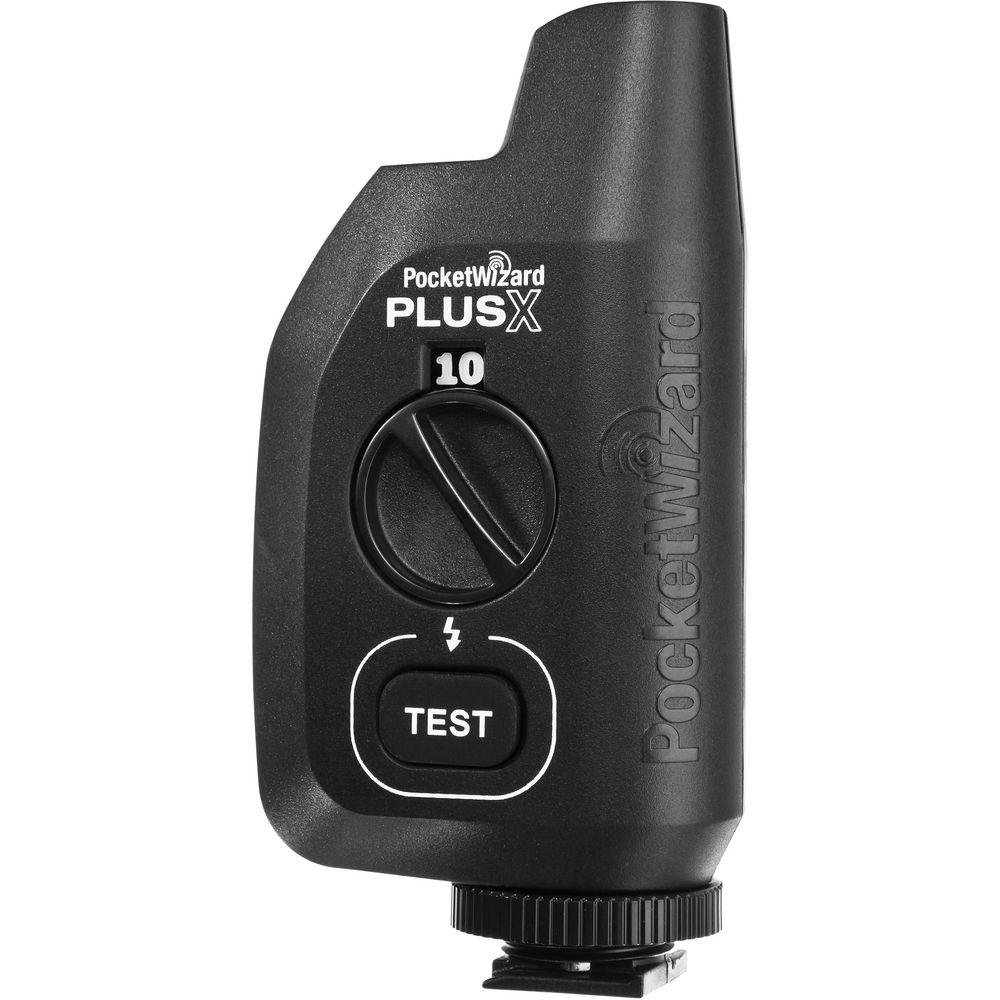

- An analog dial is used to quickly and easily switch between the 10 available channels. A full-time amber backlight is used to illuminate the selected channel for convenience and greater visibility when working in dimly-lit conditions. A tri-color LED is also incorporated into the design and provides a visual means for gauging the PlusX battery life when it is sending or receiving a transmission.
- Internal Antenna
- The internal antenna provides greater durability and eliminates the possibility or bending or breaking it during use. It also produces a more streamlined appearance when in use, and corresponds well to the side-profile design to create an overall visually unobtrusive look.
- Simplified Connectivity

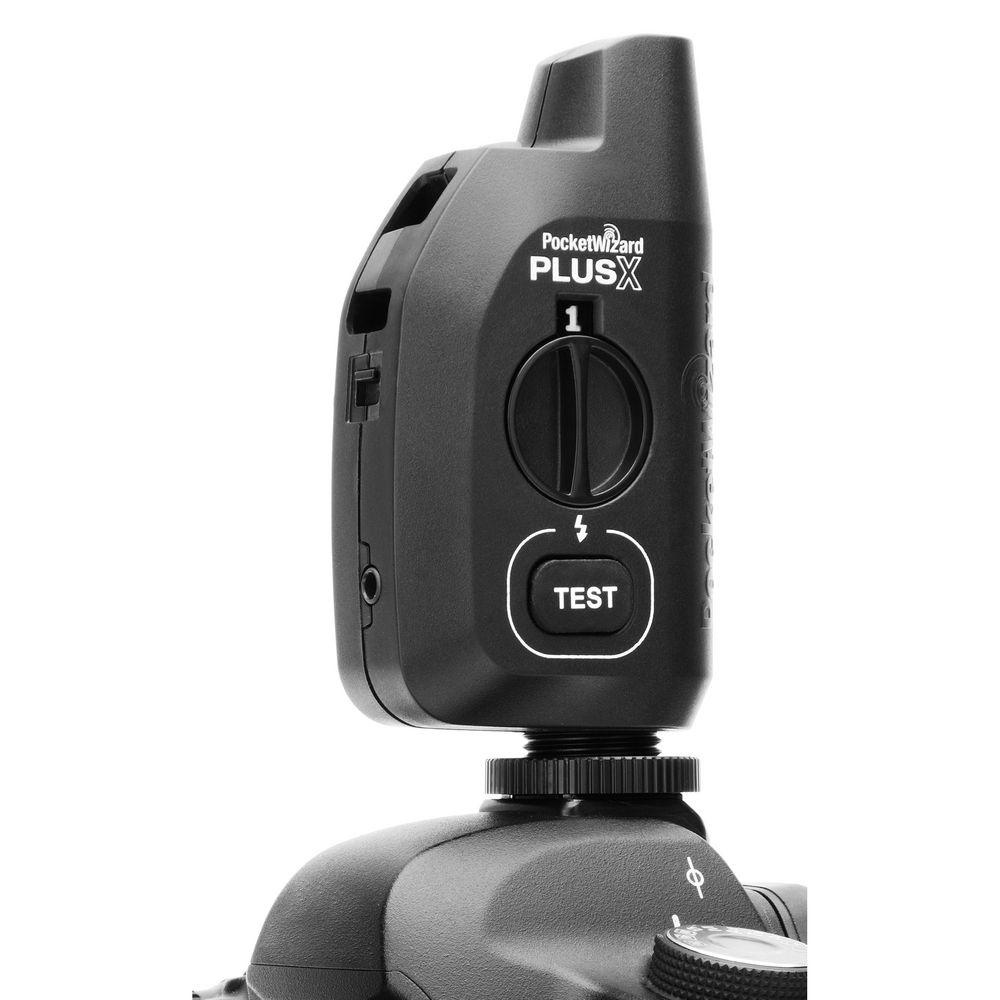

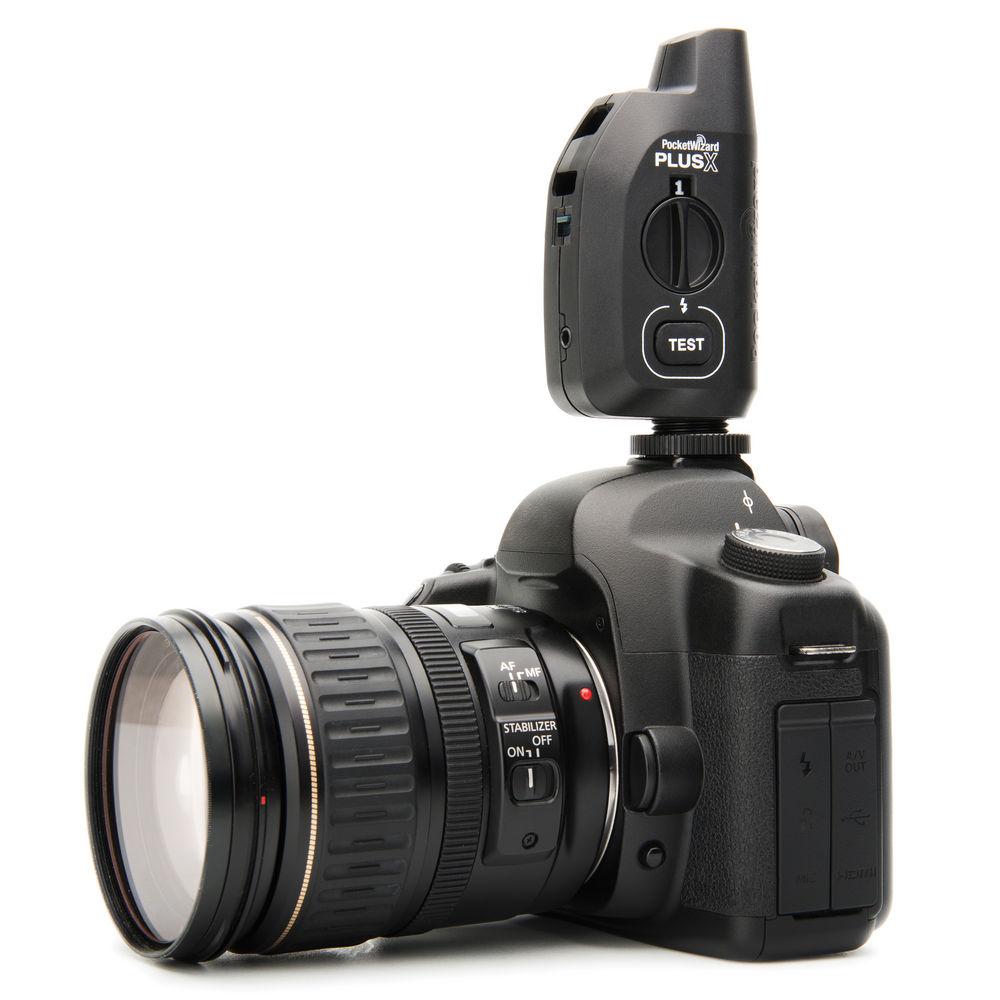

- The transceiver is easily attached to most cameras through the hot shoe, with no extraneous cables required. For attaching to remotes and lights, there is an all-in-one sync port for wide compatibility. Cables are included for attaching from miniphone-to-miniphone, miniphone-to-phono, and miniphone-to-PC sync for cameras without a hot shoe. It is also compatible with all PocketWizard transmitters and receivers (of the same frequency) as well as PocketWizard-enabled lighting and metering equipment.
- Auto-Sensing Transceiver
- The PlusX is automatically set to intelligently and instantly switch between transmitter and receiver modes for the greatest amount of flexibility. You can also manually override this function and choose to have it act as a dedicated transmitter only, which will cancel its ability to receive or relay signals.
- Auto-Relay Mode
- When using three PocketWizard radios, you can remotely trigger a camera to fire and trigger a flash simultaneously. Utilizing the Auto-Sensing technology, the transceiver mounted to the camera can instantly receive a signal from an auxiliary transceiver, and then instantly convey the transmission to a remote flash. This provides a simple and highly efficient remote workflow.
- Range and Sync Speed
- When used in ideal conditions, this transceiver is capable of producing and receiving a signal up to 1600' away. It supports sync speeds up to 1/250 sec. with focal plane shutters and 1/500 sec. with leaf shutters with a maximum triggering speed up to 14.5fps.
- Important Information
-
- Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
- Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
- USA and Euro models cannot converse with each other
- USA models may interfere with devices in Europe

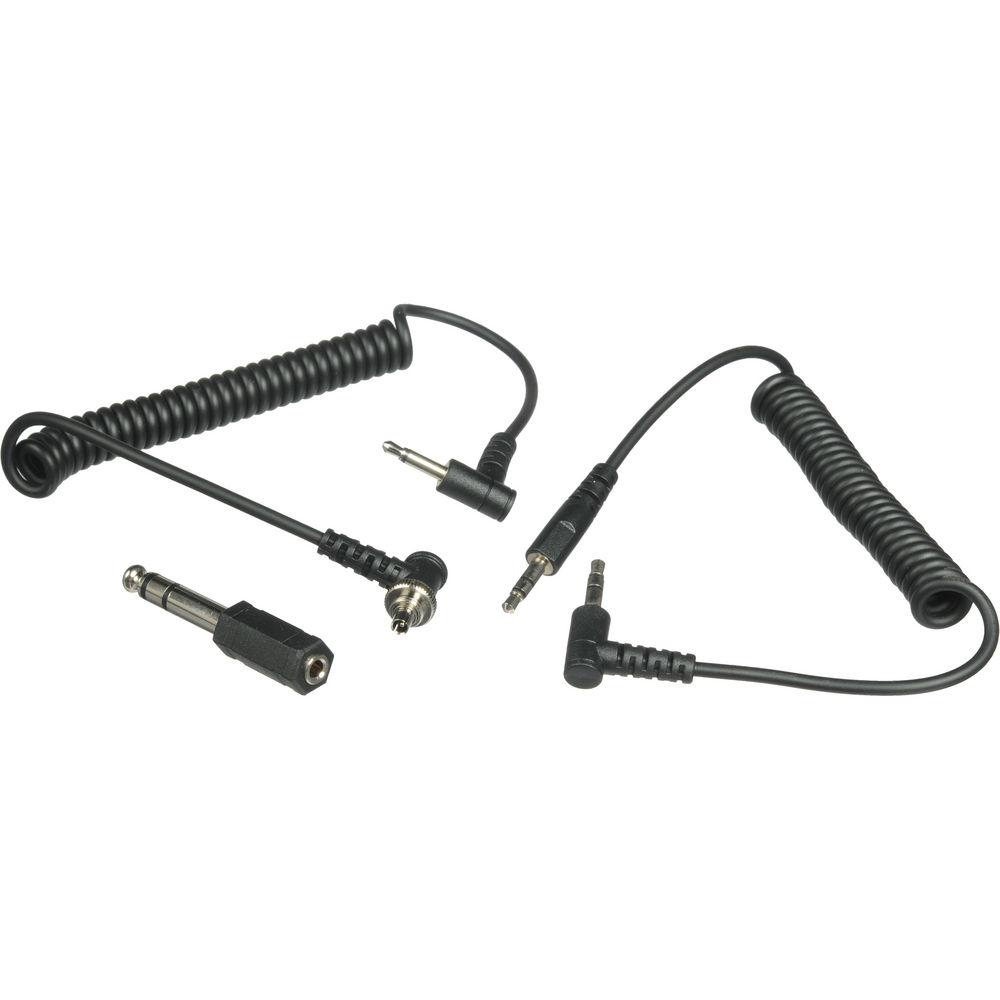

UPC: 893577001958 In the Box PocketWizard PlusX Transceiver Stereo 3.5mm Miniphone-to-Miniphone Cable Mono 3.5mm Miniphone-to-Locking PC Cable Stereo 3.5mm Miniphone-to-1/4" Adapter Lanyard Limited 1-Year Warranty Quick start Guide PDF 1.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the PocketWizard PlusX Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPocketWizard PlusX Specs | | | Channels | 10 | | Groups | 1 | | Wireless Range | 1600' / 487.7 m | | Radio Frequency | 344 MHz | | | | Flash Interval | 14.5 Flashes per Sec | | Sync Speed | 1/250 Sec (Normal)
1/500 Sec (Leaf) | | | | Bottom Mount | Hot Foot (Locking)
1/4"-20 Thread | | | | Battery Type | 2 x AA | | Sync Voltage | 300 V | | | | Operating Temperature | 5 to 120°F / -15 to 49°C | | Storage Temperature | -22 to 185°F / -30 to 85°C | | | | Dimensions | 4.2 x 2.1 x 1.2" / 10.7 x 5.3 x 3 cm (Transmitter) | | Weight | 3.9 oz / 110.5 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 5.2 x 4.1 x 1.8" |
