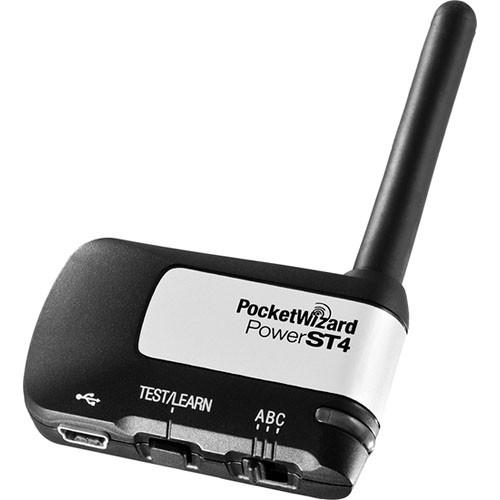

User Manual for PocketWizard PowerST4 Receiver for Elinchrom RX Click to enlarge the picture
Contents of the user manual for the PocketWizard PowerST4 Receiver for Elinchrom RX
- Product category: Radio & Infrared Transmitters PocketWizard
- Brand: PocketWizard
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PocketWizard Radio & Infrared Transmitters
|
User manual for the PocketWizard PowerST4 Receiver for Elinchrom RX contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PocketWizard product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PocketWizard user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PocketWizard product will considerably shorten its lifespan!
|
Product description Using the PocketWizard PowerST4 Receiver for Elinchrom RX can give you near-total remote control over all your Elinchrom RX strobes--with either the MiniTT1 Transmitter or FlexTT5 Transceiver (both optional, use of one is required) on your camera and a PowerST4 plugged into your Elinchrom RX flash, you can now change flash power settings directly from your camera position. Use the PowerTracking function and when you change ISO or aperture, the lights automatically adjust their power setting. By adding the optional AC3 ZoneController, you can control three different zones of lights in 1/3-stop increments with up to a six-stop range. HyperSync gives you the ability to sync at up to 1/8000s at full power (depending on your flash and camera). Total control (over your lights, anyway) is yours! Important Information: Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32 • Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32 • USA and Euro models cannot converse with each other • USA models may interfere with devices in Europe - ControlTL
- PocketWizard's new firmware platform taps into the full potential of your camera and flash system enabling an entirely new level of remote flash capability through our proven radio communications. ControlTL firmware is configurable and upgradeable for "future-proof" continuous improvement.
- Manual Power Control
- When the PowerST4 is paired with either the MiniTT1 or FlexTT5 (both optional) on camera, you can adjust the power settings of your Elinchrom RX lights from the camera's position either with the Flash Exposure Compensation dial or add the (optional) AC3 ZoneController for three zones of power control.
- ZoneControl
- Use either the AC3 ZoneController or a MultiMAX radio (both optional) to control up to three zones of light with as many lights in each zone as you want. Use the A-B-C zone switch on the PowerST4 to assign the zone.
- PowerTracking
- Any change in ISO or aperture is automatically compensated for in your flash power settings. Set your (optional) AC3 ZoneController to manual and PowerTracking is turned off for absolute manual control.
- Channels/Learn Mode:
- The PowerST4 can be programmed as needed with up to 20 ControlTL channels for Manual Power Control, or 32 standard channels for simple triggering. Channels can be configured with the PocketWizard Utility (free downloadable software), the Learn function from another PocketWizard radio, or the reset function to configure back to factory settings.
- Reverse Compatible
- The PowerST4 Receiver operates on the same channels as all other PocketWizard radios and will work with any PocketWizard radio you may already have.
- Low-Profile Design
- The PowerST4 is tiny and simply plugs into the remote socket on an Elinchrom RX flash. Note: Ranger RX requires EL-19374 EL Skyport Transceiver RX Adapter.
- No Batteries Required
- The PowerST4 gets its power from the flash.
- HyperSync
- HyperSync allows photographers to achieve faster X-sync speeds, all the way up to 1/8000 second*, will full power flash. Now you can cut the ambient light and use wide-open apertures, outdoors in bright sunlight. That extra speed can also freeze action, whether shooting models or athletes in motion. HyperSync works with both TTL speedlites and full size studio flash. All you need is a MiniTT1 or FlexTT5 (both optional) on-camera that has been tuned to your specific camera via the PocketWizard Utility. (*camera and flash model dependent)
- Programmable and Upgradeable
- Use the PocketWizard Utility with the PowerST4's USB port to program the receiver to any PocketWizard channel and zone. You can also program your initial power settings, modeling light settings and beeper settings using the Utility. The PowerST4 can be easily upgraded whenever updates and feature enhancements are available.
- Important Information
- Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
USA and Euro models cannot converse with each other
USA models may interfere with devices in Europe UPC: 893577001675 In the Box PocketWizard PowerST4 Receiver for Elinchrom RX Quick Guide Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PocketWizard PowerST4 Receiver for Elinchrom RX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPocketWizard PowerST4 Specs | | | Channels | 52.0 | | Radio Frequency | 340 to 354 MHz | | | | Operating Temperature | 5 to 120°F / -15 to 49°C | | Storage Temperature | 22 to 185°F / -6 to 85°C | | | | Dimensions | 3.6 x 2.2 x 1" / 9.2 x 5.5 x 2.5 cm (Receiver) | | Weight | 0.77 oz / 21.83 g | | | | Package Weight | 0.13 lb | | Box Dimensions (LxWxH) | 5.4 x 5.4 x 2.1" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
